The SANY SY135C is a 14.87-tonne hydraulic crawler excavator built around an ISUZU 4JJ-FT4 turbo diesel delivering 78.5 kW (105 HP) at 2,000 rpm. A positive-flow hydraulic system with variable-capacity piston pumps (220 L/min) drives a 93 kN bucket digging force and a 66 kN arm digging force. With a maximum digging depth of 5,500 mm, a reach of 8,290 mm, and a dumping height of 6,175 mm, it handles foundation, utility, landscaping, and general earthmoving with ease.

Excavator SANY

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Crawler Excavator
SANY — SY135C

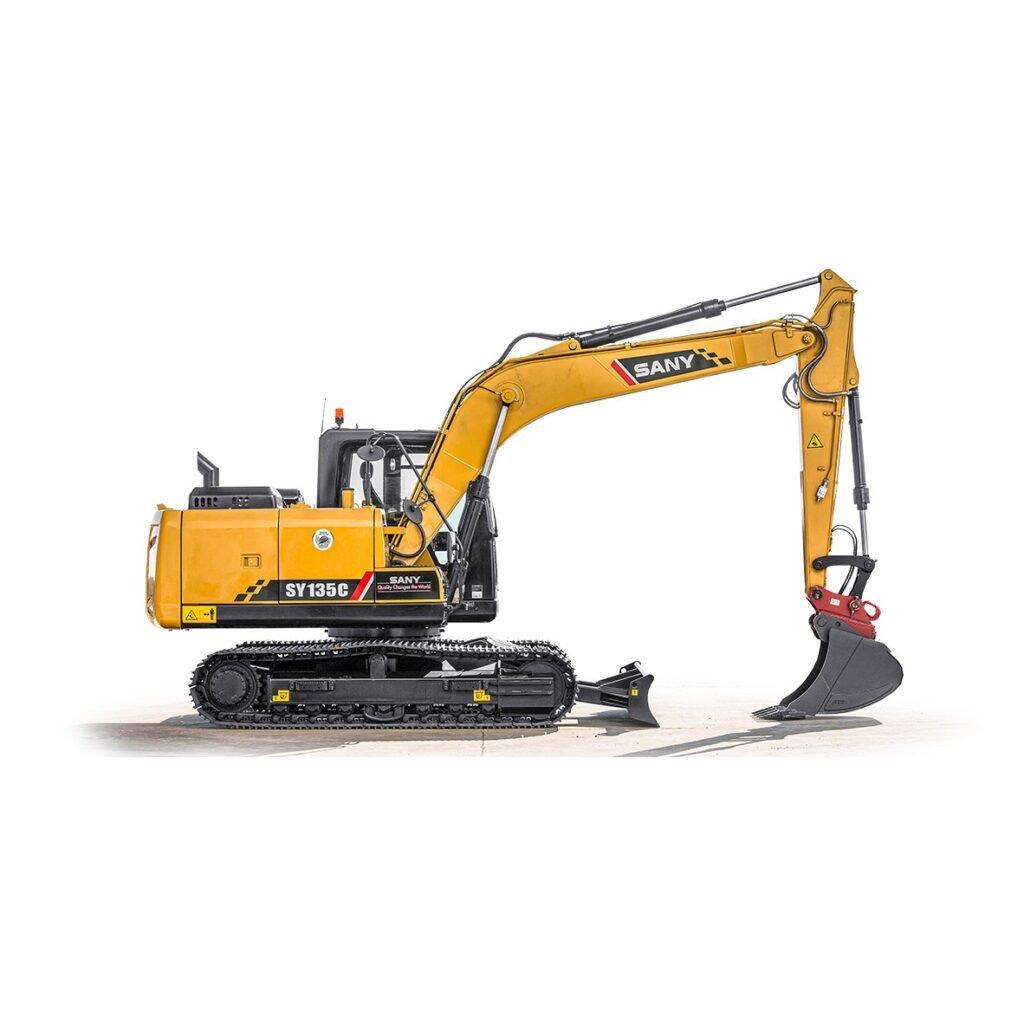

SANY SY135C Hydraulic Crawler Excavator

The SANY SY135C is a 14.87-tonne crawler excavator powered by an ISUZU 4JJ-FT4 turbo diesel engine delivering 78.5 kW (105 HP). Equipped with a positive-flow hydraulic system, 0.52 m³ bucket, 93 kN bucket digging force, and reinforced undercarriage, it is built for utility, landscaping, foundation, and general earthmoving work. Three selectable working modes, simplified service access, and low 39 kPa ground pressure make it equally effective on hard ground and soft terrain. CE and ISO certified, ready for export worldwide.

Basic Information

Model	SANY SY135C
Operating Weight	14,870 kg
Ground Pressure	39 kPa
Transport Dimensions (L×W×H)	7700 × 2650 × 2815 mm
Upperstructure Width	2490 mm
Tail Swing Radius	2205 mm
Min. Ground Clearance	425 mm
Boom / Arm Length	4600 mm / 2500 mm
Certification	CE / ISO
Emission Standard	EU Stage IIIA / China Phase III

Engine & Powertrain

Engine Model	ISUZU 4JJ-FT4
Engine Type	4-cylinder inline, 4-stroke, turbo diesel, water-cooled
Rated Power	78.5 kW (105 HP) @ 2000 rpm
Displacement	2.9 L
Max. Torque	375 N·m @ 1800 rpm
Fuel Tank Capacity	240 L
Engine Coolant	22 L
Engine Oil	13 L

Hydraulic System

System Type	Positive flow system
Working Modes	3 selectable
Main Pump Type	Variable-capacity piston pumps
Max. Flow	220 L/min
Implement Relief Valve	31.4 MPa
Travel Relief Valve	31.4 MPa
Swing Relief Valve	25.4 MPa
Heavy Lift Circuit	34.3 MPa
Pilot Circuit	3.9 MPa
Travel Motors	2 × axial piston motor with parking brake
Swing Motor	1 × axial piston motor with swing holding brake
Hydraulic Oil Tank	150 L

Cylinders & Drive Train

Boom Cylinder	105 × 990 mm
Arm Cylinder	115 × 1175 mm
Bucket Cylinder	100 × 885 mm
Blade Cylinder	130 × 145 mm
Swing Drive Capacity	3 L
Final Drive Capacity (each)	2.6 L

Performance & Working Range

Max. Digging Height	8645 mm
Max. Dumping Height	6175 mm
Max. Digging Depth	5500 mm
Max. Vertical Digging Depth	4850 mm
Max. Digging Reach	8290 mm
Min. Swing Radius	2500 mm
Height at Min. Swing Radius	6500 mm
Bucket Digging Force	93 kN
Arm Digging Force	66 kN
Max. Traction Force	110 kN
Travel Speed (Low / High)	5.5 / 3.5 km/h
Swing Speed	12 rpm
Gradeability	35° (70%)

Undercarriage & Blade

Track Shoe Width	600 mm (triple grouser)
Track Shoes (per side)	44
Carrier Rollers (per side)	1
Track Rollers (per side)	7
Track Gauge	1990 mm
Tumbler Center Distance	2930 mm
Overall Crawler Length	3665 mm
Counterweight Clearance	870 mm
Dozer Blade Height	480 mm
Max. Blade Clearance (Up)	490 mm
Max. Blade Depth (Down)	320 mm
