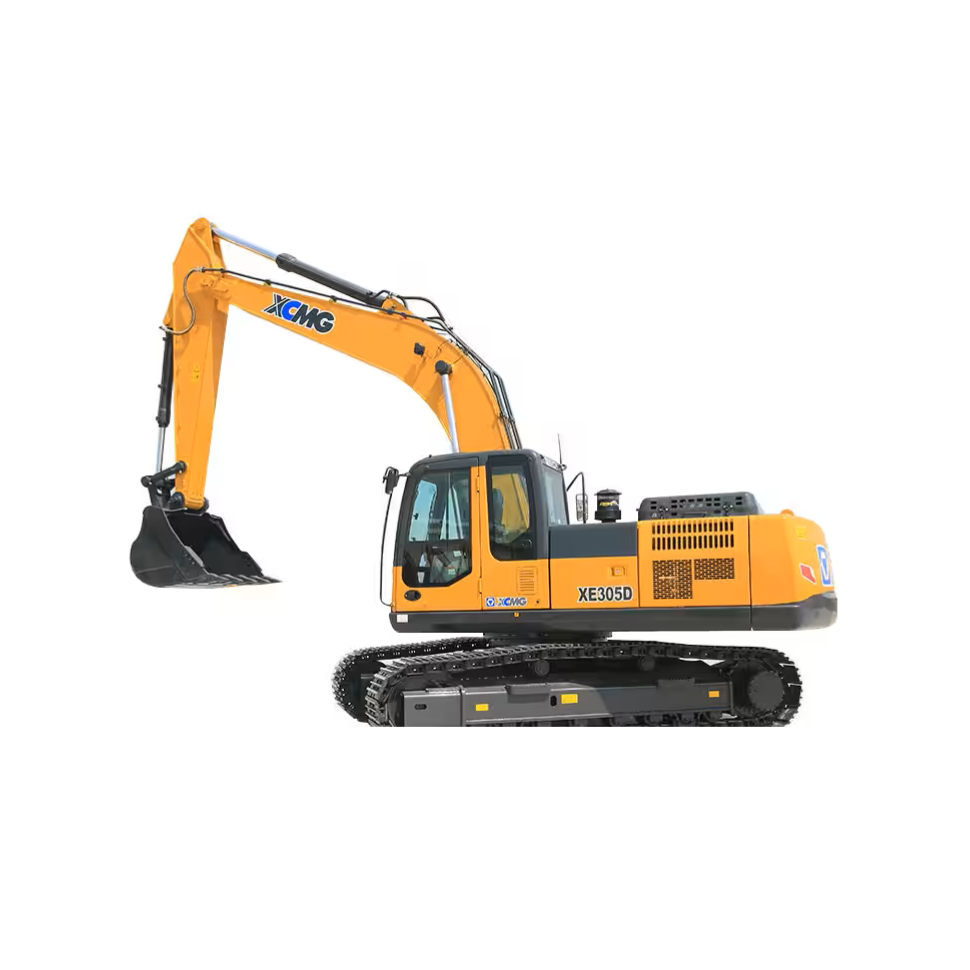

30 ton XCMG Crawler Hydraulic Excavator XE305D

XCMG XE305D 30 Ton Crawler Hydraulic Excavator — 169kW Cummins Engine

Name: XCMG XE305D 30 Ton Crawler Hydraulic Excavator — 169kW Cummins Engine
SKU: SKU-481

The XCMG XE305D is a 30-ton crawler hydraulic excavator powered by a Cummins QSB7 169kW engine and Kawasaki main pump. It delivers 198kN bucket digging force and 138kN arm digging force, with a maximum digging depth of 7,200mm. ROPS/FOPS cab, plateau mode for high-altitude operation, and intelligent work tool control system make it ideal for heavy-duty construction and mining.

Excavator XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Crawler Excavator
XCMG — 30 Ton Class

XCMG XE305D 30 Ton Crawler Hydraulic Excavator

The XCMG XE305D is a heavy-duty 30-ton crawler excavator engineered for maximum productivity in mining, quarrying, and large-scale earthmoving operations. Powered by a Cummins QSB7 169kW three-stage engine and equipped with a Japan Kawasaki main pump, it delivers exceptional fuel efficiency, reliability, and hydraulic precision. With a 32.5-ton operating weight, 198kN bucket digging force, and intelligent work tool control system, the XE305D handles everything from trenching to demolition with ease.

Basic Information

Excavator Brand	XCMG — XE305D
Operating Weight	32,500 kg (32.5 tons)
Bucket Capacity	1.27–1.6 m³ (standard 1.4 m³)
Engine Brand	Cummins — QSB7
Application	Mining, quarrying, earthmoving, demolition, infrastructure construction

Engine & Powertrain

Engine Model	Cummins QSB7
Rated Power	169 kW (226 HP) @ 2,050 rpm
Max Torque	895 N·m @ 1,250 rpm
Displacement	6.7 L — 6-cylinder inline
Injection System	Electronic fuel injection
Cooling System	Water cooling with turbo-charging
Stroke Cycle	Four strokes
Engine Oil Capacity	20 L

Hydraulic System

Main Pump	Japan Kawasaki — high efficiency, reduced leakage
Rated Flow (Main Pump)	2 × 259 L/min
Main Valve	Efficiency main valve — increases overflow pressure, reduces pressure loss
Travel System Pressure	34.3 MPa
Swing System Pressure	30 MPa
Pilot System Pressure	3.9 MPa
Hydraulic Tank Capacity	270 L

Main Performance

Travel Speed (High/Low)	5.2 / 3.1 km/h
Swing Speed	9.8 r/min
Gradeability	35°
Ground Pressure	56.4 kPa
Bucket Digging Force	198 kN
Arm Digging Force	138 kN
Maximum Tractive Force	252 kN

Dimensions & Appearance

Overall Length	10,645 mm
Overall Width	3,190 mm
Overall Height	3,410 mm
Platform Width	3,050 mm
Total Chassis Width	3,190 mm
Track Shoe Width	600 mm
Wheel Base (Crawler)	4,028 mm
Track Gauge	2,590 mm
Counterweight Clearance	1,198 mm
Min. Ground Clearance	538 mm

Working Range

Max. Digging Height	10,146 mm
Max. Dumping Height	7,180 mm
Max. Digging Depth	7,200 mm
Max. Vertical Wall Digging Depth	5,190 mm
Max. Digging Radius	10,665 mm
Min. Swing Radius	3,076 mm

Standard Boom & Arm

Boom Length	6,200 mm
Arm Length	3,110 mm
Bucket Capacity (Standard)	1.4 m³

Oil Capacity

Fuel Tank Capacity	520 L
Hydraulic Tank Capacity	270 L
Engine Oil Capacity	20 L

Key Features

✓ Cummins QSB7 169kW engine — fuel-efficient 3-stage power
✓ Japan Kawasaki main pump — high efficiency, reduced leakage
✓ 198 kN bucket digging force — handles tough materials with ease
✓ 7,200 mm max digging depth — deep excavation capability
✓ Intelligent work tool control — multi-function for digging, breaking, dismantling

✓ Plateau mode — optimized for high-altitude operation
✓ ROPS/FOPS certified cab — maximum operator safety
✓ Air-suspending heated seat — reduces operator fatigue
✓ Large display & integrated controls — intuitive operation
✓ Silicone rubber shock absorbers — superior vibration dampening

Need a 30-ton excavator for your next project?

The XCMG XE305D is ready for mining, quarrying, and heavy construction. Custom boom/arm configurations and work tools available. Factory-direct pricing with pre-shipment inspection and worldwide DDP delivery.
