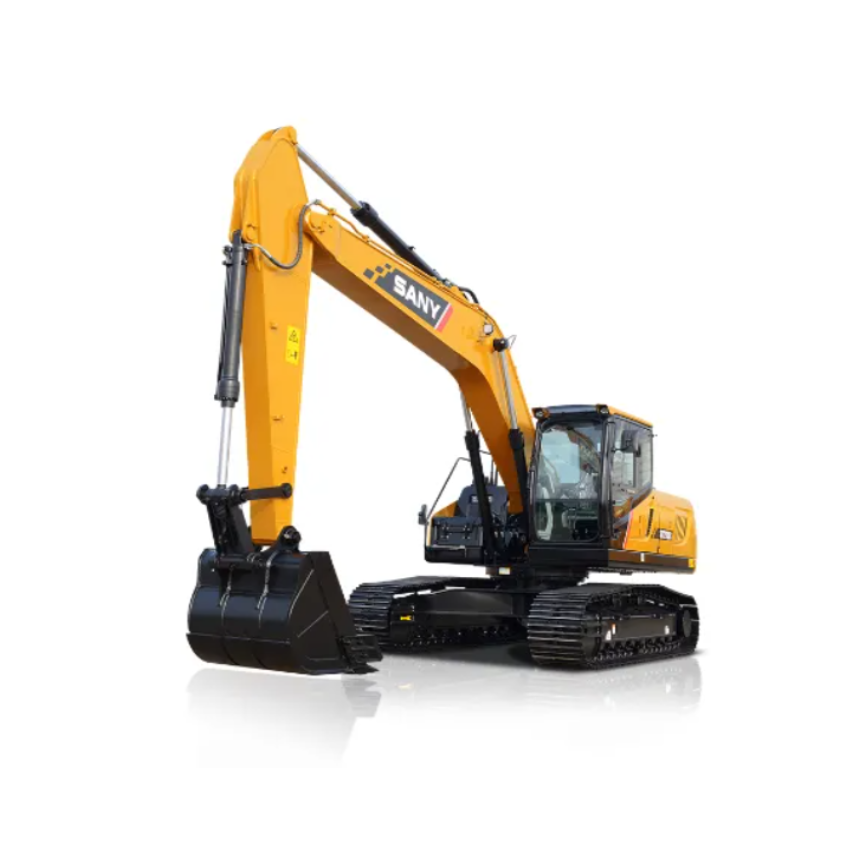

SANY SY215C Hydraulic Excavator for Sale — 21.9T, 118kW, 0.93 m³

Name: SANY SY215C Hydraulic Excavator for Sale — 21.9T, 118kW, 0.93 m³
SKU: SKU-467

The SANY SY215C is a 21.9-tonne hydraulic crawler excavator powered by a 118 kW 4M50 high-pressure common rail engine. It delivers 138–148 kN bucket digging force and 103–107 kN arm force, with a maximum digging depth of 6600 mm and reach of 10280 mm. Featuring super long service life structural members, NAS7 hydraulic cleanliness, and maintenance cost reduction of 50%, this machine is built for heavy-duty earthwork in mining, construction, and infrastructure projects. CE certified and export-ready.

Excavator SANY

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Crawler Excavator
SANY — Classic Series

SANY SY215C Hydraulic Excavator

The SANY SY215C is a new-generation 21.9-tonne super hydraulic excavator designed for heavy-duty earthwork. Powered by a 118 kW 4M50 high-pressure common rail engine with water-cooled EGR and 4-valve structure, it delivers exceptional fuel efficiency with over 8% improvement and 10% lower consumption. With a 0.93 m³ reinforced bucket, 6600 mm digging depth, and 10280 mm reach, this machine handles demanding mining and construction tasks with ease. Featuring doubled service life for structural members, NAS7 hydraulic cleanliness, and 50% reduced maintenance costs, the SY215C is the value leader for export markets. CE certified.

Basic Information

Model	SY215C
Operating Weight	21,900 kg
Bucket Capacity	0.93 m³ (options: 0.35–1.2 m³)
Overall Dimensions (L×W×H)	9,680 × 2,980 × 3,440 mm (transport)
Track Shoe Width	600 mm (standard)
Ground Pressure	47.4 / 45.9 kPa
Gradeability	70% (35°)
Certification	CE Certified

Engine & Powertrain

Engine Model	Mitsubishi 4M50 (4-cylinder, 4-stroke, water-cooled)
Fuel System	High-pressure common rail electronic controlled fuel injection
Rated Power	118 kW @ 2,000 rpm
Max Torque	580 N·m @ 1,600 rpm
Displacement	4.9 L
Valve Structure	4-valve (increases air cylinder suction volume)
Emission Control	Water-cooled EGR (reduces exhaust emission and fuel consumption)
Fuel Tank Capacity	340 L
Efficiency Improvement	Over 8% efficiency improvement, over 10% fuel consumption reduction

Hydraulic System

Hydraulic Oil Capacity	239 L
Hydraulic Cleanliness	NAS7 (exceeds competitor brands and industrial standard)
Main Pump	Customized parallel pump (10% power output increase vs traditional tandem pumps)
Main Valve	High reliability, low pressure loss, high flow distribution efficiency
Control System	Operating mode selector switch, control valve with main overflow valve
Filter System	Large-capacity multi-stage filter (fine filter ≥99.9%@4μm, coarse filter 99%@5μm)

Working Performance

Digging Force (Bucket)	138 kN / 148 kN (turbocharged in two times)
Digging Force (Arm)	103 kN / 107 kN
Max Digging Depth	6,600 mm
Max Digging Height	9,600 mm
Max Unloading Height	6,730 mm
Max Digging Distance	10,280 mm
Min Slewing Radius	3,730 mm
Slewing Speed	11 rpm

Undercarriage & Travel

Travel Speed (High/Low)	5.4 / 3.3 km/h
Number of Track Shoes	47
Carrier Wheels (each side)	2
Thrust Wheels (each side)	8
Track Gauge	2,380 mm
Ground Contact Length	3,445 mm
Min Ground Clearance	440 mm
Slewing Radius of Tail	2,900 mm

Cab & Comfort

Cab Structure	Sound-proof steel-structure cab with reinforced light-color glass window
Air Conditioning	Dual-purpose air conditioner with fully-automatic A/C
Operator Seat	Adjustable tilting seat with adjustable armrest
Entertainment	AM-FM radio with digital clock (as gift)
Safety Features	Seat belt, fire extinguisher (gift), emergency exit on rear window
Visibility	Wiper with washer (inside), rearview mirror (right side)

Why Choose SANY SY215C

🛡️ Super Long Service Life Five major structural members (boom, arm, platform, undercarriage) with doubled service life vs previous generation. Design life exceeds 15,000h.	⚡ Premium Power System Mitsubishi 4M50 engine with common rail + water-cooled EGR delivers 118 kW with 8%+ efficiency and 10%- lower fuel consumption.	🔧 Low Maintenance Cost Maintenance cost reduced by 50%, interval extended by 1 time. Maintenance space increased by 20-30% for easier service access.
💧 Clean Hydraulic System NAS7 hydraulic cleanliness exceeds competitor brands and industrial standards. Large-capacity multi-stage filter handles poor fuel quality.	🎨 Corrosion-Resistant Coating High corrosion-resistant coating with 50% longer paint life. Humidity resistance 960h, weathering 2000h, salt spray 1000h.	🔩 Versatile Attachments Over 20 kinds of special working devices including quartering hammer, scarifier, extension boom. Multiple boom/arm/bucket configurations.

Optional Working Device Configurations

Component	Option 1	Option 2	Option 3
Boom Length	5.7 m	8.5 m	—
Bucket Rod Length	2.9 m	2.4 m	6.02 m
Bucket Capacity	0.35 / 0.9 / 1.0 m³	0.93 m³ (standard)	1.2 m³
