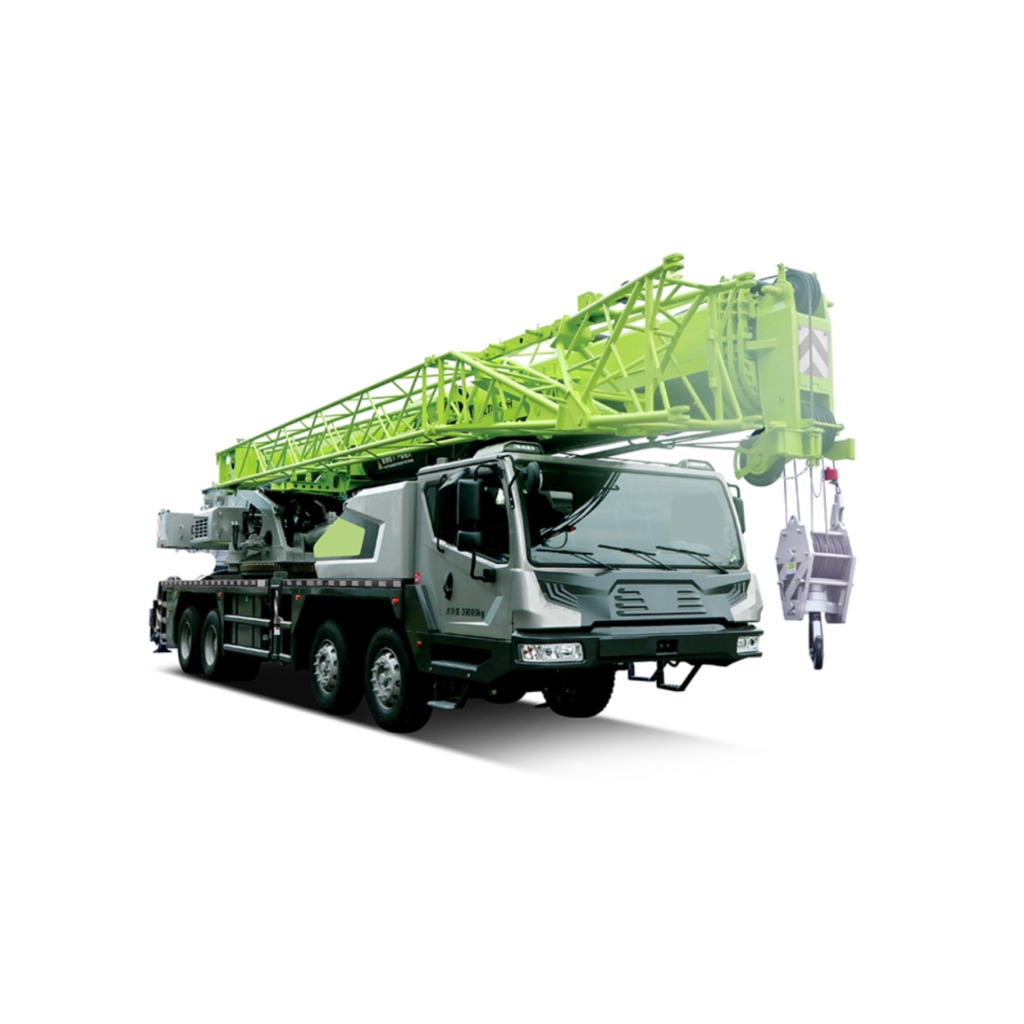

ZOOMLION ZTC800V Hydraulic Truck Crane

Name: ZOOMLION ZTC800V Hydraulic Truck Crane
SKU: SKU-385

The ZOOMLION ZTC800V is a highly popular 80-ton hydraulic truck crane engineered to cater to various heavy construction and industrial lifting needs. According to image_ea538e.png, this robust mobile crane features a maximum rated lifting capacity of 80,000 kg and an expansive 47.7-meter main boom, extending up to 63.8 meters with the jib. Built for strong on-site mobility, the ZTC800V delivers a maximum driving speed of 85 km/h, 46% gradeability, and a highly stable chassis design with overall dimensions of 14,500 × 2,800 × 3,850 mm.

ZOOMLION

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Hydraulic Truck Crane
ZOOMLION — High-Capacity Fleet

ZOOMLION ZTC800V Hydraulic Truck Crane (80 Tons)

The ZOOMLION ZTC800V is a premier, highly popular 80-ton hydraulic truck crane specifically engineered to meet heavy-duty lifting challenges across various construction sectors[cite: 1]. Built with high-strength structures and advanced engineering intelligence, this model balances an exceptional lifting capacity of 80,000 kg with an optimized footprint for outstanding agility on global jobsites[cite: 1]. From its powerful driving parameters featuring 46% gradeability to its flexible boom configurations reaching up to 63.8 meters, the ZTC800V ensures smooth handling, rapid deployment, and impeccable service longevity.

Premium Lifting Performance & Value

We offer a comprehensive range of genuine Zoomlion cranes for sale, providing competitive pricing and flawless export coordination to support your fleet development. The Zoomlion ZTC800V stands out as an elite choice for contractors due to several manufacturing benchmarks[:

Superior Lifting Reach: Boasts a main boom length up to 47.7m and maximum jib height of 63.8m for versatile high-altitude positioning.
Advanced Speed Control: Features load-sensing winches capable of reaching 125 m/min line speed for efficient handling cycles.
Robust Driving Stability: Equipped with heavy-duty multi-axle steering that manages a 46,000 kg deadweight seamlessly across uneven terrains.

Intelligent Safety Systems: Provides robust load moment monitors and anti-deflection structural parameters to protect site crews.
Optimized Dimensions: Standardized outrigger spacing allows secure, rapid setup in both tight industrial spaces and wide jobsites.
Global Crane Reputation: A proven best-seller recognized worldwide for high mechanical reliability and low maintenance costs.

Working Performance Specifications

Max. Rated Lifting Capacity	80,000 kg (80 Tons)
Max. Load Moment of Basic Boom	2,646 kN.m
Max. Load Moment of Main Boom (Fully Extended)	1,288 kN.m
Max. Lifting Height of Main Boom	47.7 m
Max. Lifting Height of Jib	63.8 m

Working Operating Speeds

Max. Hoist Rope Speed (Main Winch)	125 m/min (At 4th layer)
Max. Hoist Rope Speed (Auxiliary Winch)	110 m/min (At 2nd layer)
Boom Demerricking Up Time	55 s
Boom Telescoping Out Time	120 s
Slewing Speed	1.7 r/min

Driving & Transit Mobility Parameters

Max. Driving Speed	85 km/h
Max. Gradeability	46%
Min. Turning Diameter	≤ 24 m
Min. Ground Clearance	305 mm
Oil Consumption Per 100 km	45 L

Mass Weight Distribution

Deadweight in Driving Condition	46,000 kg[
Complete Vehicle Kerb Mass	45,805 kg
Front Axle Load	20,000 kg
Rear Axle Load	26,000 kg

Geometric Dimensions & Boom Ranges

Overall Dimensions (L × W × H)	14,500 × 2,800 × 3,850 mm
Longitudinal Distance Between Outriggers	6.05 m
Transversal Distance Between Outriggers	Fully Extended: 7.8 m
Tail Slewing Radius	4,200 mm
Boom Length	12.1 – 47.0 m
Boom Angle	-2° – 80°
Jib Length Options	9.5 m / 16.0 m
Jib Offset Angle	0° / 15° / 30°
