ZOOMLION ZTC300V532 Truck Crane

Name: ZOOMLION ZTC300V532 Truck Crane
SKU: SKU-378

The ZOOMLION ZTC300V532 is a high-performance, cutting-edge 30-ton telescopic truck crane designed for global construction and heavy lifting markets. Built on a specialized 3-axle (6×4 drive) chassis, it features 5 telescopic boom sections integrated with a hydraulic-proportional control system for full-range slewing capabilities. According to image_eab988.png, the crane boasts a maximum rated lifting capacity of 30,000 kg, a max. main boom lifting height of 42.1 m, and reaches up to 50 m with its 8 m jib extension.

ZOOMLION

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Truck Crane
ZOOMLION — Mobile Crane Series

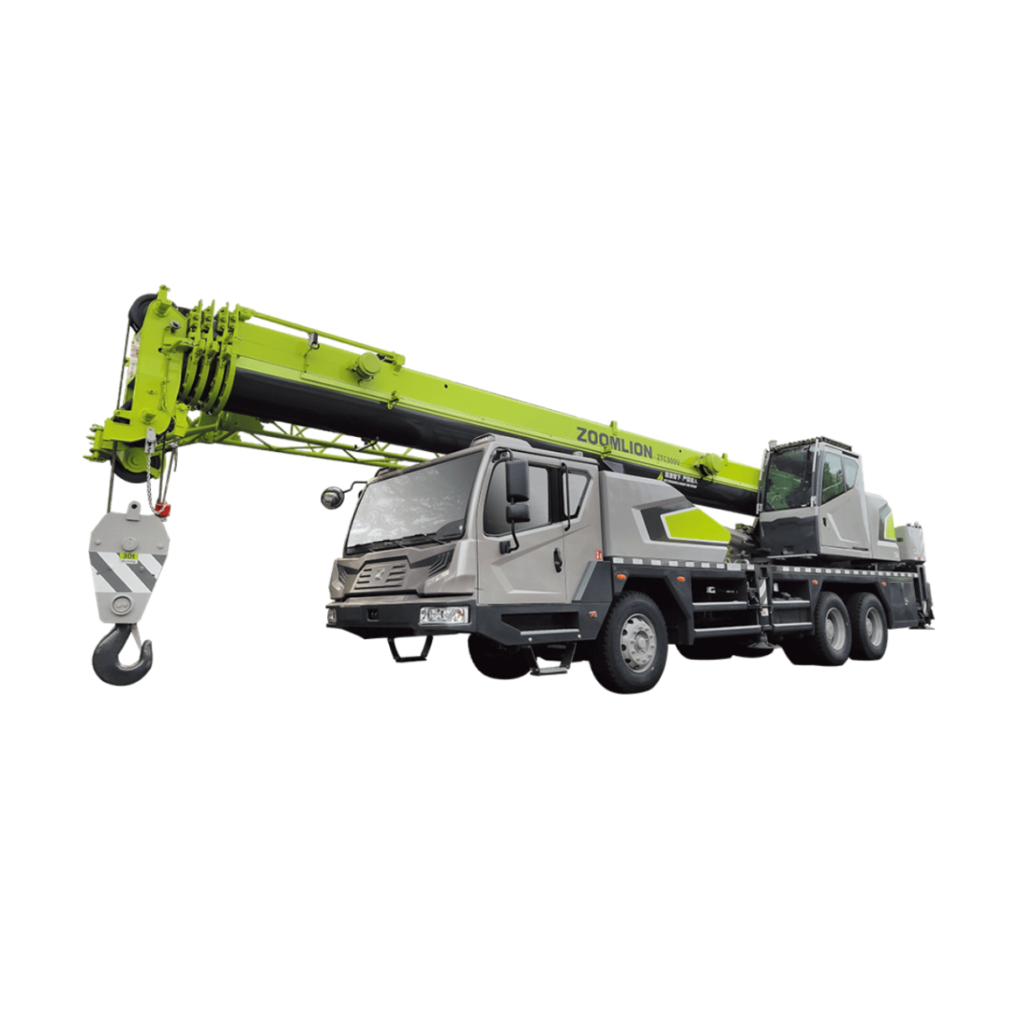

ZOOMLION ZTC300V532 Truck Crane (30 Tons)

The ZOOMLION ZTC300V532 is a cutting-edge 30-ton class truck crane engineered with decades of expertise in mobile crane design and manufacturing[cite: 1]. Tailored meticulously for competitive global markets, this high-performance crane features exceptional lifting height, extended main boom length, and enhanced operational speed[cite: 1]. Integrating 5 telescopic boom sections with a precise hydraulic-proportional control system[cite: 1], the ZTC300V532 provides a continuous full-range slewing capability[cite: 1]. Built on a robust 3-axle (6×4 drive) heavy-duty chassis[cite: 1], it combines superior maneuverability with an ergonomic, wide-view cab design to maximize both operator comfort and job site efficiency[cite: 1].

Working & Lifting Performance

Max. Rated Lifting Capacity	30,000 kg
Max. Load Moment of Basic Boom	990 kN.m
Max. Load Moment of Max. Length Main Boom	624 kN.m
Max. Lifting Height of Basic Boom	11.3 m
Max. Lifting Height of Main Boom	42.1 m (excluding boom deflection)
Max. Lifting Height of Jib	50 m (excluding jib deflection)

Working Mechanisms & Speeds

Max. Hoist Rope Speed (Main Winch)	120 m/min (at 4th layer)
Max. Hoist Rope Speed (Auxiliary Winch)	120 m/min (at 4th layer)
Boom Derricking Up Time	25 s
Boom Telescoping Out Time	84 s
Slewing Speed	0 – 2.7 r/min

Driving Performance & Powertrain Mechanics

Drive Configuration	3-Axle Chassis (6 × 4 Drive)
Max. Operation Altitude	2000 m
Max. Driving Speed	90 km/h
Max. Gradeability	42%
Min. Turning Diameter	≤ 20 m
Min. Ground Clearance	260 mm
Oil Consumption per 100 km	28 L

Machine Weights & Geometrical Footprint

Overall Dimensions (L × W × H)	13150 × 2500 × 3450 mm
Deadweight in Driving Condition	32510 kg
Complete Vehicle Kerb Mass	32380 kg
Front / Rear Axle Load Distribution	Front: 6610 kg / Rear: 25900 kg
Longitudinal Distance Between Outriggers	5.40 m
Transversal Distance Between Outriggers	Fully Extended: 6.2 m / Intermediately Extended: 4.25 m
Main Boom Length / Structural Angle	Length: 10.7 – 42.0 m / Angle: -1° to 80°
Jib Extensions / Jib Offset Options	Jib Length: 8 m / Offset Angles: 0°, 15°, 30°

Advanced Technology & Operational Safety Integrated

High-Efficiency Valves

Equipped with the latest directional control valves[cite: 1], the hydraulic circuits optimize structural fluid transfer, drastically reducing machine energy losses[cite: 1].

Multi-Layer Failure Protection

Integrated premium safety relief valves, balance valves, hydraulic locks, and specialized brake valves successfully eliminate risk of sudden oil line overload[cite: 1].

Intelligent Moment Limiter

A modern built-in load moment limiter ensures reliable tracking of real-time payload stability, supported by comprehensive low-light night visibility systems[cite: 1].
