22 Ton ZOOMLION Excavator ZE215E-10 MEDIUM EXCAVATOR

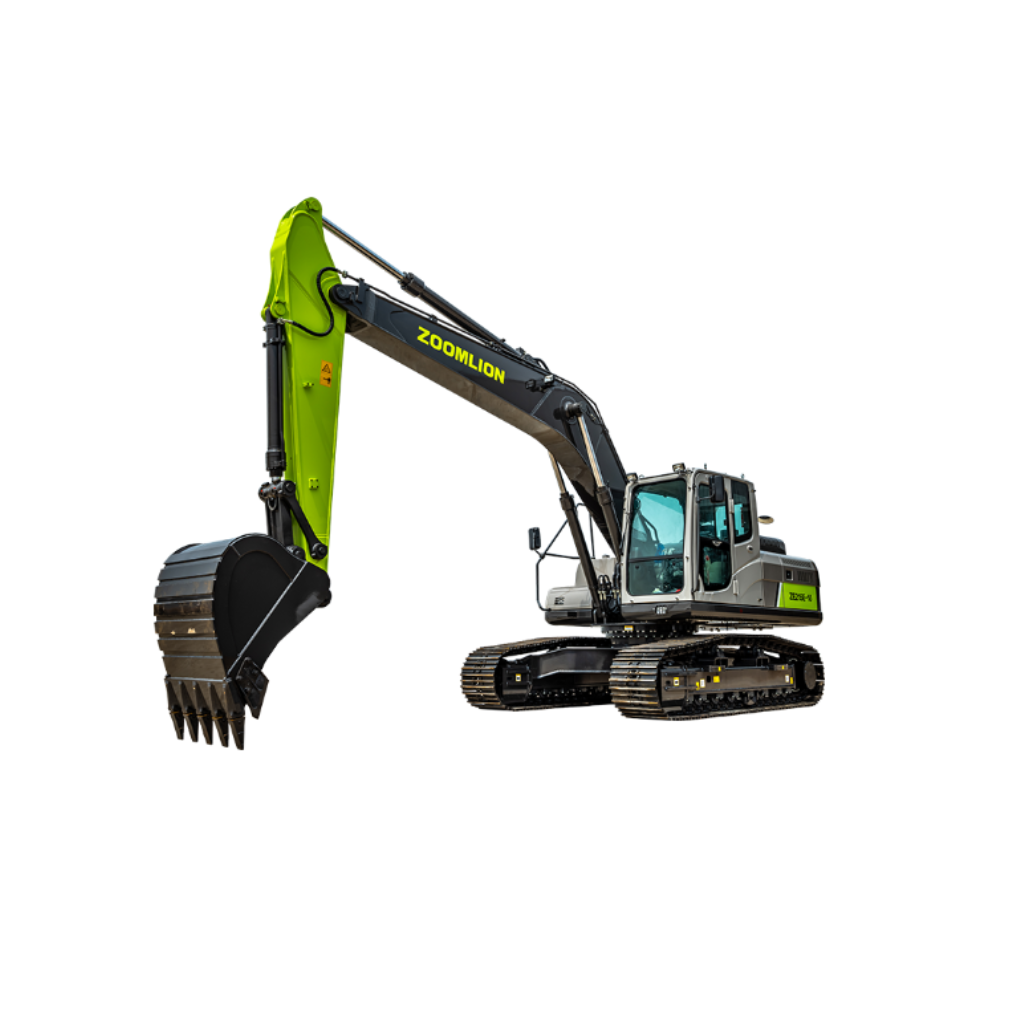

ZOOMLION ZE215E-10 Medium Excavator

Name: ZOOMLION ZE215E-10 Medium Excavator
SKU: SKU-375

The ZOOMLION ZE215E-10 is a premium 22-ton class medium-sized crawler excavator engineered to conquer diverse and demanding construction challenges. Powered by a high-performance CUMMINS QSB7 engine delivering 124 kW @ 2050 rpm, this excavator offers an optimal balance of robust build quality, powerful hydraulic control, and exceptional fuel efficiency. Available in standard ZE215E-10 (21,500 kg operating weight, 1.0 m³ bucket) and upgraded ZE215E-10Pro (22,100 kg operating weight, 1.1 m³ bucket) variants, it boasts a maximum digging depth of 6580 mm and a powerful bucket digging force of 155 kN.

Excavator ZOOMLION

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Medium Excavator
ZOOMLION Heavy Industry — Earthmoving Platform

ZOOMLION ZE215E-10 / ZE215E-10Pro Crawler Excavator

Experience unmatched engineering prowess with the 22-ton class ZOOMLION ZE215E-10 series, as documented in the technical specifications of image_eac428.png. This medium-sized excavator is strategically engineered to conquer diverse construction challenges, from heavy urban earthmoving to rugged site preparation. Its structurally reinforced chassis, advanced powerful hydraulic integration, and heavy-duty Cummins powertrain make it the ultimate, highly reliable solution for all your mass excavation and earthmoving needs, ensuring continuous performance under harsh, long-shift conditions.

Technical Data & Performance Capacities

Performance Parameters	ZE215E-10 (Standard)	ZE215E-10Pro
Operating Weight	21,500 kg	22,100 kg
Standard Bucket Capacity	1.0 m³	1.1 m³
Slewing Speed	10.5 r/min	11.5 r/min
Traveling Speed (High/Low)	5.1 / 3.3 km/h	5.5 / 3.3 km/h
Max. Drawbar Pull	210 kN	192 kN
Digging Force of Bucket	155 kN	155 kN
Digging Force of Stick	115 kN	115 kN

Heavy-Duty Powertrain / Engine Specifications

Engine Manufacturer	CUMMINS
Engine Model	QSB7 (High-torque configuration)
Rated Power Output	124 kW (166 hp) @ 2050 rpm
Engine Displacement	6.7 L
Emission Standard Compliance	EU Stage IIIA

Operational Work Range Capabilities

Working Metrics	ZE215E-10	ZE215E-10Pro
Max. Digging Radius	9870 mm	9870 mm
Max. Digging Reach	9690 mm	9690 mm
Max. Digging Depth	6580 mm	6580 mm
Max. Digging Height	9720 mm	9720 mm
Max. Dumping Height	6895 mm	6895 mm

Machine Transport Dimensions & Track Geometry

Dimensional Parameters	ZE215E-10	ZE215E-10Pro
Overall Length	9675 mm	9675 mm
Overall Width	2990 mm	2990 mm
Overall Height	3085 mm	3085 mm
Tail Slewing Radius	2940 mm	2940 mm
Track Gauge	2200 mm	2390 mm
Length of Track On Ground	3380 mm	3460 mm

Core Competitive Advantages of the ZE215E-10 Series

Upgraded Pro Variant Options

The ZE215E-10Pro chassis is extended to 3460 mm on the ground with an expanded track gauge of 2390 mm. Paired with an upgraded 1.1 m³ bucket capacity and accelerated 11.5 r/min swing cycles, it delivers maximum operating stability and accelerated cycle productivity.

Optimized Structural Forces

Boasting an advanced hydraulic control loop layout, both configurations secure a dominant 155 kN bucket digging breakout force and a resilient 210 kN maximum drawbar pull (Standard version) for smooth tracking across complex inclines.
