XCMG XS163J 16 Ton Vibratory Road Roller — 103kW Hydraulic Drive Compactor

Name: XCMG XS163J 16 Ton Vibratory Road Roller — 103kW Hydraulic Drive Compactor
SKU: SKU-487

The XCMG XS163J is a 16-ton vibratory road roller powered by a SC4H140.1G2 103kW diesel engine. With dual frequency (28/33Hz), dual amplitude (1.9/0.95mm), and 290/200kN exciting force, it delivers superior compaction performance for road construction and maintenance projects. Features rear drum hydraulic drive and electronic vibration control.

Road roller XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Vibratory Road Roller
XCMG — 16 Ton Class

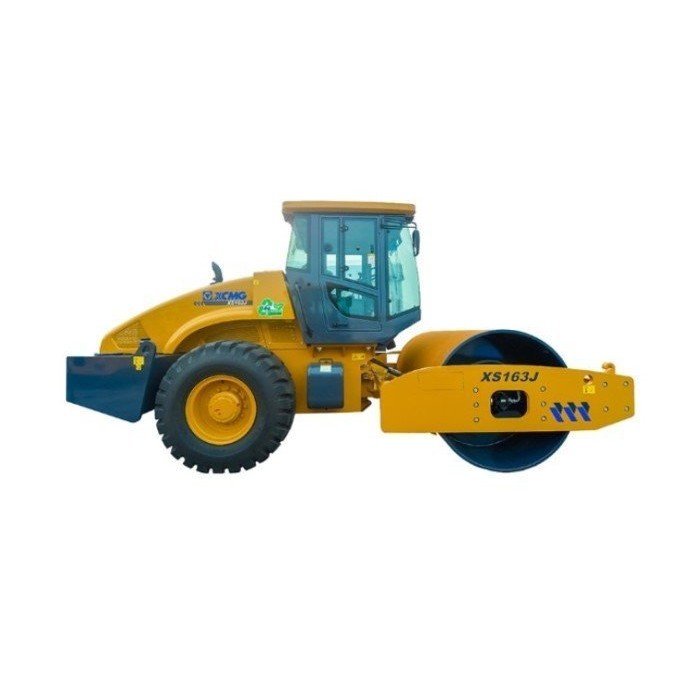

XCMG XS163J 16 Ton Vibratory Road Roller

The XCMG XS163J is a high-performance 16-ton vibratory road roller engineered for superior compaction in road construction, maintenance, and earthwork projects. Powered by a SC4H140.1G2 103kW H-series diesel engine with turbocharging and air-air intercooling, it meets China Stage II emission standards while delivering excellent fuel efficiency and low noise. The dual-frequency (28/33Hz) and dual-amplitude (1.9/0.95mm) vibration system, combined with rear drum hydraulic drive, ensures optimal compaction results across varying soil and asphalt conditions.

Basic Information

Road Roller Brand	XCMG — XS163J
Operating Weight	16,000 kg (16 tons)
Drive Wheel Mass	8,000 kg
Vibration Wheel Mass	8,000 kg
Static Line Load	376 N/cm
Compaction Width	2,130 mm
Overall Dimensions	6,150 × 2,300 × 3,200 mm (L×W×H)
Application	Road construction, maintenance, earthwork compaction, asphalt paving

Engine & Powertrain

Engine Model	SC4H140.1G2
Engine Type	H-series, 4-cylinder, 4-stroke, water cooling
Rated Power	103 kW (138 HP) @ 1,800 rpm
Fuel System	Direct injection, turbocharged, air-air intercooling
Emission Standard	China Stage II
Drive System	Rear drum hydraulic drive
Hydraulic System	Closed system with variable displacement piston pump and motor
Transmission	Mechanical gearbox with synchro-mesh unit
Clutch	Heavy-duty dry type, normally combined friction clutch with air assisted operation

Vibration System

Vibration Frequency	28 / 33 Hz (dual frequency)
Theoretical Amplitude	1.9 / 0.95 mm (dual amplitude)
Exciting Force	290 / 200 kN
Vibration Wheel Diameter	1,523 mm
Hydraulic System	Gear pump and motor open system
Control Mode	Electronic control — guarantees vibration parameter reliability

Performance & Dimensions

Wheel Base	3,076 mm
Compaction Width	2,130 mm
Theoretical Gradeability	30%
Minimum Turning Radius	6,800 mm
Minimum Ground Clearance	440 mm
Overall Dimensions	6,150 × 2,300 × 3,200 mm (L×W×H)

Key Advantages

✓ SC4H140.1G2 103kW engine — turbocharged with intercooling
✓ Dual frequency 28/33Hz — adapts to different materials
✓ Dual amplitude 1.9/0.95mm — optimal compaction depth
✓ 290/200kN exciting force — powerful vibration energy

✓ Rear drum hydraulic drive — excellent gradeability
✓ Electronic vibration control — precise parameter control
✓ Air-assisted clutch — reduced operating force
✓ 30% gradeability — handles steep slopes with ease

Need a reliable road roller for your compaction project?

The XCMG XS163J delivers 16-ton compaction power with dual-frequency vibration for asphalt and soil. Custom configurations available. Factory-direct pricing with pre-shipment inspection and worldwide DDP delivery.
