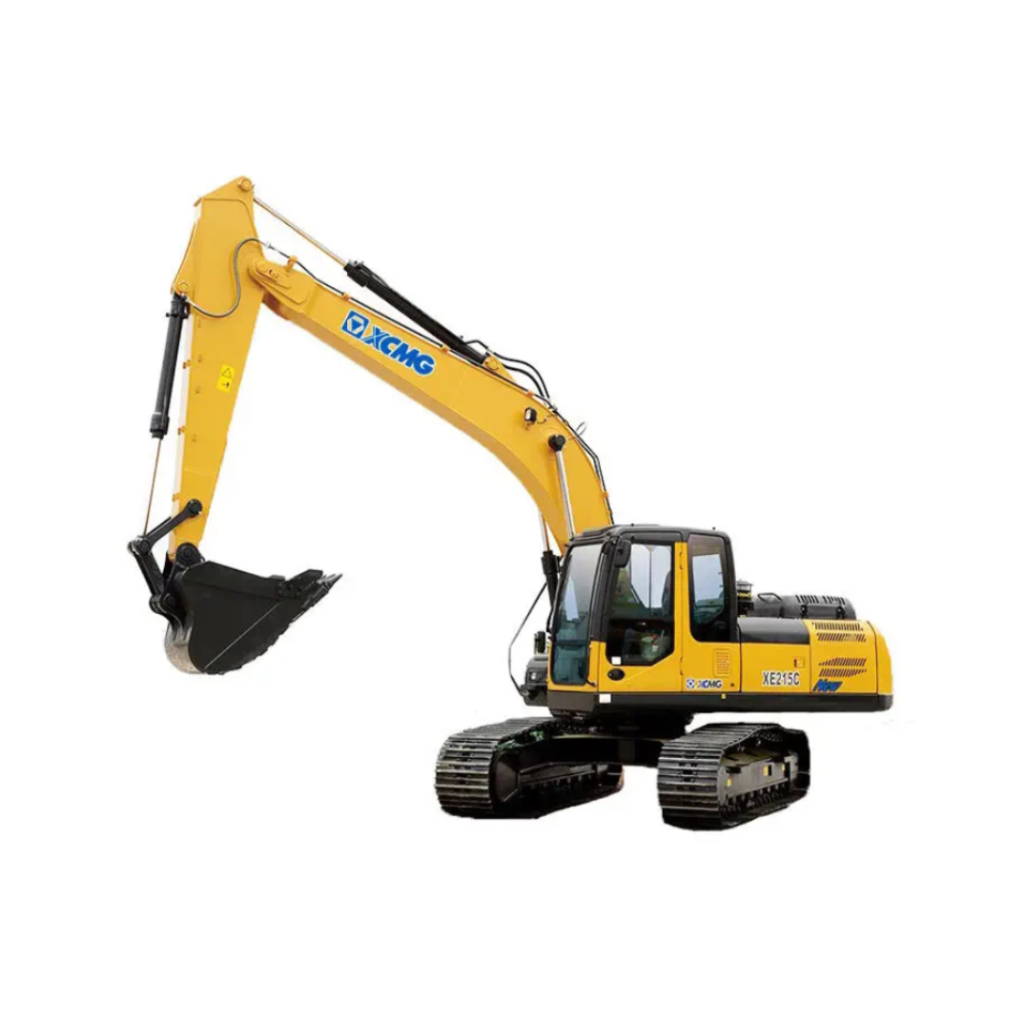

XCMG 21 ton 1m3 Excavator XE215C with ISUZU Engine

XCMG XE215C 21.7 Ton Crawler Excavator

Name: XCMG XE215C 21.7 Ton Crawler Excavator
SKU: SKU-493

XCMG XE215C crawler excavator features Isuzu 128.5kW engine, 6.68m digging depth, and 149kN bucket digging force. Ideal for municipal, highway, and construction projects.

Excavator XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Crawler Excavator
XCMG — XE Series

XE215C 21.7 Ton Crawler Excavator

XCMG XE215C crawler excavator is engineered for earth and stone construction projects including municipal construction, highway bridges, housing development, road engineering, farmland water conservancy, and port construction. Featuring ISUZU CC-6BG1TRP 128.5kW engine with exceptional flexibility, low fuel consumption, and high construction efficiency. With 6680mm maximum digging depth and 149kN bucket digging force, it delivers superior performance for diverse applications.

Basic Information

Brand	XCMG
Model	XE215C
Type	Crawler Excavator
Operating Weight	21,700 kg
Bucket Capacity	0.9 ~ 1.0 m³
Application	Municipal, Highway, Housing, Road, Water Conservancy, Port

Engine Specifications

Engine Model	ISUZU CC-6BG1TRP
Injection System	Electronic Fuel Injection
Cycle Type	Four Strokes
Cooling System	Water Cooling
Charging System	Turbo-charging, Air to Air Intercooler
Number of Cylinders	6
Output Power	128.5 kW / 2100 rpm
Max. Torque	637 N·m / 1800 rpm
Displacement	6.494 L

Main Performance

Travel Speed (H/L)	5.5 / 3.3 km/h
Rotating Speed	13.3 r/min
Gradeability	≤35°
Ground Pressure	47.2 kPa
Bucket Digging Force	149 kN
Arm Digging Force	111 kN
Maximum Traction	184 kN

Working Scope

Max. Digging Height	9,620 mm
Max. Dumping Height	6,780 mm
Max. Digging Depth	6,680 mm
Excavation Depth @ 8ft Level	6,500 mm
Max. Vertical Wall Digging Depth	5,715 mm
Max. Digging Reach	9,940 mm
Min. Swing Radius	3,530 mm

Features & Applications

ISUZU Engine Power

Electronic fuel injection with turbo-charging and air-to-air intercooling delivers 128.5kW output power and 637 N·m maximum torque for reliable performance in demanding conditions.

High Digging Force

Powerful bucket digging force of 149 kN and arm digging force of 111 kN enable efficient earthmoving in tough soil conditions. Maximum traction force of 184 kN ensures excellent mobility.

Versatile Working Range

Maximum digging reach of 9.94m and digging depth of 6.68m provide excellent coverage for deep foundation work. Maximum dumping height of 6.78m enables efficient truck loading.

Wide Application Scope

Ideal for municipal construction, highway and bridge projects, housing development, road engineering, farmland water conservancy, and port construction with superior flexibility and maneuverability.

Why Choose XCMG XE215C

ISUZU Reliability Electronic fuel injection with turbo and intercooler	149 kN Bucket Force Powerful digging for tough soil conditions
6.68m Digging Depth Deep foundation work capability	Low Fuel Consumption Efficient operation reduces operating costs
35° Gradeability Excellent slope climbing capability	Spare Parts Support XCMG genuine parts, global availability
