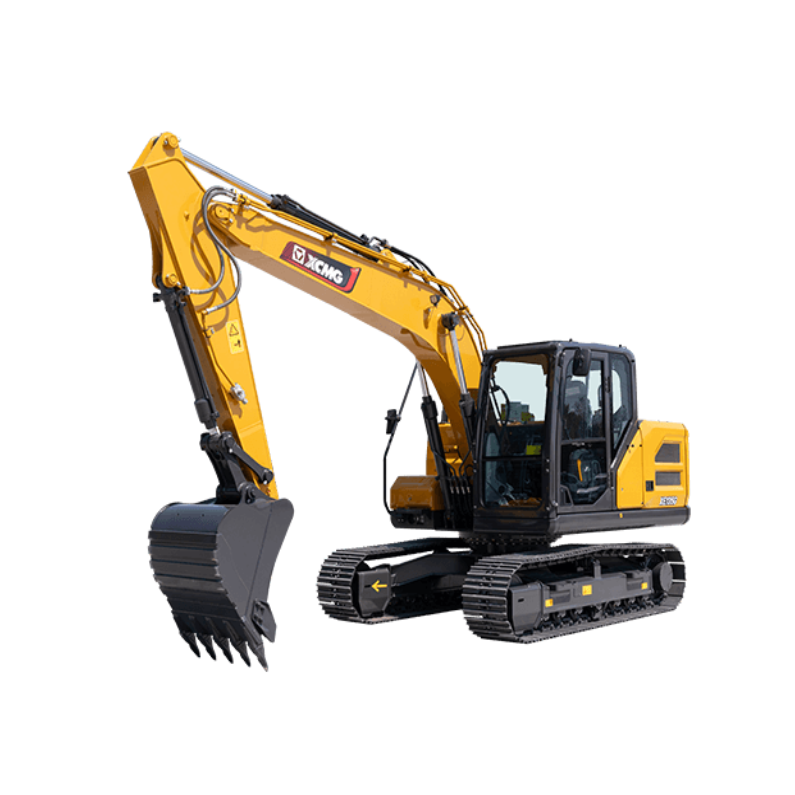

XCMG XE135G Crawler Excavator | 13.5 Ton

Name: XCMG XE135G Crawler Excavator | 13.5 Ton
Brand: XCMG
SKU: xcmg-xe135g-crawler-excavator-13-5-ton
Availability: InStock

XCMG XE135G crawler excavator — 13,500 kg operating weight, 0.55 m³ bucket, Isuzu 72.7 kW engine. New pressurized cabin with 8-inch touchscreen, 19% larger hydraulic pump displacement, 7% fuel economy improvement. CE/ISO certified. Worldwide delivery.

Excavator XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Crawler Excavator
XCMG — XE135G

XCMG XE135G Crawler Excavator | 13.5 Ton

The XCMG XE135G is a 13.5-ton crawler excavator powered by an Isuzu BB-4BG1TRP 72.7 kW engine. Featuring a new pressurized cabin with 8-inch touchscreen, 19% larger hydraulic pump displacement, and 7% better fuel economy. Ideal for irrigation, river dredging, municipal construction, and general earthmoving. Factory-direct export pricing — contact us for a quotation.

Basic Information

Brand / Model	XCMG — XE135G
Type	Crawler Hydraulic Excavator
Operating Weight	13,500 kg
Bucket Capacity	0.55 m³ (reinforced) — optional 0.32 m³ narrow / 0.61 m³ earthmoving
Rated Power	72.7 kW / 2,200 rpm
Gradeability	35° (70%)
Ground Pressure	41 kPa
Travel Speed	5.0 / 3.0 km/h (High / Low)
Swing Speed	10.9 r/min
Certification	CE / ISO 10262 (OPG) / ISO 12117-2 (ROPS)

Engine & Powertrain

Engine Brand / Model	Isuzu BB-4BG1TRP
Engine Type	4-stroke, 4-cylinder inline, water-cooled, turbocharged, direct injection
Rated Power	72.7 kW (97.5 HP) @ 2,200 rpm
Max Torque	337.6 N·m @ 1,600 rpm
Displacement	4.329 L
Cylinder Bore × Stroke	105 mm × 125 mm
Fuel Type	Diesel
Fuel Tank Capacity	270 L

Hydraulic System

Main Pump	2 × Variable Pumps
Pilot Pump	1 × Gear Pump
Max Flow Rate	2 × 123 L/min
Main System Pressure	34.3 MPa (Standard) / 37 MPa (Power-Max)
Pilot System Pressure	3.9 MPa
Travel System Pressure	34.4 MPa
Swing System Pressure	25 MPa
Hydraulic Oil Tank	95 L

Digging Performance & Working Range

Boom Length / Arm Length	4,600 mm / 2,520 mm
Standard Bucket	0.55 m³ (Reinforced Bucket)
Optional Buckets	0.32 m³ (Narrow Bucket) / 0.61 m³ (Earthmoving Bucket)
Max Reach	8,310 mm
Max Reach at Ground Level	8,155 mm
Max Digging Height	8,640 mm
Max Unloading Height	6,155 mm
Max Digging Depth	5,555 mm
Max Vertical Digging Depth	4,605 mm
8 ft Level Floor Digging Depth	5,335 mm
Min Swing Radius	2,475 mm
Bucket Digging Force (SAE / ISO)	99 kN / 107 kN
Arm Digging Force (SAE / ISO)	68 kN / 74 kN
Max Traction Force	134 kN

Dimensions & Dimensions

Overall Length	7,825 mm
Overall Width	2,500 mm
Overall Height	2,980 mm
Upper Structure Width	2,490 mm
Chassis Width	2,490 mm
Track Length	3,665 mm
Track Wheelbase	2,930 mm
Track Gauge	1,990 mm
Track Height	790 mm
Standard Track Shoe Width	500 mm
Track Rollers (per side)	7
Track Carrier Rollers (per side)	1
Track Shoes (per side)	44
Tail Swing Radius	2,360 mm
Min Ground Clearance	460 mm
Counterweight Ground Clearance	925 mm
Hood Height	2,144 mm

Cab & Operator Comfort

Cab Type	New Pressurized Cabin — improved comfort and safety
AC System	High-power automatic hot & cold climate control
Seat	Enlarged suspension seat
Instrument Panel	8-inch touchscreen display
Safety Standard — OPG	ISO 10262:1998 (Operator Protective Guard)
Safety Standard — ROPS	ISO 12117-2:2008 (Roll-Over Protective Structure)

Key Improvements Over Previous Generation

Hydraulic Pump Upgrade	19% increase in main pump displacement — faster cycle times and smoother compound movements
Main Valve Upgrade	Large-size main valve — 3% reduction in pressure loss
Fuel Economy	7% improvement in fuel efficiency — lower operating costs
Bucket	0.55 m³ reinforced bucket — higher excavation efficiency with further reduced fuel consumption
Cabin	Fully redesigned pressurized cabin — comprehensive improvement in comfort and safety

Applications

The XCMG XE135G 13.5-ton crawler excavator is a versatile mid-size machine suitable for a wide range of applications across multiple industries:

Irrigation & Water Conservancy — Canal digging, embankment construction, drainage channel maintenance
River Dredging — Sediment removal, waterway maintenance, flood control projects
Municipal Construction — Pipe laying, trenching, road base preparation, utility installation
General Earthmoving — Site leveling, excavation, backfilling, material handling
Foundation Work — Basement excavation, footing trenches, pile cap preparation
Landscaping — Slope grading, pond digging, terrain modification
Quarrying & Mining Support — Overburden removal, material loading, access road construction

Why Choose XCMG XE135G?

1. Proven Isuzu Powertrain — The Isuzu BB-4BG1TRP engine is globally recognized for reliability, low fuel consumption, and wide parts availability. 72.7 kW at 2,200 rpm delivers strong performance with easy maintenance worldwide.

2. Upgraded Hydraulic System — 19% more pump displacement combined with a large-size main valve means faster cycle times, smoother multi-function operation, and 7% lower fuel costs per cubic meter moved.

3. Operator-First Cabin — The new pressurized cabin with automatic climate control, 8-inch touchscreen, and enlarged suspension seat keeps operators productive through long shifts in hot, dusty environments.

4. Global Certifications — CE certified with ROPS (ISO 12117-2) and OPG (ISO 10262) compliant cabin. Ready for import into Africa, Middle East, Southeast Asia, and South America.

5. XCMG After-Sales Network — As the world’s 3rd largest construction machinery manufacturer, XCMG offers comprehensive spare parts supply and technical support through dealers in 190+ countries.

6. Competitive Total Cost of Ownership — Lower initial purchase price than Japanese or European equivalents, combined with fuel efficiency and XCMG’s global parts network, delivers the best TCO in the 13-ton class.

Interested in XCMG XE135G Crawler Excavator?

Factory-direct pricing, pre-shipment inspection, worldwide shipping — contact us for a quotation.
