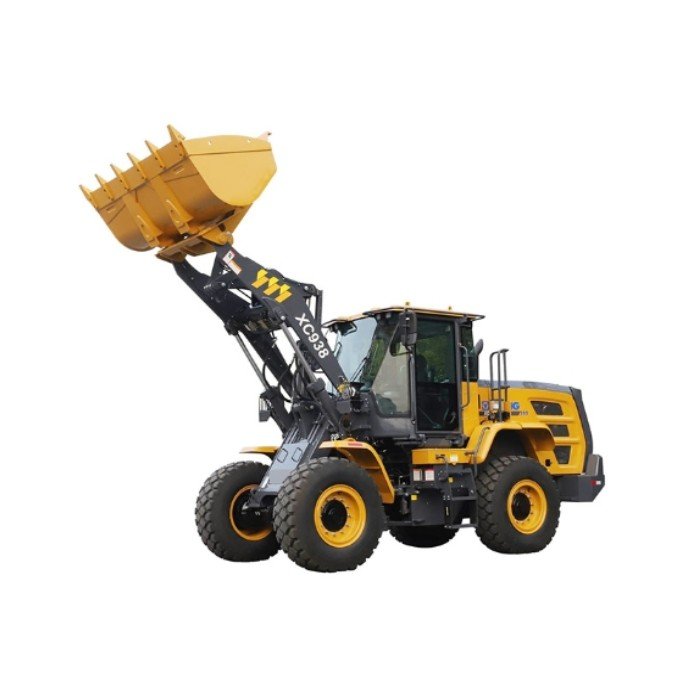

XCMG XC938 Wheel Loader — 3.5-Ton Heavy-Duty Loading Machine

Name: XCMG XC938 Wheel Loader — 3.5-Ton Heavy-Duty Loading Machine
Brand: XCMG
SKU: xcmg-xc938-wheel-loader-3-5-ton-heavy-duty-loading-machine
Availability: InStock

XCMG XC938 is a 3.5-ton heavy-duty wheel loader powered by a Weichai WP6G 92 kW engine with 510 Nm torque, delivering 130 kN breakout force and 3500 kg rated load for earthmoving, quarry, and municipal construction.

Wheel Loader XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

XCMG
3.5-TON CLASS
WEICHAI II

XCMG XC938 Wheel Loader — 3.5-Ton Heavy-Duty Loading Machine

XCMG · 3.5-Ton Class · 10400 kg · Weichai WP6G 92kW · 510 Nm Torque · 130 kN Breakout Force · 1.8 m³ Bucket · China Stage II

10400 kg
Operating Weight

3500 kg
Rated Load

130 kN
Breakout Force

92 kW
Engine Power

XCMG XC938 Wheel Loader Overview

The XCMG XC938 is a 3.5-ton class heavy-duty wheel loader engineered for demanding earthmoving, aggregate handling, and municipal construction applications. With a 3500 kg rated operating load, a 1.8 m³ bucket capacity, and an operating weight of 10400 kg, it delivers the stability and breakout power needed for high-production loading cycles across global markets.

Powered by a Weichai WP6G in-line six-cylinder turbocharged diesel engine with air-to-air intercooler and electronic common rail high-pressure injection, the XC938 produces 92 kW @ 2200 RPM and a robust 510 Nm of torque at 1400-1600 RPM from its 6.75 L displacement. Compliant with China Stage II (Weichai II) emission standards, it is widely accepted for export to Africa, the Middle East, Southeast Asia, South America, and CIS markets.

The XCMG 2BS315 planetary transmission delivers forward speeds of 12/38 km/h and reverse of 16 km/h with an 11-meter brake distance. The constant pressure hydraulic system features a 198 L/min gear pump at 20.5 MPa with pilot hydraulic control, while the flow amplifier load-sensitive steering system ensures precise, energy-efficient maneuvering with a 38-degree maximum steering angle.

Key Specifications

Parameter	Specification	Parameter	Specification
Rated Operating Load	3500 kg	Bucket Capacity	1.8 m³
Operating Weight	10400 kg	Rated Power	92 kW @ 2200 RPM
Max. Breakout Force	130 kN	Max. Torque	510 Nm @ 1400-1600 RPM
Straight Tipping Load	8085 kg	Articulated Tipping Load	7040 kg
Dump Height	2930 mm	Dumping Reach	950 mm
Max. Lifting Height	4761 mm	Wheelbase	2900 mm
Turning Radius (over tyres)	5250 mm	Articulation Angle	38°
Overall Dimensions (L×W×H)	7330 × 2482 × 3839 mm	Brake Distance	11 m

Engine & Powertrain

Item	Specification
Engine Brand / Model	Weichai WP6G — in-line six-cylinder, turbocharged with air-to-air intercooler and electronic common rail high-pressure injection
Emission Standard	China Stage II (Weichai II) — widely accepted for export to Africa, Middle East, Southeast Asia, South America, and CIS markets
Rated Power / Speed	92 kW @ 2200 RPM — electronic common rail high-pressure injection for precise fuel delivery
Max. Torque	510 Nm @ 1400-1600 RPM — wide torque band for powerful loading in tough conditions
Displacement	6.75 L — large displacement for durable, efficient power output
Transmission	XCMG 2BS315 Planetary Gearbox — 2 forward gears, 1 reverse gear, optimized for heavy-duty loading
Drive Axle	Dry axle with fixed center oscillation, 12-degree oscillating angle to each side, planetary final drive in wheel hubs, conventional differential
Travel Speed (F / R) / Tyre	Forward 12 / 38 · Reverse 16 km/h · Brake distance 11 m · Tyre: 17.5-25-12PR

Hydraulic & Steering System

✓ Constant Pressure Hydraulic	Gear pump rated at 198 L/min with system pressure of 20.5 MPa, controlled by a pilot standard hydraulic control multiway valve for precise operation
✓ Load-Sensitive Steering	Flow amplifier load-sensitive steering system with dedicated gear pump at 198 L/min, 2 hydraulic cylinders, 16 MPa system pressure, and 38-degree max. steering angle for responsive control
✓ 130 kN Breakout Force	Industry-leading digging and penetration capability with 8085 kg straight tipping load and 7040 kg fully articulated tipping load for maximum stability
✓ High Dump Performance	Dump height of 2930 mm with 950 mm dumping reach and 4761 mm maximum lifting height for efficient truck loading and stockpile management

Dimensions & Mobility

Item	Dimension
Overall Machine (L × W × H)	7330 × 2482 × 3839 mm
Wheelbase / Tread	2900 mm wheelbase · 1850 mm tread
Bucket Width	2482 mm · Width over tyres: 2295 mm
Ground Clearance	365 mm · Height to cab: 3220 mm
Dumping Angle / Digging Depth	45° dumping angle · 35 mm digging depth
Turning Radius (tyre center / over tyres / over bucket)	5100 / 5250 / 5850 mm
Articulation / Departure Angle / Tyre	38° articulation · 28° departure angle · 17.5-25-12PR tyres

Key Features & Advantages

✓ Electronic Common Rail Injection	Weichai WP6G engine with electronic common rail high-pressure injection and air-to-air intercooler for precise fuel delivery, lower consumption, and cleaner combustion
✓ 510 Nm High Torque Output	Wide torque band from 1400-1600 RPM delivers powerful breakout force of 130 kN and 8085 kg straight tipping load for tough, compacted materials
✓ Pilot Hydraulic Control	Standard pilot hydraulic control multiway valve with constant pressure system at 20.5 MPa and 198 L/min flow for smooth, fatigue-reducing operation
✓ Load-Sensitive Steering	Flow amplifier load-sensitive steering with 38-degree max. steering angle and dedicated gear pump for energy-efficient, responsive maneuvering
✓ Planetary Final Drive	Dry axle with fixed center oscillation, 12-degree oscillating angle per side, and planetary final drive in wheel hubs for maximum traction and durability
✓ 11 m Brake Distance	Short 11-meter brake distance at rated speed for safe operation in busy loading sites and confined yards

Applications

The XCMG XC938 is a versatile 3.5-ton heavy-duty wheel loader built for demanding applications. It is extensively used in earthmoving projects, aggregate yards and quarries, municipal constructions, bulk material transport, ports and logistics, agriculture and farming, and road maintenance. Its 2900 mm wheelbase, 5250 mm turning radius over tyres, and 38-degree articulation angle provide excellent maneuverability in confined spaces, while the 130 kN breakout force, 510 Nm torque, and 11-meter brake distance ensure safe and productive operation across all climate zones and terrain types.

Why Choose Archer Machinery as Your Export Partner?

Since 2017	JINAN ARCHER TRADE CO., LTD has been exporting Chinese construction machinery and trucks since 2017 with deep manufacturer relationships ensuring priority allocation and best pricing
9 Premium Brands	Authorized distributor for XCMG, SANY, Zoomlion, Shantui, SDLG, YTO (construction) + SINOTRUK, SHACMAN, FAW (trucks). Full product range from one partner
Global Shipping	FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and multi-unit container consolidation
OEM Private Label	Full white-label capability: your logo, your colors, your brand. We handle production coordination so you can focus on sales and distribution
Spare Parts Supply Chain	Weichai engine parts, 2BS315 transmission parts, hydraulic components, drive axle parts, bucket wear plates, and tyres shipped worldwide with fast lead times

Get XCMG XC938 Wheel Loader Quote Today

XCMG XC938 — 10400 kg operating weight, 3500 kg rated load, Weichai WP6G 92kW engine with 510 Nm torque, 130 kN breakout force, 1.8 m³ bucket, 2930 mm dump height, China Stage II emission. FOB China pricing for global B2B buyers.
