XCMG XC936 Wheel Loader — 3.3-Ton Compact Loading Machine
XCMG XC936 is a 3.3-ton wheel loader powered by a Weichai 92 kW engine, delivering 125 kN breakout force and 2900 mm dump height for construction, mining and material handling.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
3.3-TON CLASS
WHEEL LOADER
XCMG XC936 Wheel Loader — 3.3-Ton Compact Loading Machine
XCMG · 3.3-Ton Class · 10300 kg · Weichai WP6G125E22 92kW · 125 kN Breakout Force · 1.8 m³ Bucket · 5100 mm Turning Radius
| 10300 kg Operating Weight |
3300 kg Rated Load |
125 kN Breakout Force |
92 kW Engine Power |

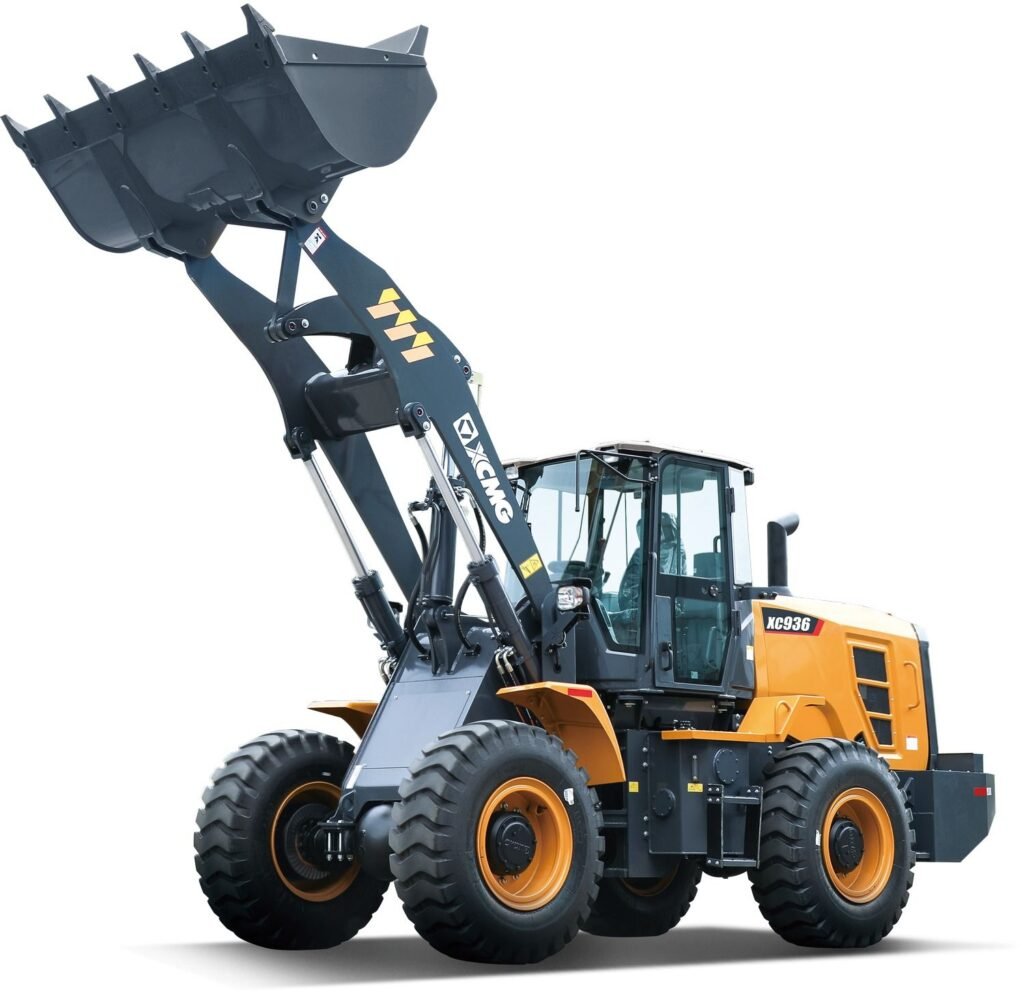

XCMG XC936 Wheel Loader Overview
The XCMG XC936 is a 3.3-ton class compact wheel loader engineered for high reliability and low operating cost in demanding, mixed-duty operations. With a 3300 kg rated operating load and a 1.8 m³ bucket, it is an ideal machine for construction sites, agriculture, municipal works, ports, and bulk material-handling yards across emerging and developing markets.
Powered by a Weichai WP6G125E22 turbocharged diesel engine rated at 92 kW (125 HP) @ 2200 RPM with China National II (Tier 2) emission compliance and a desert 3-stage air filter, the XC936 combines strong power with low fuel consumption and a high torque reserve for instant overload demand. The countershaft power-shift transmission and 3-element torque converter deliver maximum engine power utilization, high transmission efficiency, and light, convenient shifting.
With a 2900 mm wheelbase, 5100 mm turning radius, and 125 kN breakout force, the XC936 offers outstanding traction and agility in confined spaces. A load-sensing full hydraulic steering system (20.5 MPa) and a 5.0 s boom-lift / 8.5 s total cycle keep output high on busy job sites. An optional high-dump configuration (3240 mm dump height) is available for tall-body discharge.
Key Specifications
Engine & Powertrain
Hydraulic & Cycle Performance
Dimensions & Mobility
Key Features & Advantages
Bucket & Attachment Options
The XC936 working device uses high-strength wear-resistant plates and internationally renowned bucket teeth. Common XCMG attachments broaden its application across regions and working conditions:
Applications
The XCMG XC936 is a versatile 3.3-ton compact loader built for demanding, mixed-duty operations. It is widely used in construction and road building, agriculture and farming, municipal and public works, ports and logistics yards, sand and gravel pits, and recycling and waste handling. Its 2900 mm wheelbase and 5100 mm turning radius let it work efficiently in confined spaces, while the 125 kN breakout force and 95 kN traction handle tough, compacted, and frozen ground across all climate zones.
