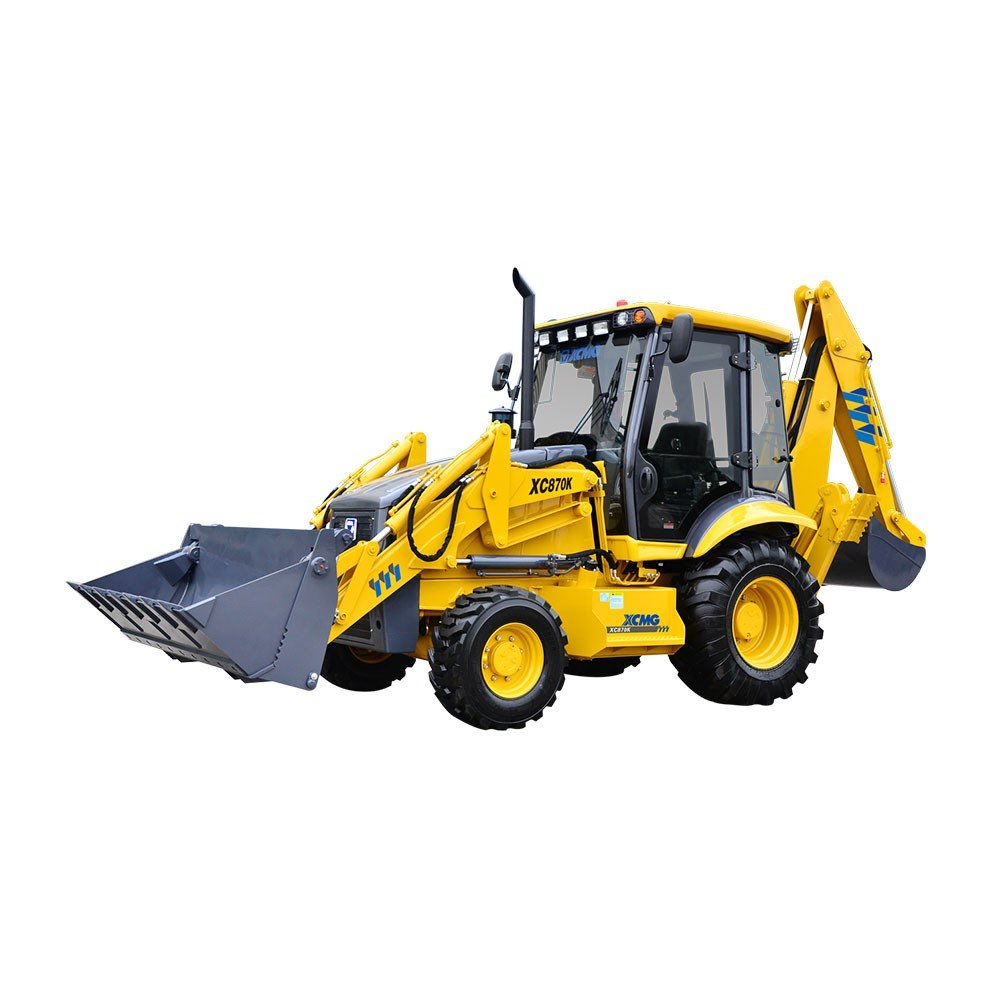

XCMG XC870K / XC870HK Backhoe Loader — 8-Ton Class Multi-Function Machine

Name: XCMG XC870K / XC870HK Backhoe Loader — 8-Ton Class Multi-Function Machine
Brand: XCMG
SKU: xcmg-xc870k-xc870hk-backhoe-loader-8-ton-class-multi-function-machine
Availability: InStock

XCMG XC870K / XC870HK is an 8-ton backhoe loader with selectable Cummins 74 kW, Deutz Dalian 74.9 kW or Weichai 70 kW engines, delivering a 1.0 m³ loader bucket, 2500 kg rated load and 66 kN breakout force for construction, agriculture and utility work.

Excavator, Wheel Loader XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

XCMG
8-TON CLASS
BACKHOE LOADER
TIER 2 / 3

XCMG XC870K / XC870HK Backhoe Loader — 8-Ton Class Multi-Function Machine

XCMG · 7600/8200 kg · 40 km/h · 1.0 m³ Load Bucket · 2500 kg Rated · 66 kN Breakout · 2770 mm Discharge · Cummins / Deutz / Weichai

1.0 m³
Loading Bucket

2500 kg
Rated Load

66 kN
Loading Breakout

40 km/h
Max Speed

XCMG XC870K / XC870HK Backhoe Loader Overview

The XCMG XC870K and XC870HK are K-series backhoe loaders newly launched by XCMG, upgraded on the basis of the mature equipment and technical performances of present products. The upgrade covers engine emission improvement, lightweight upgrade of structural parts, and optimization of working device parameters to further enhance comfort, safety, maintainability, reliability, supportability, and economy. With an operating weight of 7600 kg (XC870K) / 8200 kg (XC870HK) and a maximum travel speed of 40 km/h, they achieve faster site transfer and better traveling stability.

The loading end delivers an ultra-high discharge height of 2770 mm and an industry-leading 66 kN breakout force, while the digging end achieves the industry’s largest rotating angle of the bucket for strong soil-holding capacity. XCMG’s independently developed load-sensing hydraulic system ensures smooth combined digging and loading motions with low changeover impact, while the double pump confluence system with unloading function automatically switches pumps by working condition for high intelligence and energy savings.

A CARRARO special transmission and drive axle for backhoe loaders, combined with a high-speed intelligent axle disengagement mechanism, delivers stable and reliable drive. The FOPS & ROPS cab, maintenance-free wet-type brake axle with one-sided braking, and XCMG’s pioneering split engine hoods that open forward make the XC870K / XC870HK a durable, easy-to-maintain multi-function machine for global B2B export.

XC870K vs XC870HK — Model Comparison

Parameter	XC870K	XC870HK
Chassis Type	Integrated	Integrated
Digging Working Device	Middle-mounted	Side-mounted
Total Weight	7600 kg	8200 kg
Overall Dimensions (L x W x H)	7440 x 2350 x 3450 mm	6075 x 2350 x 3520 mm
Digging Bucket Capacity	0.3 m³	0.25 m³
Max Digging Radius	5460 mm	5420 mm
Max Digging Depth	4425 mm	4320 mm
Drive Style	4WD / 2WD	4WD / 2WD

Key Specifications

Parameter	Specification	Parameter	Specification
Total Weight (K / HK)	7600 / 8200 kg	Max Travel Speed	40 km/h
Wheelbase	2180 mm	Drive Style	4 drive / 2 drive
Loading Bucket Capacity	1.0 m³	Rated Load	2500 kg
Loading Breakout Force	66 kN	Max Discharge Height	2770 mm
Max Discharge Distance	755 mm	Loading System Pressure	24 MPa
Digging Bucket Capacity (K/HK)	0.3 / 0.25 m³	Max Digging Force	63 kN
Max Digging Radius (K/HK)	5460 / 5420 mm	Max Digging Depth (K/HK)	4425 / 4320 mm
Digging System Pressure	24 MPa	Hydraulic Max Flow	154 L/min

Engine & Powertrain

Item	Specification
Engine Option 1 — Cummins	Cummins 74 kW — world-renowned brand engine with strong power and reliable quality, meeting Tier 2 / Tier 3 emission standards
Engine Option 2 — Deutz Dalian	Deutz Dalian 74.9 kW — high-efficiency diesel with excellent low-speed torque and proven durability for heavy-duty operation
Engine Option 3 — Weichai	Weichai 70 kW — economy-oriented option with mature service network and competitive spare-parts cost
Emission Standard	Tier 2 / Tier 3 — compliant for export to Africa, Middle East, Southeast Asia, South America, and CIS markets
Transmission & Drive Axle	CARRARO special transmission and drive axle for backhoe loader, with high-speed intelligent axle disengagement mechanism for stable, reliable drive
Drive Mode	4WD / 2WD selectable — machine automatically switches to two-wheel drive in gear IV to eliminate parasitic power loss
Max Travel Speed	40 km/h — fast site transfer with reasonable axle-load distribution for superior traveling stability

Hydraulic System

Item	Specification
System Type	Load-sensing hydraulic system — XCMG independently developed for smooth combined digging & loading motions, low changeover impact, high efficiency
Flow Distribution	Domestic leading hydraulic system distribution technology, max flow 154 L/min to meet more attachment configurations
Double Pump Confluence	With unloading function — automatically or manually switches individual pump by working condition, intelligent and energy-saving
Loading System Pressure	24 MPa — supports 66 kN breakout force and 2770 mm discharge height
Digging System Pressure	24 MPa — supports 63 kN digging force with the industry’s largest bucket rotating angle

Cab Comfort & Operator Safety

Feature	Description
Panoramic Cab	360° panoramic view luxury cab with air conditioning, large space, good sound & heat insulation, and effective shock absorption
Wide Visibility	Openable side windows and rear window broaden the visual field for safer, more comfortable operation
Ergonomic Controls	Multi-angle adjustable suspension seats, ergonomically arranged joysticks and instrument panel for comfortable all-day work
FOPS & ROPS	FOPS & ROPS certified cab with fire extinguisher and safety hammer for operator personal safety
Real-time Monitoring	Operating status alarms realize real-time monitoring and guarantee operation safety

Attachment Options

Working End	Available Attachments
Digging End	Breaking hammer, twist drill, vibrating tamper, hydraulic shear, and planer — for demolition, piling, compaction, and cutting tasks
Loading End	Four-in-one bucket, manhole cover planer, snow shovel, and forks — for material handling, snow clearing, and utility work

Key Features & Advantages

✓ Leading Breakout Force	The highest loading-end breakout force leads the industry by 15%~20% compared with like models; the digging end’s advanced structure, hinge points, and industry-largest bucket rotating angle ensure strong soil-holding capacity
✓ 8-Link Working Device	Industry-leading optimized 8-link working device features good bucket levelness and rapid operation cycles for higher productivity
✓ Load-Sensing Hydraulics	XCMG’s independently developed load-sensing system delivers smooth combined digging & loading motions with low changeover impact and high energy efficiency (154 L/min max flow)
✓ CARRARO Drivetrain	World-class CARRARO transmission and drive axle plus high-speed intelligent axle disengagement mechanism provide stable, reliable drive with automatic 4WD/2WD switching
✓ Easy Maintenance	Pioneering split engine hoods open forward for a large angle; central pressure measurement port and concentrated lubrication points ease daily inspection and service
✓ Reliable Braking	Maintenance-free wet-type brake axle with one-sided braking function delivers low turning radius and dependable stopping power on site

Applications

The XCMG XC870K / XC870HK backhoe loader is a true multi-function machine built for combined loading, digging, and material-handling tasks worldwide. It is extensively used in municipal construction and road maintenance, building foundations and excavation, utility and pipeline installation, landscaping and earthmoving, agriculture and farm work, snow removal, mining and quarry support, and disaster-relief operations. With a 1.0 m³ loading bucket, 2500 kg rated load, 2770 mm discharge height, 4425 mm digging depth, and a wide range of quick-fit attachments, it replaces the work of a separate loader and excavator on confined urban and rural job sites across Africa, the Middle East, Southeast Asia, and South America.

Why Choose Archer Machinery as Your Export Partner?

Since 2017	JINAN ARCHER TRADE CO., LTD has been exporting Chinese construction machinery and trucks since 2017 with deep manufacturer relationships ensuring priority allocation and best pricing
9 Premium Brands	Authorized distributor for XCMG, SANY, Zoomlion, Shantui, SDLG, YTO (construction) + SINOTRUK, SHACMAN, FAW (trucks). Full product range from one partner
Global Shipping	FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and multi-unit container consolidation
OEM Private Label	Full white-label capability: your logo, your colors, your brand. We handle production coordination so you can focus on sales and distribution
Spare Parts Supply Chain	Cummins / Deutz / Weichai engine parts, CARRARO transmission & axle parts, hydraulic components, buckets and wear edges, and brake axle assemblies shipped worldwide

Get XCMG XC870K / XC870HK Backhoe Loader Quote Today

XCMG XC870K / XC870HK — 7600/8200 kg operating weight, 1.0 m³ load bucket, 2500 kg rated load, 66 kN breakout, 2770 mm discharge, 63 kN digging force, 40 km/h, Cummins / Deutz / Weichai engines. FOB China pricing for global B2B buyers.
