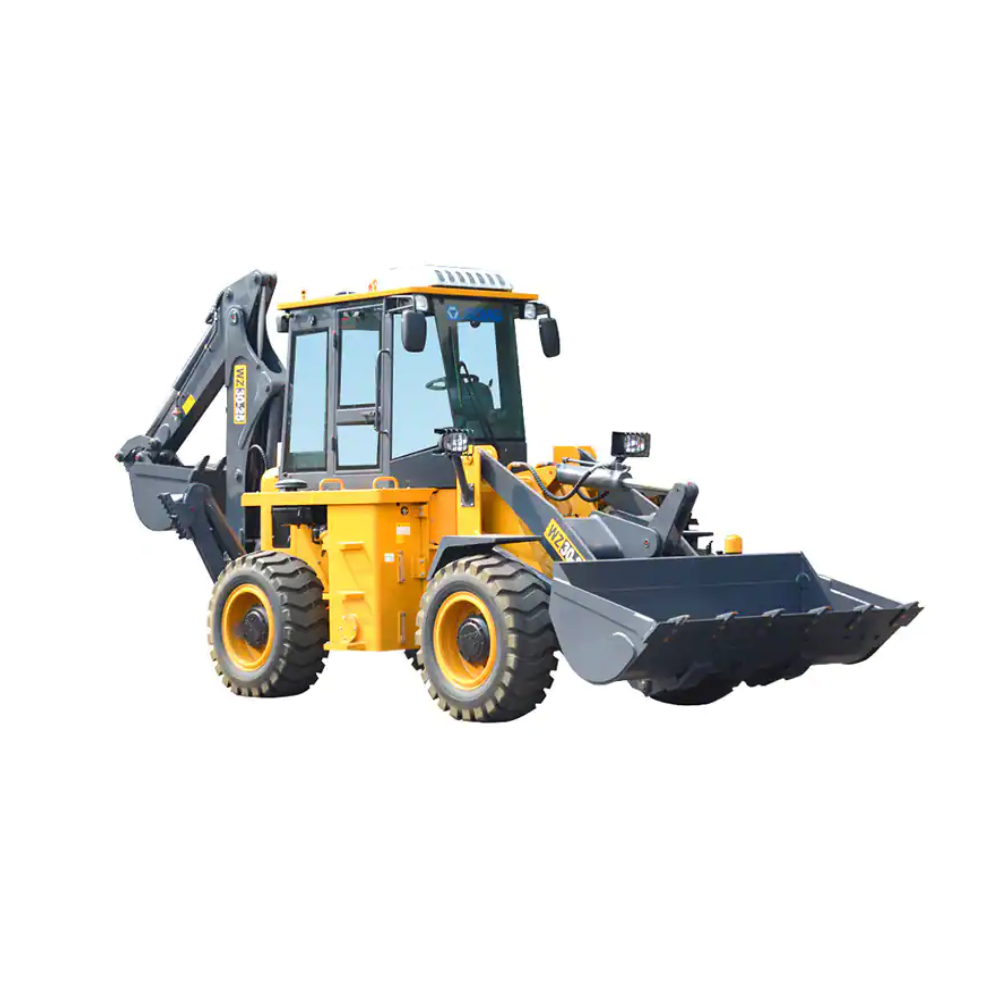

XCMG WZ30-25 Backhoe Loader | 4×4 Wheel Drive

Name: XCMG WZ30-25 Backhoe Loader | 4×4 Wheel Drive
SKU: SKU-497

XCMG WZ30-25 backhoe loader features Yuchai 73.5kW engine, 2.5T rated working load, and 4×4 wheel drive. 1.0m³ loader bucket and 0.3m³ backhoe bucket for versatile earthmoving applications.

Wheel Loader XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Backhoe Loader
XCMG — WZ Series

WZ30-25 Backhoe Loader

XCMG WZ30-25 backhoe loader combines powerful digging and loading capabilities in one versatile machine. Featuring a Yuchai 73.5kW turbocharged engine with 4×4 wheel drive, it delivers a 2.5-ton rated working load with a 1.0m³ loader bucket and 0.3m³ backhoe bucket. Engineered for low noise, low exhaust, and high efficiency with automatic leveling and ergonomic controls for operator comfort.

Basic Information

Brand	XCMG
Model	WZ30-25
Type	Backhoe Loader
Operating Weight	9,500 kg
Rated Working Load	2,500 kg
Loader Bucket Capacity	1.0 m³
Backhoe Bucket Capacity	0.3 m³
Driving Model	4×4 Wheel Drive

Engine Specifications

Engine Model	YC4A110-T310 / YC4B1390-T20
Engine Type	4-stroke water-cooled inline type
Rated Power	73.5 kW (Turbocharged)
Rated Speed	2200 r/min
Key Features	Low noise, low exhaust, environmental protection

Loading Device Specifications

Rated Capacity	1.0 m³
Rated Working Load	2,500 kg
Max. Dumping Height	2,650 mm
Max. Dumping Distance	930 mm
System Pressure	18 MPa
Lifting Time	≤5 seconds
Total Cycle Time	≤10 seconds

Digging Device Specifications

Rated Capacity	0.3 m³
Max. Digging Radius	5,433 mm
Max. Digging Depth	4,137 mm
Max. Digging Radius (Extended)	5,471 mm
Max. Digging Depth (Extended)	4,400 mm
System Pressure	18 MPa

Dimensions & Chassis

Overall Dimensions (L×W×H)	8,000 × 2,310 × 3,424 mm
Wheel Base	2,600 mm
Tread	1,700 mm
Tires	16/70-24
Max. Steering Angle	±35°
Max. Steering Angle (Dig Device)	±85°
Travel Speed (I/II/III/IV)	0-6.2 / 0-12 / 0-20 / 0-30 km/h
Back Speed (I/II)	0-8 / 0-28.5 km/h

Features & Advantages

Yuchai Engine Performance

73.5kW turbocharged engine delivers low noise, low exhaust emissions, and excellent environmental protection. Reliable power with strong driving motive for demanding work conditions.

Automatic Brake System

In-time automatic brake function enhances operational safety during loader operations, providing peace of mind for operators in busy job sites.

Ergonomic Design

Hand handle layout is reasonable and portable. Steering device, gauge dish, and operator seat are all adjustable in up-down and front-back directions for maximum comfort during long work sessions.

Superior Traction & Mobility

4×4 wheel drive with excellent wheel cling provides good span and cross capability. Multi-speed transmission (4 forward + 2 reverse) adapts to various terrain conditions.

Optimized Loading System

Automatic bucket leveling in unload position reduces labor intensity. Larger work range with steady operation delivers higher work efficiency. Cycle time ≤10 seconds for productive loading.

Optional Attachments

4-in-1 Bucket

Versatile multi-function bucket for loading, grabbing, digging, and leveling operations.

Hydraulic Hammers

Breaker attachments for demolition and rock breaking applications.

Snow Plough

Front-mounted snow removal blade for winter maintenance and snow clearing operations.

Augers

Drilling attachments for fence post holes, tree planting, and foundation work.

Why Choose XCMG WZ30-25

Dual-Function Versatility Loader + backhoe in one machine	2.5T Working Load Heavy-duty loading capacity
4×4 Wheel Drive Excellent traction on all terrains	≤10s Cycle Time Fast loading for high productivity
Auto Bucket Leveling Reduces operator fatigue	Multiple Attachments 4-in-1 bucket, hammers, augers
