XCMG LW300KN Wheel Loader — 3-Ton Heavy-Duty Energy-Saving Loading Machine

Name: XCMG LW300KN Wheel Loader — 3-Ton Heavy-Duty Energy-Saving Loading Machine
Brand: XCMG
SKU: xcmg-lw300kn-wheel-loader-3-ton-heavy-duty-energy-saving-loading-machine
Availability: InStock

XCMG LW300KN is a 3-ton heavy-duty energy-saving wheel loader powered by a Weichai 92 kW engine, delivering 130 kN breakout force with 4 XCMG patented technologies for earthmoving, aggregate yards, and municipal construction.

Wheel Loader XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

XCMG
3-TON CLASS
ENERGY-SAVING

XCMG LW300KN Wheel Loader — 3-Ton Heavy-Duty Energy-Saving Loading Machine

XCMG · 3-Ton Class · 10900 kg · Weichai WP6G125E201 92kW · 130 kN Breakout Force · 1.8 m³ Bucket · 4 Patented Technologies

10900 kg
Operating Weight

3000 kg
Rated Load

130 kN
Breakout Force

92 kW
Engine Power

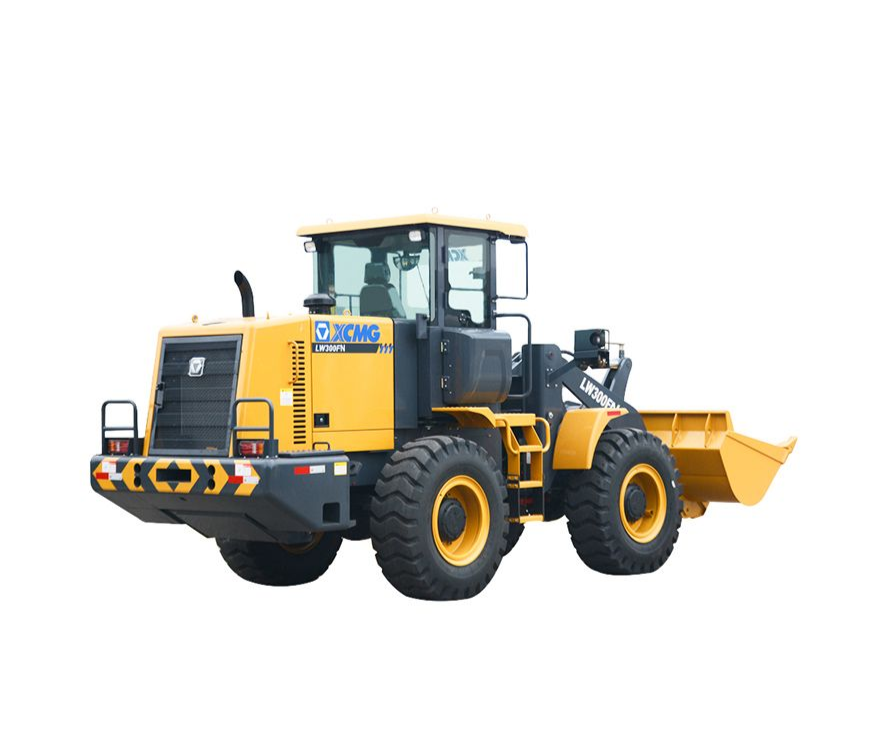

XCMG LW300KN Wheel Loader Overview

The XCMG LW300KN is an outstanding representative of the industry’s super-heavy-duty 3-ton class wheel loader, dedicated to serving high-end heavy-duty applications. With a 3000 kg rated operating load and a 1.8 m³ rated bucket capacity, it is extensively applicable for earthmoving projects, aggregate yards, municipal constructions, and bulk material transport across global markets.

Powered by a Weichai WP6G125E201 turbocharged diesel engine rated at 92 kW @ 2000 RPM with China National II (Tier 2) emission compliance, the LW300KN is the sole low-speed energy-conservation product among the industry’s 3-ton loaders, achieving operating economy superior by more than 10% compared to like products. The ZL50 planetary transmission with XCMG’s patented lubrication technology and the double-pump confluence hydraulic system maximize transmission efficiency while minimizing energy consumption.

Built on XCMG’s exclusive 4 patented technologies — energy-conservation drive, transmission lubrication, high-strength single-plate beam frame, and extended-wheelbase 3rd-generation structure — the LW300KN delivers a 130 kN breakout force, 5170 mm turning radius, and 28° gradeability for reliable performance in the most demanding working conditions.

Key Specifications

Parameter	Specification	Parameter	Specification
Rated Operating Load	3000 kg	Bucket Capacity	1.8 m³ (1.5-2.5 range)
Machine Weight	10900 kg	Rated Power	92 kW @ 2000 RPM
Max. Breakout Force	130 kN	Max. Tractive Force	95 kN
Dump Clearance (max lift)	2930 mm	Reach at Maximum Lift	1010-1210 mm
Wheel Base	2900 mm	Tread	1850 mm
Min. Turning Radius	5170 mm	Gradeability	28°
Hydraulic Cycle (raise)	5.4 s	Total Cycle (3-items)	9.3 s
Overall Dimensions (L×W×H)	7245 × 2482 × 3320 mm	Articulation Angle	38°

Engine & Powertrain

Item	Specification
Engine Brand / Model	Weichai WP6G125E201 — low-speed energy-conservation turbocharged diesel, the sole 3t energy-saving product in the industry
Emission Standard	China National II (Tier 2) — widely accepted for export to Africa, Middle East, Southeast Asia, South America, and CIS markets
Rated Power / Speed	92 kW @ 2000 RPM — outstanding fuel-saving performance with improved power output
Transmission	ZL50 Planetary Transmission — XCMG patented optimal lubrication system, on-demand oil distribution, imported critical parts
Drive Axle	XCMG exclusive heavy-duty drive axle — DIN/SAE standard flange specifications, enlarged bolt distribution for super-strong torsion resistance
Fuel Tank / Hydraulic Tank	170 L fuel / 175 L hydraulic — preloaded hydraulic tank for less air exchange and high cleanliness
Travel Speed (F / R)	Forward 12 / 38 · Reverse 16 km/h · Tyre: 17.5-25-12PR

Hydraulic & Cycle Performance

✓ Double-Pump Confluence	Patented double-pump confluence system with steering priority equivalent unloading — increases traction under composite conditions, reduces energy consumption
✓ 130 kN Breakout Force	Industry-leading digging and penetration capability with 95 kN tractive force for hard, compacted, and frozen materials
✓ 5.4 s Raise / 9.3 s Total	Fast loading cycles for high hourly output; optimized turbine set grille structure maximizes transmission efficiency
✓ High-Capacity Torque Converter	Patented technology converter with optimized turbine set — reduces thermal balance temperature of hydraulic oil, improves reliability of related parts

Dimensions & Mobility

Item	Dimension
Overall Machine (L × W × H)	7245 × 2482 × 3320 mm
Wheel Base	2900 mm — extended wheelbase for higher working capacity and lower rear wheel wear
Tread	1850 mm
Working Height (fully lifted)	4870 mm
Min. Turning Radius (over tyres)	5170 mm · Articulation angle 38°
Gradeability / Tyre Size	28° climbing ability · 17.5-25-12PR tyres for rugged terrain

XCMG 4 Patented Technologies & Key Features

✓ Energy-Saving Drive System	XCMG patented energy-conservation drive paired with low-speed engine — sole 3t energy-saving product in the industry, economy superior by >10%
✓ Patented Transmission Lube	On-demand oil distribution eliminates insufficient and non-uniform lubrication; transmission life remarkably leading the industry
✓ High-Strength Frame	Exclusive single plate beam skeleton structure with industry-leading load-carrying material ratio; thickened boom plates and rectangular tube arm supports
✓ Extended Wheelbase Design	Classic 3rd generation loader structure with 2900 mm wheelbase — higher capacity, smaller turning radius, lower rear wheel wear
✓ Full-View Cab & Pilot Control	Panorama rear windscreen, high-mounted rear lamps, reversing sensor, standard pilot control and A/C; full-coverage interior trim with optional multifunctional player
✓ Ground Maintenance Concept	All maintenance locations scientifically arranged at ground level; large upturning side gates, central fuse case, preloaded hydraulic tank for easy service

Attachment Options

The LW300KN supports a variety of attached tools meeting the requirements of different working conditions. The bucket is thoroughly made of high-strength steel plates, improving wear resistance and impact resistance by more than 30% for extended service life:

Attachment	Application
Standard Bucket (1.8 m³)	General earthmoving, sand, gravel, and bulk material handling
Log Clamp I / IV	Grab and transport of various woods and tubing; offset tooth option available
Toad’s Mouth Clamp	Paired and staggered interconvert grab for irregular loads
Pallet Fork	Warehouse and yard cargo handling with tine length 1045 mm
Snow Plow / Grass Grab	Snow removing in roads and urban streets; grass grasping machine for agricultural use

Applications

The XCMG LW300KN is a versatile 3-ton heavy-duty loader built for high-end demanding applications. It is extensively used in earthmoving projects, aggregate yards, municipal constructions, bulk material transport, ports and logistics, agriculture and farming, and snow clearing. Its 2900 mm extended wheelbase and 5170 mm turning radius provide excellent maneuverability in confined spaces, while the 130 kN breakout force and 28° gradeability handle tough, compacted, and sloped terrain across all climate zones.
