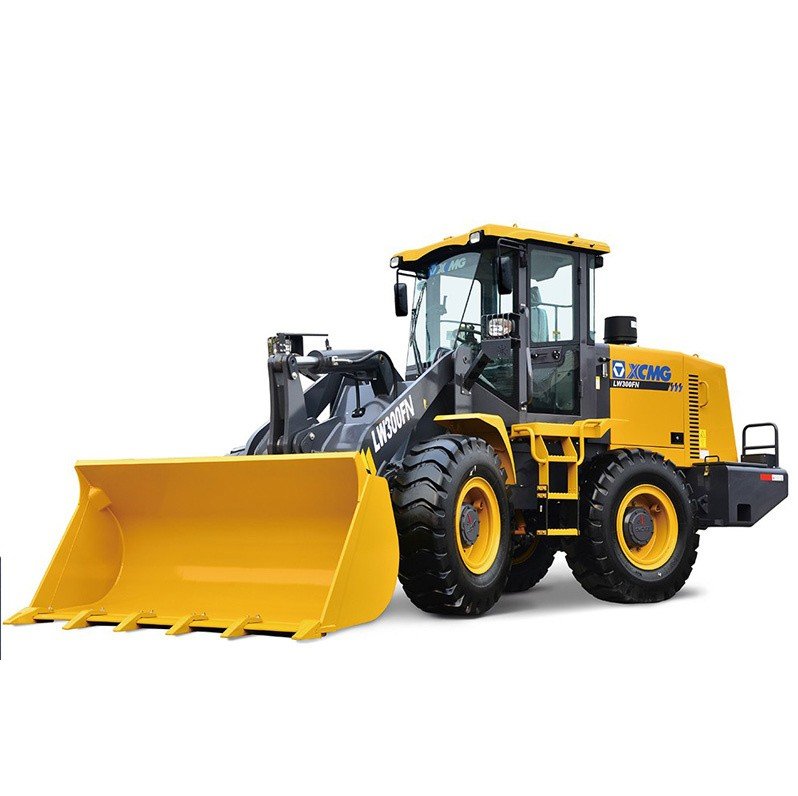

XCMG LW300FN Wheel Loader — 3-Ton Class Loading Machine

Name: XCMG LW300FN Wheel Loader — 3-Ton Class Loading Machine
Brand: XCMG
SKU: xcmg-lw300fn-wheel-loader-3-ton-class-loading-machine
Availability: InStock

XCMG LW300FN is a 3-ton wheel loader powered by a Weichai 92 kW engine, delivering 130 kN breakout force and 2930 mm dump height for construction, agriculture and material handling.

Wheel Loader XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

XCMG
3-TON CLASS
WHEEL LOADER

XCMG LW300FN Wheel Loader — 3-Ton Class Loading Machine

XCMG · 3-Ton Class · 10600 kg · Weichai WP6G125E22 92kW · 130 kN Breakout Force · 1.5–2.5 m³ Bucket · 5165 mm Turning Radius

10600 kg
Operating Weight

3000 kg
Rated Load

130 kN
Breakout Force

92 kW
Engine Power

XCMG LW300FN Wheel Loader Overview

The XCMG LW300FN is a 3-ton class wheel loader that has become the industry’s single-model sales champion thanks to its classic, high-maturity, and stable design. With a 3000 kg rated operating load and a 1.5–2.5 m³ bucket (rated 1.8 m³), it is the go-to machine for construction sites, quarries, agriculture, ports, and material-handling yards across global markets.

Powered by a Weichai WP6G125E22 diesel engine rated at 92 kW (125 HP) @ 2200 RPM with China-II emission compliance, the LW300FN combines strong power with low fuel consumption and a high torque reserve that meets instant overload demands during heavy-load operation. The countershaft power shift transmission and 3-element torque converter deliver maximum engine power utilization and proven reliability for continuous-duty cycles.

With a 2600 mm wheelbase, 5165 mm turning radius, and 130 kN breakout force, the LW300FN offers outstanding traction and agility in confined spaces. XCMG backs the front/rear frames, boom, and arm with a 2-year or 5000-hour warranty — far beyond the industry norm — making it a low-risk, high-return investment for B2B buyers.

Key Specifications

Parameter	Specification	Parameter	Specification
Rated Operating Load	3000 kg	Bucket Capacity	1.5–2.5 m³ (rated 1.8 m³)
Machine Weight	10600 kg	Rated Power	92 kW (125 HP) @ 2200 RPM
Max. Breakout Force	130 kN	Max. Tractive Force	95 kN
Dump Clearance (max lift)	2930 mm	Hydraulic Cycle (raise)	5.5 s
Wheel Base	2600 mm	Tread	1850 mm
Min. Turning Radius	5165 mm	Articulation Angle	35°
Gradeability	28°	Tyre Size	17.5-25-12PR
Overall Dimensions (L×W×H)	7050 × 2482 × 3118 mm	Fuel / Hydraulic Tank	170 L / 170 L

Engine & Powertrain

Item	Specification
Engine Brand / Model	Weichai WP6G125E22 — globally supported turbocharged diesel with high torque reserve for instant overload demand
Emission Standard	China-II — accepted for export to Africa, Middle East, Southeast Asia, South America, and CIS markets
Rated Power / Speed	92 kW (125 HP) @ 2200 RPM — ample reserve for heavy-load and continuous operation
Transmission	Countershaft Power Shift — classic, high-maturity design with the 3-element torque converter for maximum power utilization
Drive Axle	Enhanced heavy-duty drive axle — solid load-carrying portions for excellent overload resistance
Travel Speed (F/R)	I 8 / 10 · II 13 / 30 · III 24 / 40 km/h

Hydraulic & Cycle Performance

✅ 130 kN Breakout Force	Outstanding capability with 9 t-class traction and 13 t-class breakout — penetrates hard, compacted, and frozen materials with ease
✅ 5.5 s Raise Cycle	Total hydraulic cycle time 10 s — fast loading cycles for high hourly output on busy job sites
✅ International-Quality Hydraulics	First-class hydraulic units with low pressure loss and less heating; DIN 24° taper + O-ring double sealing solves leakage
✅ 170 L Hydraulic Tank	Independent oil-return chamber design for convenient maintenance and stable temperature under heavy duty

Dimensions & Mobility

Item	Dimension
Overall Machine (L × W × H)	7050 × 2482 × 3118 mm
Wheel Base	2600 mm — high mobility and flexibility for all site types
Tread	1850 mm
Working Height (fully lifted)	4870 mm
Hinge Height (max lift)	3830 mm
Min. Turning Radius (tyre center)	5165 mm

Key Features & Advantages

✅ Industry Sales Champion	The #1 best-selling 3-ton single model in its class — proven maturity and worldwide parts availability
✅ 2600 mm Wheelbase	High mobility and flexibility, applicable to all kinds of working sites including tight urban areas
✅ Super-Strong Structure	Finite element analysis reduces stress concentration; optimized bucket shape eases penetration and lifting
✅ 2-Year / 5000h Warranty	Extended coverage on front/rear frames, boom, and arm — far beyond the loader industry norm
✅ Spacious Luxury Cab	Car-level cab, panorama rear window, optional A/C, three-layer noise reduction, reversing alarm for safety
✅ Convenient Maintenance	Large side doors, central fuse case, and independent hydraulic return chamber simplify daily service

Bucket & Attachment Options

The LW300FN adapts to different regions and working conditions through diversified configurations and complete attachments:

Attachment	Application
Standard Bucket (1.5–2.5 m³)	General earth, sand, gravel, and bulk material handling
Rock Bucket	Hard materials (rock) — high wear and impact resistance
Coal Bucket	Bulk materials (coal) — high capacity and efficiency
Log Clamp I / Log Clamp IV	Grab and transport of woods and tubing
Bale Grabber	Light materials in farms, biomass plants, paper mills
Toad’s-Mouth Clamp / Interchangeable Clamp	Versatile grabbing of irregular and paired loads
Grasping Grass Machine	Agricultural and landscaping material handling
Pallet Fork	Warehouse, port, and yard palletized cargo
Snowplow	Winter road clearing and snow removal

Applications

The XCMG LW300FN is a versatile 3-ton loader built for demanding, mixed-duty operations. It is widely used in construction and road building, mining and quarrying, agriculture and farming, forestry and logging, ports and logistics yards, recycling and waste handling, and snow removal. Its compact 2600 mm wheelbase and 35° articulation let it work efficiently in confined spaces, while the 130 kN breakout force and 95 kN traction handle tough, compacted, and frozen ground across all climate zones.

Why Choose Archer Machinery as Your Export Partner?

Since 2017	JINAN ARCHER TRADE CO., LTD has been exporting Chinese construction machinery and trucks since 2017 with deep manufacturer relationships ensuring priority allocation and best pricing
9 Premium Brands	Authorized distributor for XCMG, SANY, Zoomlion, Shantui, SDLG, YTO (construction) + SINOTRUK, SHACMAN, FAW (trucks). Full product range from one partner
Global Shipping	FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and multi-unit container consolidation
OEM Private Label	Full white-label capability: your logo, your colors, your brand. We handle production coordination so you can focus on sales and distribution
Spare Parts Supply Chain	Weichai engine parts, hydraulic components, drive axle parts, bucket wear plates, and tyres shipped worldwide with fast lead times

Get XCMG LW300FN Wheel Loader Quote Today

XCMG LW300FN — 10600 kg operating weight, 3000 kg rated load, Weichai WP6G125E22 92kW (125HP) engine, 130 kN breakout force, 1.5–2.5 m³ bucket, 2600 mm wheelbase, 2-year / 5000h warranty. FOB China pricing for global B2B buyers.
