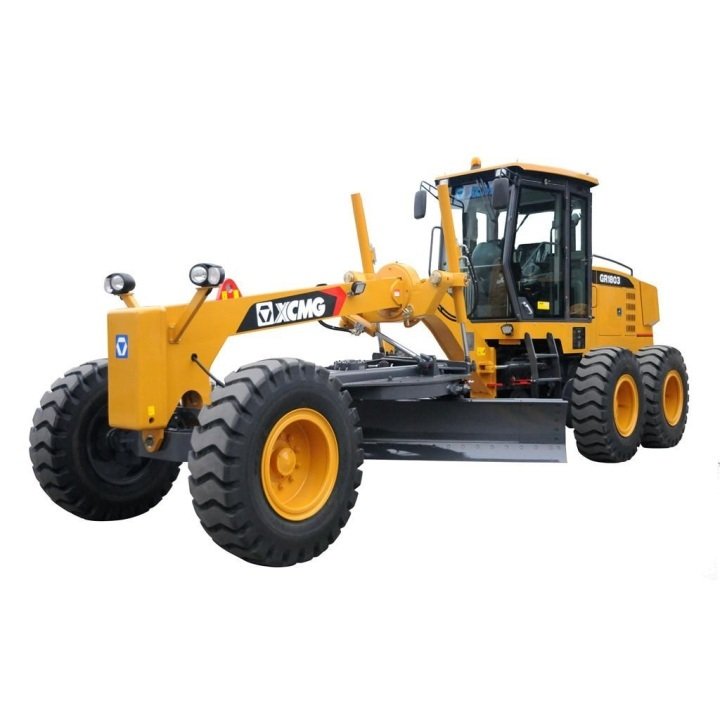

XCMG GR180 Motor Grader — 15-Ton Road Leveling Machine

Name: XCMG GR180 Motor Grader — 15-Ton Road Leveling Machine
Brand: XCMG
SKU: xcmg-gr180-motor-grader-15-ton-road-leveling-machine
Availability: InStock

XCMG GR180 is a 15-ton export model motor grader powered by a Cummins 142 kW engine with 360-degree blade swivel, 450mm cutting depth, patented large-angle steering axle, and diamond-shaped six-point support cab for highway construction and land leveling.

Motor Grader XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

XCMG
15-TON CLASS
CUMMINS
STAGE II

XCMG GR180 Motor Grader — 15-Ton Road Leveling Machine

XCMG · 15400 kg · Cummins 142kW · 3660x610mm Blade · 360° Swivel · 450mm Cut Depth · 6-Speed Forward · Export Model

15400 kg
Operating Weight

142 kW
Engine Power

3660x610mm
Blade Size

450 mm
Max Cut Depth

XCMG GR180 Motor Grader Overview

The XCMG GR180 is a 15-ton class motor grader engineered for precision ground leveling, ditching, slope scraping, bulldozing, scarifying, snow removal, and large-area surface finishing across highways, airports, farmlands, and defense projects. With an operating weight of 15400 kg, a powerful Cummins 142 kW engine, and a robust 3660 x 610 mm moldboard, it delivers industry-leading grading accuracy and productivity for demanding construction environments.

Powered by a Cummins 6CTA8.3-C190-II stage II turbocharged diesel engine with matched optimum torque converter, the GR180 produces 142 kW (190 HP) at 2200 RPM while reducing start time and maximizing torque output at low speed. The engine complies with Stage II emission standards, making it ideal for export markets including Africa, the Middle East, Southeast Asia, South America, and CIS regions where strict emissions requirements may vary.

The GR180 features XCMG’s patented single-oil cylinder large steering angle front axle combined with articulated frame, delivering unmatched maneuverability. Its diamond-shaped six-point support cab reduces vibration and noise while shortening the operator stroke by 30% for comfortable, productive all-day operation. The optimized blade shape minimizes material accumulation, and high-frequency quenching treatment of gear rings ensures long service life in abrasive conditions.

Key Specifications

Parameter	Specification	Parameter	Specification
Operating Weight	15400 kg	Rated Power	142 kW @ 2200 RPM
Engine Model	Cummins 6CTA8.3-C190-II	Blade Size (L x H)	3660 x 610 mm
Max Cutting Depth	450 mm	Swivel Angle	360 degrees
Max Tilt Angle	90 degrees	Cutting Angle Range	-28 to +70 degrees
Overall Dimensions (LxWxH)	8900 x 2625 x 3420 mm	Wheelbase (F-R Axle)	6219 mm
Ground Clearance	430 mm	Min Turning Radius	7.3 m
Tyre Specification	17.5-25	Wheel Track	2136 mm

Engine & Powertrain

Item	Specification
Engine Brand / Model	Cummins 6CTA8.3-C190-II — stage II turbocharged diesel, matched optimum torque converter for reduced start time and maximized low-end torque
Rated Power / Speed	142 kW (190 HP) @ 2200 RPM — powerful output for heavy-duty grading, scarifying, and earthmoving tasks
Emission Standard	Stage II — compliant for export to Africa, Middle East, Southeast Asia, South America, and CIS markets
Transmission Type	Torque Converter Transmission with ratio range of 1.4 ~ 1.8 for smooth power delivery across all speed ranges
Travel Speed (Forward)	5 / 8 / 11 / 17 / 23 / 38 km/h — 6-speed forward for precise speed selection in fine grading and transport modes
Travel Speed (Reverse)	5 / 11 / 23 km/h — 3-speed reverse for efficient positioning and return passes
Hydraulic Work System Pressure	260 MPa — improved pressure for enhanced blade swivel force and precise response under load

Blade & Working Parameters

Item	Specification
Blade Dimensions (L x H)	3660 x 610 mm — optimized blade shape for fast, efficient work with minimized material accumulation
Maximum Cutting Depth	450 mm — deep cutting capability for heavy earthmoving and land leveling
Maximum Tilt Angle	90 degrees — full vertical tilt range for slope profiling and bank cutting
Cutting Angle Range	-28 to +70 degrees — versatile cutting angle adjustment for various material types
Swivel Angle	360 degrees — full rotation capability for side-slope casting and V-ditch forming
Blade Treatment	High-frequency quenching treatment of gear rings for enhanced wear resistance and extended service life

Steering System & Mobility

Item	Specification
Front Wheel Steering Angle	± 48 degrees — XCMG patented single-oil cylinder large steering angle front axle
Frame Articulation Angle	± 27 degrees — articulated frame combined with large-angle front axle for superior maneuverability
Front Wheel Tilt Angle	± 17 degrees — allows wheels to follow ground contour for consistent blade contact on uneven terrain
Front Axle Oscillation	± 15 degrees — oscillating front axle maintains traction on rough surfaces
Balance Box Oscillation	± 15 degrees — rear balance box oscillation for stable rear-wheel contact
Minimum Turning Radius	7.3 m — compact turning for confined job sites and narrow roadwork areas
Drive Components	Patented elevating bearing drive axle for long lifetime, overload protection worm gear box, front axle casting joint with extended lifetime

Dimensions & Capacities

Item	Value
Overall Machine (L x W x H)	8900 x 2625 x 3420 mm
Wheel Base (Front to Rear Axle)	6219 mm
Ground Clearance	430 mm
Wheel Track / Tyre Spec	2136 mm / 17.5-25
Fuel Tank Capacity	280 L — extended working hours between refueling
Hydraulic Oil Tank	110 L
Coolant / Engine Oil	50 L / 24 L
Transmission Box / Balance Box / Drive Axle	38 L / 120 L / 36 L

Key Features & Advantages

✓ Patented Steering System	XCMG patented single-oil cylinder large-angle front axle (±48°) combined with articulated frame (±27°) delivers unmatched maneuverability in confined spaces and complex road profiles
✓ Diamond Cab Design	Diamond-shaped six-point support cab reduces vibration and noise significantly. Shortened operating stroke requires 30% less force for fatigue-free all-day operation
✓ Enhanced Blade Durability	Optimized blade shape minimizes material accumulation. High-frequency quenching treatment of gear rings ensures superior wear resistance and extended blade life
✓ Heavy-Duty Drive Axles	Patented elevating bearing drive axle with overload protection worm gear box and front axle casting joint for longer lifetime and wider application range
✓ CAE Optimized Structure	CAE computer-aided engineering optimized structural parts deliver reliable and durable performance under heavy-duty grading conditions
✓ 6-Speed Forward Drive	Torque converter transmission with 6 forward speeds (5-38 km/h) and 3 reverse speeds (5-23 km/h) covers everything from fine grading to site transport efficiently

Applications

The XCMG GR180 is a versatile 15-ton class motor grader built for precision surface finishing and earthmoving applications worldwide. It is extensively used in highway construction and maintenance, airport runway leveling, large-area land development, roadbed grading and compaction, slope scraping and profiling, ditching and drainage work, snow removal, scarifying, farm land improvement, defense project construction, mining site road building, and water conservancy projects. Its 3660 mm wide blade with 360-degree swivel, 450 mm cutting depth, 7.3-meter turning radius, and 38 km/h top travel speed make it equally effective on highway finishing passes and rough land-leveling operations across Africa, the Middle East, Southeast Asia, and South America.

Why Choose Archer Machinery as Your Export Partner?

Since 2017	JINAN ARCHER TRADE CO., LTD has been exporting Chinese construction machinery and trucks since 2017 with deep manufacturer relationships ensuring priority allocation and best pricing
9 Premium Brands	Authorized distributor for XCMG, SANY, Zoomlion, Shantui, SDLG, YTO (construction) + SINOTRUK, SHACMAN, FAW (trucks). Full product range from one partner
Global Shipping	FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and multi-unit container consolidation
OEM Private Label	Full white-label capability: your logo, your colors, your brand. We handle production coordination so you can focus on sales and distribution
Spare Parts Supply Chain	Cummins engine parts, torque converter components, hydraulic system parts, blade wear edges, circle and sector teeth, drive axle parts, and tyres shipped worldwide
