Used SANY SCC2600A Crawler Crane — 260 Ton Lattice Boom Crane

Name: Used SANY SCC2600A Crawler Crane — 260 Ton Lattice Boom Crane
Brand: SANY
SKU: used-sany-scc2600a-crawler-crane
Availability: InStock

Pre-owned SANY SCC2600A lattice boom crawler crane with 260 t maximum lifting capacity, 1,470.4 t·m lifting moment, and 20–86 m boom. Diesel engine 242 kW (Tier III), LUDV hydraulic system, full load moment limiter (LMI) safety package with black-box recording. Inspected, load-tested and export-ready with DDP worldwide delivery.

Lifting crane, Used Heavy Machinery SANY, SANY crawler crane, Used crawler crane, Used SANY crane

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Used · Pre-OwnedSANY SCC2600A · 260 Ton · Lattice Boom Crawler Crane

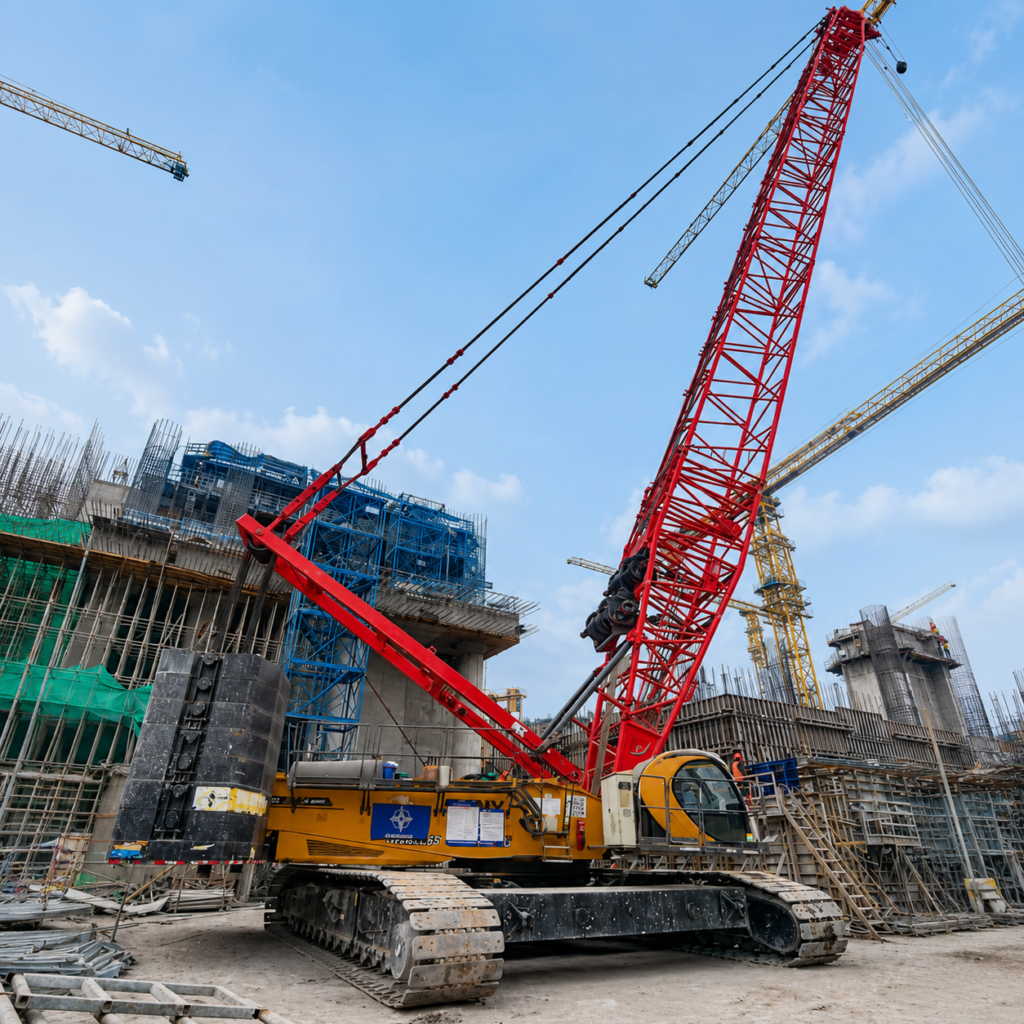

Used SANY SCC2600A Crawler Crane — 260 Ton Lifting Capacity

The SANY SCC2600A is a heavy-duty lattice boom crawler crane in the 260-ton class, built for wind farm installation, petrochemical lifting, bridge and power-plant projects. This pre-owned unit is function-tested, load-tested and export-ready. With a 20–86 m boom, 1,470.4 t·m lifting moment, and hook blocks from 16 t to 260 t, it covers the full range of heavy lifting jobs at a fraction of new-machine cost.

Basic Information

Model	SCC2600A
Crane Type	Lattice boom crawler crane
Max. Rated Lifting Capacity	260 t
Max. Lifting Moment	1,470.4 t·m
Boom Length	20 – 86 m
Boom Angle	30° – 85°
Max. Fixed Jib (boom + jib)	62 + 42 m
Max. Luffing Jib (boom + jib)	62 + 63 m
Slewing Speed	0 – 1.25 rpm
Travel Speed	0–1.2 / 0–0.53 km/h (double speed)
Gradeability	30%
Average Ground Pressure	0.14 MPa
Working Hours / Year	[ Fill in: e.g. 4,100 h · 2020 ]

Engine & Hydraulic System

Engine	Diesel engine — 242 kW / 2,100 rpm
Emission Standard	Non-road Tier III
Fuel Tank Capacity	1,050 L
Hydraulic System	Open circuit, LUDV load-sensitive, electronic proportional control
Max. Hydraulic Pressure	32 MPa
Control System	CAN bus, load moment limiter (LMI), optional GPS remote monitoring
Electrical Compliance	CE standard, multi-level safety limit control

Hoist & Working Speed

Main / Aux. Load Hoist (single rope)	0 – 110 m/min
Boom (Jib) Winch Line Speed	0 – 124 m/min
Main Luffing Winch Line Speed	0 – 108 m/min
Aux. Luffing Winch Line Speed	0 – 144 m/min
Boom Luffing Winch (rope)	Ø28 mm × 310 m, 0 – 121 m/min
Jib Luffing Winch (rope)	Ø20 mm × 410 m, 0 – 72 m/min
Main Load Hoist Rope	Ø28 mm × 480 m (single line pull 17 t)

Counterweight & Hook Blocks

Carbody Counterweight	2 × 15 t (total 30 t)
Rear Counterweight	14 × 6 t blocks + 2 × 16 t trays (total 100 t)
Hook Block Options	260 / 160 / 100 / 50 / 16 t
Track Assembly (each)	9.15 × 1.20 × 1.40 m · 22 t (×2)
Track Shoe	High-strength, hydraulic tension-adjusted

Transport & Dimensions

Basic Machine (L × W × H)	13.32 × 3.00 × 3.20 m
Basic Machine Weight	45.0 t (max single transport part)
Track Frame (each)	9.15 × 1.20 × 1.40 m · 22.0 t
Shipping Breakdown	Two crawler frames, counterweight blocks, boom/jib inserts, hooks — standard flat-rack / container shipping

Condition & Inspection (This Unit)

Working Hours	[ Fill in meter reading, e.g. 4,100 h ]
Manufacturing Year	[ Fill in, e.g. 2020 ]
Condition Grade	[ A / B / C ] — photos & video available on request
Function & Load Test	Full function test and rated load test before shipment
Maintenance Records	[ Available / on request ]
Optional Refurbishment	Repaint, new wear parts, new ropes, full service

Safety & Control Systems

Load Moment Limiter (LMI): SANY-designed overload protection with all performance parameters stored, auto cut-off toward dangerous direction, black-box overload recording.
Three-color Load Alarm Light: real-time load progress bar reflecting lifting safety status.
Hoist Upper / Lower Limiters: cut off lifting/lowering action at rope limits (last three loops) with audible alarm.
Boom Limit & Back-stop Devices: cylinder back-stop (max 38 t on boom, 50 t on luffing jib) keeps boom/jib within safe angle.
Monitoring & Self-diagnosis: HD camera on luffing drum / winch / rear, fault alarm and circuit self-check.
Anemometer & Level Gauge: real-time wind speed and tilt-angle display for safe ground operation.

Why Choose This Used SCC2600A?

260-ton class at used price: same lifting capacity as a new unit, at a fraction of the capex.
Immediate availability: no long production lead time — ships once inspection is done.
Versatile boom & jib range: 20–86 m boom with fixed and luffing jib for wind, petro, bridge and foundation work.
Proven SANY reliability: 242 kW diesel, LUDV hydraulic system, full LMI safety package.
Export-ready: inspected, load-tested, DDP worldwide with customs clearance.
Spare parts support: genuine SANY parts and ArcherMach after-sales backup.
