Skid Steer Loader
Wheel & Track · CE / EPA Certified · OEM Available

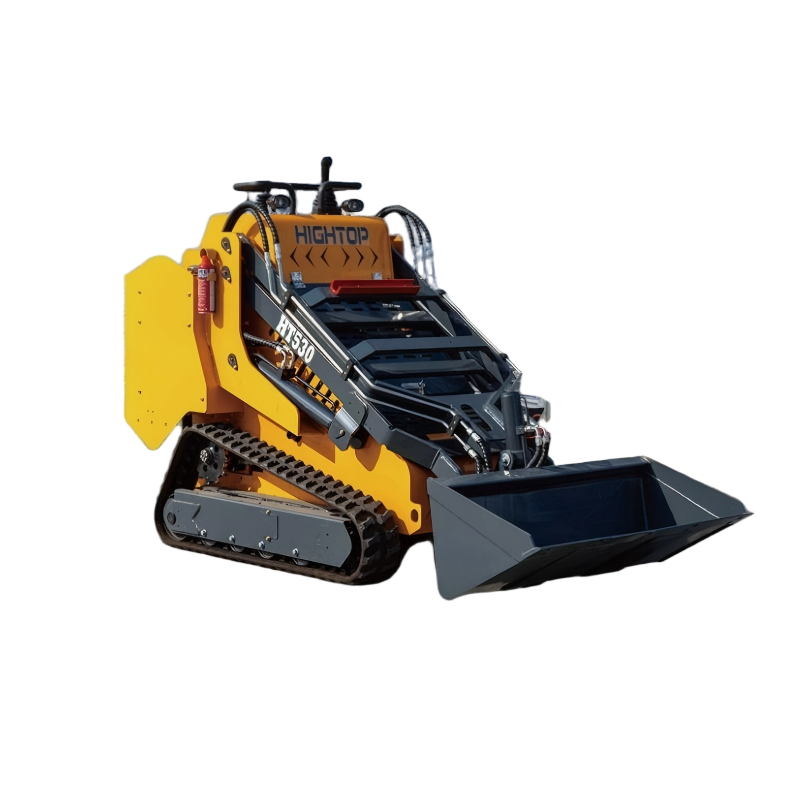

OEM Skid Steer Loader — Wheel & Track Series 250kg–830kg
Factory-direct skid steer loaders from Shandong Hightop Group. 16 models covering 250 kg to 830 kg rated load. Wheel and tracked chassis, gasoline/diesel/electric power options. Standard quick-attach bracket for 40+ attachments. CE, EPA, ISO 9001, SGS, TUV & BV certified. Full OEM / private label support — custom brand, color, engine & documentation. Exported to 77+ countries worldwide.
Original Manufacturer
| Manufacturer |
Shandong Hightop Group — Hightop Machinery |
| Location |
High-tech Zone, Jining City, Shandong Province, China |
| Factory Area |
~60,000 m² |
| Employees |
700+ |
| Export Coverage |
77+ countries — Europe, North America, Southeast Asia, South America |
| Overseas Warehouses |
10 bases — USA (2), Germany (1), UK (1), Spain (2), Poland (2), Russia (1), Saudi Arabia (1) |
| Certifications |
CE (EU), EPA (USA), ISO 9001, SGS, TUV Rheinland, BV (France) |
| Intellectual Property |
28 national patents · 21 trademarks · 3 copyrights |
| Honors |
Jining City “Specialized & Sophisticated” Enterprise · Key Project Enterprise of Economic Development Zone |
| Product Lines |
Mini excavators, skid steer loaders, wheel loaders, mini dumpers, lawn mowers, sprayers |
OEM & Private Label Customization
| Brand Logo |
Custom logo decals — your brand on machine body & documentation |
| Paint Color |
Custom color — yellow, orange, red, blue, green, or any RAL code |
| Engine |
Runtong R420/R740, Briggs & Stratton XR2100/3864, Honda GX690, Kubota D1105, Kipor 192/292 diesel — selected per market emission requirement |
| Power Type |
Gasoline / Diesel / Electric (HTEL06 battery model) — configurable per market |
| Documentation |
CE / EPA certification documents under your brand or factory brand |
| MOQ |
Trial order: 1 unit · Branded OEM: 3–5 units (negotiable per model) |
| Special Configurations |
Enclosed cab with A/C (HT-50/HT-60), telescopic boom (HTL28), concrete mixer bucket, pallet fork, auger, trencher & 40+ attachments |
Model Overview — 16 Models
| Model |
Type |
Rated Load |
Engine |
Power |
Machine Weight |
Key Feature |
| HT320 |
Wheel |
250 kg |
Runtong R420 / B&S 13.5HP |
9.5–10 kW |
665 kg |
Compact entry model |
| HT320T |
Track |
250 kg |
Runtong R420 / B&S XR2100 / Kipor 192 Diesel |
9.7–10 kW |
830 kg |
Triangular track chassis |
| HT360W |
Wheel |
220 kg |
Runtong R420 / B&S XR2100 / Kipor 192 Diesel |
9.7 kW |
720 kg |
Quick-attach coupler |
| HT380 |
Wheel |
300 kg |
Runtong R740 / B&S 23HP / Honda GX690 |
16–17 kW |
800 kg |
Hydraulic oil radiator |
| HT380T |
Track |
300 kg |
Runtong R740 / B&S 23HP / Honda GX690 |
16–17 kW |
890 kg |
Quick-attach hyd coupler |
| HT382T |
Track |
300 kg |
Runtong R740 / B&S / Kipor 292 / Honda GX690 |
14–17 kW |
930 kg |
3-pump 3-valve · high flow |
| HT430 |
Wheel |
430 kg |
Runtong R740 / B&S 23HP / Kipor Diesel |
16–17 kW |
950 kg |
Self-leveling bucket · dual arm |
| HT430 Track |
Track |
430 kg |
Runtong R740 / Kipor 292 / B&S / Honda GX690 |
14–17 kW |
1,030 kg |
30° gradeability |
| HT530T |
Track |
380 kg |
Runtong R740 / B&S 3864 / Honda GX690 / Kipor 292 |
14–17 kW |
1,100 kg |
Pilot joystick · hi/lo speed |
| HTS530 |
Track |
450 kg |
Kubota D1105 (standard) |
18.5 kW |
1,330 kg |
Self-leveling · Kubota diesel |
| HT390 |
Ride-On |
250 kg |
Runtong R420 / Dajiang |
9.7 kW |
850 kg |
Sit-on operation · canopy |
| HTL28 |
Wheel · Telescopic |
500 kg |
Runtong R740 / Kubota D1105 (optional) |
16–18.5 kW |
1,450 kg |
Telescopic boom · 4WD · articulated steering |
| HTEL06 |
Wheel · Electric |
450 kg |
60V Battery (5× 150Ah lead-acid) |
3 kW motor |
1,320 kg |
Zero emission · indoor use |
| HTDL06 |
Track · Diesel |
600 kg |
Kubota D1105 (standard) |
18.2 kW |
2,000 kg |
Articulated · dual lift cylinder |
| HT-L25 |
Ride-On · Wheel |
760 kg |
Runtong twin-cyl / Kubota 3-cyl |
23–30 HP |
2,650 kg |
Solid tires · pilot control |
| HT-50 / HT-60 |
Ride-On · Wheel |
760 / 830 kg |
Xinchai 490/498 (4-cyl diesel) |
36.8–45 kW |
3,433 kg |
Enclosed cab · A/C · 12 km/h |
HT320 — Wheel Skid Steer Loader (Entry Level)
Compact wheel model for tight spaces — warehouses, barns, feedlots, landscaping. LED work lights, instrument display, standard quick-attach bracket. Steel hydraulic lines + steel-braided high-pressure rubber hoses. EPA-compliant engine options.
| Dimensions |
| Max Working Height |
2,195 mm |
Max Loading Height |
1,955 mm |
| Dump Height |
1,535 mm |
Dump Reach |
410 mm |
| Dump Angle |
30° |
Overall Height |
1,265 mm |
| Ground Clearance |
115 mm |
Wheelbase |
640 mm |
| Length (w/o Bucket) |
1,570 mm |
Overall Width |
1,060 mm |
| Bucket Width |
1,080 mm |
Length (with Bucket) |
2,020 mm |
| Performance (Runtong R420 / B&S 13.5HP) |
| Engine |
Runtong R420 (9.5kW/3600rpm) or Briggs & Stratton 13.5HP (10kW/3600rpm) — gasoline, single-cyl, air-cooled, EPA compliant |
| Rated Load |
250 kg |
| Bucket Capacity |
0.13 m³ |
| Lifting Force (max) |
320 kg |
| Travel Speed |
0–4.5 km/h |
| Operating Weight |
665 kg |
| System Pressure |
0–17 MPa |
| Attachment Flow |
0–18 L/min |
| Fuel Tank |
6.5 L |
| Engine Oil |
1 L |
| Hydraulic Tank |
33 L |
| Noise |
≤ 95 dB |
HT320T — Tracked Skid Steer Loader
Triangular rubber track chassis — superior stability, terrain adaptability & gradeability. 4 engine options: Runtong R420, B&S XR2100, Kipor 192 diesel, or Yoopu diesel. Foldable foot pedal for compact transport. Thickened hydraulic cylinders with imported seals.
| Dimensions |
| Max Working Height |
2,120 mm |
Max Loading Height |
1,865 mm |
| Dump Height |
1,405 mm |
Dump Reach |
575 mm |
| Dump Angle |
35° |
Overall Height |
1,350 mm |
| Ground Clearance |
121 mm |
Overall Width |
1,021 mm |
| Length (w/o Bucket) |
1,495 mm |
Bucket Width |
1,080 mm |
| Length (with Bucket) |
2,245 mm |
Folded Pedal Length (w/o bucket) |
1,990 mm |
| Performance |
| Engine Options |
Runtong R420 (9.7kW) · B&S XR2100 (10kW) · Yoopu Diesel · Kipor 192 Diesel |
| Rated Load |
250 kg |
| Bucket Capacity |
0.15 m³ |
| Lifting Force (max) |
360 kg |
| Travel Speed |
0–4.5 km/h |
| Operating Weight |
830 kg |
| System Pressure / Flow |
0–17 MPa / 0–18 L/min |
| Fuel Tank / Hydraulic Tank |
6.5 L / 35 L |
| Noise |
≤ 95 dB |
HT430 — Wheel & Track Skid Steer Loader (High-Capacity)
430 kg rated load — ideal for farms, construction & landscaping. Dual-arm lift design. Standard self-leveling bucket. 3-pump 3-valve high-flow system. Engine: Runtong R740 (16kW), B&S 23HP (17kW), Kipor diesel, or Honda GX690.
| HT430 Wheel vs HT430 Track |
| Parameter |
Wheel |
Parameter |
Track |
| Rated Load |
430 kg |
Rated Load |
430 kg |
| Bucket |
0.17 m³ |
Bucket |
0.17 m³ |
| Lifting Force |
430 kg |
Lifting Force |
550 kg |
| Speed / Gradeability |
7 km/h / 20° |
Speed / Gradeability |
7 km/h / 30° |
| Weight / Pressure |
950 kg / 25 MPa |
Weight / Pressure |
1,030 kg / 25 MPa |
| Flow / Tanks |
33 L/min · 30L/20L |
Flow / Tanks |
33 L/min · 30L/20L |
| Dump H / Reach |
2,000/800 mm |
Dump H / Reach |
1,450–1,900/348 mm |
| Chassis |
Tires 18×8.5-8 |
Chassis |
Track 180/66/46 |
HT530T & HTS530 — Heavy-Duty Tracked Loaders
The largest stand-on tracked models. HT530T offers 4 engine options (Runtong R740, B&S 3864, Honda GX690, Kipor 292) with pilot joystick. HTS530 features Kubota D1105 diesel standard — 18.5kW, self-leveling bucket, 450 kg rated load.
| Comparison |
| Parameter |
HT530T |
HTS530 |
| Rated Load |
380 kg |
450 kg |
| Engine (std) |
Runtong R740 (16kW) / B&S 3864 (17kW) |
Kubota D1105 (18.5kW) |
| Bucket / Lift |
0.2 m³ / 450 kg |
0.2 m³ / 530 kg |
| Operating Weight |
1,100 kg |
1,330 kg |
| Flow / Fuel / Hyd. |
0–36 L/min · 30L / 35L |
0–43 L/min · 30L / 35L |
| Dump Height |
1,580 mm |
1,535 mm |
| Key Feature |
Hi/Lo speed · pilot joystick |
Self-leveling · compound action |
Special Variants — Electric, Telescopic, Ride-On & Diesel
HTEL06 — Electric Wheel Loader (Zero Emission)
| Power |
60V battery (5 × 150Ah lead-acid) · 3kW pump motor · 2 × 2.5kW travel motors |
| Rated Load |
450 kg · Bucket: 0.15 m³ |
| Speed / Runtime |
10–13 km/h · 6h work / 8h charge |
| Weight / Tires |
1,320 kg · 6.00-12 · Turning radius: 2,876 mm |
| Features |
Articulated steering, drum brakes, tow hitch, reinforced frame, 0 maintenance (no oil changes), indoor-safe |
HTL28 — Telescopic Boom Loader
| Engine |
Runtong R740 23HP (std) · Kubota D1105 18.2kW (optional) |
| Rated Load |
500 kg · Bucket: 0.3 m³ · Main boom: 800 kg max · Jib: 600 kg max |
| Lift Heights |
Main: 3,350 mm · Jib: 2,680 mm · Dump at 45°: 2,000/2,300 mm |
| Drivetrain |
4WD · Hydraulic articulated steering · 9 km/h · 30% gradeability |
| Weight / Tanks |
1,450 kg (net) / 2,000 kg (working) · 30L fuel / 30L hyd · Tires: 23×8.5-12 |
| System |
25 MPa system / 31 MPa pump · 33 L/min · 739cc displacement |
HTDL06 — Diesel Tracked Articulated Loader
| Engine |
Kubota D1105 — vertical, water-cooled, 4-cycle diesel, 3-cyl, 18.2kW/3000rpm |
| Rated Load |
600 kg · Bucket: 0.4–0.6 m³ · 7.5 kN drawbar pull |
| Speed / Steering |
0–10 km/h · Articulated chassis (35° steering angle) |
| Operating Weight |
2,000 kg · Dimensions (L×W×H): 3,820 × 1,170 × 2,250 mm |
| Dump H / Reach |
2,260 mm / 1,100 mm · 23° dump angle |
| Fuel / Hyd. Tank |
25 L / 50 L · Dual lift cylinders · Hydraulic quick-attach · Rubber tracks |
HT-50 / HT-60 — Enclosed Cab Ride-On Skid Steer
| Engine |
Xinchai 490 4-cyl diesel (36.8kW/HT-50) · Xinchai 498 4-cyl diesel (45kW/HT-60) |
| Rated Load |
760 kg (HT-50) / 830 kg (HT-60) · Tipping load: 1,740 kg |
| Travel Speed |
12 km/h (hydrostatic closed circuit · dual variable piston pump + 2 radial piston motors) |
| Operating Weight |
3,433 kg · Dump height: 2,551 mm · Dump reach: 603 mm |
| System |
180 bar safety pressure · 66.2 L/min rated flow · Radial lift · Tilt cylinder |
| Features |
Enclosed cab with A/C, pilot hydraulic controls, quick-attach coupler, tires: 10.0(12.0)-16.5, chains: 800S-1R-60, radiator, rear flip-up hood |
Attachments — 40+ Options
All models include a standard universal quick-attach mounting plate, compatible with 40+ attachments for multi-function operation on a single machine.
| Material Handling |
Standard bucket, 4-in-1 bucket, grapple bucket, rock bucket, snow blade, pallet fork, bale spear |
| Earthmoving |
Trencher, auger (multiple diameters), ripper, backhoe, stump grinder |
| Demolition & Concrete |
Hydraulic breaker (hammer), concrete mixer bucket, rock wheel saw |
| Site Maintenance |
Rotary broom / sweeper, mower, cold planer, vibratory roller, hydraulic quick coupler |
| Specialized |
Tilt bucket, rotating grab, asphalt spreader, landscape rake, post hole digger, stump planer |
Interested in OEM Skid Steer Loaders?
16 models · 5 engine brands · Custom branding. Factory-direct pricing, pre-shipment QC, CE/EPA certified.
