SINOTRUCK HOWO Water Fire Fighting Truck

SINOTRUK HOWO Water Fire Fighting Truck

Name: SINOTRUK HOWO Water Fire Fighting Truck
SKU: SKU-290

Respond to emergencies with absolute confidence using the heavy-duty SINOTRUK HOWO Water Fire Fighting Truck! Engineered on a rugged 16,000 kg GVW chassis, this high-performance fire tender features an expansive 15 m³ (15,000L) carbon steel water tank with a 4mm body and 5mm end plates. Powered by a reliable 299HP WD615 Euro 2 diesel engine with an HW76 sleeper cab, it integrates professional-grade firefighting equipment including a CB10/60 centrifugal pump delivering 3,600 L/min and a PS50 fire monitor with a powerful $ge$ 65m water range. Equipped with heavy-duty HF7/ST16 axles, 12R22.5 tubeless tires, and curtain-door aluminum lockers

Truck & Special vehicles SINOTRUK

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Emergency Vehicles
SINOTRUK HOWO — Fire Fighting Truck Series

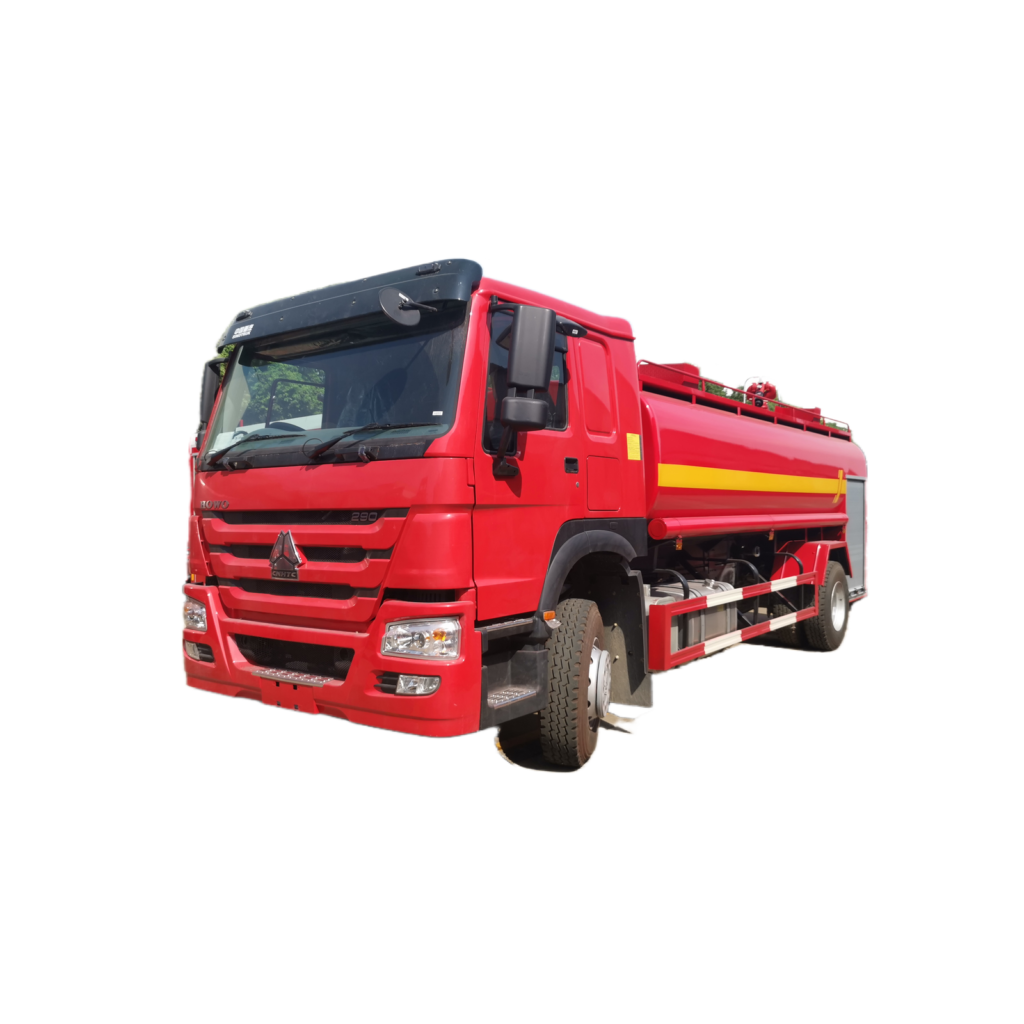

SINOTRUK HOWO Water Fire Fighting Truck

The SINOTRUK HOWO Water Fire Fighting Truck (16,000 kg Gross Vehicle Weight) is a heavy-duty municipal and industrial fire tender engineered for rapid emergency response and high-volume water suppression operations[cite: 1]. It features an advanced heavy-tonnage superstructure including a high-capacity 15 m³ carbon steel water tank built with an reinforced 4mm tank body and 5mm end plates[cite: 1]. Driven by a high-torque 299HP WD615 series engine and equipped with a professional CB10/60 centrifugal fire pump along with a PS50 fire monitor, this firefighting apparatus projects a high-velocity stream reaching over 65 meters[cite: 1]. It provides a rugged, efficient tactical solution for municipal fire brigades, petroleum refineries, industrial estates, and rural safety sectors.

Technical Specifications Overview

Truck Chassis Brand	SINOTRUK HOWO
Overall Dimensions (L×W×H)	9230 × 2580 × 3200 mm
Wheelbase & Overhang	Wheelbase: 5600 mm \| Overhang (Front/Rear): 1500 / 2070 mm
Weight Rating Profiles	Curb Weight: 8450 kg \| Gross Vehicle Weight (GVW): 16,000 kg
Max Driving Speed	75 km/h
Fuel Tank Capacity	300 Liters (Heavy-duty diesel storage)

Liquid Capacity & Fire Extinguishing Infrastructure

Water Tank Volume	15 m³ (15,000 Liters) effective firefighting water volume
Tank Shell Construction	Premium high-tensile carbon steel \| Tank Body: 4mm thickness \| End Plates: 5mm thickness
Fire Pump Assembly	Model: CB10/60 Centrifugal Fire Pump \| Output Flow Capacity: 3,600 L/min
Fire Monitor (Water Cannon)	Model: PS50 Fire Monitor \| Output Rate: 50 L/s \| Effective Water Stream Jet Range: ≥ 65 Meters
Tactical Storage Compartment	Integrated heavy-duty equipment locker engineered with roll-up curtain exterior doors for swift tool deployment.

Engine Powertrain & Chassis Braking Drivetrain

Engine Model Setup	WD615 Diesel Engine — Water-cooled, four-stroke, 6 cylinders in-line with water cooling, turbocharged and intercooling mechanical direct injection
Horsepower Output	299 HP Max \| Euro 2 Emission Standard
Heavy-Duty Axle Build	Front Axle: HF7 (7-Ton steering axle) \| Rear Axle: ST16 (16-Ton high-strength driving axle)
Braking Safety Grid	Service Brake: Dual circuit compressed air brake system Parking Brake: Spring energy compressed air operating on rear wheels Auxiliary Brake: Engine exhaust brake configuration
Steering & Clutch Specs	ZF8198 hydraulic steering assembly with power assistance \| Φ430 diaphragm spring clutch
Tyres Array	12R22.5 heavy-duty tubeless profile, 7 units total (Includes 1 complete rear mounted spare tire)
HW76 Crew Cab	HW76 professional cab containing one integrated sleeper berth, equipped with heavy-duty Air Conditioning (A/C) and standard 2×12V/165Ah auxiliary batteries

Emergency Operational Features

Ultra-High Discharge Flow: The CB10/60 centrifugal system draws water instantaneously to provide 3,600 L/min of continuous output pressure for critical flash suppressions.
Long-Distance Tactical Reach: The PS50 top-mounted fire monitor maintains stable directional trajectory across a distance of 65 meters or greater, keeping crew members at a safe operating distance.
Aluminum Curtain-Door Locker Storage: Anti-slip tactical compartment allows orderly placement of rescue axes, hoses, splitters, and technical entry gear, keeping tools sand-free and ready.
Heavy Axle Terrain Management: Combination of an HF7 front and massive ST16 rear axle allows the truck to traverse off-road unpaved conditions without compromising fluid container balancing.

Why Sourcing Fire Tenders from ArcherMach

Tailored Exterior Coatings

We customize all superstructure exterior paint configurations, detailing high-reflectivity safety decals and specialized company markings strictly as per customer’s requests.

Rigorous Fluidic Pressure QC

Before Ro-Ro shipping or bulk transit delivery, every truck undergoes rigorous high-pressure testing, pump vacuum checks, and shell leakage auditing to assure operational emergency integrity.

Looking to Upgrade Your Corporate or Municipal Fire Response Fleet?

We provide factory-direct sourcing prices, comprehensive replacement parts access, and dependable sea cargo arrangements.

Inquire Factory Price

WhatsApp +86 178 6053 9508
