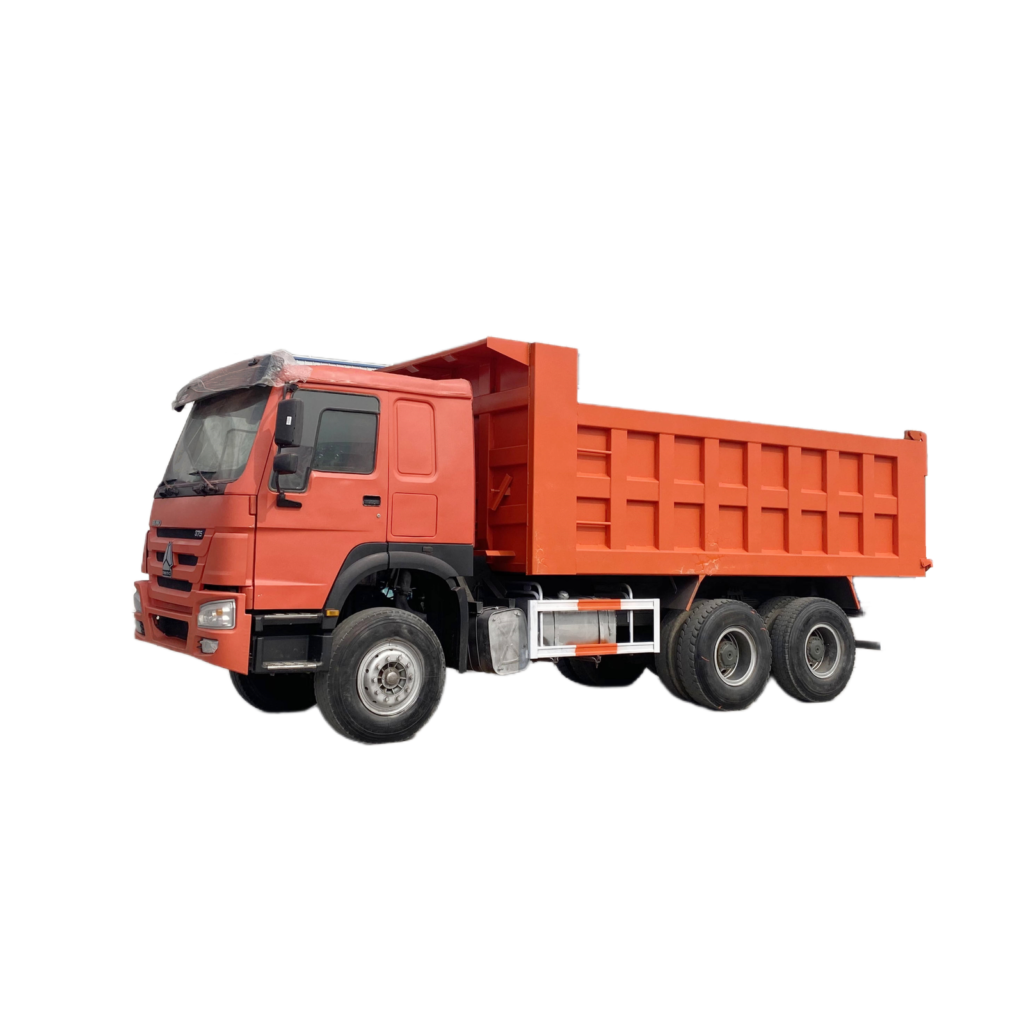

SINOTRUK HOWO 6×4 Dump Truck with WEICHAI 400HP Engine

Name: SINOTRUK HOWO 6x4 Dump Truck with WEICHAI 400HP Engine
SKU: SKU-253

The 2023 SINOTRUK HOWO 6x4 Dump Truck is the ultimate heavy-duty champion, featuring the legendary WEICHAI WP10.400E201 turbocharged engine (400 HP). Engineered for tough mining operations and construction sites, it integrates a high-strength chassis, VDG95 front steering axle, heavy-duty HC16 rear drive axles, and an ergonomic HW76 sleeper cabin to deliver unmatched power and efficiency.

Truck & Special vehicles SINOTRUK

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Dump Truck
SINOTRUK — HOWO 6×4 Series

SINOTRUK HOWO 6×4 Dump Truck (WEICHAI 400 HP)

The SINOTRUK HOWO 6×4 Dump Truck is recognized as the best construction truck in China, combining immense power, reliability, and versatile engineering to deliver unmatched performance. As a heavy-duty champion capable of withstanding the harshest mining and construction conditions, this upgraded model features the high-performance WEICHAI brand engine. Its robust chassis and advanced suspension setup ensure incredible structural stability and longevity, effortlessly handling heavy bulk loads across challenging, rough terrains.

Basic Information & Dimensions

Brand & Models	SINOTRUK HOWO — ZZ3257N3447A1 / ZZ3257N3847A / ZZ3257V3847B1
Driving Type	Left Hand Drive (LHD)
Curb Weight / Loading Weight	11,930 kg / 40,000 kg
Overall Dimensions (L×W×H)	6,800 × 2,490 × 3,668 mm
Wheelbase Options	3,200 + 1,400 mm \| 3,225 + 1,350 mm
Angles & Overhang	Approaching/Departure: 16° / 70° \| Overhang (Front/Rear): 1,500 / 700, 725 mm
Body Color Options	Standard Red (Customizable options available)
Tyre Specifications	12.00R20 heavy-duty radial tyres \| Quantity: 11 tyres (including 1 spare)

Engine & Powertrain

Engine Model	WEICHAI WP10.400E201 (Steyr technology)
Engine Type	Euro 2, water-cooled, four-stroke, 6 cylinders in-line, turbocharged and intercooled, direct injection diesel
Max Horse Power	400 HP \| Emission Standard: EURO II
Transmission Model	HW19710 heavy-duty manual gearbox
Fuel Tank Capacity	300 L high-volume fuel tank
Max Vehicle Speed	102 km/h

Chassis, Axles & Systems

Front Axle	VDG95 Series — Heavy-duty steering axle for maximized stability and alignment precision
Rear Drive Axles	HC16 Series — Pressed axle housing, central double reduction with integrated differential locks between axles and wheels
Steering System	ZF8118 advanced hydraulic steering with full power assistance
Braking Assemblies	Service Brake: dual-circuit compressed air brake \| Parking Brake: spring energy, compressed air operating on rear wheels
Electrical Assembly	Battery: 2×12V/165Ah \| Alternator: 28V-1500kw \| Starter Motor: 7.5Kw/24V

Why Choose the SINOTRUK HOWO Dump Truck

High-Output WEICHAI Engine

The robust 400 HP WP10 engine provides exceptional torque and gradeability to handle severe off-road inclines and demanding material transports with lower fuel consumption.

Heavy-Duty Durability

Built with reinforced parallel ladder frames, VDG95/HC16 heavy axles, and premium multi-leaf suspension to comfortably absorb high payload pressures.

Premium HW76 Cab Interior

Features a comfortable sleeping berth, full climate control (A/C), an adjustable damped driver’s seat, and 4-point fully floating suspension to isolate vibrations.
