SINOTRUK HOWO 20000L Water Foam Fire Truck (371 HP)

Name: SINOTRUK HOWO 20000L Water Foam Fire Truck (371 HP)
SKU: SKU-256

The SINOTRUK HOWO 20000L Water Foam Fire Truck is an elite firefighting vehicle built on a high-strength 8x4 chassis. It features a dual-tank configuration consisting of a 15,000L water tank and a 5,000L foam tank made from Q235 carbon steel. Powered by the reliable 371 HP WD615.47 engine and equipped with a CB10/60 centrifugal pump and PL48 fire monitor, it delivers exceptional extinguishing performance for urban, industrial, and rescue operations.

Truck & Special vehicles SINOTRUK

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Fire Truck
SINOTRUK — HOWO Series

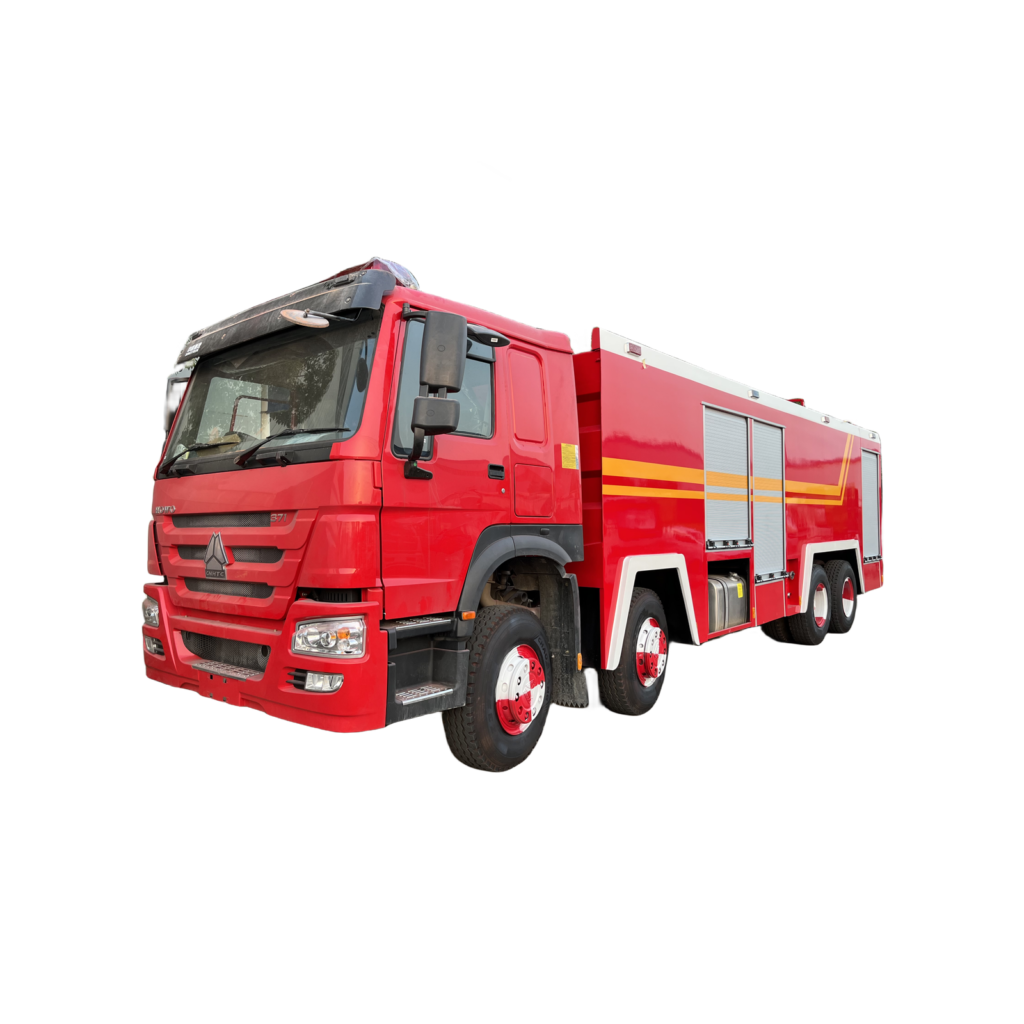

SINOTRUK HOWO 20000L Water Foam Fire Truck

The SINOTRUK HOWO 20000L Water Foam Fire Truck is a professional-grade emergency vehicle engineered for high-intensity firefighting and rescue missions. Built on a heavy-duty HOWO brand chassis, this advanced fire engine features a dual-tank configuration incorporating a 15,000L water tank and a 5,000L foam tank. Driven by a powerful 371 HP engine and equipped with a high-efficiency centrifugal fire pump, it delivers rapid response capabilities, versatile foam-to-water suppression adjustments, and unmatched structural durability to handle critical industrial, municipal, and airport emergencies.

Basic Information & Liquid Tanks

Brand & Typical Model	SINOTRUK HOWO — ZZ1317N4667W
Water Tank Capacity	15,000 L (Q235 carbon steel, 4mm sheet thickness, 450mm manhole diameter)
Foam Tank Capacity	5,000 L (Q235 carbon steel, 4mm sheet thickness, 450mm manhole diameter)
Total Capacity	20,000 L (Water + Foam)
Overall Dimensions	12,000 × 2,500 × 3,215 mm
Wheelbase	1,800 + 4,600 + 1,350 mm
Curb Weight / Gross Weight	13,420 kg / 31,000 kg
Overhang (Front / Rear)	1,500 / 2,734 mm
Color & Tyres	Fire Red (as per customer’s requests) \| Tyres: 12.00R20 (12 + 1 Spare = 13 units)
Max Vehicle Speed	90 km/h

Engine & Powertrain

Engine Model	WD615.47 — 6 cylinder in-line with water cooling, turbo-charging & intercooling
Rated Power / Displacement	371 HP (273 Kw/rpm) \| Displacement: 9.726L
Transmission	HW19710 manual gearbox (10 forward and 2 reverse gears)
Clutch	Φ430 diaphragm spring clutch, single-plate dry, hydraulically operating with air assistance
Fuel Tank Capacity	400 L

Fire Control Equipment & Chassis Systems

Centrifugal Pump Model	CB10/60 \| Flow Speed: 60L/s @ 1.0MPa
Fire Monitor Model	PL48 \| Flow Capacity: 48 L/s
Axles Configuration	Front Axles: HF9 × 2 \| Rear Axles: HC16 × 2 (Heavy pressed reduction housings)
Steering System	ZF8118 advanced hydraulic steering with full power assistance
Braking Assembly	Service Brake: dual-circuit compressed air brake \| Parking Brake: spring energy operating on rear wheels \| Auxiliary Brake: engine exhaust brake
Electrical & Cab Equipment	Batteries: 2×12V/165Ah; Alternator: 28V, 1540W \| Cab: HW76 extended cab with one sleeping berth and full Air Conditioning (A/C)

Why Choose the HOWO 20000L Water Foam Fire Truck

Dual-Agent Extinguishing System

Integrates a massive 15000L water tank and 5000L foam tank with premium Q235 carbon steel sheet metal, providing exceptional tactical versatility for class A, B, and C fires.

High-Pressure CB10/60 Pump

Equipped with the robust CB10/60 centrifugal pump delivering 60L/s at 1.0MPa, working in perfect unison with the PL48 fire monitor for ultra-long range fire suppression.

Elite 8×4 HOWO Chassis

Driven by a 371 HP engine alongside heavy-duty dual HF9 front and dual HC16 rear axles to ensure heavy-payload maneuverability and high stability on rough terrains.
