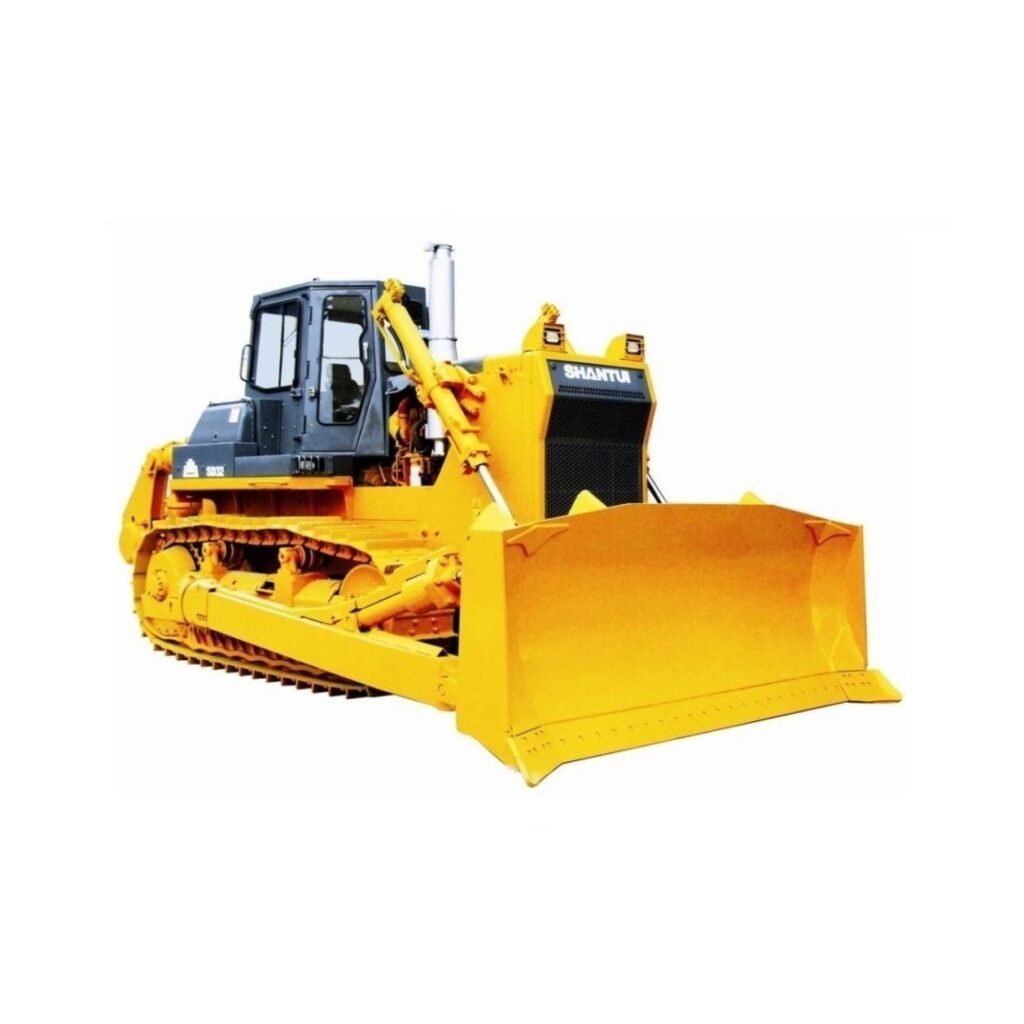

SHANTUI SD32 Heavy Crawler Bulldozer 320HP with Ripper
The heavy-duty SHANTUI SD32 Crawler Bulldozer stands as a premier showcase of high-efficiency push factors, precisely engineered to handle the biggest and toughest earth-moving, mining, and infrastructure jobs quickly and efficiently. Driven by a powerhouse Cummins NTA855-C360S10 engine delivering a net power of 235 kW (320 HP) at 2000 rpm, this robust machine features a highly reliable power shift transmission, stable hydraulic torque converter, and 2-stage spur gear final drive for maximum productivity.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
SHANTUI — 320HP Heavy-Duty Mining & Earthmoving Series
The SHANTUI SD32 represents a powerful showcase of engineering prowess, utilizing high-efficiency push factors specifically tailored for high-intensity mining, quarrying, and massive civil infrastructure projects. As a heavy-duty master of earth-moving tasks, the SD32 is built to complete the biggest and toughest jobs quickly and efficiently. Featuring an advanced hydraulic drive system with precise hydraulic control technology, a high-reliability power shift transmission, and a stable torque converter, this 320-horsepower machine delivers incredible tractive force, high productivity, and flexible operational control under the most grueling field conditions.
High-Output Engine Performance (Specs via image_ec0b59.png)
Power Transmission System & Travel Speeds
The SD22 features a highly integrated mechanical-hydraulic system built for heavy transmission efficiency:
- Torque Converter: 3-element, 1-stage, 1-phase hydraulic torque converter providing stable torque adaptation.
- Transmission: Advanced planetary gear, multi-disc clutch, power shift, with integrated forced lubrication.
- Main Drive & Final Drive: Spiral bevel gear with splash lubrication and single-stage speed reduction, leading into a robust 2-stage speed reduction spur gear final drive.
- Steering System: Wet, multi-disc, spring-loaded steering clutch with hydraulic separation and control, paired with a wet, floating band foot brake with hydraulic booster.
Undercarriage & Hydraulic Parameters
Working Device Options: Front Blades
Rear Ripping Attachments for Toughest Terrains
To handle structural fracturing on hard surfaces, the SD32 supports heavy rear-mounted mechanical rippers with adjustable penetrating angles:
- Single-Shank Ripper: Delivers massive concentrated hydraulic downward pressure, optimal for fracturing highly compacted gravel, deep-crust hardened salt mines, and stubborn rock faces.
- Three-Shank Ripper: Multi-tooth array designed to maximize loose-material production passes across stubborn clay, frozen earth, and heavy aggregate layers.
Why Sourcing the SHANTUI SD32 via ArcherMach
|
Unmatched Pushing Power
The standard straight tilting blade delivers immense cutting forces, enabling high volume pushing output across aggressive mining sites. |
Heavy Planetary Powershift
The planetary gear, multi-disc clutch power shift system incorporates forced lubrication to ensure smooth direction shifts under maximum drawbar drag. |
Genuine Parts & Support
ArcherMach offers full supply chain backing for all SD32 replacement track links, 560mm shoes, cutting edges, ripper teeth, and Cummins engine overhaul kits. |
