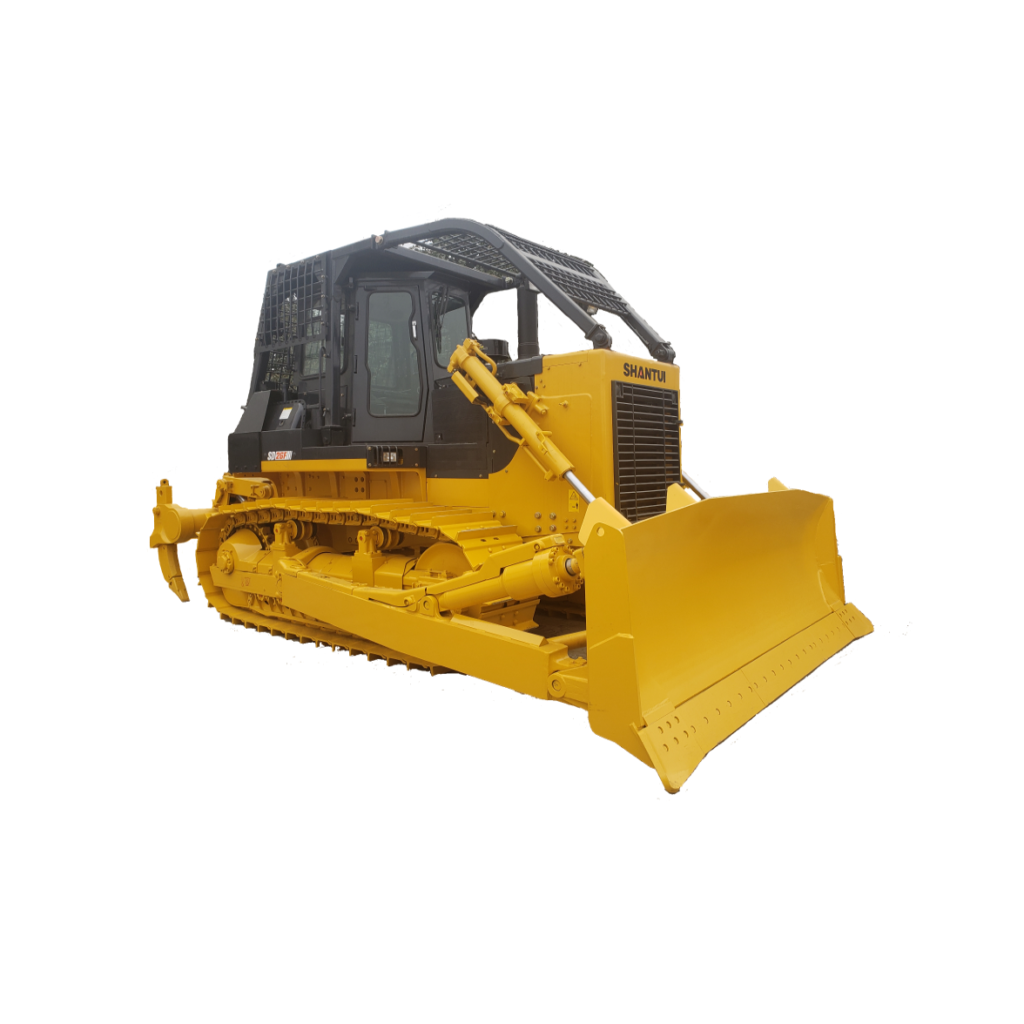

SHANTUI SD26 Heavy Crawler Bulldozer 260hp Series

Name: SHANTUI SD26 Heavy Crawler Bulldozer 260hp Series
SKU: SKU-333

The heavy-duty SHANTUI SD26 Crawler Bulldozer Series delivers an elite 260hp (206 kW) output engineered to tackle high-intensity earthmoving, forestry, and wetland conditions[cite: 1]. Backed by the powerhouse WEICHAI WP12 engine and a 450L high-capacity fuel tank, this 23-to-25.7 ton class bulldozer guarantees exceptional tractive force and enduring field runtime[cite: 1]. The SD26 features an advanced hexahedral cab for an extra-large interior space with broad vision, alongside optional ROPS/FOPS configurations for premium operator safety.

Bulldozer SHANTUI

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Bulldozers
SHANTUI — 260hp Heavy-Duty Earthmoving Series

SHANTUI SD26 Series 260hp Crawler Bulldozer

The SHANTUI SD26 Heavy Crawler Bulldozer Series is an industry powerhouse designed for high-tonnage mining, earthmoving, forestry infrastructure, and soft-ground reclamation projects. Driven by a massive WEICHAI WP12 engine pushing a rated power of 206 kW, this robust dozer series optimizes performance across multiple adaptations including Standard (SD26), Long Track (SD26E), Forest Logging (SD26F), and Low Ground Pressure (SD26S) variations. Featuring an ergonomic hexahedral cab with ultra-wide operator vision and an advanced intelligent management control display, the SD26 combines structural strength with technical intelligence to lower your operational costs and boost onsite efficiency.

Premium Operator Comfort & High Safety

The SHANTUI SD26 stands out by matching immense physical power with a modernized workspace:

Broad Visibility: Constructed with a high-strength hexahedral cab layout that unlocks an ultra-large interior working volume and superb multi-angle visibility.
ROPS/FOPS Options: Roll-Over and Falling Object Protective Structures can be deployed depending on your project’s safety standard mandates to fully insulate the operator.
Intelligent Dashboard Terminal: An intuitive display control terminal pairs with premium integrated A/C and heating systems, enabling real-time status monitoring at a single glance.

Four Specialized Configurations (Specs via image_ec1dab.png)

Model Variant	Operating Weight	Ground Pressure	Primary Application Environment
SD26 (Standard)	23,400 kg	77 kPa	Heavy excavation, general quarrying, and industrial earthworks.
SD26E (Long Track)	24,600 kg	72 kPa	Extended ground length (3050mm) for steep slope grades and leveling accuracy.
SD26F (Forest Logging)	24,700 kg	66 kPa	Timberlands and forest trail clearing; optimized structural armor.
SD26S (LGP)	25,700 kg	41 kPa	Super-wetland flotation design with extra-wide 910mm track shoes.

Engine & Driving Performance

Engine Model	WEICHAI WP12 — Inline, heavy-duty industrial turbo diesel
Rated Power & Speed	206 kW (260 hp) @ 1800 rpm
Forward Speed Ranges	F1: 0–3.8 km/h \| F2: 0–6.8 km/h \| F3: 0–11.7 km/h
Reversing Speed Ranges	R1: 0–4.5 km/h \| R2: 0–8.1 km/h \| R3: 0–13.9 km/h
Fuel Tank Capacity	450 Liters — Ultra-large capacity for long high-load shifts

Chassis System & Attachment Parameters

Chassis Parameter	SD26 / SD26E / SD26F	SD26S (Low Ground Pressure)
Track Center Distance	2000 mm	2250 mm (Widened stance)
Width of Track Shoes	560 mm	910 mm (High flotation)
Ground Track Length	2730 mm (SD26E: 3050 mm)	3480 mm Extended footprint
Overall Machine Size	5495 × 3725 × 3402 mm	6225 × 4365 × 3402 mm
Blade Configuration	Straight-tilt blade across all variants	Straight-tilt blade
Ripper Capacity & Depth	Single shank (695mm) / 3 shanks (666mm)	— (Not configured for wetland environments)

Why Sourcing SHANTUI SD26 via ArcherMach

Heavy Industrial Power

The 260hp class represents a premium tier in structural earthmoving, providing massive breakout forces and deep ripping execution on rock layers.

Tailored Attachments

Configure your machine directly with standard single-shank, multi-shank rippers, or protective structures depending entirely on regional compliance protocols.

Full Ecosystem Supply

Beyond full equipment exports, we offer deep inventory support for WEICHAI engine filters, undercarriage track elements, chains, and replacement ripper teeth.

Ready to secure quotes on the heavy-duty SHANTUI SD26 260hp Bulldozer?

Get premium factory-direct price sheets, complete pre-shipment quality logs, and safe ocean freight options.
