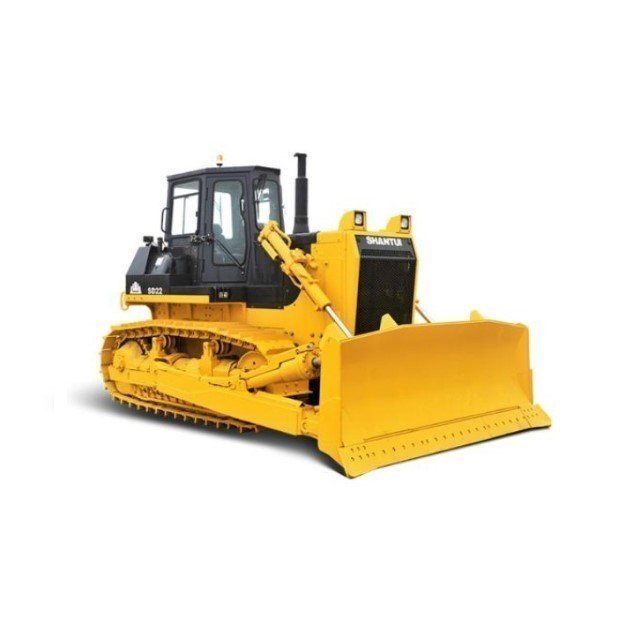

SHANTUI SD22 Heavy Crawler Bulldozer 220HP Series

Name: SHANTUI SD22 Heavy Crawler Bulldozer 220HP Series
SKU: SKU-336

The legendary SHANTUI SD22 Crawler Bulldozer Series stands as a global standard in the 220-horsepower heavy machinery category, meticulously engineered for high-intensity earthmoving, mining, and civil infrastructure duties. Powered by a high-torque 162 kW (220HP) engine and backed by a large-capacity fuel tank, this 23.4-ton class workhorse guarantees supreme traction and sustained field endurance. The SD22 incorporates an advanced hydrostatic or hydraulic powertrain system coupled with a robust undercarriage to provide optimal stability across demanding job sites.

Bulldozer SHANTUI

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Bulldozers
SHANTUI — 220HP Proven Field Performer

SHANTUI SD22 Series 220HP Crawler Bulldozer

The SHANTUI SD22 Bulldozer is a universally acclaimed bestseller in the 220-horsepower class, recognized globally for its supreme cost-to-performance ratio, heavy-duty build, and exceptional tractive force. Delivering a robust 162 kW of output, this machine is highly versatile and adaptable, serving as the core driving unit in mining quarrying, massive earth cut-and-fill projects, and industrial road constructions. Equipped with a high-performance hydraulic drive system, forced lubrication transmission clutches, and a specialized spacious cab, the SD22 offers modern controls that ensure high operational productivity with minimal maintenance overhead.

Key Technical Parameters & Specifications

Standard Operating Weight	23,400 kg (Configuration alters slightly with rear attachments)
Engine Rated Power	162 kW (220 HP) @ 1800 rpm
Ground Pressure Rate	77 kPa (Standard configuration footprint)
Transmission Type	Planetary power shift transmission with forced lubrication
Travel Gear Speeds	Forward 3 Speeds (Max 11.2 km/h) \| Reverse 3 Speeds (Max 13.2 km/h)
Track Flotation Profile	560 mm track shoe width with 2730 mm standard ground contact length

Versatile Working Attachments & Customizations

The SD22 structural blueprint is highly modular, supporting multiple specialized front and rear tool assemblies:

Attachment Category	Available Options	Operational Performance Features
Front Blade Systems	Straight Tilting Blade	Offers high cutting force for dense, clay-heavy earth; ideal for digging and leveling.
	Angle Blade	Perfect for side-casting materials, windrowing, and grading roads or ditches.
	U-Shaped (Universal) Blade	Large-volume side wings reduce material spill, providing maximized capacity for bulk moving.
Rear Ripping Equipment	Single-Shank Ripper	Delivers maximum deep penetration for shattering hard rock layers and frozen crusts.
Rear Ripping Equipment	Three-Shank Ripper	Covers a wider area per pass, optimized for loosened soils, shale, and gravel layers.

Why Choose the SHANTUI SD22 via ArcherMach

Unparalleled Durability

Built with a heavy box-section frame, high-grade track links, and reinforced wear plates, the SD22 thrives in high-stress, abrasive stone and aggregate yards.

Smooth Transmission

The standard power shift gear layout utilizes hydraulic actuation, matching speed to load changes seamlessly without dropping tractive force under heavy pushing.

Global Supply Integrity

ArcherMach provides deep-tier support for all SHANTUI undercarriage consumables: track rollers, carrier wheels, sprocket segments, and heavy edge-cutting bits.

Looking for factory-direct quotes on the SHANTUI SD22 220HP Dozer?

We supply authentic heavy machinery with strict quality inspections, expert customs processing, and sea freight logistics.
