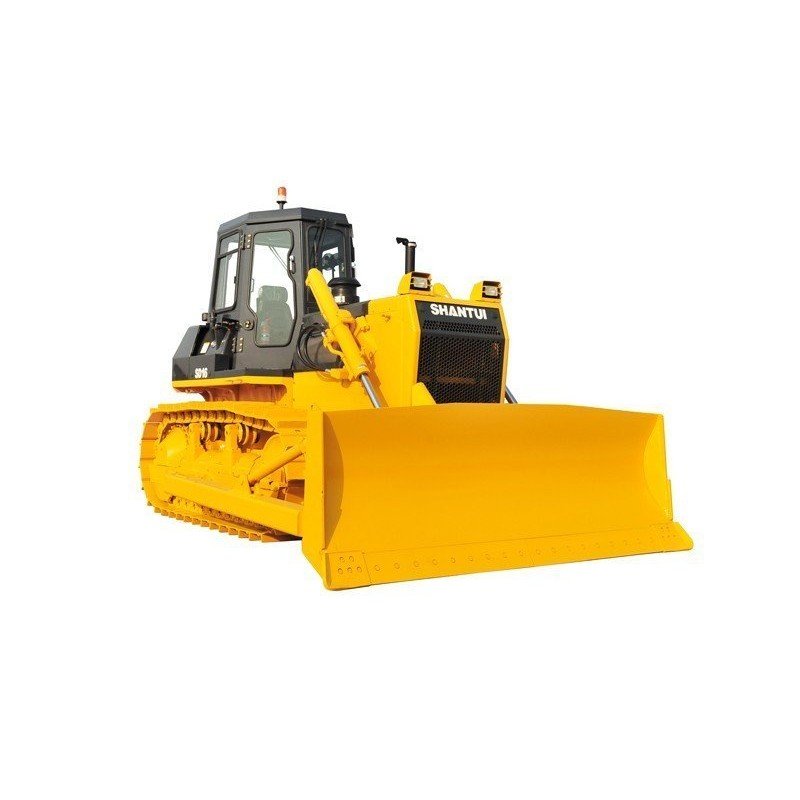

SHANTUI SD16 Heavy Crawler Bulldozer 160HP

Name: SHANTUI SD16 Heavy Crawler Bulldozer 160HP
SKU: SKU-330

The industry-leading SHANTUI SD16 Crawler Bulldozer Series delivers an optimal 160HP (131 kW) performance for versatile earthmoving and construction duties[cite: 1]. Driven by the highly reliable WD10 or WP10 engine, this legendary 17-to-18.4 ton class dozer is engineered to adapt flawlessly across diverse jobsites[cite: 1]. Available in five tailored applications—including SD16 Standard, SD16C Coal, SD16E Extended, SD16L Super-Wetland, and SD16R Sanitation versions—it ensures premium efficiency under any working conditions

Bulldozer SHANTUI

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Bulldozers
SHANTUI — 160HP Versatile Earthmoving Series

SHANTUI SD16 Series 160HP Crawler Bulldozer

The SHANTUI SD16 Bulldozer Series is a global benchmark in the 160-horsepower class, highly recognized for its efficiency, legendary reliability, and strong tractive force. Powered by a robust WD10/WP10 engine delivering 131 kW, the SD16 is available in specialized configurations to master distinct job conditions: from standard earthmoving (SD16) and bulk coal handling (SD16C) to soft ground super-wetland operations (SD16L) and municipal refuse works (SD16R). With various track shoe profiles, durable 3-speed planetary power shift transmission, and diverse working blades (Angle, Straight Tilting, or U-Blade), this multi-purpose dozer series yields optimal field productivity at the lowest maintenance cost.

Five Specialized Series Configurations

Model Version	Operating Weight	Ground Pressure	Primary Application & Blade Type
SD16 (Standard)	17,000 kg	58 kPa	General earthmoving; Angle, Straight Tilting, or U-shaped blade.
SD16C (Coal)	17,500 kg	50 kPa	Power plants & coal yards; High-capacity Coal blade.
SD16E (Extended)	17,346 kg	55 kPa	Extended ground track length for enhanced slope stability; Angle/U/Straight.
SD16L (Super-Wetland)	18,400 kg	25 kPa	Swamps & mud flats; Ultra-wide 1100mm shoes; Straight tilting blade.
SD16R (Sanitation)	18,400 kg	25 kPa	Landfills & municipal waste sites; Specialized Sanitation blade.

Engine & Driving Performance

Engine Model	WD10 (China-II) / WP10 (China-III) — Inline, water-cooled diesel
Rated Power & Speed	131 kW (160 HP) @ 1850 rpm
Forward Speed Ranges	F1: 0–3.29 km/h \| F2: 0–5.82 km/h \| F3: 0–9.63 km/h
Reversing Speed Ranges	R1: 0–4.28 km/h \| R2: 0–7.59 km/h \| R3: 0–12.53 km/h
Fuel Tank Capacity	315 Liters — Keeps long uninterrupted shifts fully powered

Chassis System & Attachment Capacity

Parameter Component	SD16 / SD16C / SD16E	SD16L / SD16R (Wetland & Waste)
Track Center Distance	188 mm	2300 mm (Widened stance)
Track Shoe Width Options	510 / 560 / 610 mm	950 / 1100 mm (High flotation shoes)
Track Ground Length	2430 mm (SD16E: 2635 mm)	2935 mm Extended mud float layout
Blade Cutting Depth	540 mm Digging Depth	485 mm Digging Depth
Rear Ripper Support	Three-tooth ripper (Max 570 mm penetration)	— (Not equipped for wetland/refuse)

Why Choose the SHANTUI SD16 Dozer Series

Unmatched Versatility

From heavy mining push-backs to extremely soft wetland terrains with a minimal 25 kPa ground footprint, the SD16 lineup offers perfect targeted solutions for your exact project needs.

High-Efficiency Drive

The standard power shift transmission features forced lubrication with hydraulically connected multi-disc clutches for responsive speed modifications under loaded pushing states.

Global Parts Availability

As reliable suppliers of SHANTUI machinery, ArcherMach ensures continuous availability of structural replacement kits, track rollers, chains, and cutting blades globally.

Looking for competitive pricing on the SHANTUI SD16 160HP Dozer?

We supply genuine SHANTUI Bulldozers, Wheel Loaders, Rollers, and Forklifts with factory direct dispatch.
