SHANTUI 130HP Mini bulldozer SD13 with ripper

SHANTUI SD13 Mini Bulldozer 130HP with Ripper

Name: SHANTUI SD13 Mini Bulldozer 130HP with Ripper
SKU: SKU-323

Accelerate your earthmoving efficiency with the brand new SHANTUI SD13 130HP Mini Crawler Bulldozer with Rear Ripper! Engineered for high performance across versatile terrains, this 13.7-ton crawler dozer features an innovative module design for seamless maintenance and a powerful Europe III compliant electronic control engine.

Bulldozer SHANTUI

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Crawler Bulldozers
SHANTUI — Compact Heavy Earthmoving Series

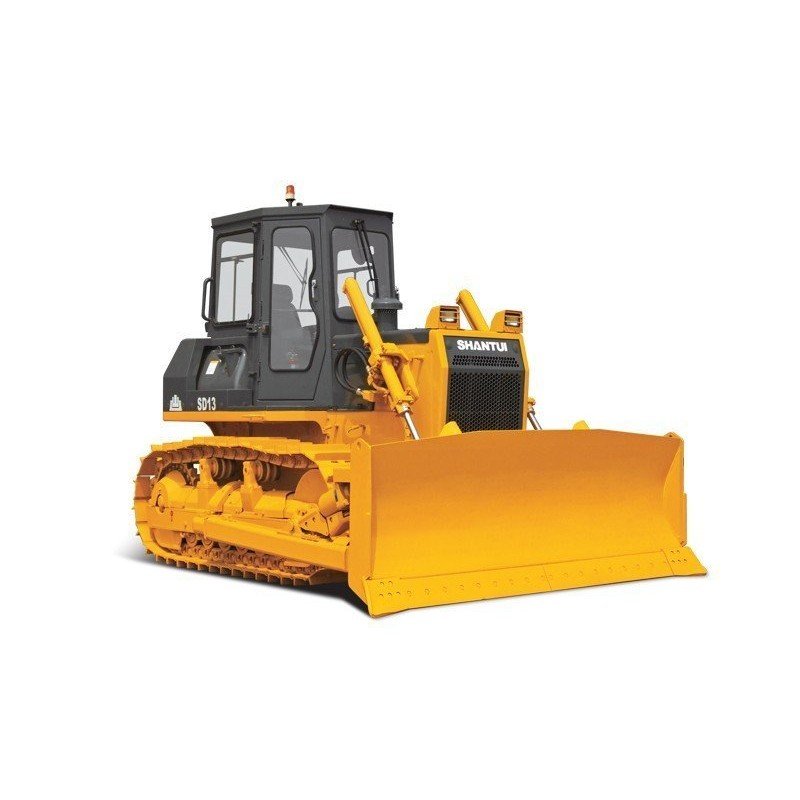

SHANTUI SD13 130HP Mini Crawler Bulldozer with Ripper

The SHANTUI SD13 is a state-of-the-art 130HP mini crawler dozer engineering a perfect balance of compact mobility and heavy-duty structural strength. Featuring a revolutionary structural module design, the SD13 allows for incredibly easy, fast disassembly and field repairs, significantly cutting down fleet maintenance overheads. Driven by a high-torque Europe III compliant air-to-air intercooled electronic control engine and a lock-up hydrostatic torque converter, this bulldozer maintains high driving efficiency across multiple rough soil matrix conditions. Complete with responsive pilot-controlled working devices, a low-noise sealed ROPS/FOPS safety cabin, and a high-impact three-shank rear attachment ripper, it represents the leading industrial standard for infrastructure, agricultural landscaping, and mining support projects.

Core Machine Dimensions & Weight Capacities

Operating Weight	13.7 Tons (13,700 kg — Base machine frame, rear ripper not included)
Overall Machine Dimensions	4492 × 3185 × 2950 mm (L×W×H Geometric scale, rear ripper excluded)
Gradeability Limit	30° Maximum operational climbing incline angle
Track Gauge Width	1880 mm Base structural track distance
Ground Operating Pressure	0.063 MPa Ultra-low pressure configuration (Ground Length: 2365 mm)
Track Pitch Structure	190 mm Mechanical link spacing configuration

Engine Powertrain & Hydrostatic Transmission

Engine Model Selection	SC8D143G2B1 / 6CTA8.3-C145 Electronic Control Diesel Engine
Rated Output Performance	95.5 kW @ 1900 rpm (130 HP Engine Fleet Rating)
Emission Standard Tech	Europe III Standard compliance, air-to-air intercooled system ensuring low oil consumption and massive power delivery
Torque Converter Assembly	Advanced hydrostatic torque converter with integrated lock-up mechanics for peak fuel and mechanical efficiency
Forward Travel Speed Ranges	3-Stage Shifts: 0 – 3.2 km/h \| 0 – 5.9 km/h \| 0 – 9.8 km/h
Reverse Travel Speed Ranges	2-Stage Shifts: 0 – 3.9 km/h \| 0 – 7.1 km/h

Front Blade Attachments & Rear Ripper Metrics

Dozer Blade Type Options	Straight Tilt Dozer Blade OR Angle Dozer Blade adjustable layout
Blade Dimensions (W×H)	Straight Tilt: 3185 × 1090 mm \| Angle Layout: 3475 × 915 mm
Dozing Holding Volumetric Capacity	Straight Tilt Blade: 3.7 m³ \| Angle Blade Layout: 3.4 m³
Blade Ground Clearance Settings	Maximum Digging Drop Depth: 590 mm \| Lift Height Above Ground: 930 mm
Rear Attachment Ripper Type	Three-Shank Heavy Ripper Attachment (Triple heavy soil claw design)
Ripper Mechanical Penetration	Maximum Ripping Depth: 467 mm \| Mechanical Lifting Height: 559 mm

Undercarriage & Structural Track Sub-Assembly

• Heavy Duty Rolling Unit Matrix: Incorporates 6 structural track rollers per single side frame paired with 2 sturdy carrier rollers on each side for unified link alignments.
• Track Shoe Surface Contact: Fitted with 38 operational track links/shoes on each side frame featuring a solid track shoe width profile of 460 mm for excellent ground flotation metrics.
• Damped Travel Architecture: Integrated suspension travel systems enable the SD13 dozer to glide across heavily rutted, rock-filled or muddy road conditions while using mechanical damping buffers to preserve long-term chassis weld life.

Key Operational Benefits of the SHANTUI SD13

1. **Advanced Pilot Controls:** The primary blade hydraulic control utilizes micro-sensitive fluid pilot joysticks, granting the operator ultra-sharp grading sensitivity, low muscle exertion, and effortless operation.
2. **Normally Closed Fail-Safe Brakes:** The SD13 braking block array operates on a high-safety normally closed philosophy, instantly clamping lock boundaries full tight once the core engine stops power output to protect downhill safety.
3. **ROPS/FOPS Sealed Cab:** Standard low-decibel operator station built with Roll-Over Protective Structure (ROPS) and Falling-Object Protective Structure (FOPS) shields, delivering international safety compliance and automotive-tier dust sealing performance.
4. **Intelligent Self-Monitoring Display:** Fitted with a broad, colorful multi-indicator telemetry screen layout that allows the dozer to perform automated real-time diagnosis on core system pressures and temperatures.

Interested in Procuring the SHANTUI SD13 130HP Crawler Bulldozer?

ArcherMach delivers wholesale pricing structures, global attachment provisioning, and quick shipping frameworks.
