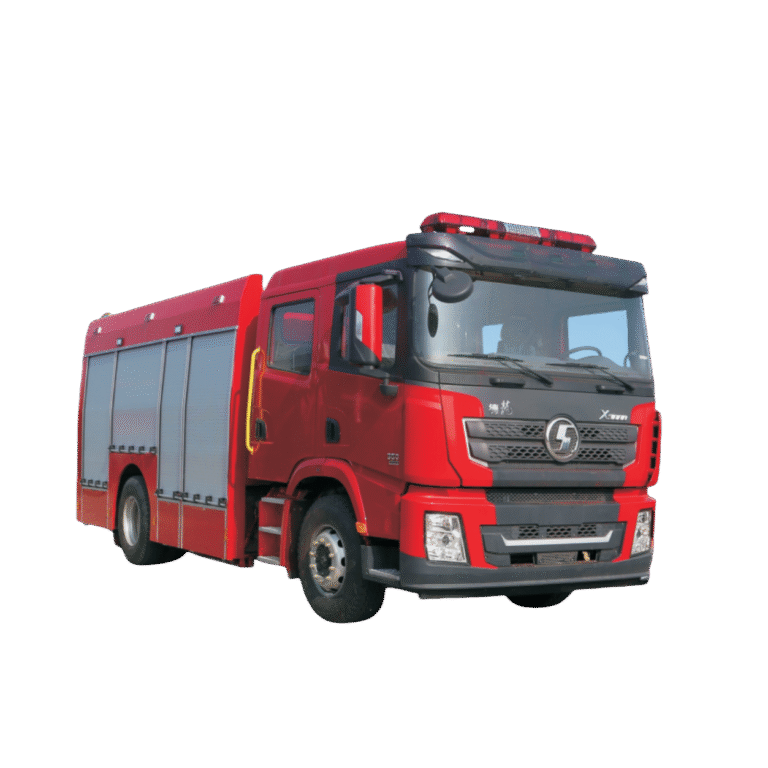

SHACMAN X3000 340HP 4×4 water and foam fire fighting truck

SHACMAN X3000 4×4 Water and Foam Fire Fighting Truck (340HP)

Name: SHACMAN X3000 4x4 Water and Foam Fire Fighting Truck (340HP)
SKU: SKU-363

The SHACMAN X3000 340HP 4×4 water and foam fire fighting truck (Chassis Model: SX1185) is a high-performance vehicle designed specifically for demanding firefighting and rescue missions. Powered by a Weichai WP10.340E22 Euro 2 engine paired with a Fast 10JSD180 manual transmission, this 4×4 all-wheel-drive truck delivers unparalleled off-road capability for complex environments. It features a spacious dual-row cabin for a 2+4 crew, a 5000L carbon steel water tank, and a 1000L stainless steel foam tank. Equipped with a high-efficiency model 6 fire pump (40L/s) and a PL48 fire monitor with a ≥50m range.

Truck & Special vehicles SHACMAN

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Fire Fighting Truck
SHACMAN — X3000 Series 4×4 All-Wheel Drive

SHACMAN X3000 340HP 4×4 Water and Foam Fire Fighting Truck

As verified by the technical data in image_eb2d82.png, the SHACMAN X3000 340HP 4×4 water and foam fire fighting truck is a premium, high-performance vehicle engineered specifically for critical firefighting and rescue missions. It combines powerful off-road performance, a spacious crew cab, advanced extinguishing equipment, and a highly stable chassis configuration. This enables fire brigades to efficiently carry out simultaneous water and foam suppression tasks across various complex environments, including building fires, forest fires, and industrial oil fires.

General Overview & Cabin Features

Chassis Brand & Model	SHACMAN — SX1185 Heavy-Duty Fire Chassis
Overall Dimensions (L × W × H)	9100 × 2550 × 3600 mm
Curb Weight	8600 kg (Optimized maneuverability and weight distribution)
Drive Type Layout	4×4 All-Wheel Drive \| Left Hand Drive (LHD)
Cab Seating Capacity	2 + 4 persons allowed (Dual-row crew cab for full firefighting squad integration)
Air Conditioning	Yes (High-capacity factory A/C providing a comfortable workspace for responders)

Engine & Transmission Powertrain

Engine Brand & Model	Weichai Power Co., Ltd — WP10.340E22
Rated Power Output	340 HP (High power-to-weight ratio for rapid response)
Displacement / Fuel	9726 ml \| Heavy-Duty Diesel Fuel
Emission Standard	Euro 2 (Energy-efficient, highly reliable, and easy to maintain)
Transmission / Gearbox	Manual Fast brand, 10JSD180 (10 speeds forward, 2 speeds reverse manual system)

Chassis, Wheelbase & Axle Capacities

Wheelbase	5000 mm
Front Axle Load Capacity	9 Tons (Heavy-duty steering front axle architecture)
Rear Axle Load Capacity	16 Tons (High-load bearing dual reduction configuration)
Tyre Specifications	12.00R20 Radial tyres (Heavy-duty puncture-resistant steel-wire tyres)
Tyre Quantity	6 + 1 (Includes 1 complete spare tire set)
Maximum Speed	85 km/h (Ensures fast response dispatch while driving under full fluid load loads)

Superstructure & Advanced Firefighting Systems

The truck’s superstructure features specialized independent holding tanks and premium pressure systems detailed below in image_eb2d82.png to yield extreme firefighting performance:

Water Tank Properties	• Capacity: 5000L • Material: High-grade Q235 Carbon Steel (4mm sheet thickness) • Features: Integrated anti-slosh baffles and 450mm manhole diameter
Foam Tank Properties	• Capacity: 1000L • Material: Corrosion-resistant Stainless Steel (4mm sheet thickness)
Fire Pump Specification	• Model: Model 6 Premium Fire Pump • Flow Speed Output: 40L/s @ 1.0MPa pressure • Suction Head Depth: 7m maximum lift capacity
Power Take-Off (PTO)	Propeller drive attached directly to the pump with secure coupling sets. The dedicated PTO mechanical engagement lever is located in the driver’s cabin for convenient operator activation.
Fire Monitor Parameters	• Model: PL48 Fire Monitor • Flow Rate: 48L/s • Effective Shot Shot Range: ≥ 50 meters • Range of Movement: 360° horizontal rotation range \| +70° to -30° vertical elevation range
Hose & Intakes	High-quality wire-strengthened suction hoses equipped with built-in copper wire anti-static properties, ensuring fast, safe fluid absorption from external hydrant reservoirs.

Key Technical Highlights

4×4 Off-Road Dominance

The integrated 4×4 all-wheel-drive system ensures the truck conquers harsh forest trails, unpaved muddy sectors, and rugged industrial zones where standard response engines fail.

Dual-Agent Suppressant

Combines a 5000L water capacity with a dedicated 1000L stainless steel foam tank, enabling seamless switches between structural fire quenching and chemical/oil fire suppression.

Precise Cabin Control

Equipped with cab-controlled mechanical PTO levers and a full 2+4 seating crew layout, allowing firefighting personnel to deploy powerful 48L/s suppressants instantly upon arrival.
