SHACMAN X3000 340HP 4x4 water and foam fire fighting truck

SHACMAN X3000 4×4 340HP Water & Foam Fire Fighting Truck

Name: SHACMAN X3000 4×4 340HP Water & Foam Fire Fighting Truck
SKU: SKU-513

All-terrain 4×4 fire fighting truck on SHACMAN X3000 chassis — 340HP Weichai engine, 5000L water + 1000L foam capacity, PL48 fire monitor with 50m throw range and 360° rotation, 40L/s fire pump with 7m suction head. Crew cab seats 2+4 firefighters. Ideal for municipal fire brigades, industrial fire departments, airports, and oil & gas facilities.

Truck & Special vehicles SHACMAN

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Fire Fighting Truck
SHACMAN — X3000 Series

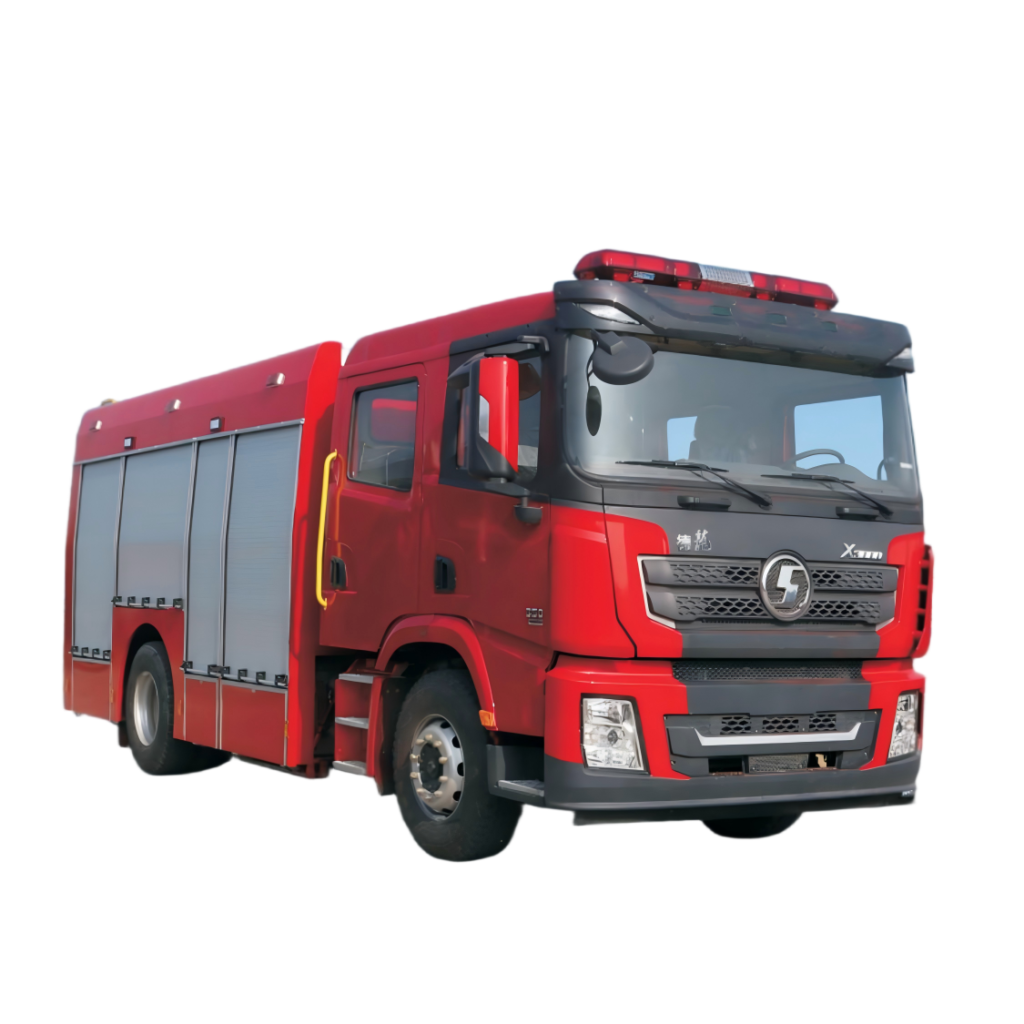

SHACMAN X3000 4×4 340HP Water & Foam Fire Fighting Truck

All-terrain 4×4 fire fighting truck built on the proven SHACMAN X3000 chassis, engineered for rapid response in both urban and off-road environments. Powered by a 340HP Weichai diesel engine with a 10-speed manual gearbox, this unit carries 5,000 litres of water and 1,000 litres of foam concentrate. Equipped with a PL48 fire monitor delivering 48 L/s at 50+ metres throw range with full 360° rotation, a 40 L/s fire pump with 7-metre suction head, and a 2+4 crew cab. Comprehensive firefighting capability for municipal brigades, industrial facilities, airports, and oil & gas operations.

Basic Information

Chassis Brand	SHACMAN
Chassis Model	SX1185
Product Type	Water & Foam Fire Fighting Truck
Driving Type	Left Hand Drive · 4×4
Dimensions (L×W×H)	9,100 × 2,550 × 3,600 mm
Wheelbase	5,000 mm
Curb Weight	8,600 kg
Max Speed	85 km/h

Engine & Powertrain

Engine Brand	Weichai Power Co., Ltd.
Engine Model	WP10.340E22
Horsepower	340 HP
Displacement	9,726 mL (9.7 L)
Fuel Type	Diesel
Emission Standard	Euro 2
Transmission	Fast 10JSD180 — Manual, 10 Forward + 2 Reverse
Steering Position	Left Hand Drive

Chassis & Driveline

Drive Type	4×4 All-Wheel Drive
Front Axle	9 Tons
Rear Axle	16 Tons
Wheelbase	5,000 mm
Tire Specification	12.00R20 — Radial
Tire Quantity	6 + 1 Spare
Max Speed	85 km/h
Curb Weight	8,600 kg

Cab & Crew

Cab Type	Crew Cab — Fire Service Configuration
Crew Capacity	2 + 4 Persons (Driver + 5 Firefighters)
Air Conditioner	Included

Water & Foam Tanks

Water Tank Capacity	5,000 Litres
Water Tank Material	Q235 Carbon Steel — 4 mm Sheet Thickness
Manhole Diameter	450 mm
Foam Tank Capacity	1,000 Litres
Foam Tank Material	Stainless Steel — 4 mm Sheet Thickness

Fire Pump & PTO System

Fire Pump Model	CB10/40 (Type 6)
Flow Rate	40 L/s @ 1.0 MPa
PTO Type	Propeller Drive with Couplings
PTO Control	Lever at Driver’s Cabin

Fire Monitor (Water Cannon)

Monitor Model	PL48
Flow Rate	48 L/s (Water & Foam)
Throw Range	≥ 50 m
Horizontal Rotation	360° Full Rotation
Vertical Movement	+70° to -30°
Suction Head	7 m

Hose & Equipment

Hose Type	High-Quality Wire-Strengthened Fire Hose
Anti-Static	Built-in Copper Wire Conductor
Suction Head	7 m Self-Priming

Key Advantages

4×4 All-Terrain Capability

Full 4×4 all-wheel drive with 9T front / 16T rear axles — operates on unpaved roads, construction sites, rural fire tracks, and off-road environments where standard 4×2 fire trucks cannot go.

Dual-Agent Fire Suppression

5,000L water + 1,000L foam concentrate enables Class A (wood, paper, textiles) and Class B (flammable liquids, fuel spills) firefighting in a single response unit.

PL48 Monitor — 50m Throw

Roof-mounted PL48 fire monitor delivers 48 L/s water/foam at 50+ metres range with full 360° horizontal sweep and +70°/-30° vertical articulation for maximum coverage.

340HP Weichai + Fast Gearbox

WP10.340E22 9.7L turbo diesel with Fast 10JSD180 10-speed manual — high torque for steep grades and sustained pump-and-roll firefighting operations.

40 L/s Pump + 7m Suction

CB10/40 fire pump rated 40 L/s @ 1.0 MPa with 7-metre self-priming suction head — can draft from open water sources (ponds, rivers, tanks) when hydrants are unavailable.

2+4 Crew Cab Ready

Crew cab seats driver plus 5 firefighters with air conditioning — full team arrives on scene in one vehicle, ready for immediate hose deployment and attack line operations.

Ideal Applications

Municipal Fire Brigades	Primary response vehicle for city and district fire stations
Industrial Fire Departments	On-site fire protection for factories, warehouses, and processing plants
Oil & Gas Facilities	Foam-capable unit for refinery, tank farm, and pipeline fire emergencies
Airport Fire Services	Rapid intervention vehicle for regional and cargo airports
Mining & Construction Sites	4×4 capability for remote mine sites, quarries, and large infrastructure projects
Port & Marine Terminals	Dual-agent (water + foam) suited for cargo fires and fuel spill incidents at port facilities

OEM Customization Options

Tank Configuration	Custom water/foam ratios (e.g. 4000L + 2000L) available on request
Fire Pump Upgrade	Higher-capacity pumps (60 L/s, 80 L/s) available
Monitor Upgrade	Remote-controlled electric monitor with joystick operation
CAFS Integration	Compressed Air Foam System for superior foam quality and extended range
Lighting & Siren	LED light bar, scene floodlights, electronic siren with PA system (optional)
RHD Available	Right hand drive configuration for RHD-market fire services
Paint & Livery	Custom fire-service red, hi-visibility chevrons, department decals and numbering

Why Choose ArcherMach

Certified Superstructure Manufacturer

Firefighting superstructure built by licensed modification plants with full pump and monitor testing before shipment.

Factory-Direct Pricing

Direct procurement from SHACMAN chassis plant and fire body modification factory — no middlemen markups.

Pre-Shipment Testing

Every fire truck undergoes full pump flow test, monitor throw range verification, and water/foam system pressure testing before container loading.

Global Logistics Network

DDP delivery to ports worldwide. Export documentation, customs clearance, and freight forwarding handled end-to-end.

Specification Tailored to Your Needs

Every order is configuration-confirmed against your department’s operational requirements — tank ratio, pump capacity, monitor type, hose layout, and equipment lockers.
