SHACMAN F3000 RHD 6×4 Dump Truck SX3255DR384

Name: SHACMAN F3000 RHD 6x4 Dump Truck SX3255DR384
SKU: SKU-348

The SHACMAN F3000 6x4 Right-Hand Drive (RHD) Dump Truck (Model: SX3255DR384) is engineered to deliver exceptional carrying capacity and powerful performance in the harshest construction and mining environments. It features a robust 340HP Weichai WP10.340E22 Euro V engine[cite: 1], a dependable FAST 10-speed manual gearbox, a 9.5T MAN front axle[cite: 1], and dual 16T MAN heavy-duty rear driving axles.

Truck & Special vehicles SHACMAN

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Dump Truck
SHACMAN — F3000 Series (RHD)

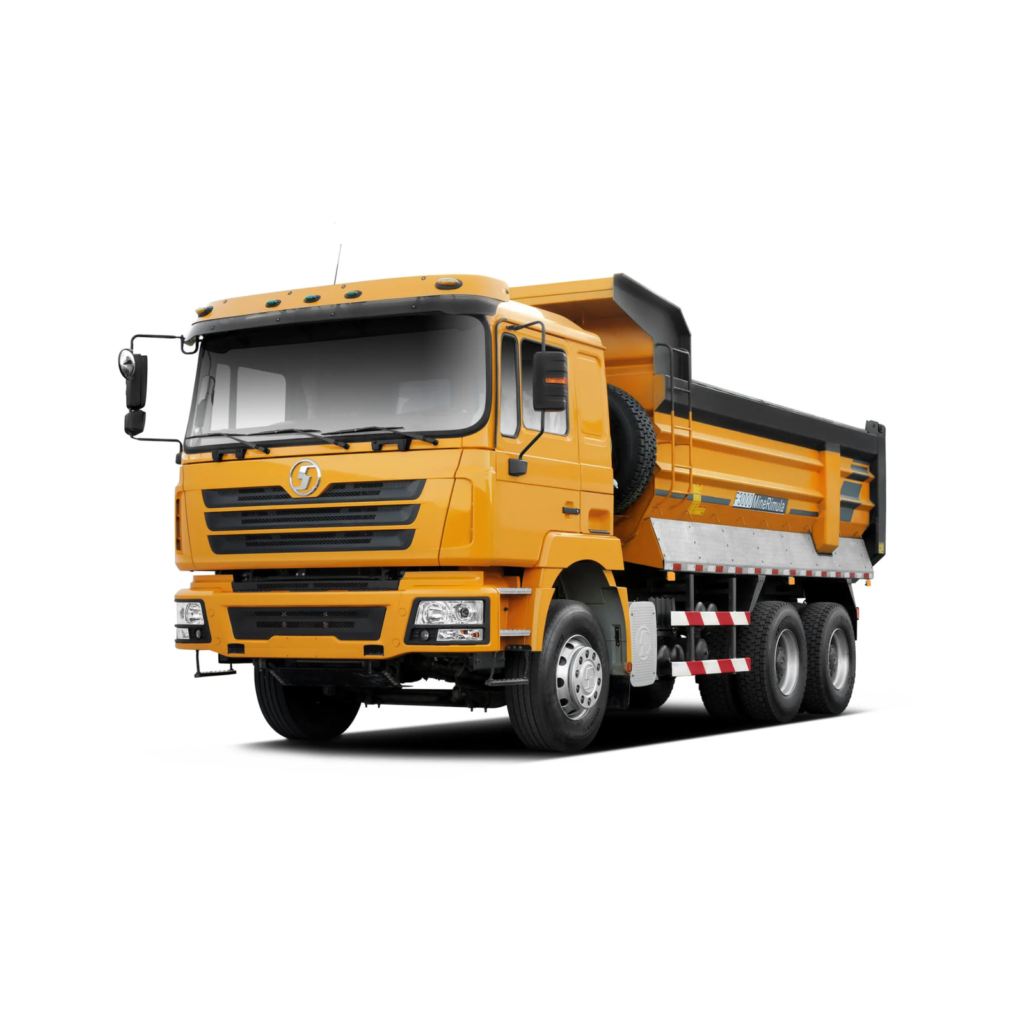

SHACMAN F3000 6×4 Right Hand Drive Dump Truck

As verified by the specifications in image_eba969.png, the SHACMAN F3000 6×4 Right Hand Drive (RHD) Dump Truck is a reliable, sturdy workhorse boasting exceptional carrying capacity and powerful engine performance. Its robust chassis frame is specifically designed for harsh operating environments commonly found in mining, earthwork hauling, and heavy construction industries. Widely recognized and highly favored by operators across Southeast Asia, the Middle East, Africa, and South America, choosing this RHD heavy-duty vehicle is a wise, value-driven choice for your global fleet projects.

Basic Information & Dimensions

Model	SX3255DR384 Heavy Duty Type
Driving Type	6X4 (10 + 1 Tyres)
Steering Configuration	Right-Hand Drive (RHD) via Z-F Technology
Dimensions (L × W × H)	8700 × 2490 × 3450 mm
Wheelbase	3775 + 1400 mm
Total Mass	≤ 50000 kg (50 Tons)
Kerb Mass	14500 kg

Engine & Transmission Powertrain

Engine Model	Weichai WP10.340E22
Rated Output Power	340 hp (247 kW) @ 1900 rpm
Torque / Displacement	1550 N.m @ 1200-1500 rpm / 9.726 L
Emission Standard / Fuel	Euro V (E-V) / Diesel
Gearbox / Transmission	FAST 10JSD180 (10 Forward & 2 Reverse, Manual)
Clutch	φ430 Diaphragm spring

Chassis, Axles & Hauling Performance

Front Axle	9.5T MAN (9500 kg capacity)
Rear Axle	16T MAN (2 × 16000 kg dual driving axles)
Cargo Box Dimension	5600 × 2300 × 1500 mm
Box Sheet Thickness	Bottom plate 8 mm, Side plate 6 mm (High tensile steel)
Lifting Cylinder Style	φ180 Hydraulic front lifting cylinder system
Tyre Specifications	12.00R20 Radial tyres (10 + 1 Spare pc)
Braking & Safety System	WABCO ABS system equipped
Suspension & Performance	Front/Rear: 1525/1629 mm \| Approach/Departure: 28/30° \| Max Gradeability: 25%
Fuel Tank Capacity / Max Speed	380 L Diesel tank \| Max Speed: 77 km/h
Driver Cab & Color	MAN F3000 Cab, Single bed sleeper, AC integrated \| Body Color: Optional

Why Choose the SHACMAN F3000 RHD

Heavy-Duty Cargo Engineering

Built with an 8mm heavy-duty floor and 6mm side high-tensile steel plate, preventing bucket denting or flexing when loading rigid mining boulders or dense aggregates.

MAN Axles Power Distribution

The 9.5T front axle and dual 16T MAN rear axles yield a colossal load rating, distributing weight flawlessly across unpaved off-road gradients.

Enhanced Site Braking Safety

Featuring premium WABCO ABS braking systems to shorten stop distances, guaranteeing excellent directional control and chassis stability during wet declivities.
