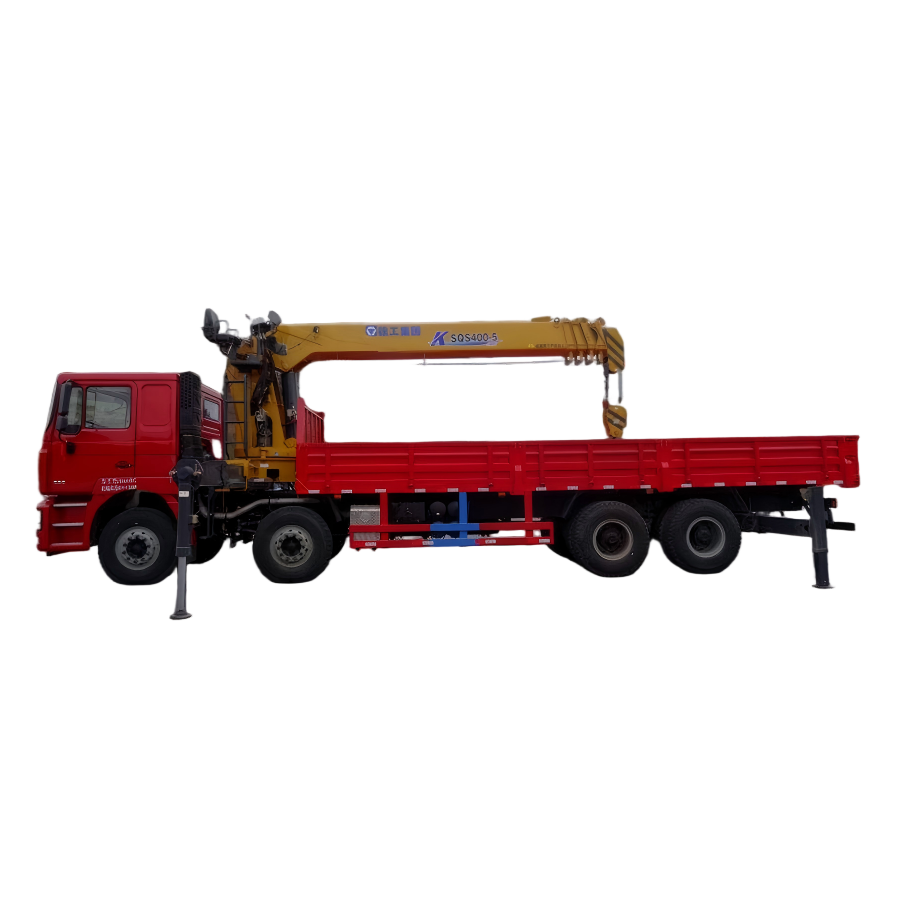

SHACMAN F3000 8×4 380HP Truck Mounted 20-Ton XCMG Crane

Name: SHACMAN F3000 8x4 380HP Truck Mounted 20-Ton XCMG Crane
SKU: SKU-507

The SHACMAN F3000 8×4 380HP crane truck pairs a proven Weichai WP10.380E22 diesel engine with the XCMG GSQS500 20-ton 5-arm telescopic crane — delivering 25-ton cargo capacity plus 20-ton lifting power with 21.7 m working radius and 24 m maximum height in one self-contained package.

Truck & Special vehicles SHACMAN, XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Heavy-Duty Crane Truck
SHACMAN — F3000 Series

SHACMAN F3000 8×4 380HP Truck with 20-Ton XCMG Crane

The SHACMAN F3000 8×4 heavy-duty crane truck combines Weichai WP10.380E22 380 HP diesel power with the XCMG GSQS500 20-ton 5-section telescopic boom crane — a purpose-built self-loading transport solution for heavy cargo. With 25-ton payload capacity, full 360° slewing, 21.7 m horizontal reach, and 24 m vertical lift height, this vehicle simplifies jobsite logistics by eliminating the need for separate crane and transport units. Heavy-duty MAN axles, dual-circuit air brakes, and a reinforced 7.8 m drop-side flatbed make it ready for the toughest worksites.

Basic Information

Brand	SHACMAN
Model Series	F3000
Drive Configuration	8×4, Left Hand Drive
Loading Capacity	25 Tons
Curb Mass (with Crane)	19,000 kg
Color	Red (Custom Color Available)
Emission Standard	Euro II
Crane Model	XCMG GSQS500

Engine & Powertrain

Engine Model	WP10.380E22
Manufacturer	Weichai Power Co., Ltd
Horsepower	380 HP
Displacement	9,726 mL
Fuel Type	Diesel
Gearbox	10JSD180 with PTO — 10 Forward + 2 Reverse, Manual
Front Axle	2 × MAN 9.5 T
Rear Axle	2 × MAN 16 T Double Reduction Drive Axle
Fuel Tank	300 L Aluminium Alloy

Dimensions

Overall Dimensions (L×W×H)	12,000 × 2,550 × 3,990 mm
Cargo Bed (L×W×H)	7,800 × 2,450 × 600 mm (Drop Sides)
Floor Thickness	5 mm
Wheelbase	2,100 + 4,575 + 1,400 mm

Cab & Braking System

Cab Type	F3000 Standard Cab — Four-Point Hydraulic Suspension
Driver Seat	Hydraulic Suspension Seat
Equipment	Air Conditioner, Power Windows, Metal Bumper
Service Brake	Dual Circuit Compressed Air Brake
Parking Brake	Air Discharging with Spring Control
Auxiliary Brake	Engine Exhaust Brake

Tires & Wheels

Tire Specification	12.00R20
Quantity	12 + 1 Spare Tire

XCMG GSQS500 Crane Specifications

Crane Model	XCMG GSQS500
Max Lifting Capacity	20 Tons
Max Working Radius	21.7 m
Max Working Height	24 m
Slewing Angle	360° Continuous Full Rotation
Boom Type	5-Arm Telescopic
Rear Landing Leg	Yes — Hydraulic Stabilization
High-Altitude Operator Seat	Yes

Why Choose This 20-Ton Crane Truck

380 HP Weichai WP10 Engine

The proven Weichai Power WP10.380E22 9.7 L turbodiesel provides abundant torque for loaded hauling plus simultaneous crane hydraulic operation on demanding job sites.

25-Ton Payload + 20-Ton Lift

Transport up to 25 tons of cargo on the 7.8 m drop-side flatbed while the integrated XCMG crane independently lifts 20 tons — a true two-in-one solution for heavy logistics.

5-Section Telescopic Boom

The GSQS500’s 5-arm telescopic design reaches 21.7 m horizontally and 24 m vertically with full 360° rotation — place heavy loads precisely anywhere around the vehicle without repositioning.

MAN Heavy-Duty Axles

Dual MAN 9.5 T front axles and dual MAN 16 T double-reduction rear axles deliver exceptional load distribution, ground clearance, and drivetrain reliability under extreme conditions.

Triple-Brake Safety System

Dual-circuit compressed air service brakes, spring-controlled air-discharge parking brake, and engine exhaust auxiliary brake provide three independent layers of stopping control.

Premium Cab Comfort

Four-point hydraulic suspension cab with air conditioning, hydraulic driver seat, and power windows — engineered for operator comfort during long-haul transport and extended crane operations.

Ideal Applications

Heavy Construction	Self-load/unload steel structures, precast concrete elements, and heavy equipment directly on site — no separate crane required
Infrastructure & Road Building	Deliver and place culverts, bridge beams, pipe bundles, and road-building materials with one vehicle
Mining & Quarry Support	8×4 all-wheel traction and 20-ton lifting capacity for crusher part installation, conveyor maintenance, and equipment relocation in remote sites
Oil & Gas Logistics	Transport and position wellhead equipment, generators, skid-mounted units, and compressor packages at field locations
Wind Farm & Energy Projects	Handle tower sections, nacelle components, and transformer units — self-sufficient delivery plus positioning in one trip

Customization & OEM Options

Color	Red standard — any color available per customer specification
Crane Configuration	GSQS500 standard; alternative crane capacities and brands available on request
Cargo Bed	7.8 m drop-side flatbed standard; custom lengths and bed types available
Engine Tier	Euro II standard; Euro III / Euro V upgrade available for compliant markets
OEM Branding	Custom decals, paint scheme, and corporate branding available for fleet buyers
