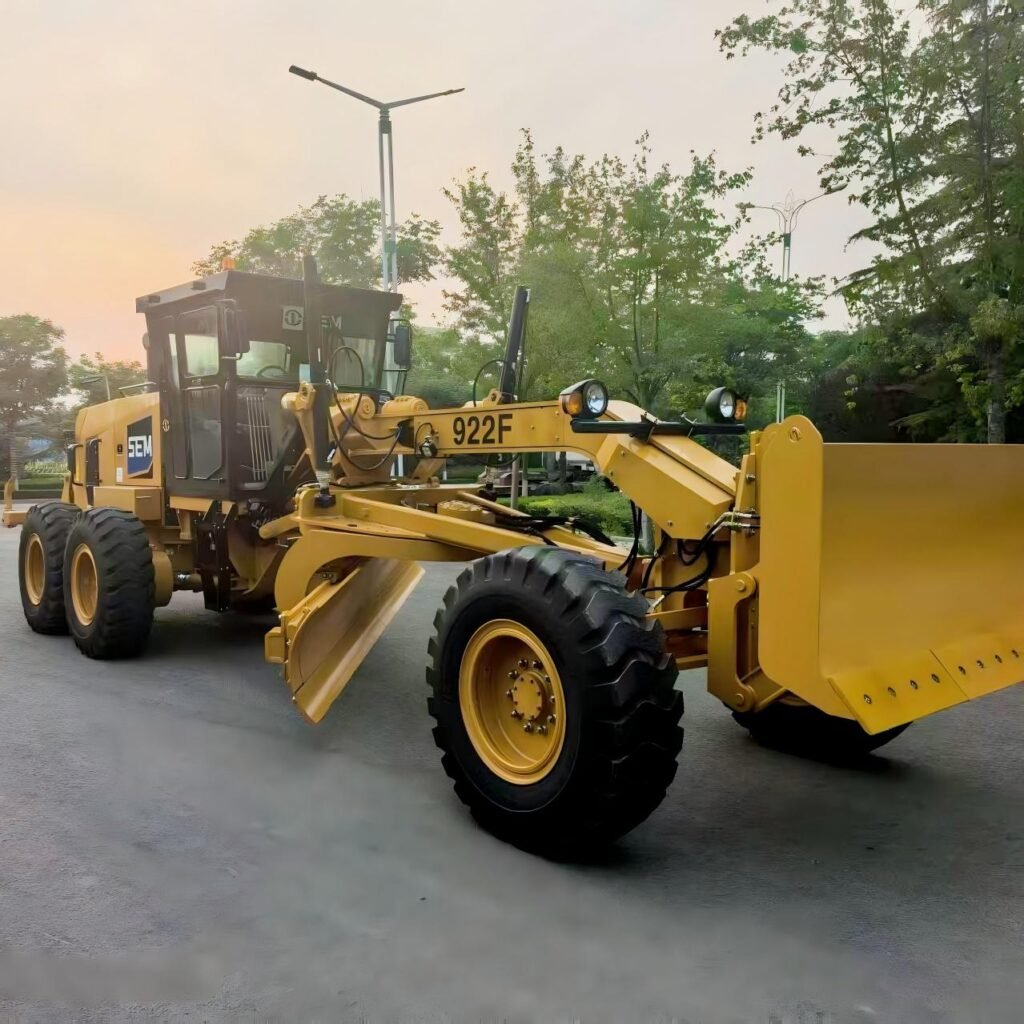

SEM 920F / 922F Motor Graders for Sale | 147–162 kW
SEM F-series motor graders: 920F (147 kW) & 922F (162 kW), load-sensing PPPC hydraulics, heavy-duty box-section frame, export-ready for contractors and rental fleets worldwide.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
The SEM F-series motor grader pairs SDEC power with load-sensing PPPC hydraulics, SEM-proven rear-axle technology and a heavy-duty box-section frame. Built for heavy grading, ditching, slope finishing and snow removal, the 920F and 922F deliver consistent blade control, low owning cost and long service intervals for contractors and rental fleets worldwide.
Full Product Range
Main Technical Specifications
Blade & Moldboard Options
Key Design Advantages
1. Load-Sensing PPPC Hydraulics
The variable piston pump with proportional-priority pressure-compensation (PPPC) valve was developed specifically for motor grader duty. Power is distributed on demand, reducing energy loss and hydraulic heat while letting multiple functions operate simultaneously. The main pump is now driven directly from the transmission PTO, eliminating the former cab-mounted driveshaft, cutting noise and daily grease points.
2. Precision Operator Controls
The cab sits on the front frame for clear sight lines to the blade and front axle during articulation. Short-stroke joysticks with tight spacing reduce fatigue and make compound movements natural. The electro-hydraulic seven-hole linkage provides one-button pin change from the cab, giving excellent blade reach for ditching and slope finishing. Standard blade float lets the moldboard follow ground contours in snow and light-soil work.
3. Heavy-Duty Frame & Powertrain
The drawbar uses a twin square-steel A-frame for long fatigue life, while the flange-type box-section frame and CAE-optimized front frame upper/lower plates deliver consistent strength under high-cycle loading. The SEM-proven rear axle and balance box use four-planet final drives and oil-bath lubrication; the 2,000-hour oil-change interval lowers owning cost. A 43°C cooling package is standard; a 50°C package is optional for hot climates.
4. Simplified Maintenance
The new molded engine hood creates a family look and opens wide left and right for daily service. The drawbar ball joint is bolted and replaceable with shims for wear adjustment. External caliper disc brakes offer short stopping distances; friction discs are shared with SEM wheel loaders for easy parts sourcing. A glass transmission level gauge and raised oil filler make fluid checks and changes faster.
5. Safety & Fleet Integration
Dual-circuit service brakes provide redundant stopping power. The instrument panel offers three-level alarm monitoring, three-point contact handrails aid cab entry, and a single key operates the entire machine. A standard telematics system supports fleet tracking and remote diagnostics.
Applications
Configurations
- SDEC engine with mounting kit
- 6F/3R electro-hydraulic power-shift transmission
- Load-sensing hydraulic system
- Front axle, balance box & rear axle
- Box-section frame with A-frame drawbar
- Front controls, transmission control, floor frame
- LED/halogen lighting, A/C, telematics
- Service brake, parking brake, transmission guard
- Rear camera, beacon, license-plate light
- Snow wing, front dozer blade, scarifier
- Ripper teeth, counterweights (500/600/1,000 kg)
- Cab bottom guard, toolbox, mudguards
- Hand throttle, circle lubrication tank, spirit level
- 43°C or 50°C cooling package
- Tubeless / tube-type / radial tires
- Low-profile non-ROPS cab
- High-profile non-ROPS cab
- Low-profile ROPS cab
- High-profile ROPS cab
- Normal / cold / arctic start packages
OEM / Private Label & Export Support
Archer supplies SEM F-series motor graders as bare units or project-configured packages for export markets. We can bundle specific blade lengths, counterweights, tire types, cold-start kits and lighting packages to match regional site conditions and import regulations.
- Containerized or break-bulk shipment coordination
- Custom accessory packages (snow wing, dozer blade, scarifier, counterweights)
- Spare parts kits for initial 500 / 1,000 / 2,000 service hours
- Operator and maintenance documentation in English
Why Choose SEM 920F / 922F Motor Graders
