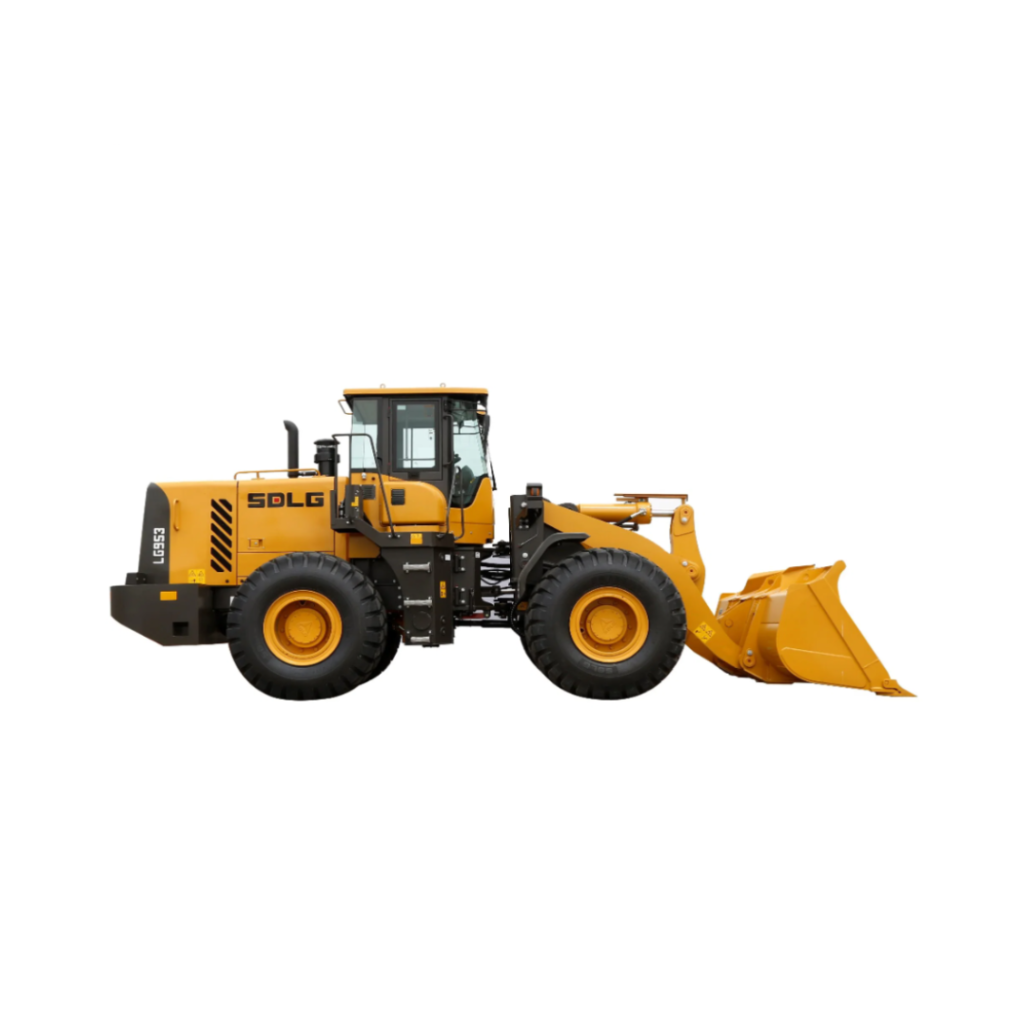

SDLG Wheel Loader LG953 for Sale — 5 Ton, 3.0 m³, 217 HP

The proven 9.726 L Weichai 6-cylinder turbocharged engine delivers 162 kW (217 HP) and 920 N·m of torque. Stage IIIA emissions compliant with exceptional fuel economy and field-serviceable design for low lifecycle cost.

4 forward + 2 reverse gears with smooth power shift technology. Fingertip control reduces operator fatigue. Transport speeds up to 38 km/h forward and 23 km/h in reverse keep cycle times low and site mobility high.

Purpose-built SDLG dry-type drive axles with high load capacity and impact resistance. Designed to withstand the sustained torque, shock loads, and twisting forces encountered during heavy-duty loading operations.

The proven Z-bar linkage geometry delivers ≥175 kN breakout force and excellent bucket rollback, maximising material fill and penetration in hard piles. High-strength steel lift arms and pins ensure structural durability.

Gear-pump hydraulics at 16/18 MPa with a 200 L oil tank provide responsive lift, tilt, and dump functions. Full cycle time (raise/dump/lower) of ≤10.5 seconds for fast truck loading and high throughput.

Load-sensing steering pump at 14 MPa delivers precise, low-effort control regardless of bucket load. A 38° articulated frame achieves a tight 5,770 mm turning radius for excellent manoeuvrability in confined worksites.

Caliper disc brake system with dual-circuit redundancy for safety. Air-over-hydraulic actuation delivers powerful, progressive braking with minimal pedal effort. Manual caliper parking brake secures the machine on gradients.

Fully enclosed ROPS/FOPS cab with air conditioning, column-mounted digital instrument panel, ergonomic pilot controls, and excellent all-round visibility. Designed for full-shift operator comfort on quarry and construction sites.

Standard 3.0 m³ bucket with optional 2.5–4.5 m³ bucket sizes. Available with log grapples, forks, side-dump buckets, high-dump configurations, and quick couplers. 290 L fuel tank supports extended operation between refuelling.
