SANY Truck Crane STC250C4 for Sale — 25 Tonne 35m Boom

Name: SANY Truck Crane STC250C4 for Sale — 25 Tonne 35m Boom
SKU: SKU-455

The SANY STC250C4 truck crane delivers 25-tonne lifting capacity with a 35m full-extension boom. Powered by a 220kW WEICHAI engine with FAST 9-speed transmission. Features electro-hydraulic control, 360° slewing, and MachineLink T-AMS Pro telematics for fleet management. Suitable for construction, logistics, and infrastructure projects worldwide.

SANY

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Truck Crane
SANY — STC250C4 Series

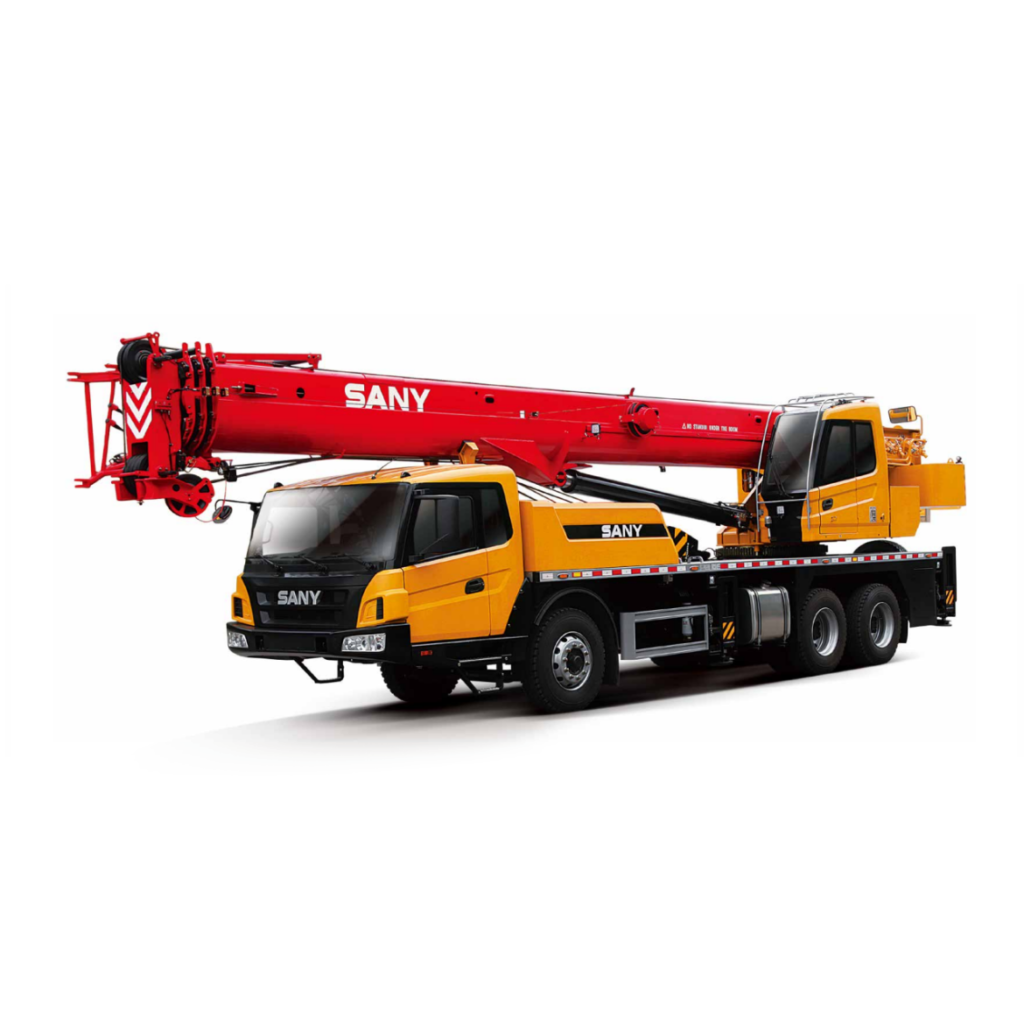

SANY STC250C4 Truck Crane — 25 Tonne Lifting Capacity

The SANY STC250C4 truck crane delivers powerful 25-tonne lifting capacity with a 35m full-extension boom and 1078kN·m maximum lifting moment. Featuring a U-shape large cross-section boom design, this model offers 20% higher lifting performance in middle and long boom configurations compared to same-class competitors. Powered by a WEICHAI 220kW engine with FAST 9-speed transmission and rubber suspension, it achieves 41% gradeability. The electro-hydraulic variable pump control system provides precise mm-level lifting accuracy with 1.2m/min minimum stable rope speed. Equipped with CAN BUS smart control system, 7″ HD color display, and MachineLink T-AMS Pro telematics for remote fleet management. Available in left-hand and right-hand drive configurations.

Basic Information

Model	SANY STC250C4
Max Lifting Capacity	25 tonne
Gross Weight	30.8 tonne
Drive Configuration	6×4 (LHD / RHD Available)
Overall Dimensions (L×W×H)	12,890 × 2,550 × 3,560 mm
Wheelbase	4,580 + 1,350 mm
Max Travel Speed	85 km/h
Min Steering Radius	11 m
Max Gradeability	41%
Working Temperature	-20°C to +40°C
Min Ground Clearance	240 mm
Fuel Consumption (per 100km)	30 L

Boom & Lifting Performance

Boom Sections	4 sections, U-shape large cross section
Basic Boom Length	10.8 m
Full-Extension Boom Length	35 m
Boom Length + Jib	43 m
Max Lifting Moment (Basic Boom)	1,078 kN·m
Max Lifting Moment (Full Extension)	659 kN·m
Max Lifting Height (Basic Boom)	11.3 m
Max Lifting Height (Full Extension)	35.5 m
Max Lifting Height (With Jib)	43.5 m
Jib Length	8 m
Jib Offset Angles	0°, 15°, 30°
Luffing Angle Range	-2° to +80°
Fixed Counterweight	6.2 tonne

Engine & Powertrain

Engine Model	WEICHAI WP7.300E31 (inline 6-cylinder)
Max Engine Power	220 kW @ 2,100 rpm
Max Engine Torque	1,250 N·m @ 1,200–1,600 rpm
Emission Standard	Euro III
Transmission	FAST manual, 9 forward + 2 reverse
Fuel Tank Capacity	300 L
Suspension	Leaf spring (front) / Rubber (rear)
Steering	Mechanical with hydraulic power assist

Hydraulic System & Operations

Hydraulic System	Variable pump electro-hydraulic control
Main Winch Speed (Empty)	125 m/min
Auxiliary Winch Speed	125 m/min
Slewing Speed	0–2.7 r/min
Min Stable Rope Speed	1.2 m/min (mm-level precision)
Rope Diameter (Main)	16 mm × 185 m
Rope Diameter (Aux)	16 mm × 105 m
Max Single Line Pull	4 tonne
Luffing Time (Up/Down)	45 s / 50 s
Boom Extension/Retraction	80 s / 95 s
Outrigger Jack (Retract/Extend)	20 s / 25 s
Outrigger Beam (Retract/Extend)	20 s / 30 s

Outrigger & Chassis

Outrigger Type	H-type layout, 4-point support, standard 5th outrigger
Outrigger Span (Longitudinal)	5.28 m
Outrigger Span (Transverse)	6.4 m
Tail Slewing Radius	3,300 mm
Axle Load Distribution	5.7t / 12.55t / 12.55t
Main Hook	25t rated, 4 sheaves, 8 rope rate, 290kg
Auxiliary Hook	4t rated, 1 rope rate, 85kg
Tires	12.00R22.5 radial
Approach / Departure Angle	10° / 13°

Smart Control & Safety

Control System	CAN BUS networking with smart controller
Display	7″ HD color display + silica gel panel
Load Moment Indicator (LMI)	SANY LMI system with overload/over release/over winding protection
Fault Diagnosis	Smart controller + BCM module for accurate fault location
Telematics	MachineLink T-AMS Pro — GPS, fleet status, maintenance, E-fence
Service Brake	Dual circuit
Parking Brake	Spring-loaded
Assisting Brake	Engine exhaust brake
