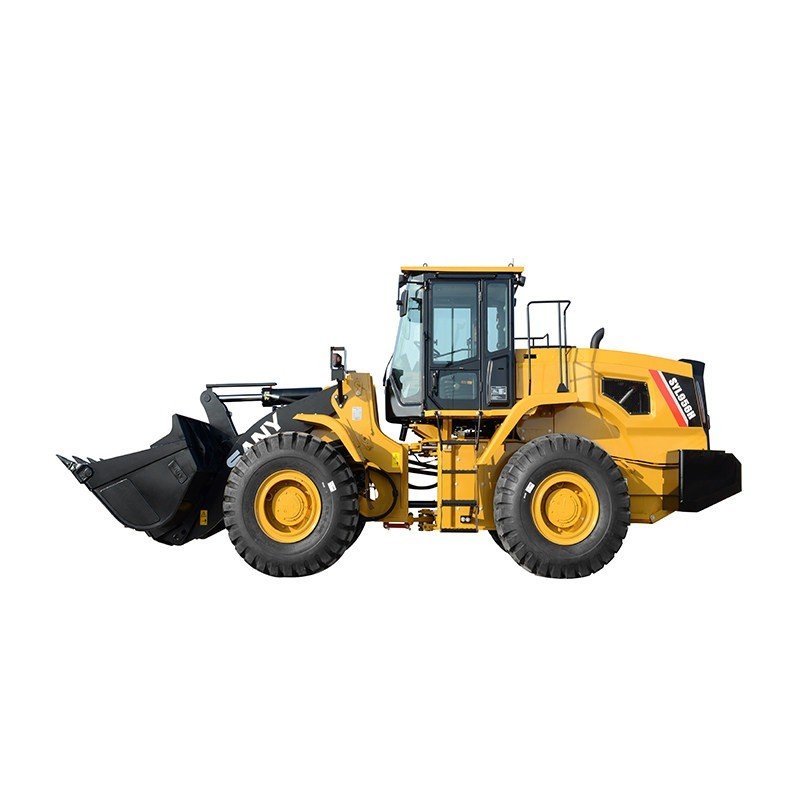

SANY SW953K1 Wheel Loader for Sale — 5 Tonne, 3.0 m³ Bucket

Name: SANY SW953K1 Wheel Loader for Sale — 5 Tonne, 3.0 m³ Bucket
SKU: SKU-452

The SANY SW953K1 is a 5-tonne class wheel loader engineered for heavy-duty earthmoving, quarry, and construction site operations. With a 3.0 m³ standard bucket, 5,000 kg rated load capacity, and 14,400 kg operating weight, this machine delivers power and stability in demanding conditions. Key features include a 38° articulation angle for tight maneuverability, a 6,200 mm outside turning radius, 45° dump angle for efficient material discharge, 3,960 mm inside turning radius, and a durable Z-bar linkage for maximum breakout force.

Wheel Loader SANY

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Wheel Loader
SANY — SW953K1

SANY SW953K1 Wheel Loader — 5 Tonne, 3.0 m³ Bucket

The SANY SW953K1 is a 5-tonne class wheel loader purpose-built for heavy-duty earthmoving, quarry loading, and large-scale construction operations. With a 3.0 m³ standard bucket, 5,000 kg rated load capacity, and 14,400 kg operating weight, this machine delivers outstanding productivity in demanding conditions. Engineering highlights include a wide 38° articulation angle for exceptional maneuverability, a compact 6,200 mm outside turning radius, a 45° dump angle for efficient material discharge, and a durable Z-bar linkage for maximum breakout force. CE certified and backed by SANY’s world-class manufacturing and ArcherMach’s export-ready packaging.

Basic Information

Model	SANY SW953K1
Operating Weight	14,400 kg
Rated Load Capacity	5,000 kg
Standard Bucket Capacity	3.0 m³
Bucket Width	3,000 mm
Tip Load (Straight)	13,000 kg
Certification	CE

Dimensions & Clearances

Overall Length (A)	8,350 mm
Overall Width	2,965 mm
Width Over Tyres	2,800 mm
Width Over Bucket	3,000 mm
Height to Top of Cab	3,410 mm
Overall Height (carry position)	4,120 mm
Wheel Base	3,300 mm
Wheel Tread	2,280 mm
Ground Clearance	450 mm
Rear Axle to Tail	2,850 mm

Working Range & Performance

Hinge Pin Height — Carry Position	4,110 mm
Hinge Pin Height — Maximum	4,110 mm
Dump Distance at 45° (fully raised)	1,139 mm
Reach — Fully Raised	1,210 mm
Dump Angle at Carry Position	45°

Travel & Steering Performance

Forward Speed — Gear 1	0 – 9.5 km/h
Forward Speed — Gear 2	0 – 18 km/h
Reverse Speed — Low	0 – 9 km/h
Maximum Travel Speed	39.5 km/h
Articulation Angle	38°
Turning Radius — Outside of Tyres	6,200 mm
Turning Radius — Inside of Tyres	3,960 mm
Max Steering Time (Left / Right)	0.11

Why SANY SW953K1

Tight Maneuverability

38° articulation angle and 6,200 mm outside turning radius enable confident operation in confined job sites, stockyards, and urban construction areas.

Heavy-Duty Structure

14,400 kg operating weight with 13,000 kg straight tip load provides class-leading stability and structural integrity for quarry and mining support operations.

Efficient Discharge

45° dump angle, 1,139 mm dump reach at full height, and 4,110 mm hinge pin height ensure fast, complete bucket emptying into high-sided trucks.
