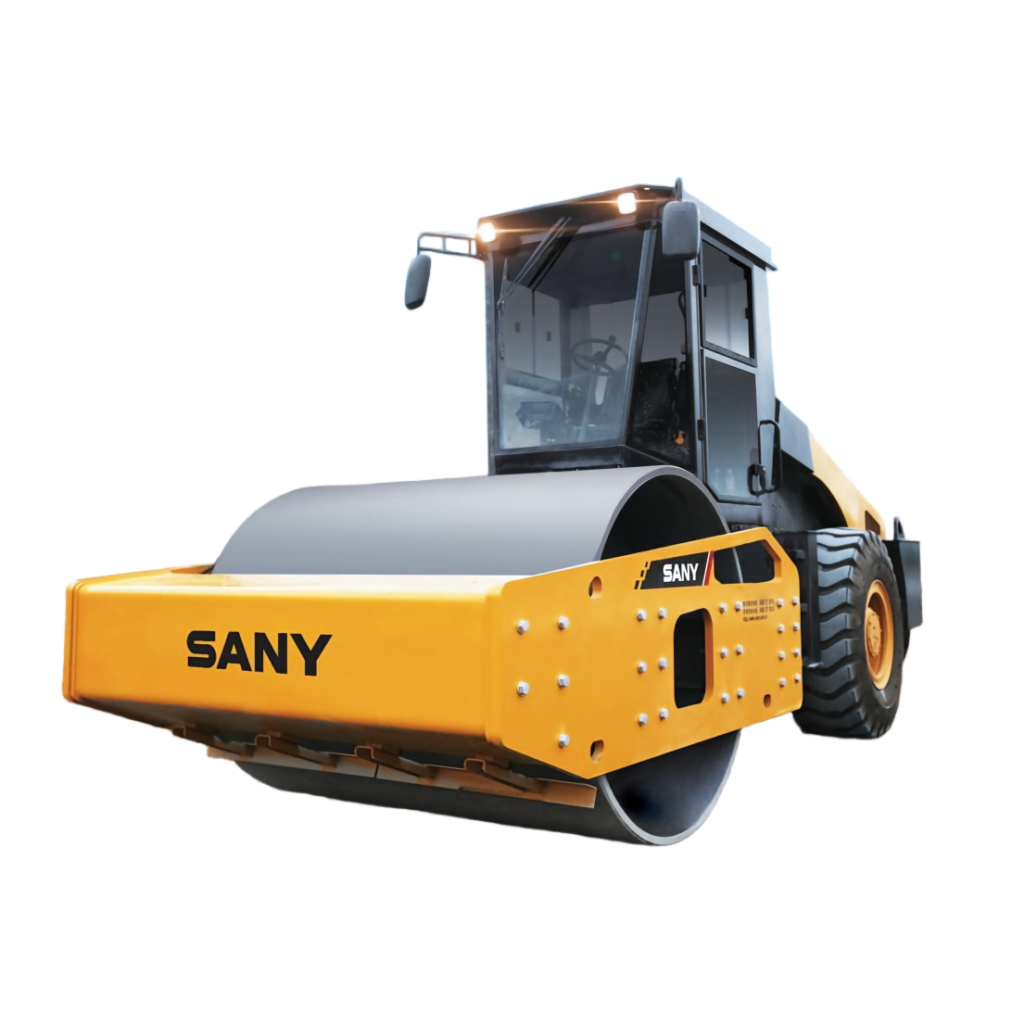

SANY SSR160C-8 Single Drum Roller — 16-Ton Soil Compactor

Name: SANY SSR160C-8 Single Drum Roller — 16-Ton Soil Compactor
Brand: SANY
SKU: sany-ssr160c-8-single-drum-roller
Availability: InStock

SANY SSR160C-8 is a 16-ton single drum vibratory roller powered by a Cummins 132 kW engine, delivering 300/210 kN compaction force and 50% climbing ability for road, dam and earthwork compaction.

Road roller SANY

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

SANY
16-TON CLASS
SOIL COMPACTOR

SANY SSR160C-8 Single Drum Roller — 16-Ton Soil Compactor

SANY Group · 16-Ton Class · 16000 kg · Cummins 6BTAA5.9-C180 132kW · 300/210 kN Centrifugal Force · 2130mm Drum Width · 5000h Bearing Life

16000 kg
Operating Weight

132 kW
Engine Power

300 kN
Centrifugal Force

2130 mm
Drum Width

SANY SSR160C-8 Single Drum Roller Overview

The SANY SSR160C-8 is a 16-ton class single drum vibratory roller engineered for high-density soil and asphalt compaction on demanding infrastructure projects. With an operating weight of 16000 kg and a 9200 kg drum load, it delivers exceptional compaction energy per pass for roads, dams, airports, parking lots, and industrial pavements.

Powered by a Cummins 6BTAA5.9-C180 diesel engine rated at 132 kW (177 HP) @ 2200 RPM and certified to Tier 3 / Stage III emission standards, the SSR160C-8 offers globally supported reliability and low operating cost. The vibratory system produces 300 / 210 kN of centrifugal force at 33 / 36 Hz frequency with 1.9 / 1.0 mm amplitude — a dual-range setup that handles both thick lifts and finish layers.

SANY’s engineering delivers 10% greater excitation force and 16.7% greater production than comparable machines, while the water-wheel lubricated vibratory bearing extends service life to 5000 hours. Combined with a comfortable, vibration-isolated cab and a 50% gradeability articulated chassis, the SSR160C-8 is built for productive, low-cost compaction worldwide.

Key Specifications

Parameter	Specification	Parameter	Specification
Operating Weight	16000 kg (16-Ton Class)	Engine Model	Cummins 6BTAA5.9-C180
Rated Power	132 kW (177 HP) @ 2200 RPM	Emission Standard	Tier 3 / Stage III
Centrifugal Force	300 / 210 kN	Vibration Frequency	33 / 36 Hz
Nominal Amplitude	1.9 / 1.0 mm	Drum Static Linear Load	432 N/cm
Drum Width	2130 mm	Drum Diameter	1500 mm
Weight at Drum	9200 kg	Weight at Rear Axle	6800 kg
Travel Speed	0–4.6 km/h	Gradeability	50%
Fuel Tank	300 L	Hydraulic Oil Tank	150 L

Compaction & Vibration Performance

✅ 300 / 210 kN Centrifugal Force	High-force mode breaks resistant soils and achieves target density fast; low-force mode protects sensitive base layers and finish surfaces
✅ 33 / 36 Hz Dual Frequency	Switch between frequencies to match granular sub-base, cohesive soil, or asphalt — one machine covers diverse compaction jobs
✅ 1.9 / 1.0 mm Nominal Amplitude	High amplitude for thick lifts and rock fills; low amplitude for thin lifts, shoulders, and bridge approach finishing
✅ 432 N/cm Static Linear Load	High static line load from the 9200 kg drum weight delivers deep, uniform compaction from the first pass
✅ 2130 mm Wide Drum	Wide drum coverage (1500 mm diameter) reduces pass count and raises daily productivity on large pavements

Engine & Powertrain

Parameter	Specification
Engine Brand / Model	Cummins 6BTAA5.9-C180 — globally supported turbocharged diesel engine with unmatched parts and service network
Emission Certification	Tier 3 / Stage III — accepted for export to Africa, Middle East, Southeast Asia, South America, and CIS markets
Cylinder Configuration	6-Cylinder, Water-Cooled, Direct Injection — smooth power delivery and excellent fuel efficiency for all-day operation
Rated Power Output	132 kW (177 HP) @ 2200 RPM — ample reserve for climbing 50% grades and sustained vibration duty
Battery	24V × 120Ah — reliable cold-start and stable electrical system
Fuel Tank Capacity	300 Liters — extended runtime between refueling for productive work shifts
Hydraulic Oil Tank	150 Liters — adequate volume with three-stage filtration for stable temperature under heavy duty
Tire Specification	20.5-25-16PR (Dongfeng) — heavy-duty pneumatic tires on the rear axle

Dimensions & Mobility

Parameter	Specification	Parameter	Specification
Overall Length (L)	5800 mm	Overall Width (W)	2286 mm
Overall Height (H)	3200 mm	Wheelbase	2980 mm
Min. Turning Outside Diameter	11800 mm	Ground Clearance	410 mm
Steering Angle	±35°	Swing Angle	±12°
Travel Speed	0–4.6 km/h	Gradeability	50%

Key Features & Advantages

✅ 5000h Bearing Life	Water-wheel type lubrication on the vibratory bearing extends service life to 5000 hours, cutting downtime and ownership cost
✅ +16.7% Production	10% greater excitation force than comparable machines delivers 16.7% higher compaction output per working hour
✅ Triple Filtration	Double engine air filtration plus three-stage hydraulic filtration protects core components and extends component life
✅ Operator Safety	Rounded front and rear bumpers, large rear glass, and sloped hood give the operator clear all-around visibility
✅ Comfort Cab	Vibration-damping cab mounts, A/C temperature control, and reduced control forces keep operators productive on long shifts
✅ 50% Gradeability	Articulated center frame (±35° steer, ±12° swing) and 50% climb capability tackle embankments and ramp sections with confidence

Standard & Optional Configuration

Type	Details
Standard	Cummins engine, travel pump, vibration pump, travel motor, vibration motor, reduction gears, operating platform, smooth vibratory drum, electrical system, operating system, front frame, rear frame, covering parts, rear axle assembly, center articulated frame, and cab with A/C
Optional — Shed	Operator canopy / shed roof for hot-climate and open-site operation
Optional — Pad Foot Drums	Welded pad foot drum (permanent, for clay / rock / gravel / expansive soil / coal-cinder base) or assembled pad foot drum (removable to restore a smooth drum for mixed-material projects)

Applications

Highway & Road Base

Sub-grade, sub-base, and asphalt compaction for national highways, urban roads, and rural access roads with high daily output

Dam & Embankment

Earth-fill dam cores, levees, and large embankments where 50% gradeability and deep compaction are essential

Airport Runways

Runway sub-base, taxiway, and apron compaction demanding uniform high density and strict quality control

Industrial & Port Yards

Factory floors, logistics parks, container terminals, and storage yards requiring heavy, stable ground bearing

Parking & Residential

Parking lots, housing estate roads, and plaza bases — smooth drum finish delivers clean, dense surfaces

Mining & Quarry

Haul road compaction, overburden pads, and crusher feeder areas where durability and traction matter most

Why Choose Archer Machinery as Your Export Partner?

Since 2017	JINAN ARCHER TRADE CO., LTD has been exporting Chinese construction machinery and trucks since 2017 with deep manufacturer relationships ensuring priority allocation and best pricing
9 Premium Brands	Authorized distributor for XCMG, SANY, Zoomlion, Shantui, SDLG, YTO (construction) + SINOTRUK, SHACMAN, FAW (trucks). Full product range from one partner
Global Shipping	FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and multi-unit container consolidation
OEM Private Label	Full white-label capability: your logo, your colors, your brand. We handle production coordination so you can focus on sales and distribution
Spare Parts Supply Chain	Cummins engine spare parts, hydraulic components, vibratory bearing kits, drum wear parts, and tires shipped worldwide with fast lead times
Multi-Language Support	English, Spanish, Russian, Arabic, French communication. Time zone-friendly response from our international trade team in Jinan, China

Get SANY SSR160C-8 Roller Quote Today

SANY SSR160C-8 — 16000 kg 16-ton class, Cummins 6BTAA5.9-C180 132kW (177HP) Tier 3 engine, 300/210 kN centrifugal force, 33/36 Hz frequency, 2130 mm drum width, 5000h bearing life. FOB China pricing for global B2B buyers.
