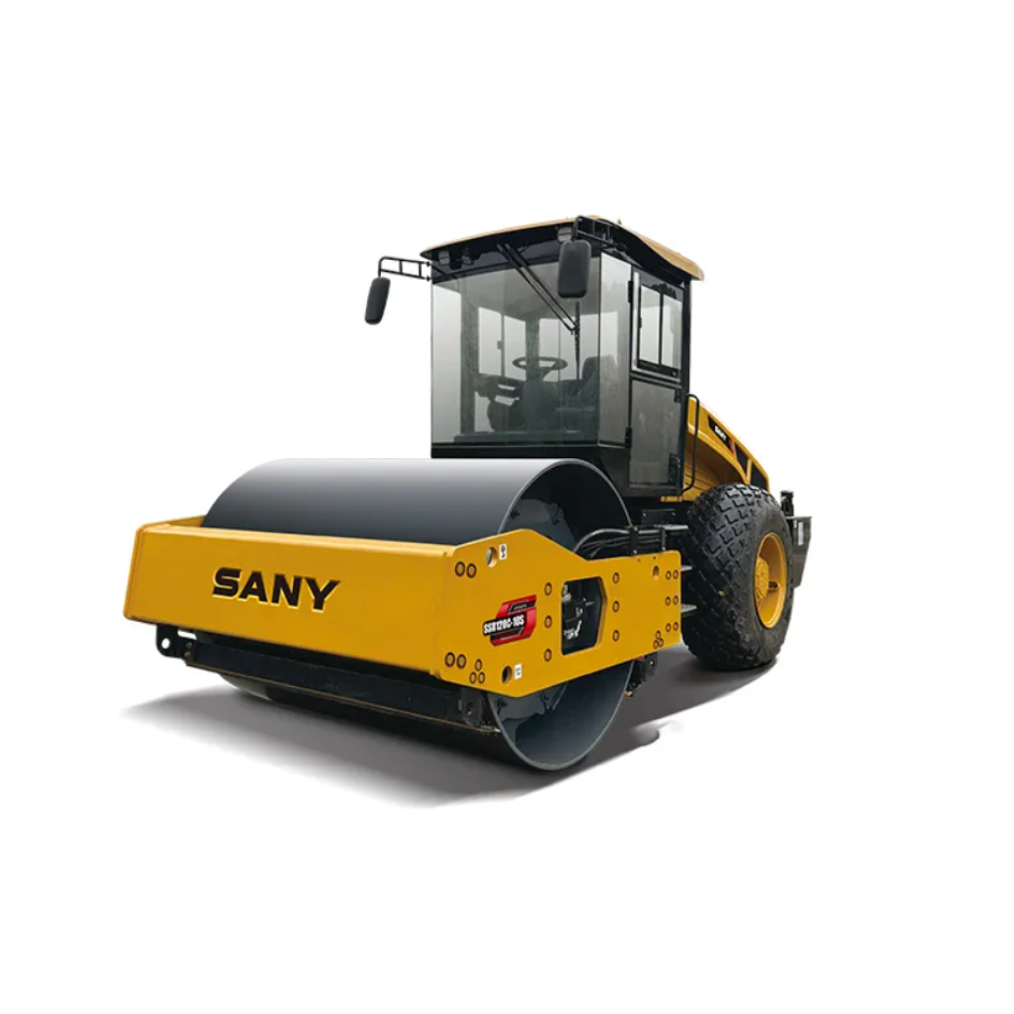

SANY SSR120C-10S Road Roller

SANY SSR120C-10S Road Roller | 12T 280kN 65% Grade

The SANY SSR120C-10S single drum vibratory road roller delivers 12-tonne operating mass and 280kN maximum excitation force with 65% gradeability. Equipped with ISUZU Euro II engine, this C10S series roller achieves 10% higher compaction efficiency than competitors. Features high-frequency vibration, <7% amplitude uniformity, and optional intelligent rolling system for expressway projects.

Road roller SANY

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Road Roller
SANY — C10S Series
Single Drum Vibratory Roller SSR120C-10S

The SANY SSR120C-10S single drum vibratory road roller features 12-tonne operating mass with industry-leading 280 kN excitation force and 65% gradeability. Powered by ISUZU Euro II engine, this C10S series roller delivers 10% higher compaction efficiency than competitors through high-frequency vibration and superior amplitude uniformity (<7%). The new generation cambered noise reduction cab provides the best-in-class comfort for fatigue-free operation. Ideal for earthwork, cement stabilized macadam, and subgrade compaction projects. CE/ISO certified with factory-direct pricing.

Basic Information

Model SSR120C-10S
Series C10S Series
Operating Mass 12,000 kg
Mass on Vibrating Drum 7,000 kg
Mass on Driving Axle 5,000 kg
Static Linear Load 330 N/cm
Drum Width 2,130 mm
Drum Diameter 1,600 mm
Dimensions (L×W×H) 5,785 × 2,940 × 3,000 mm
Certification CE, ISO

Compaction Performance

Vibration Frequency 28 / 32 Hz
Nominal Amplitude 1.9 / 0.95 mm
Excitation Force (Max) 280 kN
Amplitude Uniformity < 7%
Travel Speed 0–10 km/h (variable)
Theoretical Gradeability 65%
Efficiency Advantage 10% higher than competitors
Economic Value Extra profit potential through higher efficiency

Engine & Powertrain

Engine Supplier ISUZU
Engine Type 4-stroke water-cooled diesel
Emission Standard Euro II
Rated Power 110 kW (148 HP)
Fuel Tank 200 L
Hydraulic Oil Tank 120 L
Battery 2 × 12V

Maneuverability & Running Gear

Minimum Ground Clearance 431 mm
Wheelbase 3,000 mm
Steering Angle ±35°
Swing Angle ±12°
Minimum Turning Radius 6,000 mm (outer)
Tire Specification Standard buoyancy tire (quincunx type)
Drive Type Hydraulic drive with rear axle

Optional Configurations

Smooth Wheel Standard — for conventional subgrade compaction
Combined Padfoot Shell Optional — for clay compaction; padfoot removable
Welded Padfoot Optional — for clay; padfoot cannot be removed
Cab Standard — enclosed with air conditioning
Driving Shed Optional — open manoeuvring without AC
Rear Axle Differential Lock Optional — for soft/sandy subgrades
Tire Options Standard/Thickened buoyancy tire; Tractor tire (herringbone)
Electronic Anti-Skid System Optional — forces left/right tires to roll together
Intelligent Rolling System Optional — for expressways/high-speed railways
Reversing Camera Optional — integrates into cab display

Product Highlights

More Efficient Compaction

High-frequency vibration with industry-maximum 280 kN excitation force and amplitude uniformity <7%. Achieves 10% higher compaction efficiency and quality than competitors.
Stronger Gradeability

Optimized front/rear drive capacity and mass distribution deliver industry-leading 65% gradeability. Better adaptability to challenging working conditions.
Comfortable Driving

New generation cambered noise reduction cab with best-in-class vibration reduction. Optimized air conditioning and ergonomic manipulation space for fatigue-free operation.
Reliable Quality

Proprietary excitation mechanism with forced lubrication ensures bearing life over 10,000 hours. Hydraulic self-cooling system and large radiator guarantee continuous operation.
Convenient Maintenance

All filters facing outward for direct replacement. Integrated water separator with drain on ECU. Predictive maintenance technology via SANY intelligent display system.
Low Operating Cost

Intelligent frequency regulation, intelligent heat management, and optimized high-frequency compaction reduce fuel consumption by 6–10% compared to competitors.
