Road Sweeper Truck for Sale | 4X2 Street Sweeper Vehicle

Efficiently maintain urban cleanliness with our high-performance 4X2 Road Sweeper Truck! Built on a reliable Dongfeng EQ1090 chassis with a 125HP Cummins Euro 3 engine, this street sweeper features Right Hand Drive (RHD) for seamless regional operations. It comes equipped with a 5m³ stainless steel dustbin, a 2.5m³ water tank, and an independent JMC 87HP auxiliary engine to power its 4 rotating brushes and rear horseshoe suction nozzle.

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Sanitation Trucks
Street Sweeper & Cleaner Series

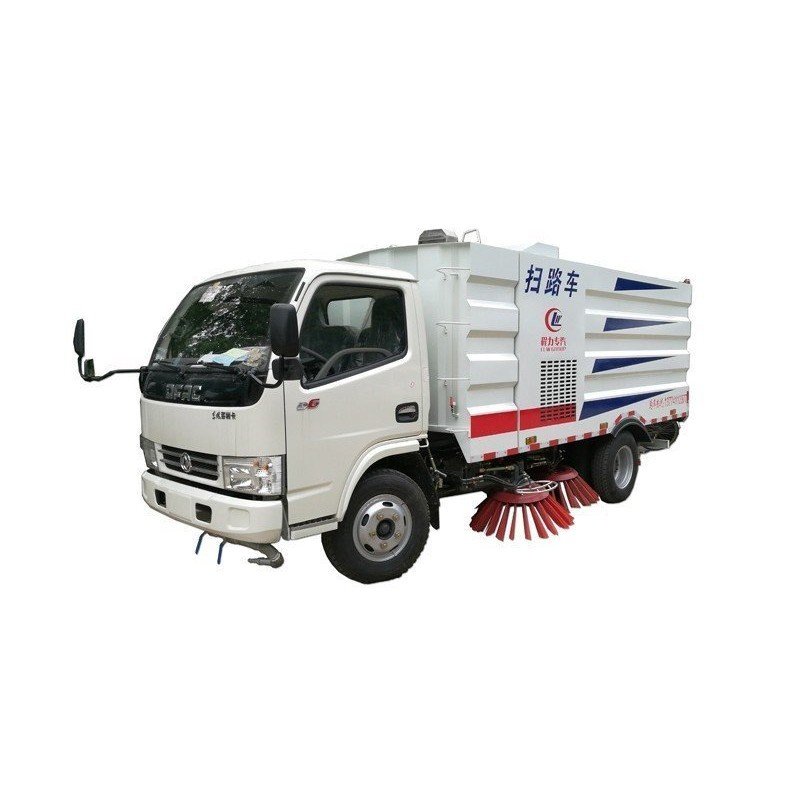

4×2 Road Sweeper Truck For Sale

Our high-efficiency 4×2 Road Sweeper Truck is an advanced municipal sanitation vehicle engineered for heavy-duty street cleaning, dust control, and debris collection. Built on a heavy-duty Dongfeng EQ1090 chassis and powered by a reliable Cummins Euro 3 engine, this vehicle seamlessly integrates sweeping and suction functionalities. Featuring a high-capacity 5m³ stainless steel dustbin, a 2.5m³ integrated water tank, and an independent JMC 87HP sweeping engine, it delivers a massive 3-meter sweeping width—making it ideal for urban avenues, highways, airport runways, and industrial complexes.

Technical Specifications Overview

Chassis Brand & Model Dongfeng — EQ1090
Drive Model & Cab 4×2 Drive Model | Right Hand Drive (RHD), Single Row, White Cab
Overall Dimensions (L×W×H) 7200 × 2350 × 2750 mm
Wheelbase & Weight Wheelbase: 3800 mm | Curb Weight: 5900 kg
Chassis Engine Model Dongfeng Cummins Engine Co., Ltd — B125 33
Engine Specs & Emission 125 HP | 4 Cylinder, Turbocharging & Intercooling | Euro 3 Standard
Transmission Type Fast Brand 6DS60T-D | Manual Transmission (6 Forward & 1 Reverse)
Axle Load & Suspension Axle Loading (Front/Rear): 2200 / 5500 kg | Leaf Spring System (8/10+7)
Brake & Steering System Air Brake System | Power-assisted Steering
Tyre Specification 215/75R17.5 Tubeless Tires (6 + 1 Spare Tire)

Sanitation & Performance Systems

Dustbin Effective Capacity 5 m³ (Anti-corrosive Stainless Steel Construction)
Water Tank Volume 2.5 m³ (Integrated Dust Suppression Sprayer Supply)
Auxiliary Sweeping Engine Premium JMC Brand 87 HP Independent Engine
Maximum Sweeping Width 3,000 mm (3 Meters Wide Coverage Area)
Mass Sweeping Speed 5 – 20 km/h Operational Speed Range
Suction System Specs Rear Horseshoe Follow-up Suction Nozzle | Pipe Diameter: 100 m
Discharging Dynamics 45° Tipping/Dumping Tilt Angle for quick waste discharge

Advanced Working Principle

This street cleaning vehicle utilizes an independent JMC 87HP auxiliary engine as its central power source to drive advanced hydraulic control systems, dual hydraulic pumps, and suction actuators without taxing the main truck engine.

  • Efficient Debris Gathering: Four rotating sweeping brushes actively sweep dirt, rubbish, sand, and stones inward toward the vehicle’s centerline as it moves forward.
  • High-Vacuum Suction: The high-pressure driven fan creates a powerful vacuum loop via the 100mm rear horseshoe suction nozzle, effortlessly pumping all gathered waste directly into the collection tank.
  • Integrated Dust Suppression: High-pressure water lines from the 2.5m³ tank feed water-mist sprayers positioned near the brushes, preventing airborne dust clouds during high-speed operations.

Complete Sanitation Truck Portfolio

ArcherMach is a global specialist in commercial environmental vehicle distribution. Our comprehensive catalog features over 100 types of specialized heavy trucks engineered to meet stringent global infrastructure demands, including:

Water Trucks • Fecal Suction Trucks • Garbage Trucks • Refuse Compactors • Sewage Suction Trucks • Fuel Tankers • High-Altitude Operation Vehicles • Truck Mounted Cranes • Heavy-Duty Dump Trucks • Refrigerator Trucks • Bulk Cement Tankers • Chemical Liquid Transport Trucks • Concrete Mixer Trucks, and more!

Need an Ultimate Street Cleaning Solution for Your Fleet?

Get factory-direct pricing, complete operational parts support, and safe global logistics delivery.

Request Quotation WhatsApp +86 178 6053 9508
