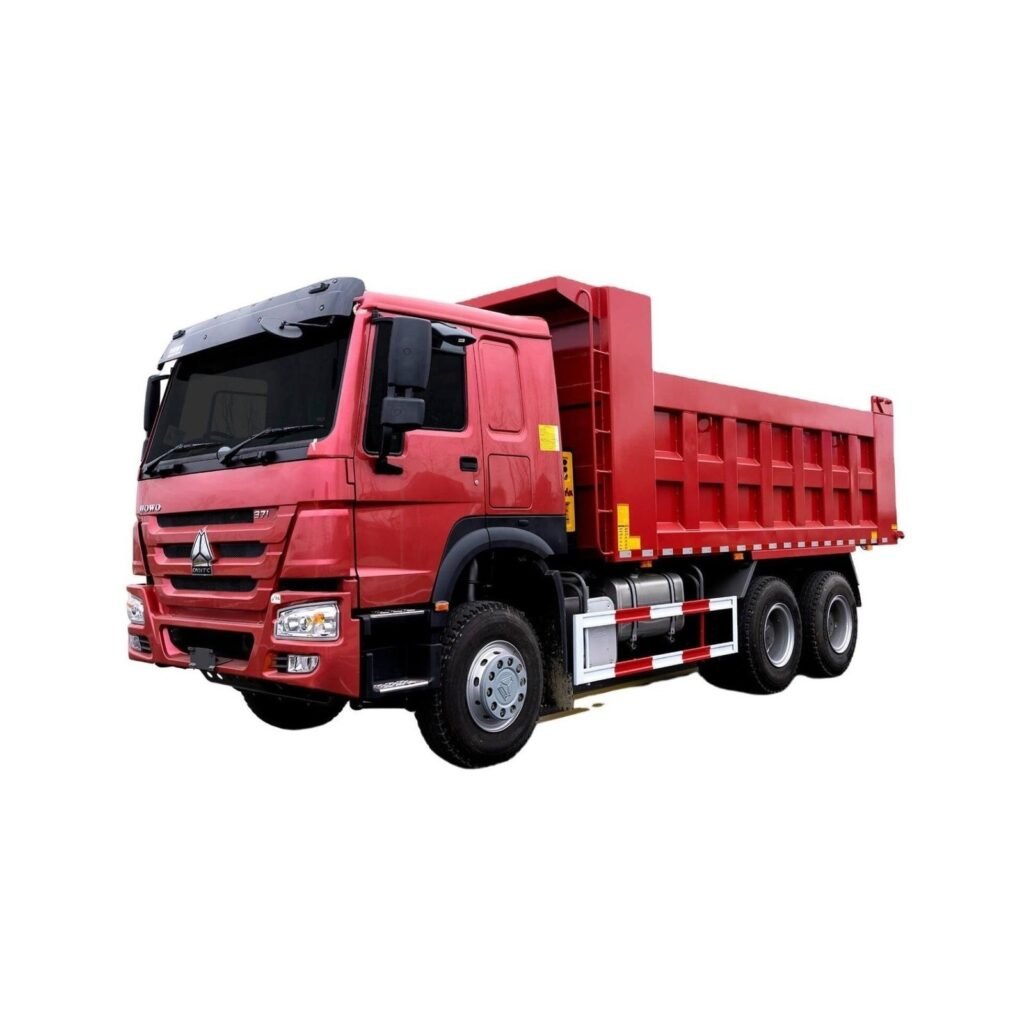

Right Hand Drive HOWO 6×4 Tipper Truck

Name: Right Hand Drive HOWO 6×4 Tipper Truck
SKU: SKU-283

Boost your mining and construction efficiency with the heavy-duty Right Hand Drive HOWO Tipper Truck! Built on a rugged 6×4 chassis (Model ZZ3257V3647B1R), this tipper is specifically engineered for right-hand drive markets. Powered by a high-torque 336hp Euro II engine and equipped with an HW19710 transmission, it effortlessly handles a 30,000 kg load capacity.

Truck & Special vehicles SINOTRUK

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Tipper & Dump Truck
SINOTRUK HOWO — Right Hand Drive Series

Right Hand Drive HOWO 6×4 Tipper Truck

The Right Hand Drive HOWO Tipper Truck (Model ZZ3257V3647B1R) is purposely designed for heavy-duty transportation, infrastructural earthmoving, and mining operations across standard RHD regions. Combining an ultra-durable chassis construction with a highly efficient middle-side hydraulic lifting system, this 6×4 dump truck handles up to a 30,000 kg rated payload with effortless unloading capability. Engineered with premium steel plates (8mm bottom and 6mm sides), the 19.32 m³ cargo body is built to withstand heavy impacts from rocks, aggregates, and extreme weather conditions—ensuring long-lasting reliability in the harshest environments.

Technical Specifications Overview

Complete drivetrain, dimension, and performance parameters verified directly from the vehicle manifest

Truck Model & Brand	SINOTRUK-HOWO — ZZ3257V3647B1R
Driving Style	Right Hand Driving (RHD)
Overall Dimensions (Unloaded)	8214 × 2496 × 3170 mm
Cargo Body Dimension (L×W×H)	5600 × 2300 × 1500 mm (Volumetric Capacity: 19.32 m³)
Cargo Box Steel Thickness	Bottom: 8 mm \| Side: 6 mm (High Tensile Structural Steel)
Tipping / Lift Mechanism	Middle side hydraulic telescopic lift setup
Weight Ratings	Curb Weight: 12,200 kg Loading Weight (Payload): 30,000 kg
Wheelbase	3625 + 1350 mm
Approach / Departure Angle	19° / 26°
Max Driving Speed	75 km/h
Fuel Economy Setup	Tanker Capacity: 300 Liters \| Fuel Consumption Range: 20-40 L/100 km

Engine Powertrain & Axle Framework

Engine Model	WEICHAI Brand WP12.400E201 (Steyr Technology upgrade Water-cooled, four-stroke, 6 cylinders in-line, mechanical direct injection fuel system
Horsepower & Emission	336 hp \| Diesel Fuel Type \| EURO II Emission Level
Transmission Model	HW19710 Manual Sync Transmission (10 forwards and 2 reverse gears)
Clutch Specification	Single-plate dry diaphragm clutch, diameter Φ420 mm
Steering System Model	ZF8118 hydraulic steering assembly integrated with power assistance
Front Axle	VDG95 series heavy steering front axle built with double T-cross section beam
Rear Axle (Driving)	HC16 Heavy Axles — Casting axle housing, central double reduction mechanics, equipped with inter-axle and inter-wheel differential locks
Tyres Assembly	11.00-20 durable bias tires, 11 pieces total (including 1 full spare tire)
HW76 Comfort Cab	HW76 extended cab configuration featuring an air-conditioner (A/C), ergonomically adjusted steering wheel, and one integrated sleeper berth for long-shift driver fatigue reduction.

Heavy-Duty Performance Highlights

Optimized Middle Tipping System: Equipped with premium hydraulic cylinders that deliver stable torque lifting dynamics, reducing cross-flex risks during high-volume aggregate unloading.
High-Strength Carriage Shell: Engineered with an 8mm thick floor board and 6mm side panels to survive high-impact shovel loading from mining excavators without hull distortion.
Dual Differential System locks: HC16 casting axles feature advanced mechanical differential locking systems that preserve absolute traction across mud, gravel, and unpaved steep inclines
Chassis Coatings: Multi-layer anti-corrosive primer and weather-resistant enamel finishes ensure the frame remains unaffected by highly humid or tropical quarry working climates.

Why Order from ArcherMach

Direct Factory Pricing & Customization

We offer comprehensive customization options including optional truck body colors (White, Red, Yellow) and custom volume specifications tailored directly to local market transport mandates.

Full Process Quality Auditing

Every RHD HOWO dump truck model undergoes intense chassis balancing, steering compliance checks, and hydraulic operational tests prior to container loading or Ro-Ro shipment.
