Mini Excavator
OEM & Private Label · CE / EPA Certified

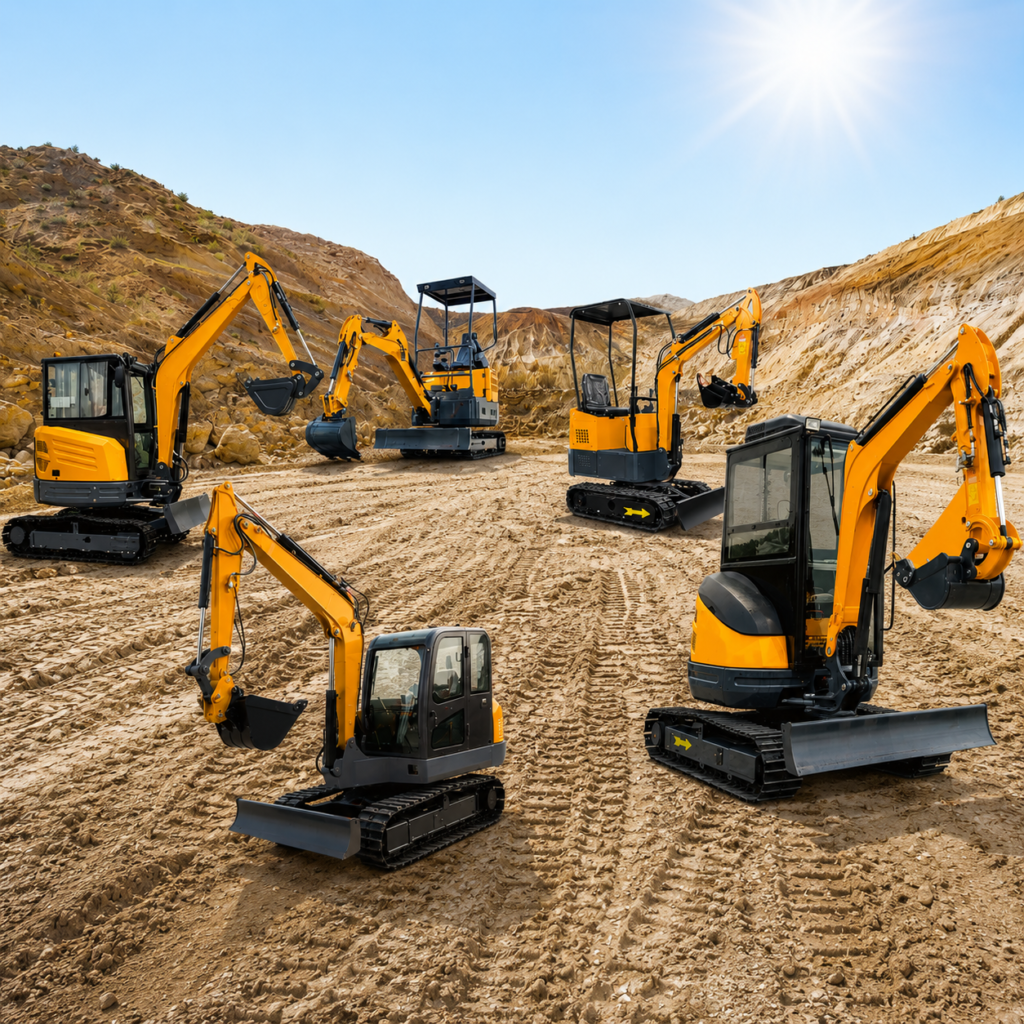

OEM Mini Excavator — Private Label Series 0.8T–9T
Factory-direct mini excavators from a top-ranked Chinese manufacturer. Custom brand logo, paint color, engine, and cab options. CE, EPA & ISO certified. Models from 800 kg to 9,000 kg operating weight. Exported to 77+ countries worldwide. Contact us for OEM quotation and sample unit arrangement.
Original Manufacturer
| Manufacturer |
Shandong Hightop Group — Jining, Shandong, China |
| Factory Size |
60,000 m² floor area · 820+ employees |
| Export Ranking |
Top 1 in China for 6 consecutive years (mini excavator export volume) |
| Export Countries |
77+ countries across Europe, North America, Australia, Southeast Asia, Middle East |
| R&D Capability |
40+ patents · Independent R&D center · Multi-model development each year |
| Certifications |
CE · EPA Tier 4/5 · ISO 9001 · SGS · TUV · BV |
OEM Customization Options
| Brand Logo |
Yes — your company logo on the body, boom, and cab |
| Paint Color |
Standard: Red / Yellow / Blue — Custom: any RAL color code |
| Custom Decals |
According to your design file (AI/CDR/PSD accepted) |
| Engine Brand |
Kubota / Yanmar / Briggs & Stratton / Kohler / Laidong / Changchai |
| Operator Cab |
Open canopy (standard) or enclosed cab with A/C (optional, ROPS/TOPS certified) |
| Attachments |
Standard bucket + optional: breaker, auger, tilt bucket, grapple, thumb, quick coupler |
| Branded Manual |
Operator’s manual and spare parts catalog in your company name |
| Minimum Order |
Trial order: 1 unit (under 2T) · OEM branded order: 3–5 units typical |
HT-10B — 1-Ton Mini Excavator (Bestseller)
The most popular model worldwide for rental fleets, landscaping contractors, and pipeline installation. Compact 2,900 mm overall length passes through standard doorways. Boom swing function standard.
| Model |
HT-10B |
| Operating Weight |
1,000 kg |
| Engine Type |
Kohler 192F / Briggs & Stratton — single cylinder, 4-stroke, air cooled |
| Engine Power |
7 kW (9.4 HP) @ 3,000 rpm |
| Bucket Capacity |
0.025 m³ / 380 mm bucket width |
| Max Dig Depth |
1,750 mm |
| Max Dig Height |
2,610 mm |
| Max Dump Height |
1,930 mm |
| Overall Dimensions (L×W×H) |
2,900 × 930 × 2,180 mm |
| Track Width |
180 mm rubber track |
| Travel Speed |
2 km/h |
| Boom Swing |
Yes — boom swing function included |
| Certifications |
CE · EPA |
| Best For |
Rental fleet, landscaping, utility trenching, driveway installation, fence post digging |
HT18-1 — 1.8-Ton Mini Excavator
Powered by a Kubota D722 3-cylinder diesel engine. Features boom swing (75° left / 45° right) for digging along walls and narrow spaces. Available with multiple engine options for different emission regions.
| Model |
HT18-1 |
| Operating Weight |
1,800 kg |
| Engine Type |
Kubota D722 · 3-cylinder, water cooled (or Kohler 292 / Changchai option) |
| Engine Power |
10.2–14 kW (13.7–18.8 HP) |
| Bucket Capacity |
0.03 m³ |
| Max Dig Depth |
2,060 mm |
| Max Dig Height |
3,160 mm |
| Max Dump Height |
2,330 mm |
| Rotation Speed |
12 rpm |
| Track Width |
230 mm rubber track |
| Travel Speed |
2 km/h |
| Boom Swing |
Yes — 75° left / 45° right |
| Certifications |
CE · EPA · ISO 9001 |
| Best For |
Residential construction, irrigation work, narrow-trench utility contractors (EU/US markets with Kubota engine) |
HT22 — 2.2-Ton Mini Excavator
Kubota D1105 3-cylinder engine with retractable steel tracks. 0.056 m³ bucket, 2.37 m dig depth, and 20.5 MPa hydraulic system for serious earthmoving. Expandable undercarriage for stability on uneven terrain.
| Model |
HT22 |
| Operating Weight |
2,172 kg |
| Engine Type |
Kubota D1105 · 3-cylinder, water cooled, diesel |
| Engine Power |
14.2 kW (19 HP) @ 2,200 rpm |
| Bucket Capacity |
0.056 m³ |
| Max Dig Depth |
2,370 mm |
| Max Dig Height |
3,500 mm |
| Max Dump Height |
2,450 mm |
| Hydraulic Pressure |
20.5 MPa |
| Travel Speed |
2.2 / 4.3 km/h (2-speed) |
| Retractable Tracks |
Yes — expandable steel tracks |
| Best For |
General civil construction, trenching, foundation works. Full Kubota drivetrain for reliability. |
HT30 — 3-Ton Small Excavator
Load-sensing hydraulic system with piston variable pump for smooth combined operations. Meets Euro 5 and EPA standards out of the box. The ideal step up for contractors graduating from the 2-ton class.
| Model |
HT30 |
| Operating Weight |
3,000 kg |
| Engine Type |
Kubota · Euro 5 / EPA Tier 4 · diesel, water cooled |
| Engine Power |
14.2 kW (19 HP) @ 2,000 rpm |
| Bucket Capacity |
0.10 m³ |
| Max Dig Depth |
2,450 mm |
| Max Dig Height |
3,700 mm |
| Max Bucket Force |
15.3 kN |
| Hydraulic System |
Load-sensing, piston variable pump |
| Travel Speed |
3.5 km/h |
| Certifications |
CE · EPA · Euro 5 · ISO 9001 |
| Best For |
Road works, slope construction, medium earthmoving. Meets Euro 5 / EPA Tier 4 standards out of the box. |
HT40 — 4-Ton Small Excavator
The workhorse of the mid-size range. Kubota D1703 engine delivering 18.5 kW, 0.12 m³ bucket, and 30.4 kN bucket breakout force. Load-sensing main valve for precision control. Retractable undercarriage. Available with enclosed ROPS/TOPS cab and A/C.
| Model |
HT40 |
| Operating Weight |
3,810 kg |
| Engine Type |
Kubota D1703 · 3-cylinder, water cooled, diesel · Euro 5 compliant |
| Engine Power |
18.5 kW (24.8 HP) @ 2,200 rpm |
| Bucket Capacity |
0.12 m³ |
| Max Dig Depth |
3,208 mm |
| Max Dig Height |
4,800 mm |
| Max Bucket Force |
30.4 kN |
| Hydraulic Pressure |
22.5 MPa |
| Retractable Tracks |
Yes — expandable steel undercarriage |
| Operator Cab |
Open canopy (standard) · Enclosed ROPS/TOPS cab with A/C (optional) |
| Certifications |
CE · EPA · Euro 5 · ISO 9001 |
| Best For |
Heavy landscaping, drainage, urban construction, utility contracting. Load-sensing hydraulics for precision grading. |
Full Model Lineup
17 models available from 0.8T to 4T operating weight. All support OEM/private-label customization with CE and EPA certification. Contact us for larger models not listed here (up to 9T).
| Model |
Weight |
Power |
Bucket |
Dig Depth |
Engine |
Cert. |
| HT08 |
800 kg |
7 kW |
0.025 m³ |
1,200 mm |
Kohler / Briggs |
CE · EPA |
| HT-10B |
1,000 kg |
7 kW |
0.025 m³ |
1,750 mm |
Kohler / Briggs |
CE · EPA |
| HT-10H |
1,000 kg |
7 kW |
0.025 m³ |
1,750 mm |
Kohler / Runtong |
CE · EPA |
| HT12 / HT13 |
1,000–1,300 kg |
7–10 kW |
0.025-0.03 m³ |
1,800–1,950 mm |
Kohler / Kubota |
CE · EPA |
| HT15 / HT15Pro |
1,500 kg |
10–12 kW |
0.03 m³ |
1,900 mm |
Kubota / Laidong |
CE · EPA |
| HT18-1 / HT18-3 |
1,800 kg |
10.2–14 kW |
0.03 m³ |
2,060 mm |
Kubota D722 / Kohler |
CE · EPA |
| HT20Pro / HT20-1 |
1,470–2,000 kg |
10–19 kW |
0.02-0.04 m³ |
1,995–2,060 mm |
Kubota / Laidong |
CE · EPA |
| HT22 |
2,172 kg |
14.2 kW |
0.056 m³ |
2,370 mm |
Kubota D1105 |
CE · EPA |
| HT25-2 |
2,480 kg |
14.1 kW |
0.07 m³ |
2,500 mm |
Kubota D1105 |
CE · EPA |
| HT30 |
3,000 kg |
14.2 kW |
0.10 m³ |
2,450 mm |
Kubota · Euro 5/EPA |
CE · EPA · E5 |
| HT35 |
3,989 kg |
18.5 kW |
0.12 m³ |
3,106 mm |
Kubota D1703 |
CE · EPA · E5 |
| HT40 |
3,810 kg |
18.5 kW |
0.12 m³ |
3,208 mm |
Kubota D1703 · Euro 5 |
CE · EPA · E5 |
Engine Options & Emission Compliance
We configure engines based on your target market’s emission requirements. Red flexible coupling standard on all models for vibration absorption and driveline protection.
| Engine Brand |
Kubota D722 / D1105 / D1703 |
| Best Markets |
EU, North America, Australia — Euro 5 / EPA Tier 4 compliant. Best resale value. |
| Engine Brand |
Yanmar |
| Best Markets |
EU, Japan, Oceania — compact, fuel-efficient, globally recognized |
| Engine Brand |
Briggs & Stratton |
| Best Markets |
US, Canada — widely supported dealer network, EPA certified |
| Engine Brand |
Kohler / Laidong / Changchai |
| Best Markets |
Southeast Asia, Africa, Middle East, South America — cost-efficient, reliable |
| Emission Note |
CE / EPA Tier 4 / EPA Tier 5 / Euro 5 compliance depends on engine + after-treatment pairing. Confirm target market requirement for correct specification. |
Key Engineering Features
| Load-Sensing Hydraulics |
Available on HT30+. Piston variable pump — smooth combined actions, lower fuel consumption, no jerky movements during multi-function operation. |
| ROPS / TOPS Cab |
ISO certified roll-over and tip-over protective structure. Available with A/C and heater on HT30 and above. |
| Boom Swing |
Standard on 1T–3T models. Offset dig left/right without repositioning. Ideal for trenching along walls and fences. |
| Retractable Tracks |
Expandable steel undercarriage on HT22+. Narrow width for transport, wide for working stability. |
| Flexible Coupling |
Red flexible engine-pump coupling standard across all models — absorbs vibration, protects against misalignment. |
| Hydraulic Quick Coupler |
Standard interface for all attachments — swap bucket to breaker to auger in minutes. |
| Attachment Range |
Hydraulic breaker · Auger / drill · Tilt bucket · Rotating grapple · Hydraulic thumb · Hedge trimmer · Stump grinder · Pallet fork · Wood splitter · Sand bucket |
Ready to Order or Request an OEM Sample?
Tell us your target model, branding requirements, and destination port. Quotation with CE/EPA docs within 24 hours.
