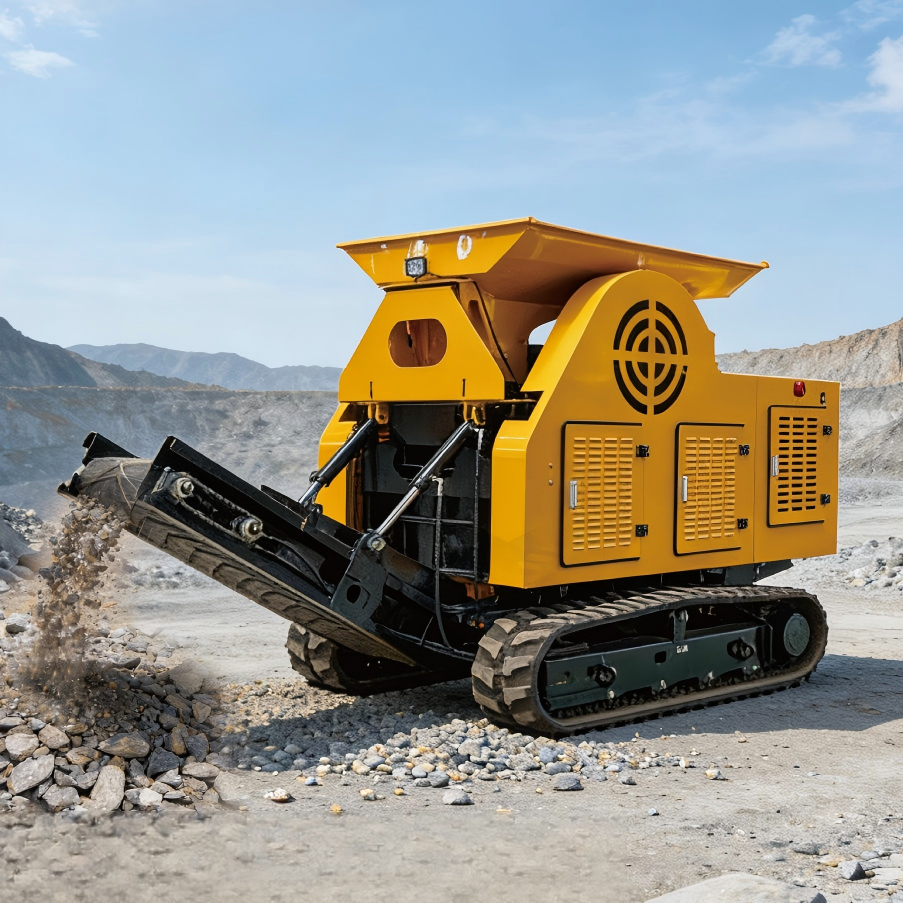

OEM Mobile Jaw Crusher — Private Label Series 2–10 T/H
Factory-direct mobile jaw crushers from China. Electric, gasoline, and diesel drive options. Compact tracked design for quarry, mining, construction waste recycling, and road building. Custom brand logo, paint color, and decals available. CE, EPA & ISO certified. Exported to 170+ countries worldwide. Contact us for OEM quotation and sample unit arrangement.
Original Manufacturer
| Manufacturer |
Shandong ARCHER — Jining, Shandong, China |
| Factory Size |
60,000 m² floor area · 820+ employees |
| Export Ranking |
Mini excavator export leader for 6 consecutive years in China |
| Export Countries |
170+ countries across Europe, North America, Southeast Asia, South America, Middle East |
| Overseas Warehouses |
9 global hubs: USA (×2), Germany, UK, Spain (×2), Poland (×2), Saudi Arabia |
| R&D Capability |
40+ patents · 21 trademarks · 3 copyrights · “High-Tech Enterprise” designation |
| Certifications |
CE · EPA · ISO 9001 · SGS · TUV · BV |
OEM Customization Options
| Brand Logo |
Yes — your company logo applied to the machine body and hopper |
| Paint Color |
Standard: Yellow / Orange / Green — Custom: any RAL color code |
| Custom Decals |
According to your design file (AI/CDR/PSD accepted) |
| Engine Brand |
Electric motor / Dajang gasoline / Laidong Euro V diesel (per model and market) |
| Voltage (Electric Model) |
110V / 220V / 380V — configurable per destination country |
| Branded Manual |
Operator’s manual and spare parts catalog in your company name |
| Minimum Order |
Trial order: 1 unit · OEM branded order: 3–5 units typical |
Materials This Crusher Can Process
| Natural Rock |
Granite, basalt, limestone, marble, sandstone, quartzite, diabase, gneiss, river stone / cobblestone |
| Construction Waste |
Concrete rubble, asphalt waste, brick and gravel demolition debris, mine tailings |
| Special Materials |
Gypsum, fluorite, recycled building waste |
HTJC-106 — Electric Jaw Crusher (Stationary)
The entry-level stationary electric model for workshop, quarry, and recycling operations. 11 kW motor with 110V/220V/380V voltage options covers most global markets. Modular 8-section design (feed, crush, screen, and conveyor) allows rapid field assembly. Advanced dust reduction and noise dampening technology built in. Ideal for continuous indoor processing of rock, concrete, and construction waste.
| Model |
HTJC-106 |
| Drive Type |
Electric motor — 110V / 220V / 380V selectable |
| Motor Power |
11 kW @ 1,465 rpm |
| Feed Opening |
220 × 350 mm |
| Output Particle Size |
Ø 15–50 mm |
| Production Capacity |
2–10 T/H |
| Overall Dimensions (L×W×H) |
1,600 × 850 × 1,750 mm |
| Mobility |
Stationary (electric plug-in) — modular design for easy relocation |
| Key Features |
8-module rapid assembly · Fast electric start · Dust reduction & noise dampening · Smart control system compatible |
| Best For |
Workshop crushing, quarry secondary station, indoor concrete recycling, road material processing |
HTJC-135 — Trailer-Mount Gasoline Jaw Crusher
A compact, road-towable jaw crusher for sites without power supply. The Dajang 420cc EPA-certified gasoline engine delivers 13.5 HP — powerful enough for 2–4 T/H continuous operation. The trailer hitch attaches directly to a standard tow bar; compact 2,000 × 1,250 × 1,600 mm transport size makes it easy to move between sites.
| Model |
HTJC-135 |
| Drive Type |
Gasoline engine — single cylinder, 4-stroke, air-cooled · EPA certified |
| Engine Brand / Displacement |
Dajang · 420 CC |
| Engine Power |
13.5 HP @ 3,600 rpm |
| Fuel Tank |
6 L (gasoline, 92 octane) |
| Feed Opening |
150 × 250 mm |
| Output Particle Size |
Ø 5–25 mm |
| Production Capacity |
2–4 T/H |
| Conveyor Belt Width |
400 mm |
| Stockpile Height |
700–1,000 mm |
| Working Dimensions (L×W×H) |
3,330 × 1,250 × 1,600 mm |
| Transport Dimensions (L×W×H) |
2,000 × 1,250 × 1,600 mm |
| Machine Weight |
988 kg |
| Mobility |
Tire trailer — direct tow hitch to standard tow bar |
| Control |
Manual hydraulic valve |
| Best For |
Remote sites without grid power, small quarry secondary crushing, road construction demolition recycling |
HTJC-325 — Tracked Gasoline Jaw Crusher (Mid-Size)
A self-propelled tracked crusher powered by an 18 HP gasoline engine. 180 mm rubber tracks allow 0–3 km/h travel on uneven terrain without a flatbed. The large 0.15 m³ hopper, 150 × 250 mm jaw opening, and 300 mm conveyor handle quarry, coal mine, and concrete recycling operations. Suitable for quarrying, sand and gravel fields, railway construction, and water conservancy projects.
| Model |
HTJC-325 |
| Drive Type |
Gasoline engine — Luntong R500-V2 · 18 HP |
| Engine Power / Torque |
13 kW @ 3,600 rpm · 28 N·m @ 2,500 rpm |
| Fuel Tank |
6.5 L gasoline · 1.0 L engine oil |
| Hydraulic System |
Pump: PGP5108 · Travel motor: 6K-315 (600 N·m) · Conveyor motor: BMER-300 · Hydraulic oil tank: 20 L (32#/46#) |
| Feed Opening |
150 × 250 mm · Max feed size: 150 mm |
| Output Particle Size |
Ø 10–30 mm |
| Production Capacity |
2–4 T/H |
| Hopper Volume |
0.15 m³ · Feeder conveyor: 1,400 × 300 mm |
| Conveyor Belt Width |
300 mm · Stockpile height: 670–1,000 mm |
| Working Dimensions (L×W×H) |
2,800 × 930 × 1,600 mm |
| Transport Dimensions (L×W×H) |
1,950 × 930 × 1,640 mm |
| Track |
180 × 72 × 37 mm rubber track · 4 bottom rollers · Ø126 mm |
| Travel Speed |
0–3 km/h · Hydraulic drive |
| Control |
Manual hydraulic valve · Grease lubrication (jaw mechanism) · Mechanical track tensioning |
| Best For |
Quarry, coal mine, sand & gravel field, railway construction, water conservancy, concrete waste recycling |
HTJC-430 — Tracked Gasoline Jaw Crusher (Heavy-Duty)
The larger tracked variant with a 220 × 350 mm jaw opening accepting stones up to 200 mm in diameter — outputting 15–50 mm aggregate at 2–5 T/H. The 0.25 m³ hopper feeds a wider 400 mm conveyor. Deep-cavity crushing chamber ensures uniform particle shape; plate thickness reinforced for abrasion resistance. Fines ratio ≤20% — significantly less waste and lower energy per tonne than competitors.
| Model |
HTJC-430 |
| Drive Type |
Gasoline engine — Luntong R500-V2 · 18 HP |
| Engine Power / Torque |
13 kW @ 3,600 rpm · 28 N·m @ 2,500 rpm |
| Fuel Tank |
6.5 L gasoline · 1.0 L engine oil |
| Hydraulic System |
Pump: PGP5108 · Travel motor: 6K-395 (850 N·m) · Conveyor motor: BMER-300 · Hydraulic oil tank: 35 L (32#/46#) |
| Feed Opening |
220 × 350 mm · Max feed size: 200 mm |
| Output Particle Size |
Ø 15–50 mm |
| Production Capacity |
2–5 T/H |
| Hopper Volume |
0.25 m³ · Feeder conveyor: 1,500 × 500 mm |
| Conveyor Belt Width |
400 mm · Stockpile height: 700–1,150 mm |
| Working Dimensions (L×W×H) |
3,200 × 1,000 × 1,620 mm |
| Transport Dimensions (L×W×H) |
2,100 × 1,000 × 1,750 mm |
| Track |
180 × 72 × 41 mm rubber track · 6 bottom rollers · Ø126 mm |
| Travel Speed |
0–3 km/h · Hydraulic drive |
| Key Features |
Deep-cavity crushing · Thickened wear plates · Fines ≤20% · Coarse+fine crushing in single pass · Anti-corrosion conveyor |
| Best For |
Quarry primary crushing, mining aggregate processing, large-volume concrete demolition recycling |
HTJC-510 — Tracked Diesel Jaw Crusher (Euro V · High Output)
The most powerful model in the lineup. Powered by a Laidong 385 Euro V certified diesel engine (19 kW), with a 250 × 400 mm jaw opening and 0.4 m³ feed hopper — producing 5–10 T/H at 20–60 mm output size. The plunger pump and plunger motor hydraulic system ensure reliable track drive on slopes and rough ground up to 4 km/h. Suitable for export to EU markets that require Euro V emission compliance.
| Model |
HTJC-510 |
| Drive Type |
Diesel engine — Euro V compliant |
| Engine Brand / Model |
Laidong 385 (Euro V) |
| Engine Power |
19 kW @ 2,350 rpm |
| Engine Oil Capacity |
4 L |
| Fuel Tank / Hydraulic Tank |
50 L diesel · 50 L hydraulic oil (32#/46#) |
| Hydraulic System |
Plunger pump A10VS028 · Travel motor FTM03C · Jaw drive: plunger motor · Conveyor: orbital motor · Grease lubrication (jaw) |
| Feed Opening |
250 × 400 mm · Max feed size: 230 × 380 mm |
| Output Particle Size |
Ø 20–60 mm |
| Production Capacity |
5–10 T/H |
| Hopper Volume |
0.4 m³ |
| Conveyor Belt Width |
400 mm · Stockpile height: 950–1,000 mm |
| Working Dimensions (L×W×H) |
4,050 × 1,450 × 2,050 mm |
| Transport Dimensions (L×W×H) |
2,750 × 1,450 × 2,050 mm |
| Track |
300 × 86 × 52.5 mm rubber track · Grease tensioning |
| Travel Speed |
0–4 km/h · Hydraulic drive |
| Emission Standard |
Euro V — suitable for EU import without additional after-treatment |
| Best For |
Large quarry primary crushing, high-volume aggregate production, EU/EPA market exports, continuous batch processing |
Full Model Comparison
5 models covering electric bench-top to heavy-duty tracked diesel. All support OEM/private-label customization. Contact us for volume pricing, custom specifications, or models not listed here.
| Model |
Drive |
Power |
Feed Opening |
Output Size |
Capacity |
Mobility |
Cert. |
| HTJC-106 |
Electric |
11 kW |
220×350 mm |
Ø15–50 mm |
2–10 T/H |
Stationary |
CE · EPA |
| HTJC-135 |
Gasoline |
13.5 HP |
150×250 mm |
Ø5–25 mm |
2–4 T/H |
Trailer |
EPA |
| HTJC-325 |
Gasoline |
18 HP |
150×250 mm |
Ø10–30 mm |
2–4 T/H |
Track |
CE · EPA |
| HTJC-430 |
Gasoline |
18 HP |
220×350 mm |
Ø15–50 mm |
2–5 T/H |
Track |
CE · EPA |
| HTJC-510 |
Diesel |
19 kW |
250×400 mm |
Ø20–60 mm |
5–10 T/H |
Track |
CE · Euro V |
Key Engineering Features
| Rubber Track System |
All tracked models use hydraulic rubber-track drive — excellent traction on slopes, soft ground, and uneven terrain without damaging surfaces. |
| Deep-Cavity Jaw |
Large crushing ratio with deep jaw cavity — uniform output particle size and shape. Needle/flake fraction ≤20%. |
| Hydraulic Conveyor Lift |
Manual hydraulic cylinder on all models allows angle adjustment of discharge conveyor for precise stockpile height control. |
| Reinforced Wear Parts |
Key wear parts (jaw plates, conveyor belts, bearings) selected from premium materials. Lower maintenance cost per operating hour. |
| Dust & Noise Control |
Advanced dust reduction and noise dampening technology — reduces environmental impact on site. Suitable for urban demolition and indoor use (electric model). |
| Modular Assembly (HTJC-106) |
8 independent modules (feed, crush, screen, conveyor, etc.) — rapid on-site assembly and disassembly without special tools. Smart control system compatible. |
Applications
| Quarry & Mining |
Granite, basalt, limestone primary and secondary crushing for aggregate production |
| Sand & Gravel Field |
River stone and cobblestone size reduction for construction aggregate |
| Construction Waste Recycling |
Concrete slabs, brick rubble, asphalt milling into reusable base material |
| Railway & Road Building |
On-site ballast and sub-base aggregate production along construction corridors |
| Water Conservancy |
Embankment, dam, and irrigation channel stone material preparation |
Ready to Order or Request an OEM Sample?
Tell us your target model, branding requirements, and destination port. Quotation with CE/EPA docs within 24 hours.
