Mini Dumper — Tracked & Wheel Series 500kg–1200kg

Name: Mini Dumper — Tracked & Wheel Series 500kg–1200kg
Brand: ArcherMach
SKU: mini-dumper-tracked-wheel-series-500kg-1200kg
Availability: InStock

Factory-direct mini dumpers from Shandong Hightop Group. Gasoline-powered tracked and wheel models with 500 kg to 1,200 kg loading capacity. Hydraulic tipping, custom branding (private label), concrete mixer variant available. CE, EPA, ISO 9001, SGS, TUV & BV certified. Exported to 177+ countries worldwide.

Truck & Special vehicles OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Dumper
Tracked & Wheel · CE / EPA Certified · OEM Available

Mini Dumper — Tracked & Wheel Series 500kg–1200kg

Factory-direct mini dumpers from Shandong Hightop Group. Gasoline-powered tracked and wheel models with 500 kg to 1,200 kg loading capacity. Hydraulic tipping, custom branding (private label / OEM), concrete mixer variant available. CE, EPA, ISO 9001, SGS, TUV & BV certified. Exported to 177+ countries worldwide.

Original Manufacturer

Manufacturer	Shandong Hightop Group — ARCHER Machinery
Location	Shandong, China
Factory Area	~8,000 m²
Employees	500+
Export Coverage	177+ countries — Europe, North America, South America, Southeast Asia & more
Overseas Warehouses	10 bases — USA (2), Germany (1), UK (1), Spain (2), Poland (2), Russia (1), Saudi Arabia (1)
Certifications	CE (EU), EPA (USA), ISO 9001, SGS, TUV Rheinland, BV (France)
Intellectual Property	28 national patents · 21 trademarks · 3 copyrights
Product Lines	Mini excavators, mini dumpers, skid steer loaders, lawn mowers & more

OEM & Private Label Customization

Brand Logo	Custom logo decals — your brand on body & documentation
Paint Color	Custom color — yellow, orange, red, blue, green, or any RAL code
Engine	Briggs & Stratton (standard), alternatives available per market
Documentation	CE / EPA certification documents under your brand or factory brand
MOQ	Trial order: 1 unit · Branded OEM: 3–5 units (negotiable per model)
Special Configurations	Concrete mixer dumper, 260° rotating hopper, custom bucket size

Model Overview

Model	Type	Load Capacity	Engine	Power	Machine Weight	Emission
HTD501	Tracked	500 kg	B&S — Gasoline	—	413 kg	Euro 5 / EPA
HTD502	Tracked	500 kg	B&S — Gasoline	—	413 kg	Euro 5 / EPA
HTD500-4	Tracked	500 kg	B&S Pioneer 420	6.5 HP	550 kg	Euro 5 / EPA
HTD500-5	Tracked	1,000 kg	B&S 420	13.5 HP	880 kg	Euro 5 / EPA
HTD500-6	Wheel	500 kg	B&S GM170F	4.2 kW	360 kg	Euro 5 / EPA
HTD1200	Tracked (Mud Buggy)	1,200 kg	B&S Pioneer 420	13.5 HP	850 kg	Euro 5 / EPA

HTD501 & HTD502 — Compact Tracked Dumper (500 kg)

Engine Brand	Briggs & Stratton
Cooling Mode	Air-cooled
Fuel Type	Gasoline
Emission Standard	Euro 5 / EPA
Loading Capacity	500 kg
Box Dimensions (L×W×H)	816 × 680 × 620 mm
Box Type	Integrated / One-piece
Track Width	180 mm
Hydraulic Pump Flow	6 L/min
Machine Weight	413 kg
Overall Dimensions (L×W×H)	1056 × 700 × 1225 mm
Start Mode	Manual / Electric starter
Driving Type	Hydraulic drive
Steering Mode	Hydraulic steering
Unload Mode	Hydraulic tipping

HTD500-4 — 500kg Tracked Dumper

Engine Model	Briggs & Stratton Pioneer
Engine Type	Single cylinder, OHV, 4-stroke, air cooling
Displacement	203 CC
Rated Power	6.5 HP / 3600 rpm
Fuel Type	92# Gasoline
Fuel Tank Capacity	3.6 L
Total Weight	550 kg
Maximum Load	500 kg
Machine Size (no pedal, no bucket)	1570 × 880 × 1450 mm
Machine Size (with pedal)	2050 × 880 × 1450 mm
Container Size (L×W×H)	1050 × 730 × 730 mm
Cargo Box Capacity	200 dm³
Chassis Width	700 mm
Max Rise / Tipping Height	1020 mm rise / 970 mm tipping height
Tipping Interval	220 mm
Track Width	180 mm
Track Grounding Length	1000 mm
Ground Clearance	110 mm
Tipping System	Hydraulic Tipper
Tilting Angle	100°
Walking Speed	2.88 km/h
Min. Turning Radius	1150 mm
Track Gauge	520 mm
Climbing Ability	20°

HTD500-5 — 1,000kg Heavy Tracked Dumper

Engine Model	Briggs & Stratton 420
Engine Type	Single cylinder, OHV, 4-stroke, air cooling
Displacement	420 CC
Rated Power	13.5 HP / 3600 rpm
Fuel Type	92# Gasoline
Fuel Consumption	≤ 0.7 g/km·h
Fuel Tank Capacity	6.5 L
Engine Oil Capacity	1.1 L
Total Weight	880 kg
Max. Loading (horizontal)	1,000 kg
Max. Lifting Load	550 kg
Machine Size (no pedal, no bucket)	1800 × 880 × 1920 mm
Machine Size (with pedal)	2700 × 880 × 1920 mm
Container Size (L×W×H)	1220 × 800 × 600 mm
Cargo Box Capacity	290 dm³
Chassis Width	850 mm
Max Lifting Discharge Height	1500 mm
Tipping Interval	350 mm
Tipping System	Hydraulic Tipper
Tilting Angle	100°
Walking Speed	3 km/h
Min. Turning Radius	1300 mm
Track Gauge / Width	670 mm / 180 mm
Hydraulic Tank Capacity	12 L
Track Grounding Length	915 mm
Ground Clearance	100 mm
Climbing Ability	25°

HTD500-6 — 500kg Wheel Dumper

Engine Brand	Briggs & Stratton
Engine Model	GM170F
Power	4.2 kW / 3600 RPM
Displacement	212 cc
Fuel Type	92# Gasoline
Fuel Consumption	≤ 0.395 g/kW·h
Fuel Tank Capacity	3.6 L
Engine Oil Capacity	0.6 L
Total Weight	360 kg
Max. Loading Capacity	500 kg
Machine Size	1500 × 833 × 1240 mm
Cargo Box Capacity	200 dm³
Tipping System	Hydraulic tipping
Tipping Angle	100°
Walking Speed	2.88 km/h
Min. Turning Radius	1.15 m
Track Gauge	52 cm
Min. Ground Clearance	10 cm
Hydraulic Oil Type	46#
Hydraulic Oil Tank	15 L
Climbing Ability	20°

HTD1200 — 1,200kg Mud Buggy (Rotating Hopper)

Engine Model	Briggs & Stratton Pioneer
Engine Type	Single cylinder, OHV, 4-stroke, air cooling
Displacement	420 CC
Rated Power	13.5 HP / 3600 rpm
Fuel Type	92# Gasoline
Fuel Tank Capacity	6.5 L
Net Weight	850 kg
Max. Load Capacity	1,200 kg
Body Size (no footboard)	2060 × 900 × 1400 mm
Body Size (with footboard)	2470 × 900 × 1400 mm
Container Size (L×W×H)	1400 × 800 × 600 mm
Chassis Width	900 mm
Max. Rotation Angle	260°
Rotation Mode	Hydraulic rotation
Tipping Interval	320 mm
Tipping System	Hydraulic Tipper
Tilting Angle	90°
Clearance After Tipping	300 mm
Walking Speed	5 km/h
Track Width	180 mm
Track Grounding Length	1000 mm
Ground Clearance	140 mm
Cargo Box Capacity	594 dm³
Climbing Ability	25°

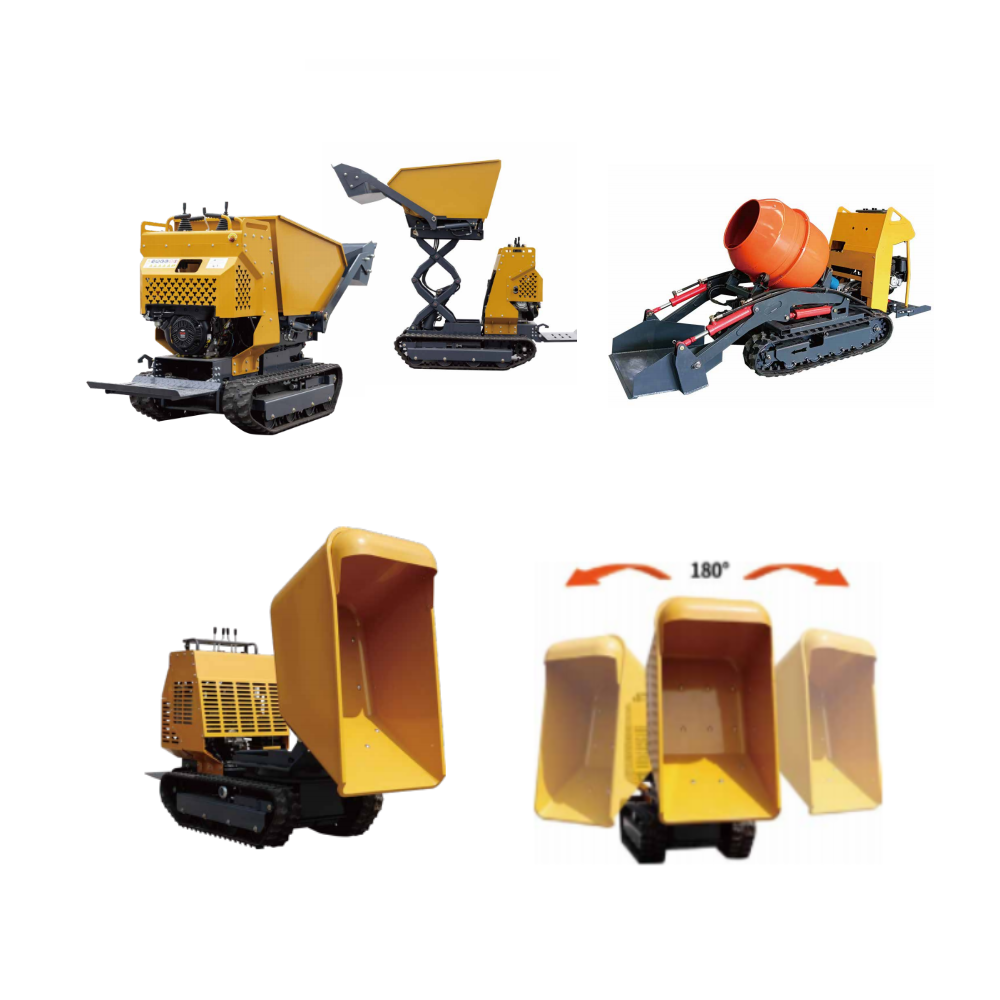

Special Configurations — Concrete Dumper & Rotating Hopper

Concrete Mixer Dumper	The dumper tank can be customized with a concrete mixer — combines transport and mixing in one machine. Ideal for small-scale concrete pouring on construction sites.
Hopper Up/Down Tilt	The hopper can be turned up and down 90° — enables precise material discharge at multiple heights.
Hopper Rotation (HTD1200)	180° left/right rotation — up to 260° maximum rotation angle. Hydraulic-powered. Allows material discharge to any side without repositioning the machine.
Usage Scenarios	Construction sites, landscaping, agriculture, greenhouse operations, narrow access areas, muddy & uneven terrain.

Key Engineering Features

Engine	Briggs & Stratton — USA-brand gasoline engines. OHV design for lower fuel consumption and longer life. Air-cooled — no coolant maintenance required. Easy cold start with manual recoil or electric starter.
Hydraulic Drive	Full hydraulic drive and steering — no mechanical clutch/gearbox wear. Smooth acceleration and precise control on slopes and soft ground.
Track System	180 mm rubber tracks (all tracked models) — low ground pressure, minimal surface damage. Excellent grip on mud, gravel, and slopes up to 25°.
Hydraulic Tipping	100° hydraulic tipping angle (90° on HTD1200). Dump box fully empties with no manual effort. Integrated one-piece box design for durability.
Compact Footprint	Narrow chassis (700–900 mm) fits through doorways and tight passages. Overall length 1–2.5 m — one machine fits in a standard pickup truck bed.
Walk-Behind Control	Walk-behind operation with ergonomic handle — operator has full visibility of the load and terrain. Foot pedal platform available on select models (HTD500-4/5).
Emission Compliance	Euro 5 / EPA compliant engines — meets European and North American emission standards. CE certified for EU market entry.
Dual Model Lines	Tracked models: HTD501 / HTD502 / HTD500-4 / HTD500-5 / HTD1200 — for soft & uneven ground. Wheel model: HTD500-6 — for hard paved surfaces, faster travel.
