LOVOL Road Rollers — 12T to 26T

Name: LOVOL Road Rollers — 12T to 26T
SKU: SKU-639

LOVOL FY Series single-drum vibratory road rollers 12T–26T. Dual-frequency/dual-amplitude, hydrostatic drive, Weichai engines. Highway base, dam & airport compaction. B2B factory export.

Road roller LOVOL

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Road Roller
LOVOL Heavy Industry — FY Series

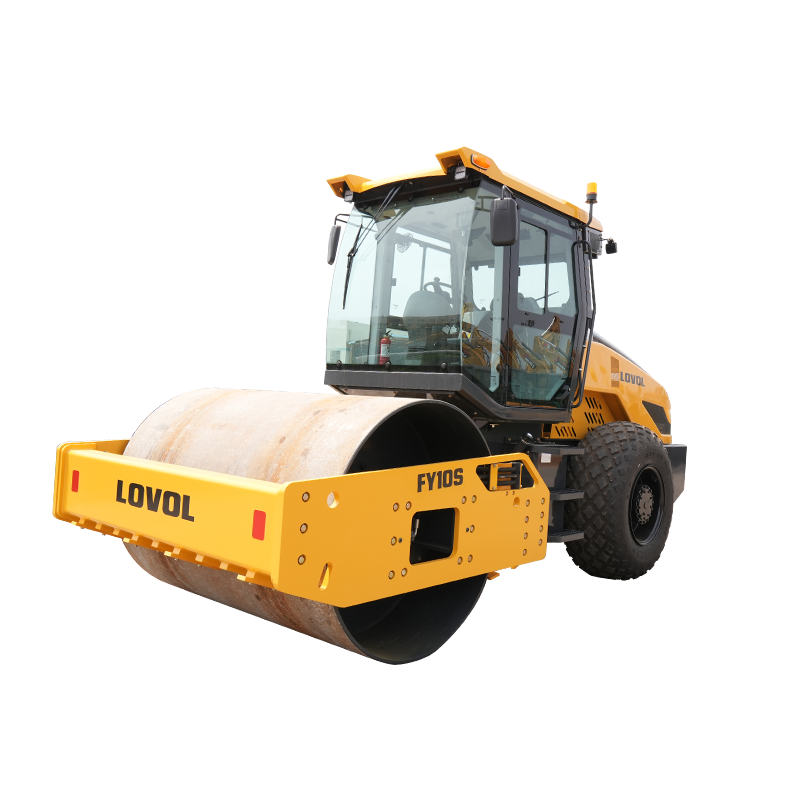

LOVOL Road Rollers — 12T to 26T

LOVOL FY Series single-drum vibratory road rollers deliver powerful compaction performance for highway construction, dam building, airport runways, and large-scale earthworks. Covering 12 tonnes to 26 tonnes operating weight, all models feature Weichai engines, dual-frequency dual-amplitude vibration, and hydrostatic drive for smooth, high-density compaction on soil, gravel, and rock fill.

Product Overview

Brand	LOVOL Heavy Industry
Series	FY Series Single-Drum Vibratory Rollers
Operating Weight	12 T ~ 26 T
Vibration System	Dual-Frequency / Dual-Amplitude, Hydrostatic
Drum Width	2,100 mm ~ 2,170 mm
Application	Highway Base, Sub-base, Dam, Airport, Earth-Rock Fill Compaction

Model Lineup & Key Specs

Model	Operating Weight	Engine Power	Centrifugal Force	Gradeability
FY12S	12 T	92 kW	270 / 180 kN	35%
FY14S	14 T	105 kW	290 / 190 kN	35%
FY20S	20 T	140 kW	390 / 260 kN	40%
FY22S	22 T	164 kW	430 / 280 kN	40%
FY26S	26 T	180 kW	490 / 320 kN	45%

Key Features & Advantages

Dual-Frequency Dual-Amplitude Vibration

Hydraulic vibration system with two selectable frequencies (high/low) and two amplitudes (high/low) for optimal compaction on different materials. Automatic vibration cut-off at neutral position prevents over-compaction. Up to 490 kN centrifugal force on FY26S.

Hydrostatic Drive System

Closed-loop hydrostatic travel drive with variable speed control. Smooth acceleration and deceleration for uniform compaction quality. Excellent gradeability up to 45% on large models. No clutch wear, reduced maintenance cost.

Weichai Turbocharged Engine

Weichai turbocharged diesel engines with high power reserve for sustained compaction in high temperatures and high altitudes. Optimized fuel map for roller duty cycle. Large-capacity cooling package with reversible fan for dusty environments.

Heavy-Duty Drum & Frame

Thick-wall steel drum with replaceable wear plates. Articulated frame with ±35° oscillation for full ground contact on uneven terrain. Heavy-duty center hinge with lifetime-lubricated bearings. Optional padfoot shell for cohesive soil compaction.

Operator Comfort & Control

ROPS/FOPS certified cabin with A/C and panoramic visibility. Ergonomic multi-function joystick with integrated forward/reverse. Compaction meter display for real-time density monitoring. Genuine LOVOL parts via archerparts.com.

Why Choose LOVOL Road Roller

Dual-Frequency Vibration Up to 490 kN, adjustable for material	Hydrostatic Drive Smooth control, gradeability up to 45%
Smooth / Padfoot Drum Options Soil, gravel, or rock fill compaction	12T to 26T Full Range Right size for every compaction job
Compaction Meter Real-time density display in cabin	Competitive Factory Price Direct export, full documentation
