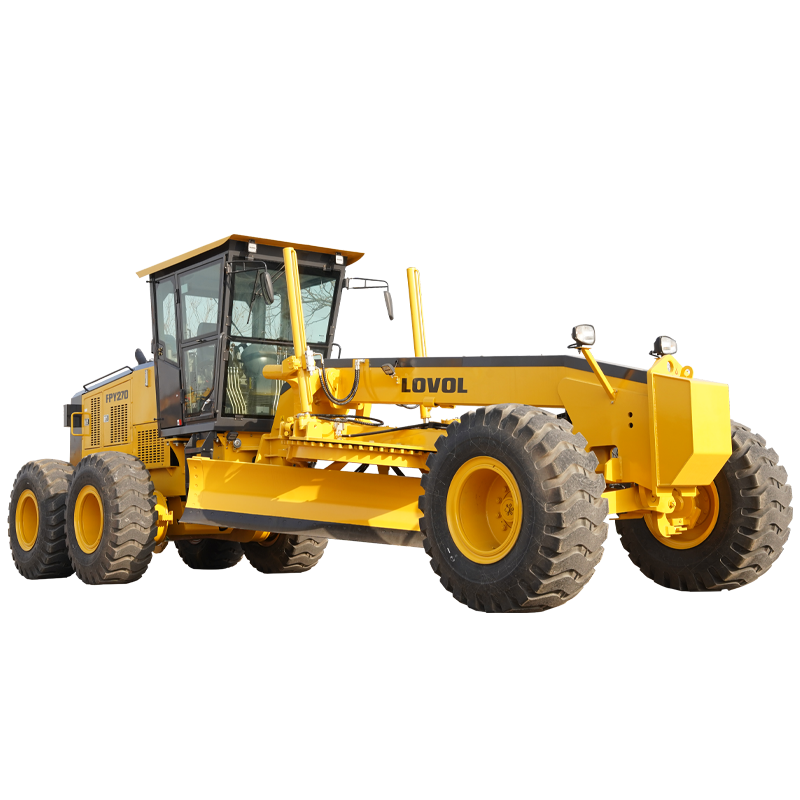

LOVOL Motor Graders — 140HP to 220HP

Name: LOVOL Motor Graders — 140HP to 220HP
SKU: SKU-642

LOVOL FPY Series motor graders 140HP–220HP with full hydraulic blade control, 360° rotation, articulated frame & heavy-duty circle. For road construction & maintenance. B2B export.

Motor Grader LOVOL

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Motor Grader
LOVOL Heavy Industry — FPY Series

LOVOL Motor Graders — 140HP to 220HP

LOVOL FPY Series motor graders deliver precise grading, leveling, and ditching performance for road construction, maintenance, and large-scale earthworks. Covering 140HP to 220HP, all models feature Weichai engines, full hydraulic blade control with 360° rotation, articulated frame steering, and heavy-duty circle and drawbar for maximum blade down-pressure and grading accuracy.

Product Overview

Brand	LOVOL Heavy Industry
Series	FPY Series Motor Graders
Power Range	140 HP ~ 220 HP
Operating Weight	12,500 kg ~ 16,500 kg
Blade Length	3.66 m ~ 4.27 m
Application	Road Construction, Road Maintenance, Ditching, Slope Grading, Snow Removal, Mining Haul Road

Model Lineup & Key Specs

Model	Engine Power	Operating Weight	Blade Length	Drive
FPY140	140 HP / 103 kW	12,500 kg	3.66 m	Mechanical
FPY160	160 HP / 118 kW	13,500 kg	3.96 m	Hydro-Mechanical
FPY180	180 HP / 132 kW	14,800 kg	3.96 m	Hydro-Mechanical
FPY220	220 HP / 164 kW	16,500 kg	4.27 m	Full Hydraulic

Key Features & Advantages

Full Hydraulic Blade Control

360° blade rotation with hydraulic lift, angle, tilt, sideshift, and circle rotation. Precise proportional control for fine grading accuracy. Large blade down-pressure for cutting into compacted surfaces and hard materials.

Articulated Frame Steering

Articulated frame with ±25° steering angle for tight turning radius and crab steering mode. Crab walk capability allows blade offset beyond tire tracks for ditch cleaning and slope work. Hydro-mechanical or full hydraulic drive options.

Heavy-Duty Circle & Drawbar

Forged steel circle with replaceable wear inserts and adjustable circle shoes for long service life. Reinforced drawbar with A-frame design transmits blade loads to the main frame. Circle reversing hydraulic motor for bidirectional blade positioning.

Weichai Engine & Powertrain

Weichai turbocharged diesel engines with high torque backup. Available with mechanical, hydro-mechanical, or full hydraulic drive configurations. Power-shift transmission with torque converter for smooth operation. No-spin differential for traction.

Operator Comfort & Visibility

ROPS/FOPS cabin with A/C and panoramic glass for 360° visibility. Ergonomic multi-function joysticks. Adjustable steering column and suspension seat. Rear ripper/scarifier and front dozer blade options available. Parts via archerparts.com.

Why Choose LOVOL Motor Grader

360° Blade Rotation Full hydraulic proportional control	Articulated Frame ±25° steering, crab walk capability
140HP to 220HP Coverage Right power for every road project	Forged Steel Circle Replaceable wear inserts, long life
Rear Ripper & Front Blade Multi-purpose road maintenance	Competitive Factory Price Direct export with full documentation
