SHANMON Loaders — Backhoe, Wheel, Skid Steer & Telescopic Handlers
SHANMON (Shanmeng) is a Chinese construction-equipment brand offering the complete loader family from a single source. The current catalogue covers 12 models across four machine classes — backhoe loaders, articulated wheel loaders, skid steer loaders and telescopic handlers — with operating weights from 0.85 T to 6.8 T. Powertrains span diesel, hybrid-electric (HEV) and pure-electric (EV), and drivetrains feature Italian Carraro axles, Danfoss/Rexroth hydraulics and a wide choice of global engine brands. All models are available with OEM / private-label branding for distributors targeting mining, construction, agriculture, ports and rental markets.
SHANMON Loader — Full Product Range
| Model |
Class |
Engine / Power |
Rated Load |
Bucket / Capacity |
Key Highlight |
| Backhoe Loaders (Two-in-One) |
| 388H |
Backhoe Loader |
Perkins / Weichai / Yuchai · 70–82 kW |
2.5 T lift |
1.2 / 0.3 m³ |
10.8 T · Carraro axle · 4F4R · 3 steering modes |
| 388T |
Backhoe Loader |
Perkins / Weichai / Yuchai · 70–82 kW |
2.5 T lift |
1.0 / 0.3 m³ |
8.6 T · lighter chassis · integrated rear flip hood |
| Articulated Wheel Loaders |
| 936G |
Wheel Loader |
Deutz / Weichai · 92–99 kW |
3.0 T |
1.8 m³ |
10.3 T · 24 h modular radiator · breakout 127 kN |
| 956G |
Wheel Loader |
Shangchai / Weichai ZF · 162–170 kW |
5.0 T |
3.0 m³ |
16.7–17.0 T · 55 °C cooling · heavy-duty frame |
| 967G |
Wheel Loader |
Weichai WP10HG260 · 192 kW |
6.0 T |
3.3 m³ |
18.3 T · breakout 206 kN · dual-turbo torque converter |
| 958EV |
Electric Wheel Loader |
125 kW drive + 75 kW upper |
5.8 T |
3.5 m³ |
LFP 284/350 kWh · 618 V · 6–10 h endurance |
| 968HEV |
Hybrid Wheel Loader |
Yuchai + PMSM motor · 81 kW |
6.8 T |
4.0 m³ |
19.0 T · breakout 204 kN · 8–10C lithium battery |
| Telescopic Handlers |
| WM3007J |
Telescopic Handler |
Yuchai · 75 kW |
3.0 T |
1.6 m³ |
Dump height 6065 mm · 3 steering modes · 36 km/h |
| WM3007Y |
Telescopic Handler |
Cummins / Perkins · 74.5–75 kW |
3.0 T |
1.6 m³ |
Dump height 6085 mm · hydrostatic · 30 km/h |
| WM4018Y |
Telescopic Handler |
Cummins / Perkins · 100–104 kW |
4.0 T |
Lift 17.5 m |
Reach 13.0 m · outriggers · Rexroth/Danfoss hydraulics |
| Skid Steer Loaders |
| WM308 |
Skid Steer Loader |
Xinchai / Yanmar · 45–47.5 kW |
0.85 T |
0.48 m³ |
3.0 T · Danfoss pump · enclosed cab A/C |
| WM312 |
Skid Steer Loader |
Xinchai / Perkins / Kohler · 55–55.4 kW |
1.2 T |
0.54 m³ |
3.5 T · Rexroth pump/motor · 4-in-1 bucket |
Backhoe Loaders — 388H & 388T
The SHANMON backhoe loader combines a front loader and a rear excavator in one machine — the classic “two-in-one” unit for utilities, trenches, landscaping and small civil works. Both models ride on Italian Carraro drive axles and gearboxes, a FOPS&ROPS integral cab, hydraulic sliding excavation and up to three steering modes for tight-site maneuverability.
| Specification |
388H |
388T |
| Operating weight |
10,800 kg |
8,600 kg |
| Loader / backhoe bucket |
1.2 / 0.3 m³ |
1.0 / 0.3 m³ |
| Breakout force |
47 kN |
47 kN |
| Loader lifting capacity |
2,500 kg |
2,500 kg |
| Max. digging depth |
4,102 / 5,045 mm |
4,303 / 5,246 mm |
| Max. traction |
86 kN |
76 kN |
| Transmission |
SPS 4WD 4WS, 4F4R |
Countershaft powershift, 4F4R |
| Max. travel speed |
38 km/h |
39 km/h |
| Tyres |
16.9-28 |
14-17.5 / 19.5L-24 |

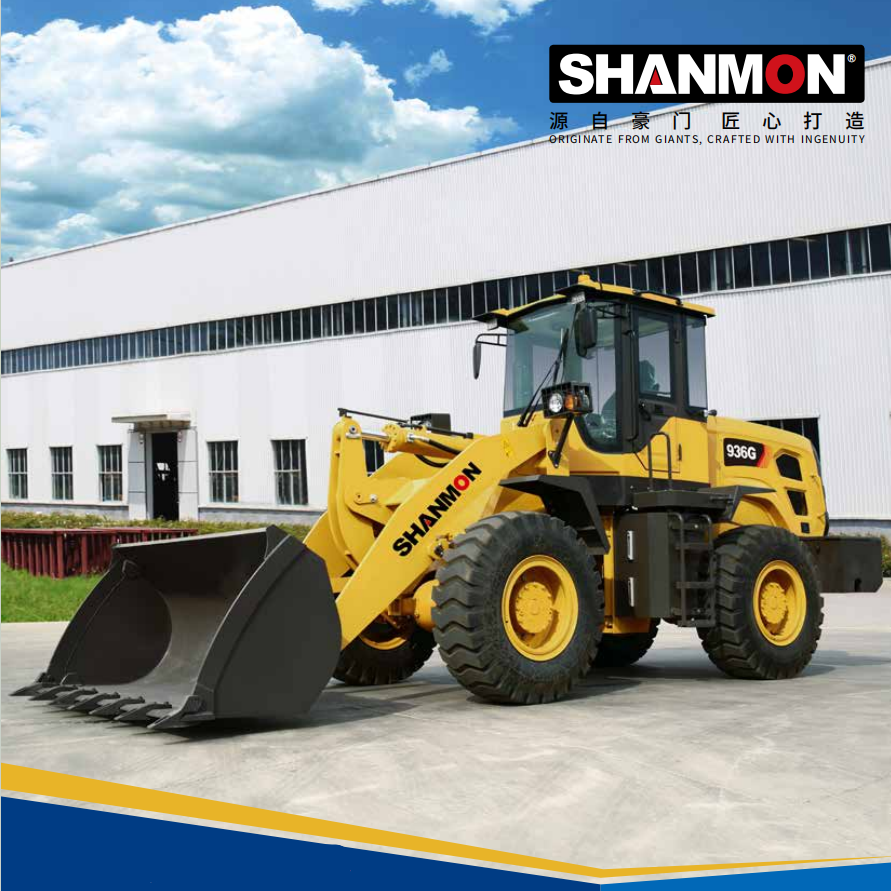

Articulated Wheel Loaders — 936G to 968HEV
From the 3 T 936G to the 6.8 T 968HEV, the SHANMON wheel loader line covers everything from farm and municipal duty to quarry and mining loading. The range uniquely offers three powertrain types: conventional diesel, hybrid-electric (968HEV) and zero-emission pure-electric (958EV). Large-span articulated frames, optimized linkage geometry and optional 55 °C independent cooling suit hot, dusty sites.
| Model |
Power |
Rated Load |
Bucket |
Breakout / Traction |
Dump Height |
| 936G |
92–99 kW |
3.0 T |
1.8 m³ |
127 / 97 kN |
3,100 mm |
| 956G |
162–170 kW |
5.0 T |
3.0 m³ |
≤175 / ≥145 kN |
3,150 mm |
| 967G |
192 kW |
6.0 T |
3.3 m³ |
206 / 187 kN |
3,100 / 3,217 mm |
| 958EV |
125+75 kW (electric) |
5.8 T |
3.5 m³ |
≥175 / 175 kN |
3,142 mm |
| 968HEV |
81 kW + motor |
6.8 T |
4.0 m³ |
204 / 180 kN |
3,217 mm |
Telescopic Handlers — WM3007J / WM3007Y / WM4018Y
SHANMON telescopic handlers (telehandlers) bring reach and height to material handling. All-wheel drive, all-wheel steering and hydraulic braking come as standard, with three steering modes (front-wheel, four-wheel, crab) for crowded yards. A one-hand control lever and hydraulic quick-change system accept platforms, buckets, grabs and forks. The WM4018Y reaches 17.5 m lift height and 13.0 m forward reach with hydraulic outriggers for stability.
| Model |
Rated Load |
Max Lift / Reach |
Engine / Power |
Transmission |
Max Speed |
| WM3007J |
3.0 T |
6,065 mm / 0.60 m |
Yuchai · 75 kW |
Electrohydraulic 4F4R |
36 km/h |
| WM3007Y |
3.0 T |
6,085 mm / 1.13 m |
Cummins / Perkins · 74.5–75 kW |
Hydrostatic 2F2R |
30 km/h |
| WM4018Y |
4.0 T |
17,500 mm / 13.0 m |
Cummins / Perkins · 100–104 kW |
Hydrostatic 2F2R |
30 km/h |
Skid Steer Loaders — WM308 & WM312
Compact, zero-tail-swing skid steers for confined urban, agricultural and rental jobs. Both run a closed-loop hydrostatic drivetrain with internationally branded pumps and radial-piston motors (Danfoss on WM308, Rexroth on WM312). Fully enclosed cabs with heating/cooling A/C, flip-up cab and rear hood for easy service, automatic bucket leveling and one-click start come standard, with a 4-in-1 bucket and a wide quick-attach adapter range.
| Specification |
WM308 |
WM312 |
| Rated load |
850 kg |
1,200 kg |
| Operating weight |
3,000 kg |
3,500 kg |
| Bucket capacity |
0.48 m³ |
0.54 m³ |
| Dump height |
2,350 mm |
2,500 mm |
| Engine options |
Xinchai 45 kW / Yanmar 47.5 kW |
Xinchai 55 kW / Perkins 55.4 kW / Kohler 55.4 kW |
| Tyres |
10-16.5 |
12-16.5 |
Key Technical Specifications
| Load Range |
0.85 T to 6.8 T — backhoe, wheel, skid steer and telescopic handler families from a single brand |
| Powertrains |
Diesel · Hybrid-electric (HEV) · Pure-electric (EV, LFP battery) |
| Engine Options |
Perkins · Weichai · Yuchai · Cummins · Deutz · Yanmar · Xinchai · Kohler — multi-emission (China II / Euro V) |
| Drive Axle |
Carraro (Italy) drive axle & gearbox on backhoe loaders · spiral-bevel + planetary wheel reduction on wheel loaders |
| Hydraulic System |
Danfoss / Rexroth / Bosch components · load-sensing on backhoe loaders · hydrostatic on skid steers |
| Operator Cab |
FOPS&ROPS integral cab · optional rotating seat · heating/cooling A/C · one-hand control lever |
| Structure & Durability |
Large-span articulated frame · modular radiator for 24 h operation · independent cooling up to 55 °C · hydraulic sliding excavation |
Optional Attachments & Work Tools
| Loading & excavating |
General / 4-in-1 / coal / heavy-duty bucket · hydraulic thumb · backhoe augment |
| Material handling |
Pallet fork · grain bucket · high-reach platform · hydraulic grab · suspended jib |
| Specialty & site |
Quick coupler · snow blade · sweeper · auger · hydraulic breaker · outrigger kit (telehandler) |
OEM / Private Label — Build Your Own Brand
SHANMON supports full OEM and private-label programmes for worldwide distributors. Supply loaders carrying your brand name, colour scheme and decals — with the same engineering, Carraro axles and global-engine flexibility behind them. Whether you need a single class or the full 12-model family, we configure engine brand, transmission, attachments and paint to your market.
Full Private Label
Your brand name, logo, colours and decals on every unit — zero factory branding required
Custom Configuration
Choose engine brand, powertrain (diesel / HEV / EV), transmission, attachments and paint colour
Export Ready
CE-compliant options · full shipping & customs documentation · spare-parts supply guaranteed
Why Choose SHANMON Loaders
One-Brand Full Range
Backhoe, wheel, skid steer and telehandler from 0.85 T to 6.8 T — simplify sourcing and after-sales
Global Engine Choice
Perkins, Weichai, Yuchai, Cummins, Deutz, Yanmar, Xinchai, Kohler — match local fuel & emission rules
Proven Drivetrain
Italian Carraro axles & gearboxes, Danfoss/Rexroth hydraulics — built for demanding duty cycles
Electric & Hybrid Ready
958EV (LFP battery, 6–10 h) and 968HEV cut emissions and operating cost for urban & indoor sites
Operator Safety
FOPS&ROPS cabs, three steering modes, vehicle stabilization system and comfortable A/C as standard
Private-Label Friendly
Flexible OEM programme, full export docs and guaranteed spare-parts supply for distributors
Where SHANMON Loaders Work
| Construction & utilities |
Trenching, backfilling, site clean-up, material loading (backhoe & wheel loaders) |
| Mining & quarry |
956G / 967G / 968HEV for high breakout force and continuous heavy loading |
| Agriculture & farming |
Feed, grain and silage handling with telehandlers and skid steers |
| Ports & logistics |
Container yards,WH load-out and pallet work with telehandler reach |
| Rental & municipal |
Compact WM308 / WM312 and 388T for urban, confined-space and municipal fleets |
Ready to source SHANMON loaders for your market?
Tell us the machine class, engine / powertrain preference and annual volume — we will prepare a customised quotation including OEM private-label options.
