Crawler & Wheel ExcavatorJiaHe — JH8012 to JH9215 | Mini · Midi · Heavy Class

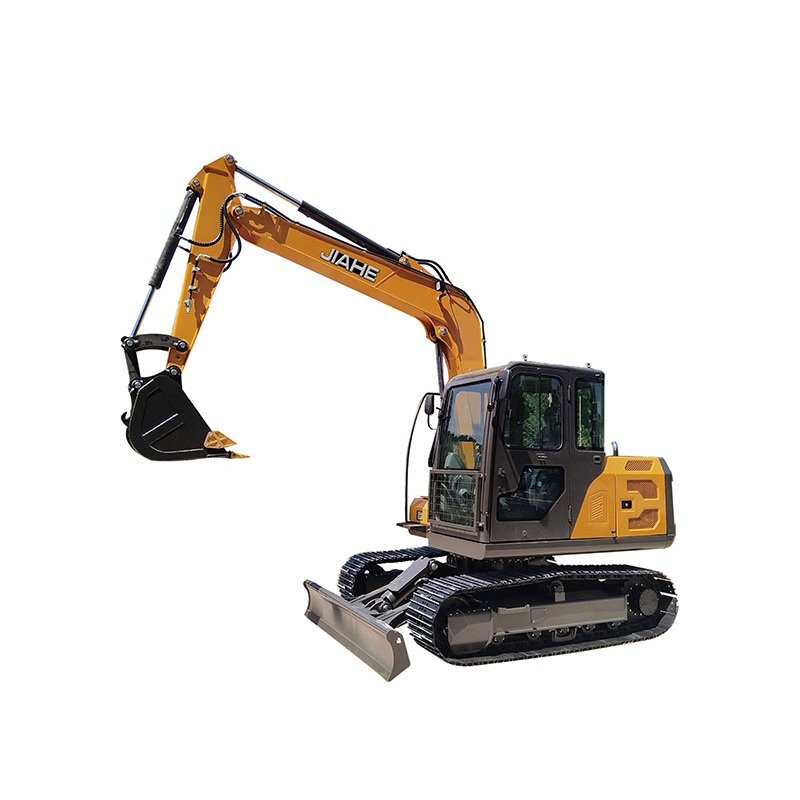

JiaHe Excavators — 1.2T to 60T, Complete China-Made Range
ArcherMach supplies the full JiaHe excavator catalogue: 16 steel-track crawler models from 1.2 t mini to 60 t heavy duty, plus 8 rubber-tire wheel excavators from 6.5 t to 21.5 t. Engine options span Kubota, Yanmar, CUMMINS, Weichai and Yuchai to suit local fuel and emission requirements. Every unit is built for construction, mining, agriculture and material-handling export markets, and all models are available with OEM / private-label branding so distributors can go to market under their own brand name.
JiaHe Crawler Excavators — Full Product Range
| Model |
Operating Weight* (t) |
Bucket (m³) |
Engine |
Power (kW/rpm) |
Dig Force B/A (kN) |
Hyd. Pressure (MPa) |
Dimensions L×W×H (mm) |
Track Gauge (mm) |
Tail Swing (mm) |
| Mini Class (≤6 T) |
| JH8012 |
1.2 |
0.025 |
D722-E4B |
10.2 / 2500 |
9 / 5.5 |
17 |
3032 × 760/980 × 2270 |
580 / 760 |
550 |
| JH8015 |
1.5 |
0.025 |
D722 |
10.2 / 2500 |
9 / 5.5 |
20 |
– |
– |
– |
| JH8018 |
1.8 |
0.06 |
3TE25 |
18.4 / 2350 |
14 / 10 |
18 |
3655 × 1050 × 2232 |
820 |
1000 |
| JH8020 |
2.0 |
0.07 |
Kubota D1105 |
14 / 2200 |
18 / 11 |
21.5 |
– |
– |
– |
| JH8022 |
2.2 |
0.1 |
3TE30 |
22.1 / 2300 |
15.3 / 10.5 |
18 |
4170 × 1300 × 2270 |
1050 |
1180 |
| JH8027 |
2.7 |
0.1 |
D1105-E4B |
14 / 2000 |
23.5 / 14 |
20.5 |
4195 × 1550 × 2480 |
1250 |
860 |
| JH8035 |
3.5 |
0.12 |
Kubota D1703 |
18.2 / 2200 |
30 / 18 |
22.5 |
4915 × 1755 × 2525 |
1420 |
870 |
| Medium Class (6–23 T) |
| JH8065 |
6.5 |
0.21 |
4TNV94 |
35.9 / 2200 |
48 / 35 |
28 |
5802 × 1960 × 2420 |
1560 |
1520 |
| JH8075 |
7.5 |
0.28 |
4TNV94 |
35.9 / 2100 |
56 / 38 |
27 |
6121 × 2216 × 2672 |
1745 |
1797 |
| JH8090 |
9.0 |
0.4 |
QSF2.8 |
53 / 2200 |
58 / 40 |
27.5 |
6529 × 2215 × 2630 |
1750 |
1929 |
| JH8150 |
15 |
0.6 |
WP4.1N |
110 / 2000 |
91 / 55 |
32 |
7737 × 2500 × 2847 |
2000 |
2389 |
| JH8210 |
21 |
1.0 |
WP6 |
129 / 2200 |
140 / 99 |
32 |
9590 × 2980 × 3185 |
2380 |
2880 |
| JH8230 |
23 |
1.1 |
B 5.9 |
129 / 2200 |
140 / 99 |
34 |
9590 × 2980 × 3185 |
2380 |
2880 |
| Heavy Class (23 T+) |
| JH8330 |
33 |
1.6 |
6CTA8.3 |
194 / 2200 |
244 / 200 |
35 |
11015 × 3200 × 3168 |
2590 |
3480 |
| JH8380 |
38 |
1.7 |
SL9 |
219 / 1900 |
244 / 200 |
35 |
11285 × 3190 × 3664 |
2590 |
3590 |
| JH8600 |
60 |
3.0 |
QSM11 |
298 / 2000 |
325 / 253 |
35 |
11691 × 3360 × 3810 |
2760 |
3760 |
* Operating weight is inferred from the JiaHe model numbering (last two digits × 0.1 t; e.g. JH8012 ≈ 1.2 t, JH8600 = 60 t). Exact operating weight should be confirmed against the factory quotation. Working-range highlights: JH8015 max dig depth 1,953 mm; JH8020 max dig depth 2,400 mm; JH8035 max dig depth 3,208 mm.
JiaHe Wheel Excavators — Full Product Range
| Model |
Operating Weight* (t) |
Bucket (m³) |
Engine |
Power (kW/rpm) |
Dig Force B/A (kN) |
Hyd. Pressure (MPa) |
Dimensions L×W×H (mm) |
Tire |
Tail Swing (mm) |
| Light Class (≤10 T) |
| JH9065 |
6.5 |
0.21 |
4TNV98 |
42.4 / 2000 |
45 / 36 |
20 |
5696 × 1960 × 2712 |
700-15 |
1540 |
| JH9075 |
7.5 |
0.3 |
YCF3065-T480 |
48 / 2200 |
45 / 36 |
24 |
6260 × 2044 × 2816 |
8.25-16 |
2000 |
| JH9080 |
8.0 |
0.3 |
YCF3065-T480 |
48 / 2200 |
45 / 36 |
24 |
6308 × 2238 × 2718 |
8.25-16 |
1797 |
| JH9105 |
10.5 |
– |
– |
62.5 / 2200 |
– / – |
24 |
7100 × 2175 × 2850 |
9.00-16 |
1940 |
| Medium Class (10–21.5 T) |
| JH9120 |
12 |
0.4 |
YC4DK100 |
74 / 2200 |
75 / 52 |
30 |
7284 × 2278 × 3011 |
9.00-20 |
2159 |
| JH9150 |
15 |
0.6 |
WP4.6N |
110 / 2000 |
91 / 55 |
32 |
7677 × 2550 × 3377 |
9.00-20 |
2365 |
| JH9180 |
18 |
0.8 |
B5.9CS4-150C |
110 / 2200 |
100 / 70 |
32 |
8050 × 2500 × 3255 |
10.00-20 |
2335 |
| JH9215 |
21.5 |
1.1 |
6BTAA5.9 |
153 / 2000 |
140 / 100 |
34 |
9600 × 2500 × 3524 |
10.00-20 |
2880 |
* Operating weight is inferred from the JiaHe model numbering (e.g. JH9065 ≈ 6.5 t, JH9215 = 21.5 t). Exact operating weight should be confirmed against the factory quotation. JH9105 travel speed 30 km/h, fuel tank 100 L, hydraulic tank 90 L.
Key Technical Specifications
| Operating Weight Range |
1.2 T to 60 T (crawler) · 6.5 T to 21.5 T (wheel) — 24 models covering mini, medium and heavy class |
| Bucket Capacity |
0.025 m³ (mini) up to 3.0 m³ (heavy crawler) — matched to machine weight |
| Engine Options |
Kubota / Yanmar / CUMMINS (QSF & B series) / Weichai (WP series) / Yuchai (YC series) — emission tiers per target market |
| Hydraulic Pressure |
17 MPa (mini) up to 35 MPa (heavy class) |
| Max. Digging Force |
Up to 325 kN bucket force / 253 kN arm force (JH8600) |
| Undercarriage |
Steel-track crawler (low ground pressure, rough terrain) · Rubber-tire wheel (up to 30 km/h travel, road & urban work) |
| Typical Applications |
Earthmoving, trenching & pipe laying, demolition, quarry & mining, road maintenance, landscaping and material handling |
Optional Attachments & Work Tools
| Earthworks |
Standard bucket · Rock bucket · Grading bucket · Ditching bucket |
| Demolition & Quarry |
Hydraulic break hammer · Hydraulic grapple · Clamshell bucket |
| Specialty |
Auger · Ripper · Rake · Quick coupler · Log fork |
OEM / Private Label — Build Your Own Brand
ArcherMach supports full OEM and private-label programmes for equipment distributors worldwide. Whether you are establishing a regional brand or expanding an existing product line, we can supply JiaHe excavators carrying your brand name, colour scheme and decals — with the same factory-quality engineering and globally recognised engines behind them.
🏷️
Full Private Label
Your brand name, logo, colours and decals on every unit — no factory branding required
⚙️
Custom Configuration
Choose engine brand, emission tier, attachments and paint colour to match your target market requirements
📦
Export Ready
ISO 9001 certified · Experienced in 50+ country exports · Full shipping documentation and after-sales support
Why Choose JiaHe Excavators
📐
Complete Size Coverage
1.2 t mini to 60 t heavy crawler, plus 6.5–21.5 t wheel models — one supplier for your full range
🔧
Globally-Sourced Engines
Kubota, Yanmar, CUMMINS, Weichai and Yuchai — easy local service and parts commonality
🛠️
Rich Attachment Options
Buckets, breakers, augers, grapples, rippers and quick couplers for every jobsite task
🌍
ArcherMach Export Support
OEM label, spare parts supply, English manuals and shipping documentation from Chinese ports
Ready to source JiaHe excavators for your market?
Tell us the model, quantity and destination port — we will prepare a customised quotation including OEM label options.
