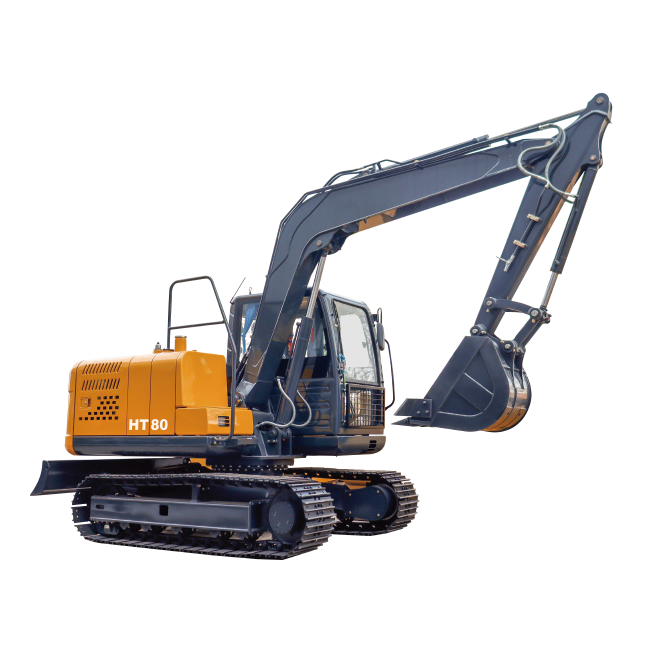

HT80 Large Excavator — 8-Ton Multi-Engine with 6563mm Reach

Name: HT80 Large Excavator — 8-Ton Multi-Engine with 6563mm Reach
Brand: ArcherMach
SKU: ht80-large-excavator-8-ton-multi-engine-with-6563mm-reach
Availability: InStock

HT80 is the flagship model and largest excavator in Shandong Hightop's entire lineup with an operating weight of 8000 kg (8 tons). Powered by your choice of four premium diesel engines (Xinchai / Yangdong / Yuchai / Yanmar), each delivering 55 kW @ 2200 RPM with 269 N.m torque at 1610 RPM. Features dual SGP1A27F2H9 gear pumps at 20 MPa system pressure, 118.8 L/min flow rate, 41.4 kN bucket digging force, and 47 kN drawbar pull.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

HOT SALE
FLAGSHIP MODEL
8-TON CLASS

HT80 Large Excavator — 8-Ton Class Multi-Engine Crawler

Largest in HT Series · 8000 kg · 55kW Multi-Engine · 6880mm Max Height · 6563mm Reach · Rubber/Steel Track Option

8000 kg
Operating Weight

55 kW
Engine Power

6880 mm
Max Dig Height

35 km/h
Travel Speed

HT80 Large Excavator Overview

The HT80 is the flagship model and largest excavator in Shandong Hightop’s entire product lineup. With an operating weight of 8000 kg (8 tons), it represents a significant step up into true large-excavator territory, delivering professional-grade performance for mid-to-heavy-duty construction, road building, quarry support, land development, and infrastructure projects.

Powered by your choice of four premium diesel engines — Xinchai, Yangdong, Yuchai, or Yanmar — each delivering 55 kW (approximately 74 HP) at 2200 RPM with a robust 269 N.m of torque at 1610 RPM, the HT80 provides ample power reserve for demanding earthmoving tasks. The multi-engine flexibility allows distributors to select the optimal engine brand for each target market’s parts availability, service infrastructure, and regulatory environment.

The hydraulic system features a dual SGP1A27F2H9 gear pump configuration producing a combined displacement of approximately 54 ml/r at 20 MPa system pressure with 118.8 L/min total flow rate. This delivers a bucket digging force of 41.4 kN and drawbar pull of 47 kN. Notably, the HT80 offers an impressive 35 km/h travel speed for rapid site repositioning. Available with rubber or steel track options to suit any operating surface requirement. Standard enclosed cab with ROPS/FOPS certification.

Key Specifications

Parameter	Specification	Parameter	Specification
Operating Weight	8000 kg (8-Ton Class)	Engine Options	Xinchai / Yangdong / Yuchai / Yanmar
Bucket Capacity	0.3 m³	Rated Power	55 kW @ 2200 RPM
Max Torque	269 N.m @ 1610 RPM	Max Digging Height	6880 mm
Max Digging Depth	4462 mm	Max Digging Reach	6563 mm
Max Dumping Height	4876 mm	Bucket Digging Force	41.4 kN
Drawbar Pull	47 kN	Travel Speed	35 km/h
Hydraulic Pressure	20 MPa	Flow Rate	118.8 L/min
Swing Speed	10 RPM	Track Options	Rubber / Steel

Dimensions & Undercarriage

Parameter	Specification	Parameter	Specification
Transport Length	6442 mm	Transport Width	2152 mm
Transport Height	2835 mm	Tail Swing Radius	2057 mm
Min Ground Clearance	318 mm	Min Turning Radius	2440 mm
Track Gauge	2600 mm	Track Width	2600 mm
Gradeability	30 Degrees	Dozer Blade Size	2140 x 310 mm
Fuel Tank	138 L	Hydraulic Tank	116 L

Working Range & Performance

Parameter	Value	Parameter	Value
Boom Length	3500 mm	Arm (Stick) Length	1800 mm
Max Digging Height	6880 mm	Max Dumping Height	4876 mm
Max Digging Depth	4462 mm	Max Digging Reach	6563 mm
Bucket Digging Force	41.4 kN	Drawbar Pull Force	47 kN
Swing Speed	10 RPM	Travel Speed	35 km/h

Engine System

Parameter	Specification
Engine Brand Options	Xinchai / Yangdong / Yuchai / Yanmar — Four premium brands available per your preference
Engine Type	Water-Cooled, 4-Stroke, Direct-Injection Diesel Engine
Rated Power	55 kW (approx. 74 HP) @ 2200 RPM
Max Torque	269 N.m @ 1610 RPM — Substantial low-end torque for heavy digging loads and hill climbing
Fuel Tank Capacity	138 Liters — Large fuel tank provides extended runtime for all-day operations

Hydraulic System

Parameter	Specification
Main Hydraulic Pumps	2 x SGP1A27F2H9 Gear Pumps — Dual pump configuration enables simultaneous multi-function operation (dig + swing + travel without priority loss)
Total Pump Displacement	~54 ml/r combined (27+27 ml/r) — High displacement delivers fast cycle times and responsive attachment performance
System Working Pressure	20 MPa — Professional-grade system pressure for maximum digging and lifting forces
Pilot System Pressure	3 MPa — Low-effort pilot control for reduced operator fatigue during long work shifts
Total Flow Rate	118.8 L/min — High fluid delivery rate for smooth, powerful function actuation
Hydraulic Tank Capacity	116 Liters — Large oil reservoir ensures stable temperature under sustained heavy-duty operation in hot climates
Bucket Digging Force	41.4 kN — Powerful breakout force for breaking compacted soil, hard-packed clay, and loading dense materials
Drawbar Pull Force	47 kN — Excellent traction force for steep incline climbing and towing auxiliary equipment

Key Features

✅ True 8-Ton Capacity	8000 kg operating weight with 0.3 m³ bucket capacity — handles serious earthmoving, loading, and excavation tasks that smaller machines cannot efficiently perform
✅ Multi-Brand Engine Choice	Select from Xinchai, Yangdong, Yuchai, or Yanmar — match engine brand to your target market’s parts availability, service network, and emission compliance requirements. All deliver 55 kW @ 2200 RPM
✅ 6880 mm Maximum Digging Height	Nearly 7 meters of vertical reach for loading high-side dump trucks, skip loaders, and elevated earthmoving applications
✅ 6563 mm Extended Digging Reach	Exceptional horizontal working radius (3500 mm boom + 1800 mm arm) for slope work, ditch cleaning, working across obstacles, and wide-area grading
✅ High-Speed Travel 35 km/h	Exceptionally high travel speed enables rapid repositioning between distant work zones, dramatically reducing non-productive transit time on large job sites
✅ Rubber or Steel Track Options	Choose rubber tracks for paved surfaces, indoor demolition, and urban environments (floor protection, lower noise). Choose steel tracks for maximum durability on rocky terrain, quarries, and rough ground conditions

Applications

Road Construction

Highway embankment cutting, sub-base excavation, bridge foundation digging, roadside ditching, and culvert installation

Commercial Land Development

Large-scale site preparation, building pad excavation, retention pond digging, parking lot subgrade, and utility trenching

Quarry Support Operations

Material handling, stockpile management, crusher feeding, bench cleaning, and secondary breaking support

Demolition & Site Clearing

Structure dismantling, concrete breaking, debris sorting, foundation removal, and site cleanup after tear-down

Infrastructure Projects

Pipeline trenching, water/sewer line installation, cable laying, drainage system excavation, and utility corridor preparation

Equipment Rental Fleets

High-demand 8-ton class machine commands premium rental rates. Rubber track option protects customer floors. Proven reliability reduces downtime costs

Why Choose Archer Machinery as Your Export Partner?

Since 2017	JINAN ARCHER TRADE CO., LTD has been exporting Chinese construction machinery and trucks since 2017 with deep manufacturer relationships ensuring priority allocation and best pricing
9 Premium Brands	Authorized distributor for XCMG, SANY, Zoomlion, Shantui, SDLG, YTO (construction) + SINOTRUK, SHACMAN, FAW (trucks). Full product range from one partner
Global Shipping	FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and multi-unit container consolidation
OEM Private Label	Full white-label capability: your logo, your colors, your brand. We handle production coordination so you can focus on sales and distribution
Spare Parts Supply Chain	All engine options (Xinchai/Yangdong/Yuchai/Yanmar) spare parts, hydraulic components, wear parts, and attachments shipped worldwide
Multi-Language Support	English, Spanish, Russian, Arabic, French communication. Time zone-friendly response from our international trade team in Jinan, China

Get HT80 Large Excavator Quote Today

Shandong Hightop HT80 — 8000 kg flagship, 55 kW multi-brand engine (Xinchai/Yangdong/Yuchai/Yanmar), 6880 mm digging height, 6563 mm reach, 4462 mm depth, 35 km/h travel speed. Rubber or steel track options. FOB China pricing for global B2B buyers.
