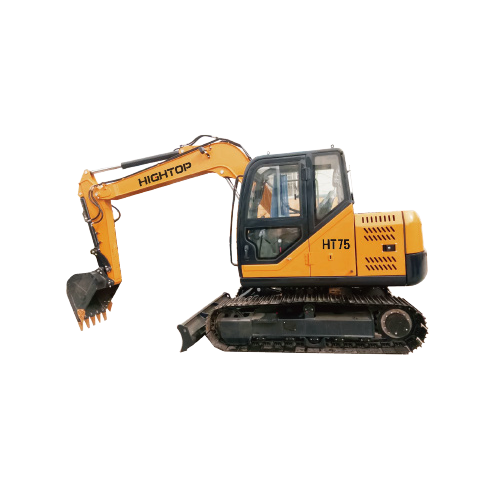

HT75 Crawler Excavator — 7.5-Ton Kubota V2607 58HP

Name: HT75 Crawler Excavator — 7.5-Ton Kubota V2607 58HP
Brand: ArcherMach
SKU: ht75-crawler-excavator
Availability: InStock

HT75 is a 7.5-ton class (7500 kg) crawler excavator powered by a Kubota V2607 four-cylinder water-cooled diesel engine (42.4 kW / 58 HP @ 2000 RPM) with Tier 3 / Stage III emission compliance. Features a high-pressure 27 MPa hydraulic system delivering an industry-leading 56 kN bucket breakout force and 38 kN stick digging force. Delivers max digging depth of 3898 mm, digging height of 7023 mm (over 7 meters), and digging reach of 6182 mm. Standard ROPS/FOPS enclosed cab, dual-speed travel (4.5 / 2.5 km/h), 450 mm wide track shoes with 2209 mm ground contact length, 120 L fuel tank.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

HOT SALE
7.5-TON CLASS
KUBOTA V2607 — 58HP

HT75 Crawler Excavator — 7.5-Ton Class Heavy-Duty Earthmover

Kubota V2607 4-Cylinder Diesel · 56kN Breakout Force · 7023mm Max Height · 3898mm Depth · 450mm Wide Tracks · Enclosed Cab · Multiple Colors

The HT75 is the flagship model in China’s crawler excavator lineup — a true 7.5-ton class (7500 kg) heavy-duty earthmoving machine designed for contractors who demand professional-grade performance without the premium price tag of major brands.

At the heart of the HT75 lies a Kubota V2607 four-cylinder water-cooled diesel engine delivering 42.4 kW (58 HP) @ 2000 RPM with full Tier 3 / Stage III emission compliance. The high-pressure 27 MPa hydraulic system produces an extraordinary 56 kN bucket breakout force and 38 kN stick digging force, enabling the HT75 to tackle compacted soil, clay, and light rock that smaller machines simply cannot handle.

With a 7023 mm maximum digging height (over 7 meters), 3898 mm maximum digging depth (nearly 4 meters), and 6182 mm digging reach, the HT75 delivers an industry-leading work envelope for its class. The wide 450 mm track shoes with 2209 mm ground contact length provide excellent flotation on soft terrain, while the standard fully enclosed ROPS/FOPS-certified cabin keeps operators productive through long shifts in any climate.

Key Specifications — HT75 Crawler Excavator

Parameter	Specification	Parameter	Specification
Operating Weight	7500 kg (7.5-Ton Class)	Engine Model	Kubota V2607 — 4-Cylinder Diesel
Rated Power	42.4 kW (58 HP) @ 2000 RPM	Emission Standard	Tier 3 / Stage III
Bucket Capacity	0.28 m³	Hydraulic Pressure	27 MPa
Bucket Force / Stick Force	56 kN / 38 kN	Swing Speed	11 RPM
Max Digging Depth	3898 mm	Max Digging Height	7023 mm
Max Dumping Height	5195 mm	Max Digging Reach	6182 mm
Travel Speed (H/L)	4.5 / 2.5 km/h	Gradeability	35°
Fuel Tank / Hyd. Tank	120 L / 100 L	Track Shoe Width	450 mm

Machine Dimensions & Undercarriage

Overall Dimensions		Undercarriage & Track System
Overall Length	6054 mm (6.05 m)	Overall Width	2216 mm
Overall Height	2672 mm (2.67 m)	Track Ground Length	2209 mm
Track Gauge	1745 mm	Track Shoe Width	450 mm
Ground Clearance	375 mm	Track Shoes per Side	39
Top Roller (per Side)	1	Bottom Rollers (per Side)	5
Tail Swing Radius	1730 mm	Min Swing Radius	1740 mm

Working Range & Performance

Digging Envelope		Force & Performance
Max Digging Height	7023 mm (7.02 m)	Max Dumping Height	5195 mm (5.20 m)
Max Digging Depth	3898 mm (3.90 m)	Max Vertical Dig Depth	2968 mm (2.97 m)
Max Digging Reach	6182 mm (6.18 m)	Bucket Capacity	0.28 m³
Bucket Digging Force	56 kN	Stick Digging Force	38 kN
Swing Speed	11 RPM	Travel Speed (High/Low)	4.5 / 2.5 km/h
Gradeability	35°	Blade Lift / Cut Depth	382 mm / 332 mm

Powertrain — Kubota V2607 Engine

Engine Manufacturer	Kubota Corporation (Japan) — global leader in compact diesel engines
Engine Model	V2607 — 4-cylinder, water-cooled, direct-injection, naturally aspirated diesel
Rated Power	42.4 kW (58 HP) @ 2000 RPM
Cylinder Configuration	4-Cylinder Inline
Emission Standard	Tier 3 / Stage III — compliant for export to Africa, Southeast Asia, Middle East, Latin America, CIS regions
Cooling System	Water-cooled radiator with thermostatic control
Fuel Tank Capacity	120 Liters — extended operational range for full-day shifts

Hydraulic System — High-Pressure 27 MPa

Parameter	Specification
System Pressure	27 MPa — high-pressure system for maximum digging force
Bucket Digging Force	56 kN — highest breakout force in the Hightop lineup
Stick (Arm) Digging Force	38 kN — powerful arm retraction for deep trenching
Swing Speed	11 RPM — fast cycle time for productive truck loading
Travel Motor Type	Dual-speed hydraulic motor
Travel Speed (High/Low)	4.5 / 2.5 km/h
Hydraulic Oil Tank	100 Liters — large volume for thermal stability

Why Choose HT75 — Key Advantages

56kN Highest Breakout Force	Industry-leading 56 kN bucket digging force breaks compacted soil, hard clay, and light rock that stops smaller machines cold
Kubota V2607 Powerhouse	42.4 kW (58 HP) 4-cylinder diesel with global parts availability in 130+ countries via Kubota’s dealer network
7-Meter+ Work Envelope	7023 mm height, 3898 mm depth, 6182 mm reach — handles big jobs without repositioning
Wide 450mm Track Shoes	450 mm wide shoes with 2209 mm ground contact length deliver superior flotation on mud, sand, and soft soil
Tier 3 / Stage III Ready	No DPF or SCR aftertreatment required — simplified maintenance and lower ownership cost for emerging-market buyers
Enclosed Cab Standard	Full ROPS/FOPS enclosed cabin with all-around glass, ergonomic controls, and sealed door for all-weather operation

Applications & Use Cases

Road Construction	Roadbed excavation, culvert installation, ditching along highways, bridge approach earthwork, sub-base preparation
Commercial Landscaping	Large pond excavation, bulk earthmoving, tree stump removal, site leveling, retaining wall backfill, drainage systems
Utility Infrastructure	Water main installation, sewer line trenching, fiber optic conduit, gas pipeline, electrical duct banks up to 3.9m depth
Demolition Preparation	Building foundation removal, concrete slab breakup, debris sorting, site clearing for reconstruction projects
Agricultural Projects	Irrigation canal excavation, pond/digester construction, land leveling, drainage ditches, fence post hole digging
Equipment Rental Fleets	High-demand 7.5-ton machine for rental companies serving general contractors, landscapers, farmers, and municipal departments

OEM Private Label & Customization

Custom Paint Color	Any RAL code matched to your brand identity. Multiple factory base colors available including orange, yellow, red, blue, white, green.
Logo & Branding	Your logo on machine body panels, cab exterior, operator seat, and documentation. Full white-label branding supported.
Cab Configuration	Open canopy or enclosed ROPS/FOPS cab per your market preference. AC/heater options available for specific climates.
Attachment Package	Custom bucket sizes, quick couplers, hydraulic breakers, augers, grapples, rippers pre-configured at factory.
Branded Documentation	Operator manuals, parts catalogs, warranty cards, and safety guides produced under your brand name and contact info.
Certification Support	CE marking, EPA compliance, ISO 9001 quality certificates available. Factory audit reports provided for regulated market entry.

Why Choose Archer Machinery as Your Export Partner?

Since 2017	JINAN ARCHER TRADE CO., LTD has been exporting Chinese construction machinery and trucks since 2017. Deep manufacturer relationships ensure priority allocation and competitive pricing.
9 Premium Brands	Authorized distributor for XCMG, SANY, Zoomlion, Shantui, SDLG, YTO (construction) + SINOTRUK, SHACMAN, FAW (trucks). Full range from one partner.
Global Shipping	FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and multi-unit container consolidation for excavators.
OEM Private Label	Full white-label capability: your logo, your colors, your brand. Production coordination handled so you focus on sales.
Spare Parts Supply	Kubota V2607 engine parts, hydraulic components, wear parts, undercarriage items shipped worldwide. Keep customers’ machines running.
Multi-Language Team	English, Spanish, Russian, Arabic, French communication. Time zone-friendly response from Jinan, China international trade team.

Get HT75 Crawler Excavator Quote Today

Shandong Hightop HT75 — 7500 kg operating weight, Kubota V2607 42.4kW diesel, 56kN breakout force, 7023mm max height, 3898mm digging depth, 6182mm reach, 0.28m³ bucket. 450mm wide tracks, 120L fuel tank, enclosed cab standard. FOB China pricing available.
