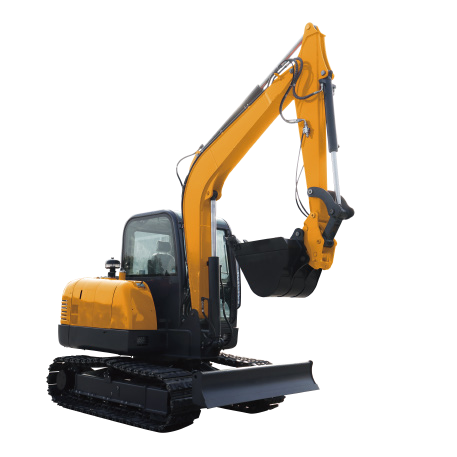

HT60 tracked excavator

HT60 Crawler Excavator — 6-Ton Yanmar 4TNV94 Load-Sensing Hydraulic

HT60 is a 6-ton class (6000 kg) crawler excavator powered by a Yanmar 4TNV94 four-cylinder water-cooled diesel engine (37.4 kW / 50 HP @ 2200 RPM). Features an advanced load-sensing hydraulic system at 28 MPa with 109 L/min flow rate. Delivers max digging depth of 3820 mm, digging height of 5760 mm, and industry-leading reach of 6150 mm. Standard 0.3 m³ bucket capacity, dual-speed piston travel motor (3.8 / 2.4 km/h), ROPS/FOPS enclosed cab.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

HOT SALE
YANMAR 4TNV94 — 37.4 kW
LOAD-SENSING HYDRAULICS

HT60 Crawler Excavator — 6-Ton Class with Yanmar Engine & Load-Sensing Hydraulic System

Yanmar 4TNV94 Water-Cooled Diesel · 28 MPa Load-Sensing System · 6150mm Max Reach · 3820mm Depth · 0.3m³ Bucket · Enclosed Cab Standard · Multiple Colors · CE/EPA/ISO

Product Overview

HT60 — The flagship 6-ton class (6000 kg) crawler excavator representing Shandong Hightop’s most powerful compact excavator platform. Powered by a proven Yanmar 4TNV94 four-cylinder water-cooled diesel engine delivering 37.4 kW (50 HP) @ 2200 RPM, the HT60 combines substantial digging force with precision control through its advanced load-sensing (LS) hydraulic system.

With a 0.3 m³ bucket capacity — nearly three times larger than typical mini excavators — and an extraordinary 6150 mm maximum digging reach combined with 3820 mm digging depth and 5760 mm digging height, the HT60 excels at mid-to-large scale earthmoving, foundation work, utility trenching, land clearing, and loading operations. Its compact 1170 mm tail swing radius allows operation in confined spaces while delivering near-full-size excavator performance.

Key Specifications

Parameter Specification Parameter Specification
Operating Weight 6000 kg (6-Ton Class) Engine Model Yanmar 4TNV94
Rated Power 37.4 kW (50 HP) @ 2200 RPM Cooling Method Water-Cooled
Bucket Capacity 0.3 m³ Hydraulic System Load-Sensing
Max Digging Depth 3820 mm Max Digging Height 5760 mm
Max Digging Reach 6150 mm Max Dumping Height 4030 mm
Swing Speed 8 – 10 RPM Travel Speed 3.8 / 2.4 km/h
Hydraulic Pressure 28 MPa Flow Rate 109 L/min
Gradeability 35° Tail Swing Radius 1170 mm

Dimensions & Undercarriage

Parameter Value
Total Transport Length 5850 mm (5.85 m)
Total Transport Height 2575 mm (2.58 m)
Upper Width / Chassis Width 1880 mm
Track Shoe Width 400 mm
Track Total Length 2540 mm
Track Gauge (Center-to-Center) 1880 mm
Minimum Ground Clearance 680 mm
Minimum Tail Swing Radius 1170 mm
Boom Length 3000 mm
Stick (Arm) Length 1600 mm

Working Range & Performance

Parameter Specification
Maximum Digging Height 5760 mm (5.76 m)
Maximum Dumping (Unload) Height 4030 mm (4.03 m)
Maximum Digging Depth 3820 mm (3.82 m)
Maximum Digging Reach (Radius) 6150 mm (6.15 m)
Minimum Swing Radius 2250 mm
Maximum Blade Lift Height 359 mm
Maximum Blade Cutting Depth 268 mm
Bucket Capacity (SAE) 0.3 m³
Bucket Digging Force 5560 N
Swing Speed 8 – 10 RPM
Travel Speed (High / Low) 3.8 / 2.4 km/h — Dual-Speed Piston Motor
Gradeability 35°

Powertrain — Yanmar 4TNV94 Engine

Parameter Specification
Engine Model Yanmar 4TNV94 — 4-Cylinder Industrial Diesel Engine
Rated Power 37.4 kW (50 HP) @ 2200 RPM
Cooling Method Water-Cooled — maintains optimal temperature under sustained heavy-load operation
Fuel Delivery Direct-injection, naturally aspirated diesel combustion
Global Availability Parts and service available through Yanmar networks in 100+ countries worldwide

Hydraulic System — Load-Sensing Configuration

Component Specification
System Architecture Load-Sensing (LS) System — delivers precise flow and pressure on demand
Main Pump Variable Displacement Axial Piston Pump
System Pressure 28 MPa — high-pressure design for breakout and lifting force
Total Flow Rate 109 L/min — supports simultaneous multi-function operation
Travel Motor Dual-Speed Variable Displacement Piston Motor — High: 3.8 km/h / Low: 2.4 km/h
Swing Motor Variable Displacement Piston Motor — 8–10 RPM swing speed
Hydraulic Tank Capacity 32 L

Key Advantages

🏗️ True 6-Ton Performance 6000 kg operating mass with 0.3 m³ bucket — handles serious earthmoving, foundation work, bulk material handling, and loading tasks that exceed mini excavator capabilities
⚡ Yanmar 4TNV94 Power 37.4 kW (50 HP) water-cooled diesel engine — proven global reliability, excellent fuel economy, parts availability through Yanmar dealer networks in 100+ countries
🎯 Load-Sensing Hydraulics 28 MPa load-sensing system with 109 L/min flow — professional-grade hydraulic architecture enabling smooth simultaneous multi-function operation with precise proportional control
📏 Industry-Leading Working Envelope 6150 mm reach × 5760 mm height × 3820 mm depth — exceptional range for large-area trenching, slope work, truck loading, and demolition preparation without frequent repositioning
🔧 Compact Tail Swing 1170 mm tail swing radius — operates alongside walls, fences, and obstacles while maintaining full 6-ton digging and lifting capability
🚜 Enclosed Cab Standard ROPS/FOPS certified enclosed operator cabin as shown in product image — all-around visibility, climate-ready design, ergonomic control layout for productive all-day operation

Ideal Applications

🏗️
Foundation Excavation

3820mm depth for building footings, basement prep, slab excavation, and concrete formwork trenches
⛏️
Utility Trenching

Deep trenching for water mains, sewer lines, electrical conduit, fiber optic cable, and drainage pipes
🚛
Truck Loading

5760mm height + 0.3m³ bucket = fast loading cycles for dump trucks, skip loaders, and material stockpiling
🌳
Land Clearing

Site preparation, stump removal, tree root extraction, and vegetation clearing with 5.56kN digging force
🛣️
Road & Drainage Works

Road shoulder cutting, culvert installation, ditch maintenance, embankment shaping, and erosion control
🔑
Equipment Rental

Versatile 6-ton platform ideal for rental fleet operators serving contractors, municipalities, and farmers

OEM Customization & Certifications

🎨 Custom Paint Color Multiple factory colors plus any custom RAL code for exact brand matching
🏷️ Private Label Branding Your logo on machine body, decals, operator manual, and parts documentation
🪣 Bucket Customization Standard 0.3 m³ general-purpose bucket; custom widths, ditching buckets, and grading attachments available
📋 Export Certifications ✅ CE  |  ✅ EPA  |  ✅ ISO 9001
🌍 Shipping Terms FOB Qingdao / CIF / DDP — flexible export terms for B2B distributors worldwide
📦 Minimum Order Single unit accepted; volume pricing available for fleet orders (3+ units)

Why Choose Archer Machinery as Your Export Partner?

Since 2017 Established exporter of Chinese construction machinery and trucks. Deep manufacturer relationships ensure priority allocation and best pricing.
9 Premium Brands Authorized distributor for XCMG, SANY, Zoomlion, Shantui, SDLG, YTO (construction) + SINOTRUK, SHACMAN, FAW (trucks). One source for everything.
Global Shipping FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and container consolidation for 6-ton excavators.
OEM Private Label Full white-label support: your logo, your colors, your brand. We handle production coordination so you focus on sales and distribution.
Spare Parts Supply Yanmar 4TNV94 engine parts, LS hydraulic components, wear parts, and attachments shipped worldwide. Keep your customers’ machines running.
Multi-Language Team English, Spanish, Russian, Arabic, French communication. Time zone-friendly response from our international trade team in Jinan, China.

Get HT60 Crawler Excavator Quote Today

Shandong Hightop HT60 — 6000 kg, Yanmar 4TNV94 37.4kW, 28 MPa load-sensing hydraulics, 6150 mm reach, 3820 mm depth, 0.3m³ bucket, enclosed cab standard. FOB China pricing for global B2B buyers.
