The HT40 is certified to Euro 5 (EU/UK) and EPA4 (USA) emission standards — the two most demanding regulations globally. Distributors can import and sell into virtually any regulated market without further engine modification or retrofitting. This certification adds significant resale value and simplifies compliance documentation.

At 5480 mm maximum digging reach, the HT40 sets the benchmark for horizontal range in Shandong Hightop’s entire product range. This extraordinary reach allows operators to work across ditches, reach under overhangs, and cover wider job footprints without repositioning — dramatically improving productivity on open sites.

With 30.4 kN bucket breakout force and 18.2 kN arm digging force at 22.5 MPa system pressure, the HT40 handles compacted clay, hard-packed gravel, light rock, and frozen ground that smaller machines cannot penetrate. This force rating makes it suitable for heavy-duty earthmoving on professional construction sites.

The asymmetric boom swing range (55° left / 65° right) enables precision trench digging parallel to walls, fences, and structures. Operators can reposition the work tool without moving the machine, reducing setup time and enabling access to tight angles that fixed-boom machines simply cannot reach.

The extra-wide 300 mm track shoes spread the machine’s weight across a large contact area, generating only 32 kPa ground pressure. This is low enough to operate on soft ground, wet terrain, landscaped lawns, and lightly paved surfaces without excessive rutting or damage — expanding the range of viable job sites significantly.

The HT40 ships with a standard ROPS/FOPS enclosed cab for all-weather operation. Multiple factory paint colors are available as shown in the product’s color swatch, plus custom RAL color matching for OEM private-label orders. CE / EPA / ISO 9001 certificates provided for all export destinations.

Deep trench excavation, culvert installation, drainage channel construction, utility burial, and site preparation — the HT40’s 3208 mm digging depth and 30.4 kN breakout force handle demanding civil infrastructure projects.

Pond excavation, drainage installation, terracing, tree planting pits, and irrigation trenching. The 32 kPa ground pressure protects lawns and soft agricultural land while the 5480 mm reach covers wide planting beds and water features without repositioning.

Light structural removal, foundation breaking, rubble clearing, and site stripping. The boom swing function allows work alongside standing walls while the high breakout force tackles reinforced concrete slabs and compacted fill material.

Water main installation, gas line burial, fiber cable trenching, sewer repair, and electrical conduit laying. Boom swing function enables precision digging in narrow utility corridors; dual-speed travel allows rapid repositioning between service points.

Strip footing excavation, basement preparation, retaining wall base trenching, and tight-access site work. The 5480 mm reach and boom swing combination enables complete site coverage even in constrained urban plots with multiple obstacles.

The HT40’s Euro 5 / EPA4 certification, wide application versatility, enclosed cab, and proven Kubota reliability make it a high-utilization rental machine. One unit can serve road builders, landscapers, utility contractors, and construction sites — maximizing rental return per asset.

JINAN ARCHER TRADE CO., LTD has been exporting Chinese construction machinery and trucks since 2017. Deep manufacturer relationships ensure priority allocation and competitive pricing.

Authorized distributor for XCMG, SANY, Zoomlion, Shantui, SDLG, YTO (construction) + SINOTRUK, SHACMAN, FAW (trucks). Full product range from one reliable export partner.

FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and multi-unit container consolidation for mini excavators and attachments.

Full white-label capability: your logo, your colors, your brand. We coordinate directly with Shandong Hightop factory so you can focus on sales and distribution.

Kubota D1703 engine parts, hydraulic components, wear parts, and attachments shipped worldwide. Keep your customers’ machines running with genuine-quality replacements.

English, Spanish, Russian, Arabic, French communication. Time zone-friendly response from our international trade team in Jinan, China.

Get HT40 Mini Excavator Quote Today

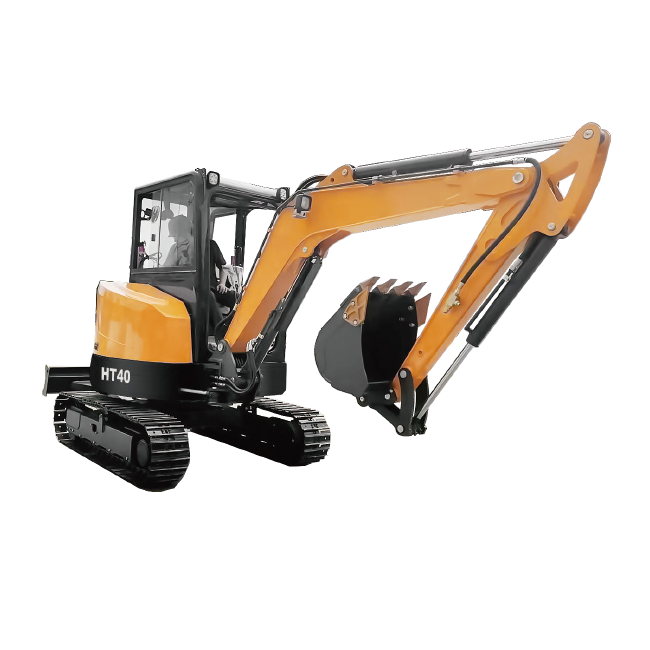

Shandong Hightop HT40 — 3810 kg, Kubota D1703 Euro5/EPA4, 5480 mm reach, 30.4 kN breakout force, boom swing L55°/R65°, standard enclosed cab. FOB China pricing for global B2B buyers and OEM partners.
