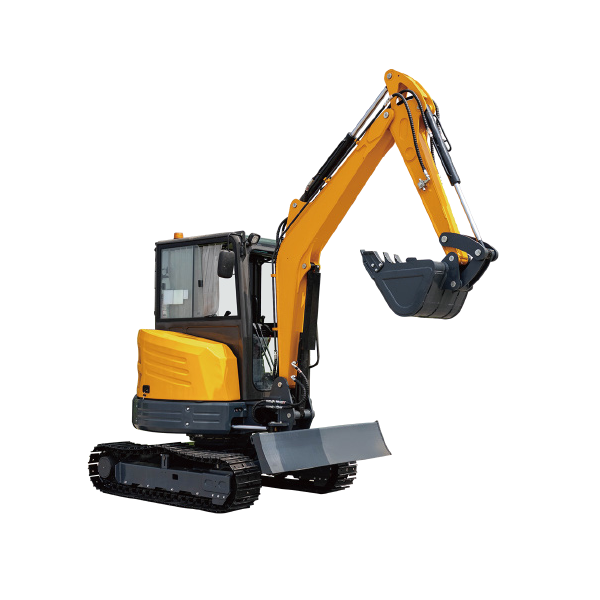

HT35 mini excavator

HT35 Mini Excavator — 3.9-Ton Class Crawler with Kubota D1703

HT35 is the flagship model in Shandong Hightop's mini excavator lineup with an operating weight of 3989 kg (~4 tons). Powered by a Kubota D1703 three-cylinder direct-injection diesel engine (18.5 kW / 22 HP @ 2200 RPM). Features a high-pressure 24 MPa hydraulic system with 79.2 L/min flow rate, industry-leading 30.4 kN bucket breakout force and 18.2 kN arm digging force. Delivers max digging depth of 3106 mm, digging height of 4938 mm, and extraordinary 5175 mm digging reach. Standard ROPS/FOPS enclosed cab.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

HOT SALEKUBOTA D1703

HT35 Mini Excavator — 3.9-Ton Class Crawler Excavator

HT35 — The flagship of the HT mini excavator series. Operating weight 3989 kg (~4 tons), powered by a Kubota D1703 three-cylinder direct-injection diesel engine delivering 18.5 kW (22 HP) @ 2200 RPM. Features a high-pressure 24 MPa hydraulic system, industry-leading 30.4 kN breakout force, 5175 mm digging reach, and 0.12 m³ standard bucket capacity. Comes standard with a fully enclosed ROPS/FOPS-certified cab. Multiple factory colors available.

3989 kg Operating Weight
Kubota D1703 Engine
30.4 kN Breakout Force
5175 mm Reach
24 MPa Hydraulic

Product Overview — Flagship 4-Ton Class Performance

The HT35 stands as the largest and most capable model in China’s complete mini excavator product lineup, bridging the gap between traditional mini excavators and full-size compact crawler excavators. With an operating weight of 3989 kg (just under 4 metric tons), it delivers earthmoving capabilities that significantly exceed smaller models while maintaining the maneuverability and transportability advantages that make mini excavators so versatile globally.

At the heart of the HT35 lies the proven Kubota D1703 three-cylinder direct-injection diesel engine producing 18.5 kW (22 HP) @ 2200 RPM. This powerplant drives a high-performance hydraulic system operating at 24 MPa with a flow rate of 79.2 L/min. The result is a 30.4 kN bucket breakout force — the strongest in the entire HT series — combined with an 18.2 kN arm digging force. These figures place the HT35 in a performance tier typically occupied by much heavier machines.

The working envelope is equally impressive: 3106 mm of maximum digging depth, 4938 mm of digging height, and an extraordinary 5175 mm (over 5 meters!) of maximum digging reach. A 0.12 m³ standard bucket capacity ensures maximum material movement per cycle. The HT35 comes standard with a fully enclosed ROPS/FOPS-certified cab, reflecting its positioning as a premium professional-grade machine built for serious contractors and rental fleet operators who demand maximum productivity from their investment.

Key Specifications

HT35 Technical Specifications Summary
Parameter Specification Parameter Specification
Operating Weight 3989 kg (~3.99 Tons) Engine Model Kubota D1703 Diesel
Rated Power 18.5 kW (22 HP) @ 2200 RPM Bucket Capacity 0.12 m³
Hydraulic Pressure 24 MPa System Flow Rate 79.2 L/min
Bucket Breakout Force 30.4 kN Arm Digging Force 18.2 kN
Max Digging Depth 3106 mm Max Digging Height 4938 mm
Max Digging Reach 5175 mm Max Dumping Height 3376 mm
Travel Speed (H/L) 4.2 / 2.4 km/h Swing Speed 9 RPM
Gradeability 58% Fuel Tank 50 L
Hydraulic Tank 55 L Enclosed Cab Standard (ROPS/FOPS)

Dimensions & Undercarriage Specifications

Overall Dimensions & Chassis Details
Total Length (Transport) 5029 mm (5.03 m) Overall Width 1720 mm
Upper Structure Width 1554 mm Total Height (to Cab Top) 2580 mm (2.58 m)
Track Shoe Width 300 mm — Extra wide for low ground pressure Min Ground Clearance 319 mm
Tail Swing Radius 885 mm Track Ground Contact Length 1645 mm
Total Track Length 2150 mm Blade Lift Height 393 mm
Blade Digging Depth 461 mm Min Swing Radius 2634 mm

Working Range & Performance

Digging Envelope & Operational Parameters
Max Digging Depth 3106 mm (3.11 m) Max Dumping Height 3376 mm (3.38 m)
Max Digging Height 4938 mm (4.94 m) Max Digging Reach 5175 mm (5.18 m)
Min Swing Radius 2634 mm (2.63 m) Height at Min Radius 3716 mm
Swing Speed 9 RPM Gradeability 58% (Excellent slope climbing)
Bucket Digging Force 30.4 kN (~3100 kgf) Arm Digging Force 18.2 kN (~1856 kgf)
Travel Speed (High Gear) 4.2 km/h Travel Speed (Low Gear) 2.4 km/h

Engine & Power Train

Kubota D1703 Diesel Engine — Premium Powerplant
Engine Model Kubota D1703 — 3-Cylinder, 4-Stroke, Water-Cooled, Direct-Injection Diesel
Rated Power 18.5 kW (22 HP) @ 2200 RPM
Emission Compliance Euro5 / EPA Certified for EU & North American export markets
Fuel Tank Capacity 50 L — Extended runtime for full-day operation without refueling
Global Parts Network Kubota authorized dealer network in 100+ countries for filters, injectors, gaskets & service kits

Hydraulic System Components

24 MPa High-Pressure Professional Hydraulic System
System Pressure 24 MPa — High pressure enabling 30.4 kN breakout force
System Flow Rate 79.2 L/min — High-volume flow for fast cycle times and smooth multi-function operation
Main Pump HP5V45/AV10RB2S2MGA-L/1/1-HT1 — Axial piston variable displacement pump (40 cc displacement)
Main Control Valve HVSE-09-09-P270-BE212 — Precision main valve distributing flow to all circuits
Travel Motor Variable displacement piston motor — Dual-speed (high: 4.2 km/h / low: 2.4 km/h)
Swing Motor Max Speed 3250 r/min — High-speed swing motor for responsive house rotation
Hydraulic Tank Capacity 55 L — Generous volume for sustained heavy-duty thermal management
Cooling System 5.05 L capacity ensures consistent temperature during extended operation

Key Selling Points — Why the HT35 Stands Out

Flagship 4-Ton Class Power The 30.4 kN breakout force and 18.2 kN arm force represent the absolute peak performance in Shandong Hightop’s mini excavator range. Capable of handling compacted clay, light rock, frozen ground, and demanding earthmoving tasks that smaller machines cannot touch.
Industry-Leading Reach 5175 mm (over 5 meters) of maximum digging reach is exceptional for any machine in this weight class. Enables operators to dig under building overhangs, reach across obstacles, and work around existing structures without frequent repositioning.
24 MPa High-Pressure Hydraulics Professional-grade HP5V45 axial piston pump + HVSE main valve at 24 MPa system pressure with 79.2 L/min flow rate. This combination delivers the hydraulic muscle behind every one of the 30.4 kN breakout force specifications.
Dual-Speed Travel System Variable displacement piston travel motor provides 4.2 km/h high gear for efficient job-site transit and 2.4 km/h low gear for maximum drawbar pull when climbing steep slopes or pushing through difficult ground conditions.
Standard Enclosed Cab Unlike smaller models where the cab is optional, the HT35 comes standard with a fully ROPS/FOPS-certified enclosed cab. Full glass enclosure, sealed door, ergonomic station, and climate-ready design for year-round professional operation.
58% Gradeability Exceptional 58% gradeability enables confident operation on embankments, ramps, hilly job sites, and uneven terrain where many competing machines would struggle or lose traction.

Application Scenarios

Road Construction Utility trenching along roadways, culvert installation, shoulder grading, drainage ditch excavation, asphalt removal prep
Commercial Landscaping Large-scale land clearing, pond/lake edge work, tree stump removal, boulder extraction, major earthmoving projects
Demolition Prep Light structural demolition, concrete slab breaking (with hammer attachment), foundation removal, debris sorting
Agriculture & Farming Irrigation canal digging, fence post hole excavation, barn foundation work, livestock facility construction, orchard land preparation
Pipeline & Utilities Deep trenching for water/gas/sewer lines (3106 mm depth covers most utility depths), fiber optic cable burial, backfilling operations
Rental Fleet Operations Premium rental category — high daily utilization, low maintenance requirements, enclosed cab reduces weather downtime, strong resale value

OEM & Customization Options

Custom Paint Color Any factory standard color plus custom RAL code matching for your exact corporate brand identity
Private Label / White Label Your logo on machine body, your brand on operator manuals and parts catalogs — complete white-label solution
Attachment Package Quick coupler, various bucket sizes, hydraulic breaker, auger, grapple, ripper tooth — configured per market demand
Cab Configuration Standard enclosed ROPS/FOPS cab included; open canopy option available for cost-sensitive markets or tropical climates
Language & Documentation Operator manual, parts catalog, and safety documentation translated into English, Spanish, Russian, Arabic, French, etc.
Certification Support CE marking, EPA compliance, ISO certification support available for regulated market entry requirements

Why Choose Archer Machinery?

Established Since 2017 JINAN ARCHER TRADE CO., LTD has specialized in exporting Chinese construction machinery since 2017 with deep manufacturer relationships ensuring priority allocation and competitive pricing.
Authorized Brand Partner Direct partnership with XCMG, SANY, Zoomlion, Shantui, SDLG, YTO, SINOTRUK, SHACMAN, FAW — full product range from one reliable source.
Global Shipping Expertise FOB/CIF/DDP shipping to 60+ countries. Experienced with customs clearance, export documentation, and container consolidation for multiple units.
OEM Private Label Complete white-label capability: your logo, your colors, your brand. We handle production coordination so you can focus on sales and distribution.
Spare Parts Supply Chain Kubota D1703 engine parts, HP5V45/HVSE hydraulic components, wear parts, seals, and attachments shipped worldwide via DHL/FedEx air freight or sea freight consolidation.
Multi-Language Support English, Spanish, Russian, Arabic, French communication. Time zone-friendly response from our international trade team in Jinan, China.

Get HT35 Mini Excavator Quote Today

Shandong Hightop HT35 — 3989 kg operating weight, Kubota D1703 diesel 18.5kW, 24 MPa hydraulic, 30.4 kN breakout force, 5175 mm digging reach, 0.12m³ bucket, enclosed cab standard. FOB China pricing for global B2B buyers.

Related Products

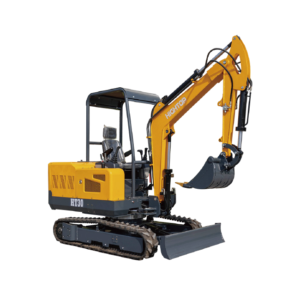

HT30 Mini Excavator — 3-Ton Class Crawler with Boom Swing

HT30 Mini Excavator — 3-Ton Class Crawler with Boom Swing

HT30 is a 3-ton class (3000 kg) mini crawler excavator powered by a Kubota water-cooled direct-injection diesel engine (14.2 kW / 20 HP @ 2000 RPM) with full Euro5 / EPA emission compliance. Delivers max digging depth of 2450 mm,…

HT-10BZ Mini Excavator 1.0-Ton Crawler Digger with Steel Hydraulic Hoses

HT-10BZ Mini Excavator | 1.0-Ton Crawler Digger with Steel Hydraulic Hoses

HT-10BZ is the comfort-upgrade edition in China 1-ton mini excavator series. Five factory-installed upgrades included standard: steel-braided hydraulic hoses, ergonomically adjustable seat, instrument dashboard panel, cylinder protection guards, and sound insulation. Briggs & Stratton or Kopu gasoline engine, multiple color…

LOVOL Crawler Excavators — 1.6T to 150T

LOVOL Crawler Excavators — 1.6T to 150T

LOVOL FR Series crawler excavators 1.6T to 150T with Weichai Deutz engines & Kawasaki/Rexroth hydraulics. Mini, medium & large mining excavators. Factory-direct B2B export, global delivery.

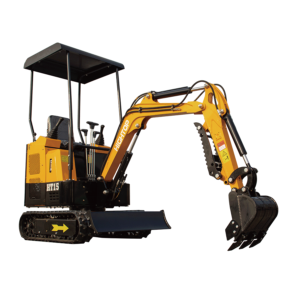

HT15 Mini Excavator 1.5-Ton Crawler Digger with 8 Variants Including Pure Electric
